Product Information
Streamline your electrical projects with our Quick Clamp Terminal Connectors. Designed for speed, safety, and reliability, these solderless electrical connectors replace cumbersome wire nuts and messy soldering, allowing you to create secure connections in seconds. The intuitive push-in lever design ensures a firm grip on both solid and stranded wires, making them ideal for everything from professional LED lighting installations to DIY home wiring. Our versatile push-in terminals are essential LED light strip accessories for any installer looking to save time without compromising on quality. Choose from four different configurations (2-in-4, 2-in-6, 3-in-6, and 3-in-9) to perfectly match the needs of your project, ensuring clean and organized power distribution every time.
Key Features
Rapid Tool-Free Installation
The push-in lever mechanism allows you to connect and disconnect wires in seconds without any tools, dramatically speeding up your workflow.
Versatile Configurations

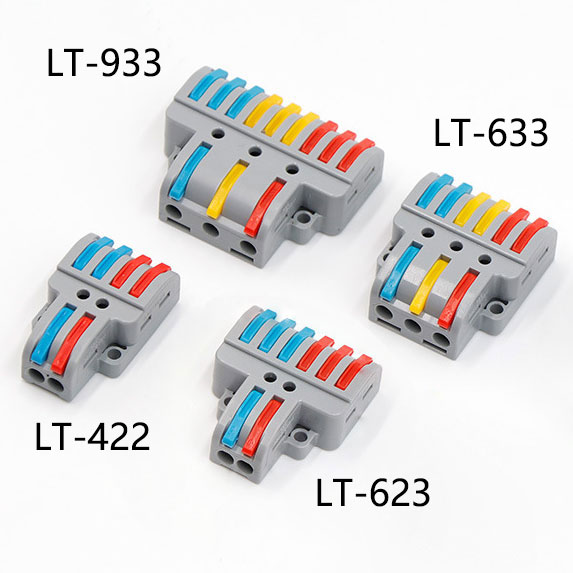

Available in four models (LT422, LT623, LT633, LT933) to split 2 or 3 inputs into 4, 6, or 9 outputs, providing flexible solutions for power distribution.
Secure & Reliable Connection
Strong clamping force ensures a tight, vibration-resistant connection that is superior to traditional twist-on connectors, preventing accidental pull-outs.
Broad Wire Compatibility
Accepts a wide range of wire sizes from 28 to 12 AWG, and is compatible with both solid-core and stranded wires for maximum project flexibility.
Reusable & Cost-Effective
Easily open the levers to remove or replace wires, making these connectors fully reusable for prototyping, testing, or reconfiguring your setups.
Compact & Organized Wiring
These compact splice electrical connectors help you create neat and tidy connections inside junction boxes, light fixtures, and other tight spaces.
Technical Highlights
- Flame-retardant PC housing for enhanced safety.
- High-conductivity tinned copper contacts for minimal voltage drop.
- Test port for checking voltage without disconnecting wires.
- Rated for up to 450V and 32A, suitable for a wide range of low-voltage and residential AC applications.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | Con-Clamp-Ter |

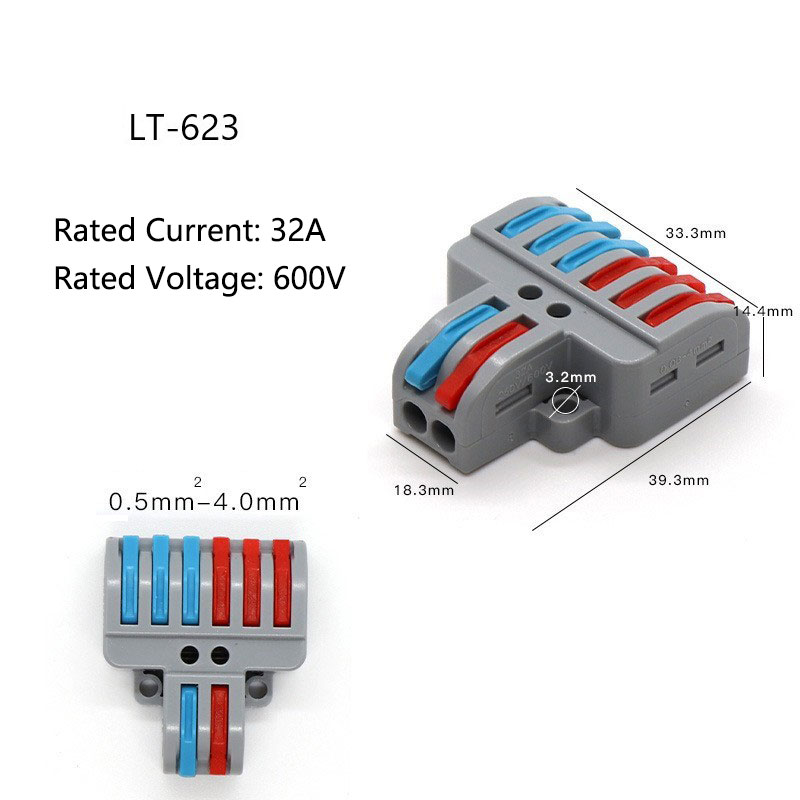

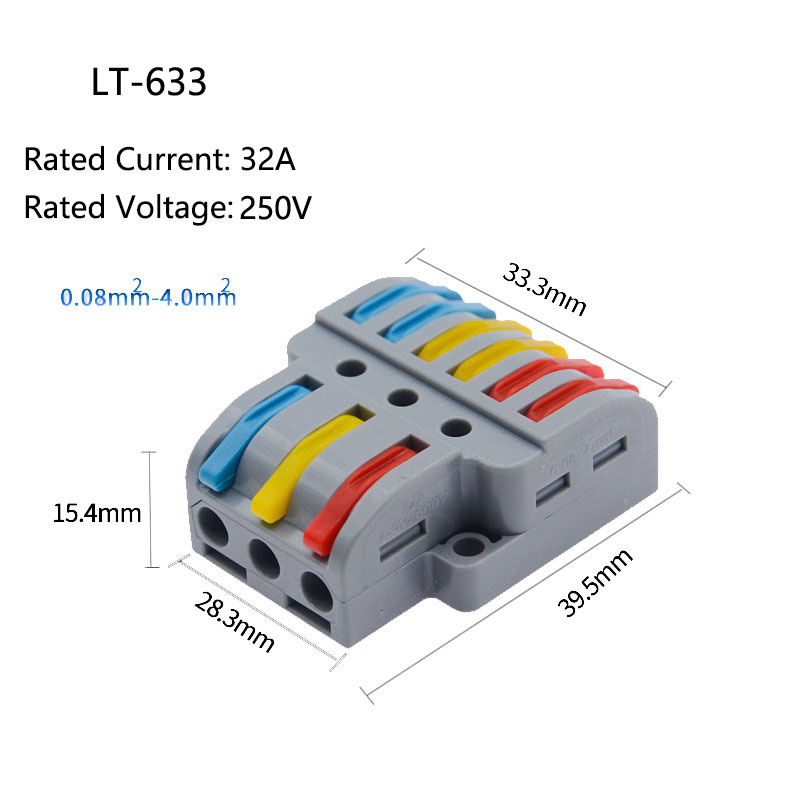

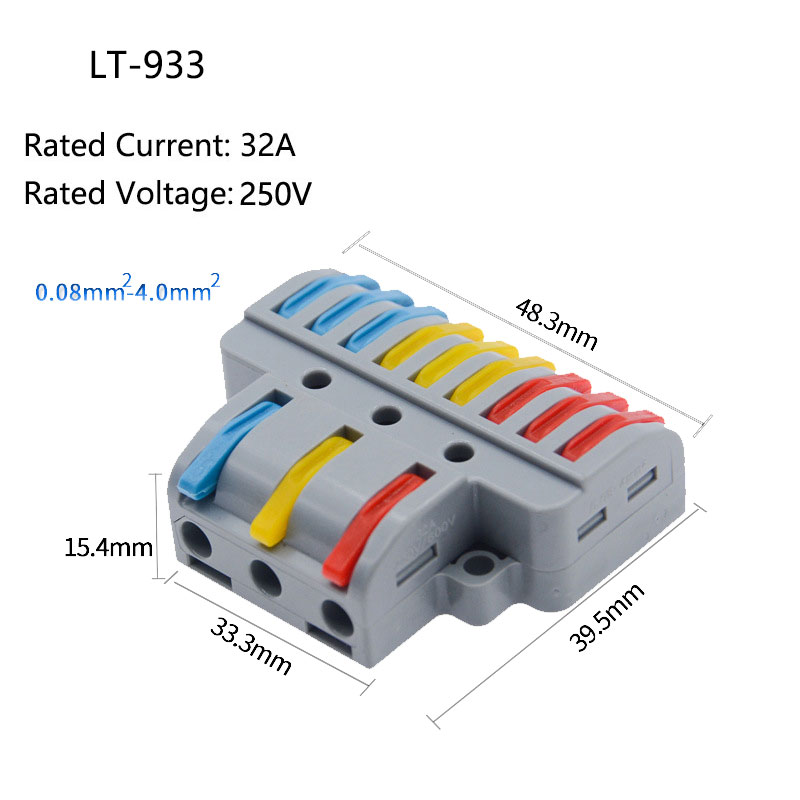

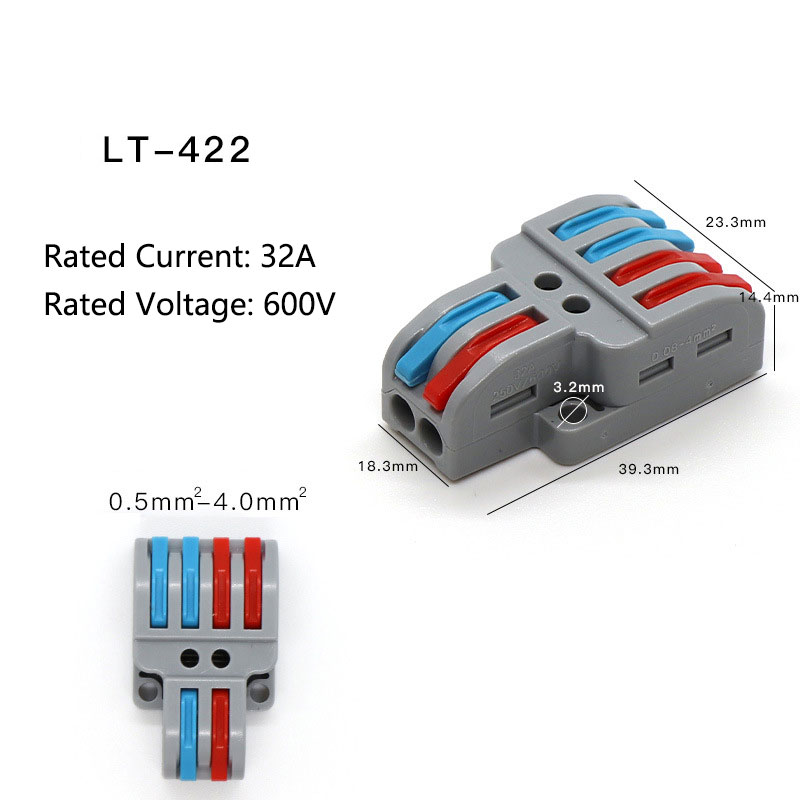

| Available Types | LT422 (2 in 4), LT623 (2 in 6), LT633 (3 in 6), LT933 (3 in 9) |
| Connector Style | Push-In Lever Clamp |
| Rated Voltage | 450V |
| Rated Current | 32A |
| Compatible Wire (Solid) | 0.08-4.0mm² (28-12 AWG) |
| Compatible Wire (Stranded) | 0.08-2.5mm² (28-14 AWG) |
| Required Strip Length | 11-12 mm / 0.43-0.47 inches |
| Housing Material | Flame-Retardant Polycarbonate (PC) |
| Contact Material | Tinned Copper |
| Operating Temperature | -25°C to 85°C |
Application Scenarios

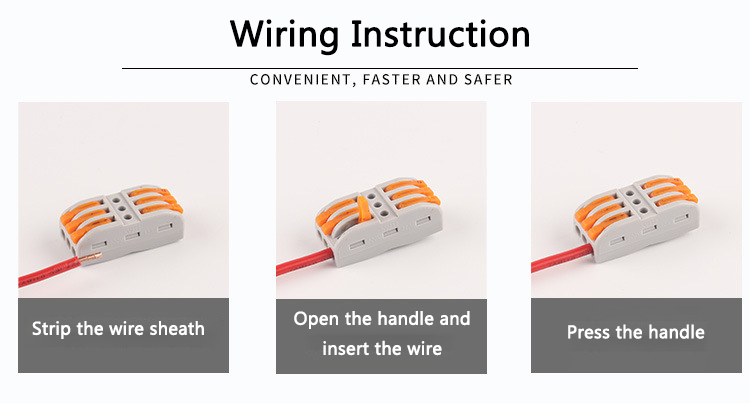

How to Use These Quick Wire Connectors
- Ensure the power source is turned off before starting any electrical work.
- Use a wire stripper to remove 11-12mm (approx. 7/16 inch) of insulation from the end of each wire.
- Lift the orange lever of the connector to the open (vertical) position.
- Insert the stripped wire end completely into the terminal port.
- Firmly press the lever down until it snaps shut, flush with the connector body. You should feel it clamp the wire.
- Gently tug on the wire to confirm it is secure. Repeat for all wires.
- Only use with copper wires. Do not use with aluminum wires.
- Ensure wires are within the specified gauge range (28-12 AWG).
- Do not exceed the maximum rated voltage (450V) or current (32A).
- These connectors are intended for use in dry locations. For wet environments, they must be housed in a suitable waterproof enclosure.
What's in the Box
- ✓1x Quick Clamp Terminal Connector (Model of your choice)
Frequently Asked Questions
Q: What is the difference between the LT422, LT623, LT633, and LT933 models?
A:The model numbers indicate the input and output configuration. For example, LT422 is '2-in-4-out', LT623 is '2-in-6-out', LT633 is '3-in-6-out', and LT933 is '3-in-9-out', allowing you to choose the best splitter for your needs.
Q: Can I use these connectors with both solid and stranded wires?
A:Yes, these connectors are designed to work securely with both solid-core and stranded copper wires within the 28-12 AWG range.
Q: Are these lever-style connectors reusable?
A:Absolutely. Simply lift the lever to release the wire. This makes them perfect for temporary setups, prototyping, or projects that may require future modifications.
Q: Do I need any special tools for installation?
A:No, aside from a standard wire stripper, these connectors are completely tool-free. The push-in and clamp-down mechanism is operated by hand.
Q: Are these electrical splice connectors waterproof?
A:No, these connectors are not waterproof and are designed for use in dry, indoor locations. For outdoor or wet applications, they must be placed inside a certified waterproof junction box.
Q: How do these compare to traditional wire nuts?
A:These lever connectors provide a more secure, reliable, and inspectable connection than wire nuts. They are also faster to install and are reusable, offering significant advantages in ease of use and performance.
