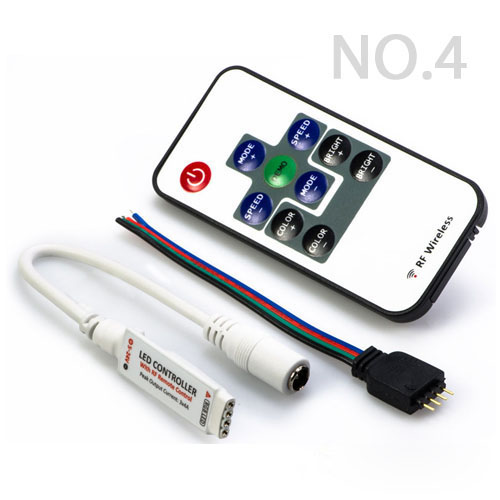

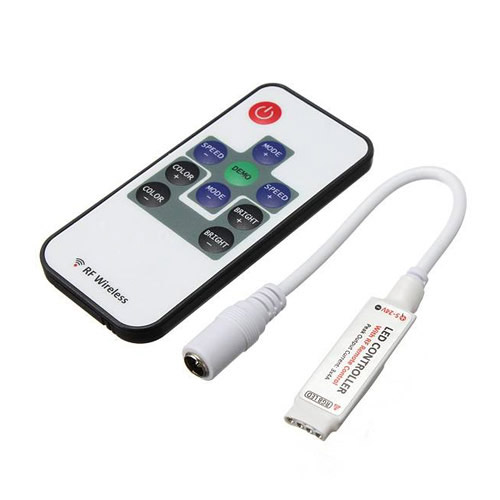

DC5-12/24V Max 12A 4A3CH, LED RGB MINI Wireless RF Infrared Controller For RGB LED Light Strips or Modules
Our Mini LED controller kit is with such a purpose. This time, we combined the mini controller with RF remote, providing a more convenient way to realize the best visual effect of your RGB strip. About the Mini Controller: this mini controller is tiny in its size(easy to be concealed) but great in its function. Through connecting with this controller, it will be able to control the LED RGB strips bu the accompanied RF controller,achieving different modes and colors. Brightness adjustable, Adjust the light soft and stable, no flickering. Easy to install and simple to use. Use for single color strip and LED lamps, such as wash wall lamp, glass curtain wall light. Constant voltage and constant current output. The RF wireless remote signal can pass through barrier, it gets a longer control distance(about 15 meters at open area) so it is not necessary to aim at the main unit when operating.

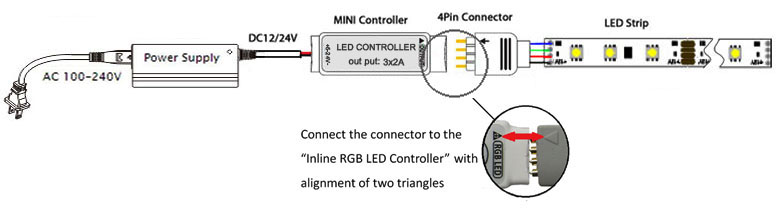

Controller: Female connector on the other side for connecting with power supply
Input voltage: 5V-24V/DC
Working current: 12A
Output : 3 channels, common anode connection
Overall dimension: 1.6(L) x 0.5(W) x 0.2(H) inch
Operating Temperature: -25~60°C
Output Power: 144W @ 12V / 288W @ 24V
Control distance: 15 meters
IR Remote Control:
Power: CR2025 battery
Fabrication processing: Multicolor printing & UV varnish
Functions: color changing and brightness dimming
Interior Decoration: Club, bar, corridor, room, hotel, museum, christmas, holiday etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, etc
Supply voltage of this product is 5/12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
1x Mini RGB controller
1x RF wireless remote
1x User Manual
