DC12/24V Single Row High Brightness 5050SMD 240LEDs Single Color Flexible LED Strip Lights, 16.4Ft per roll by sale
New Products with high quality and high brightness, be widely used for backlighting

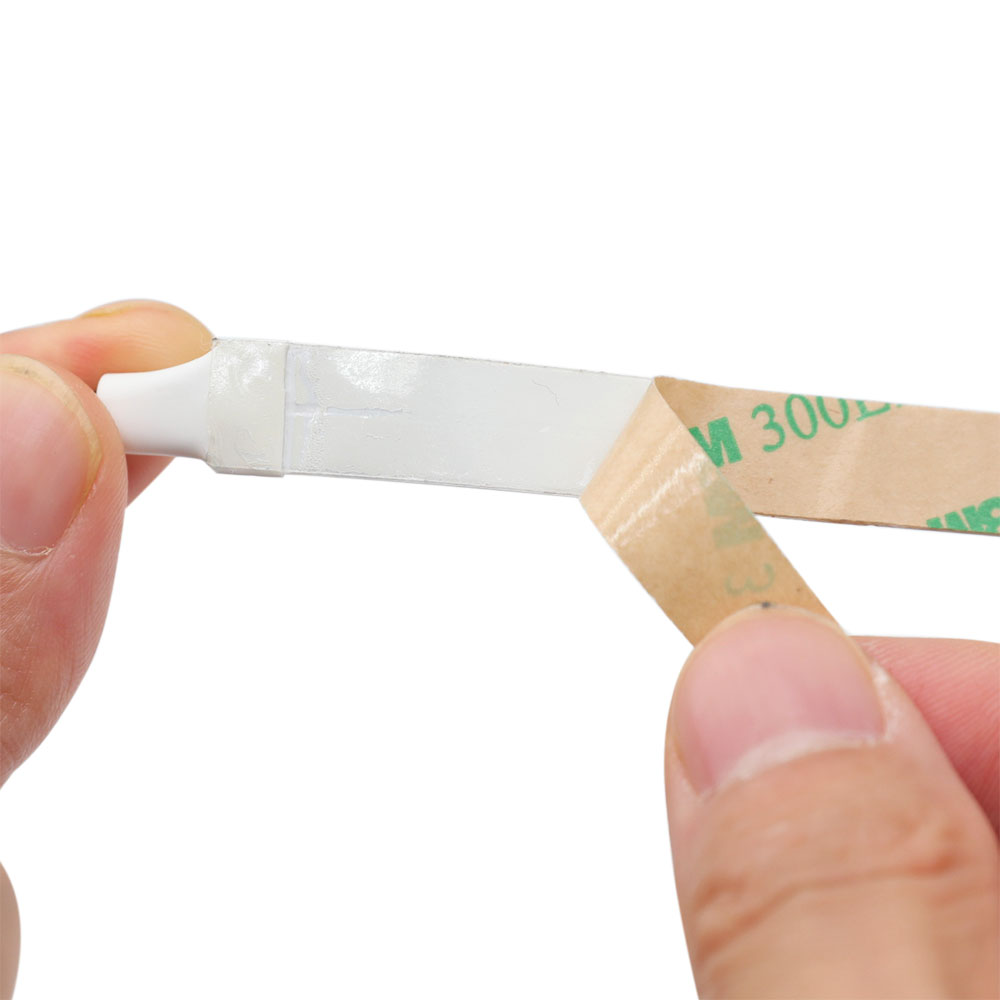

Easy Install, Adhesive tape in the backside
Energy-saving and environmentally friendly, green products
Adopt the SMD5050 LED chip has the character of super brightness
Low heat consumption, no UV or IR light radiation
DC12/24V low voltage, which is undangerous for the body
we provide different waterproof rating led strip light, you can choose by your application place.

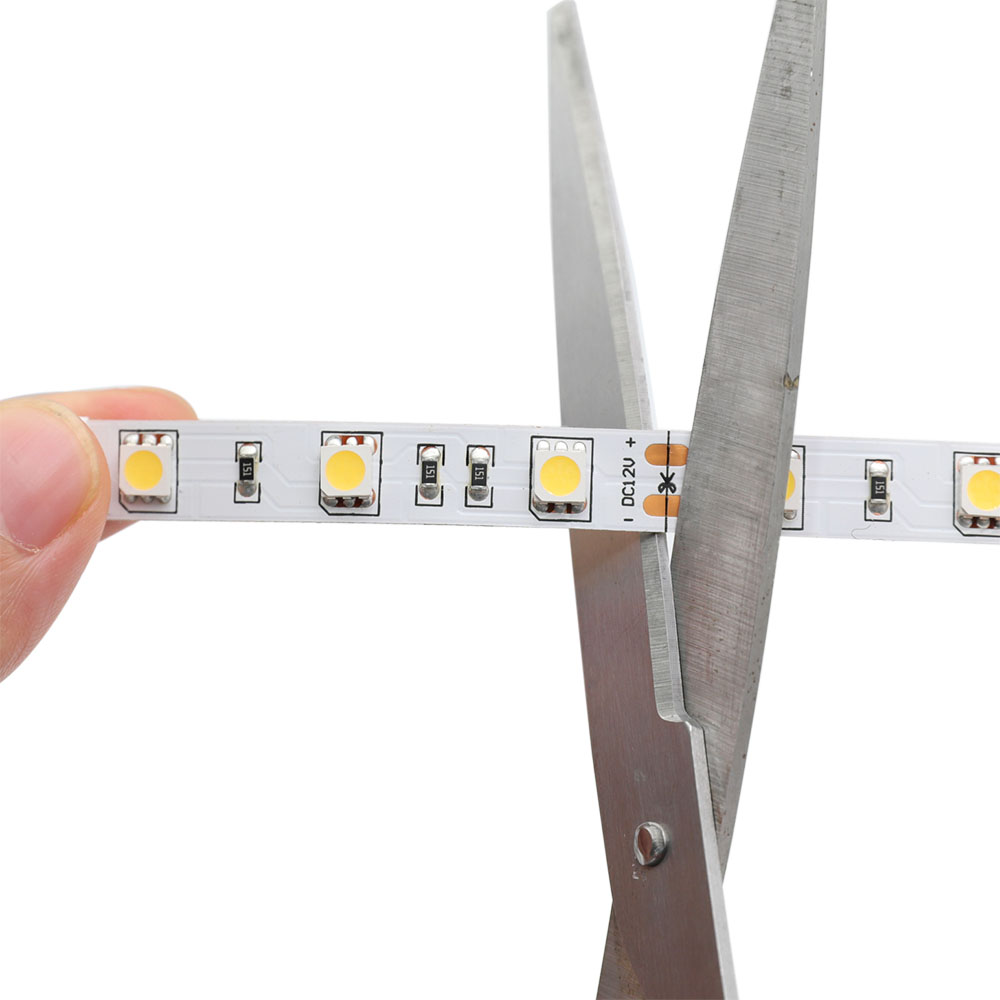

DC12V 3 LEDs cuttable; DC24V 6LEDs cuttable. you can customize the length.
Standards and Certifications
LED Strip Type: SMD 5050
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Single color(Daylight white, Nature white, Warm white, Red, Green, Blue, Yellow)
LED Quantity: 48 LEDs per 1meter (3.28 ft), 240LEDs/roll
Warantty: 3 years
PCB Width: 10mm/0.39in
PCB Color: White

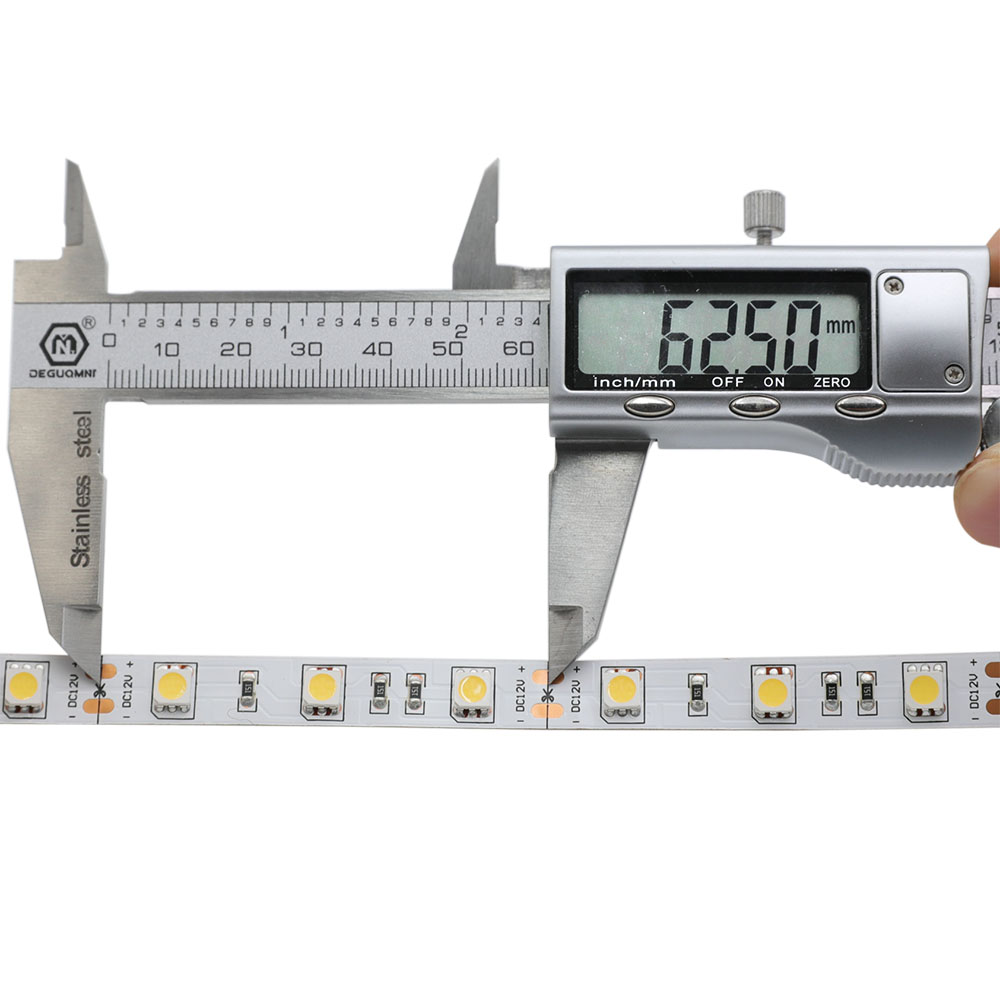

Cutable: DC12V 3 LEDs cuttable; DC24V 6LEDs cuttable
Dimensions: L2000cm(788 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12/24V DC
Working Power: 57.6W/roll Max
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k), Cool White(7500-10000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-waterproof IP20 Waterproof IP65/67/68
CRI (Ra>): 95

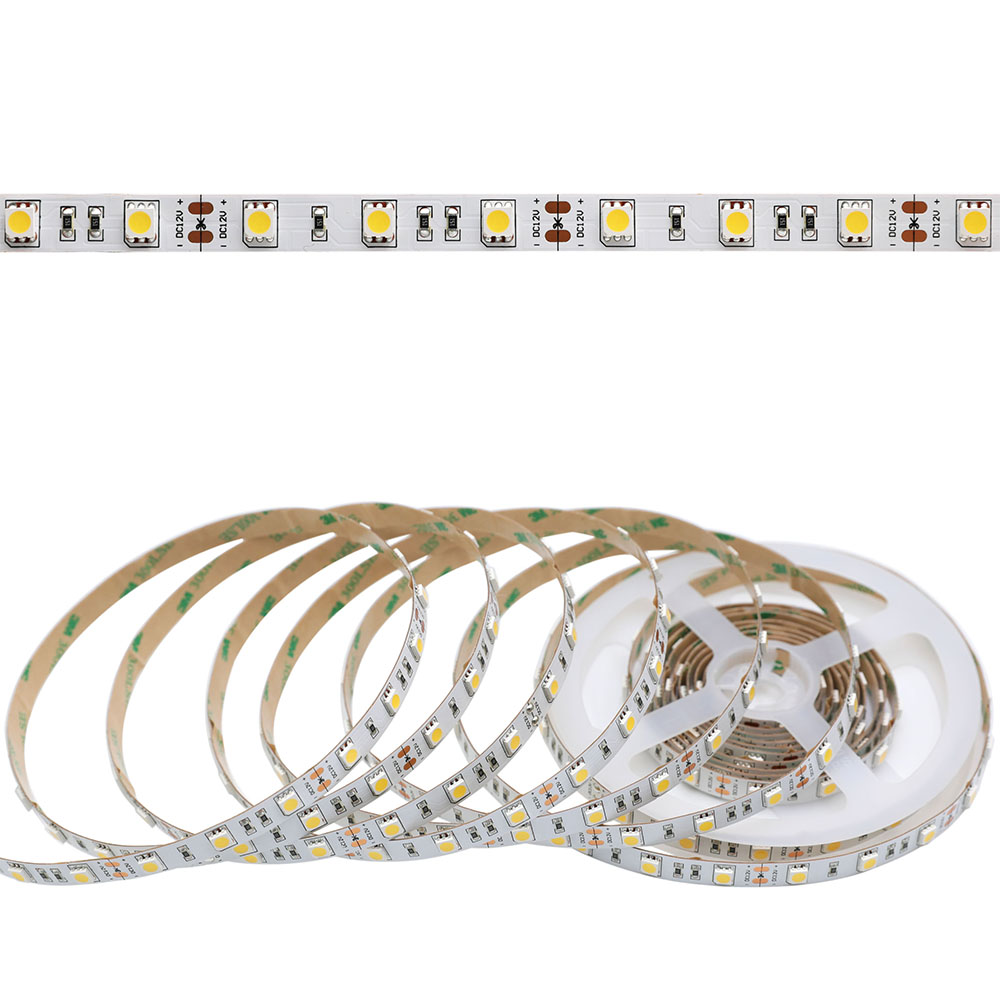

1*5m led strip light
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
