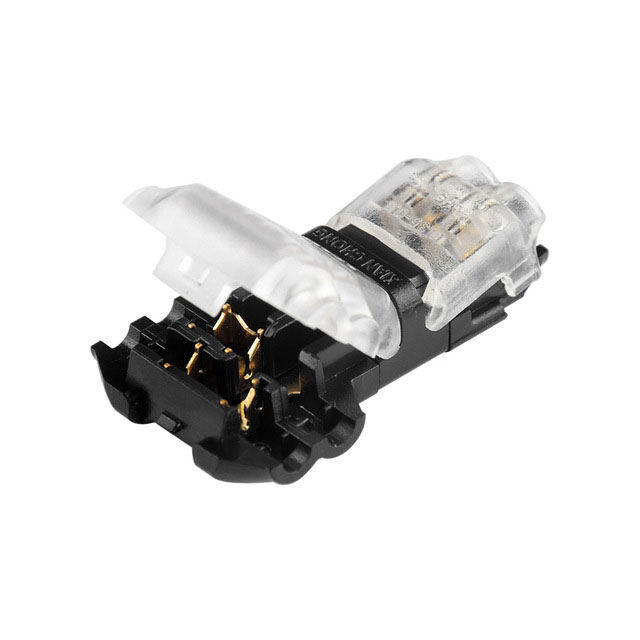

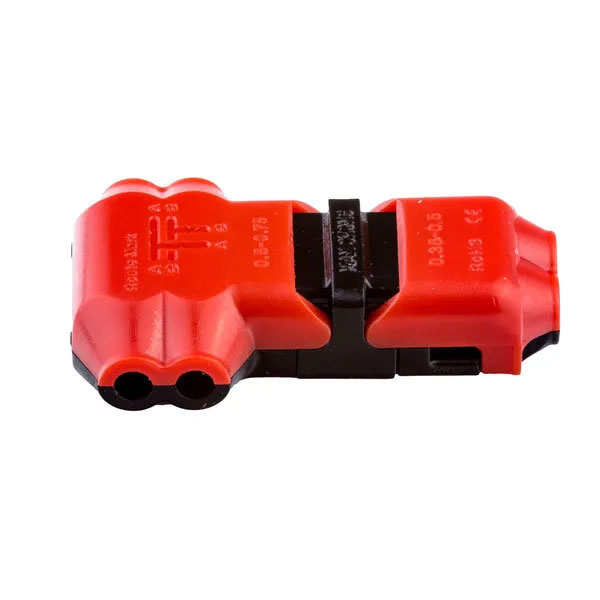

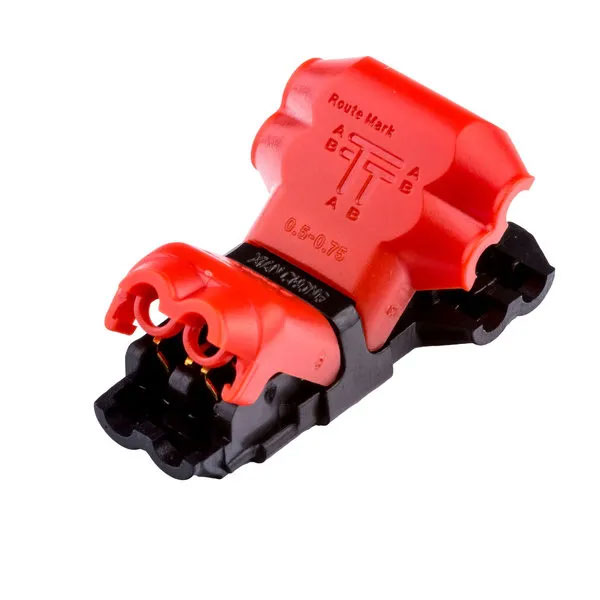

T-Type Wire Clamp Connector For 2 Wires With 18~22AWG

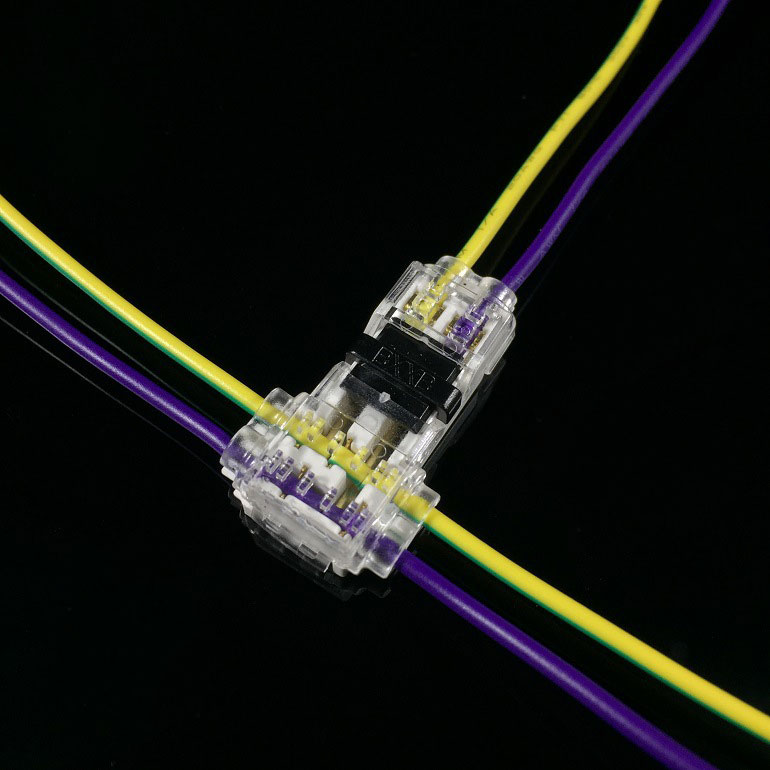

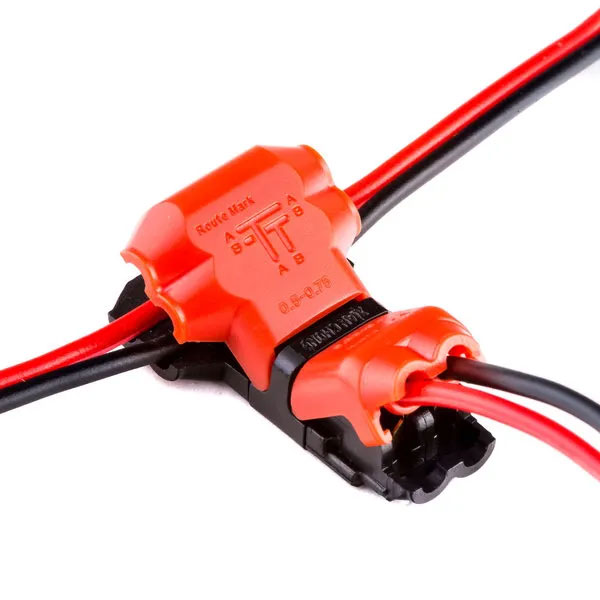

The Wire Clamp Connector is an essential component for any wiring project. Designed to quickly and easily tap into two wires, this connector provides a reliable and secure electrical connection without the need for cutting the wire insulation. Directly put the wires into the holes and clamped them with a plier.
This clamp connector is compatible with wires that have a diameter of 18~22AWG (0.75㎡-0.35㎡), making it suitable for a wide range of applications. It is rated for 0-10A and works under 0-36V. The maximum insulation outer diameter is 2.1mm.
Wire Gauge: 18-22AWG
Rated Current Load: 0-10A
Working Voltage: 0-36V
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
