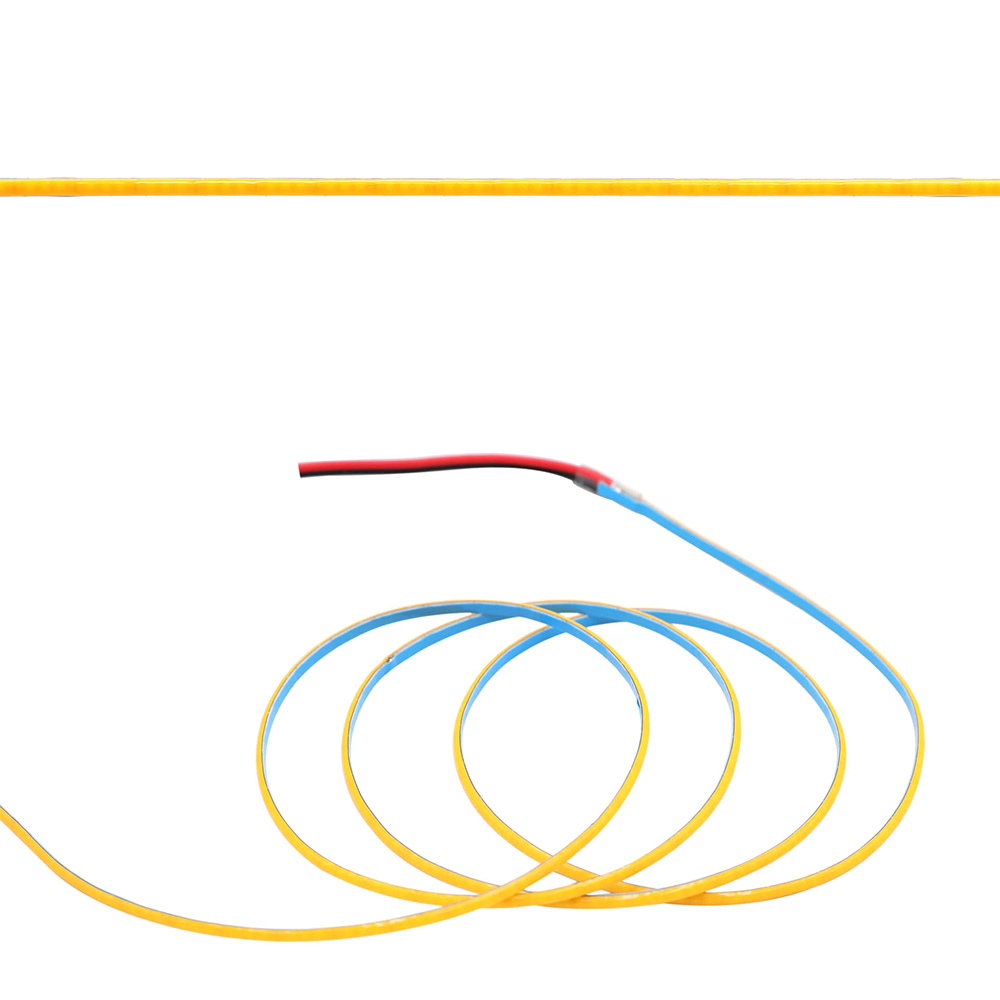

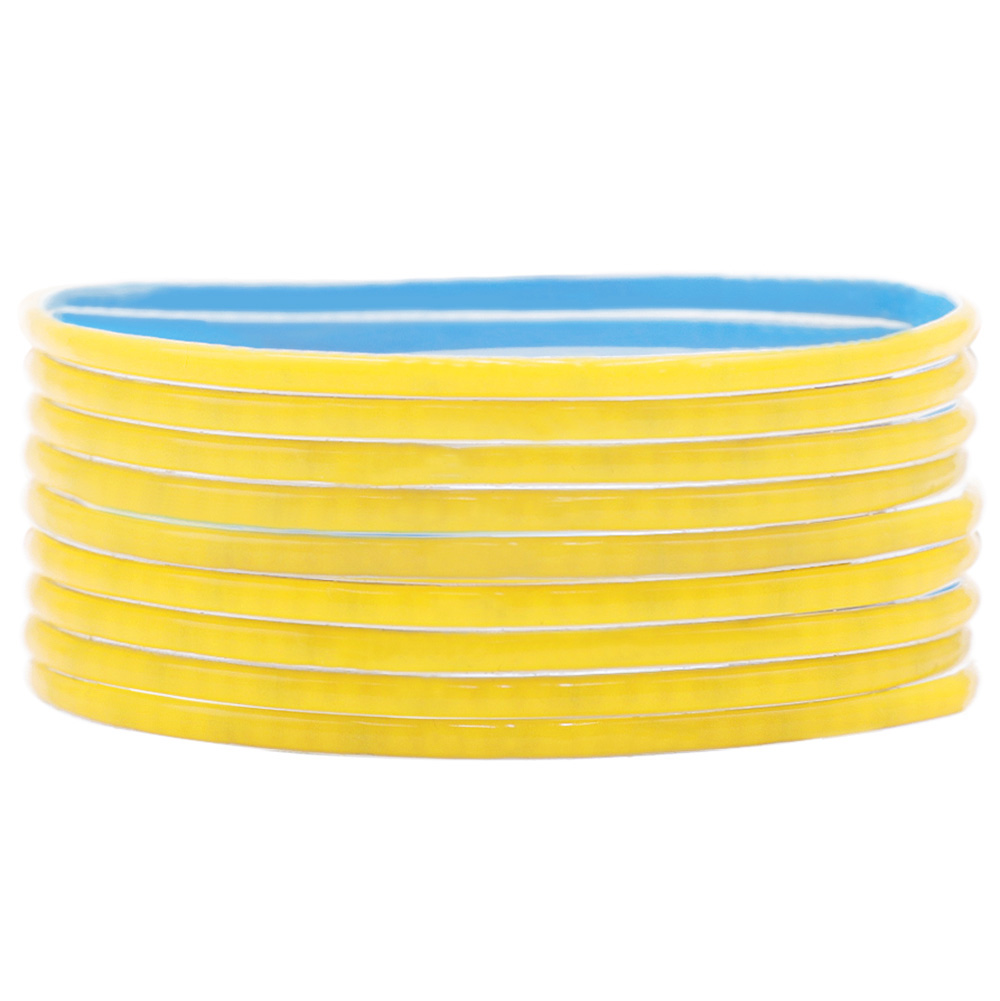

Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90

Model: FSLCOB-12V-480X3
Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
  • Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90

Select Specifications:

Select Length:

Starting at: $30.00 $13.9853% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$13.98
10-39
$13.77
40-79
$13.42
80+
$13.14
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    This COB LED strip adopts high-brightness LEDs, high density 384chips per meter, the whole rolls without light spot, high lumen, encapsulation technology, light efficiency up to 1600LM.

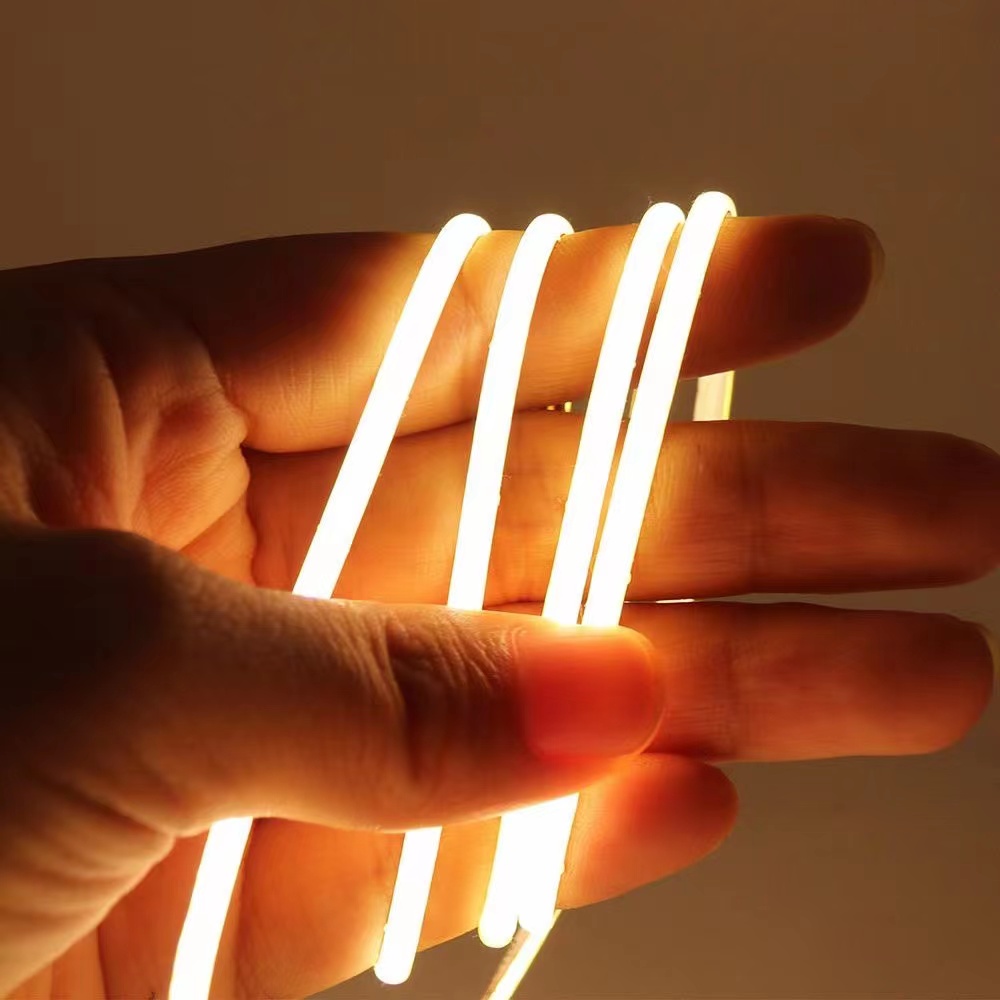

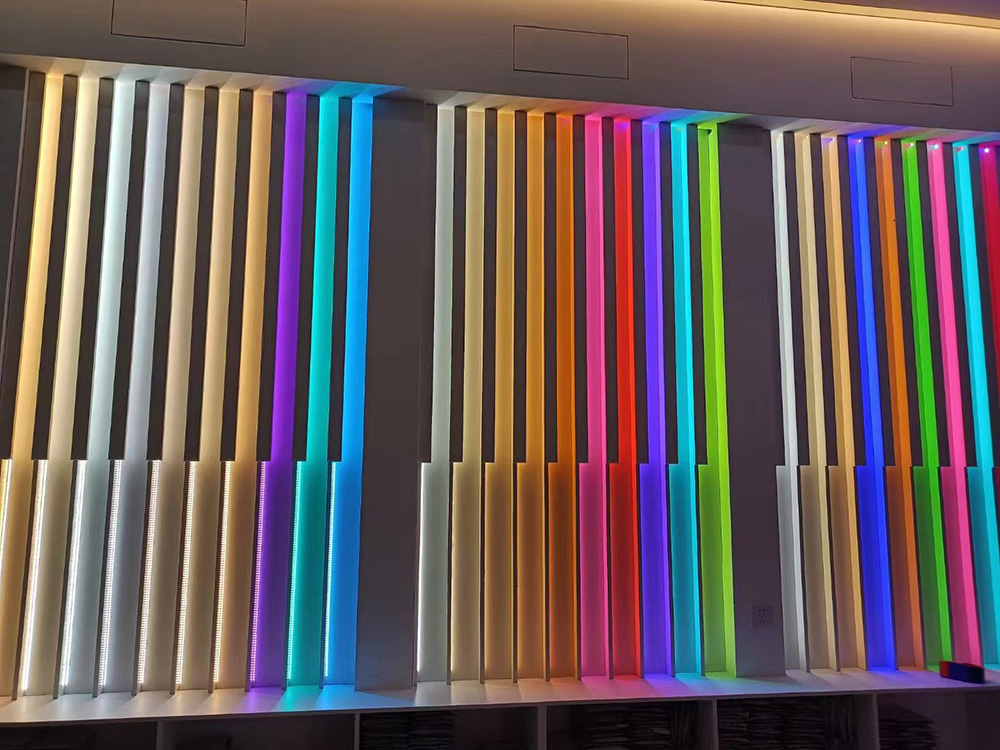

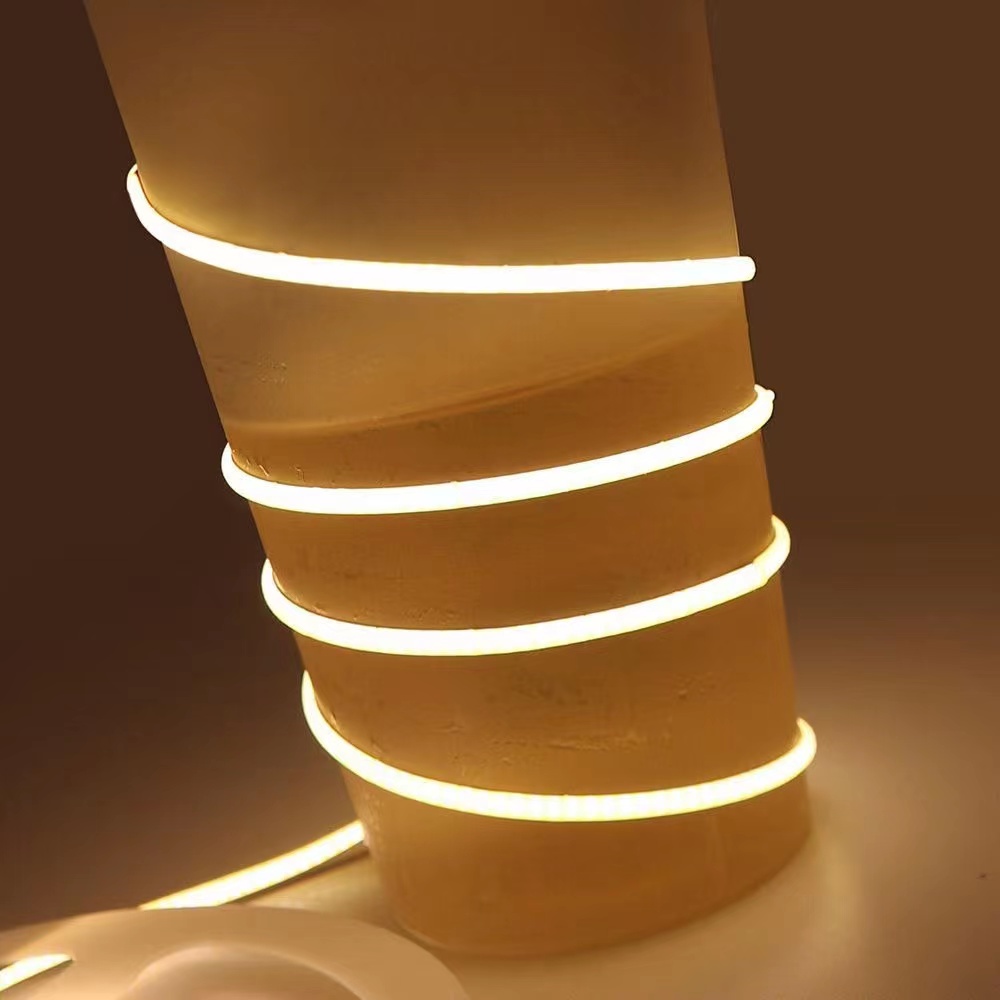

    This 3mm narrow COB led strip supports multiple colors to meet your lighting needs, 12VDC 384LEDs/m are available with all the colors, but 24VDC 384LEDs/m is only available with 3000K warm white, 4000K natural white, and 6000K daylight white. For color purple, it needs 500 meters quantity to produce.

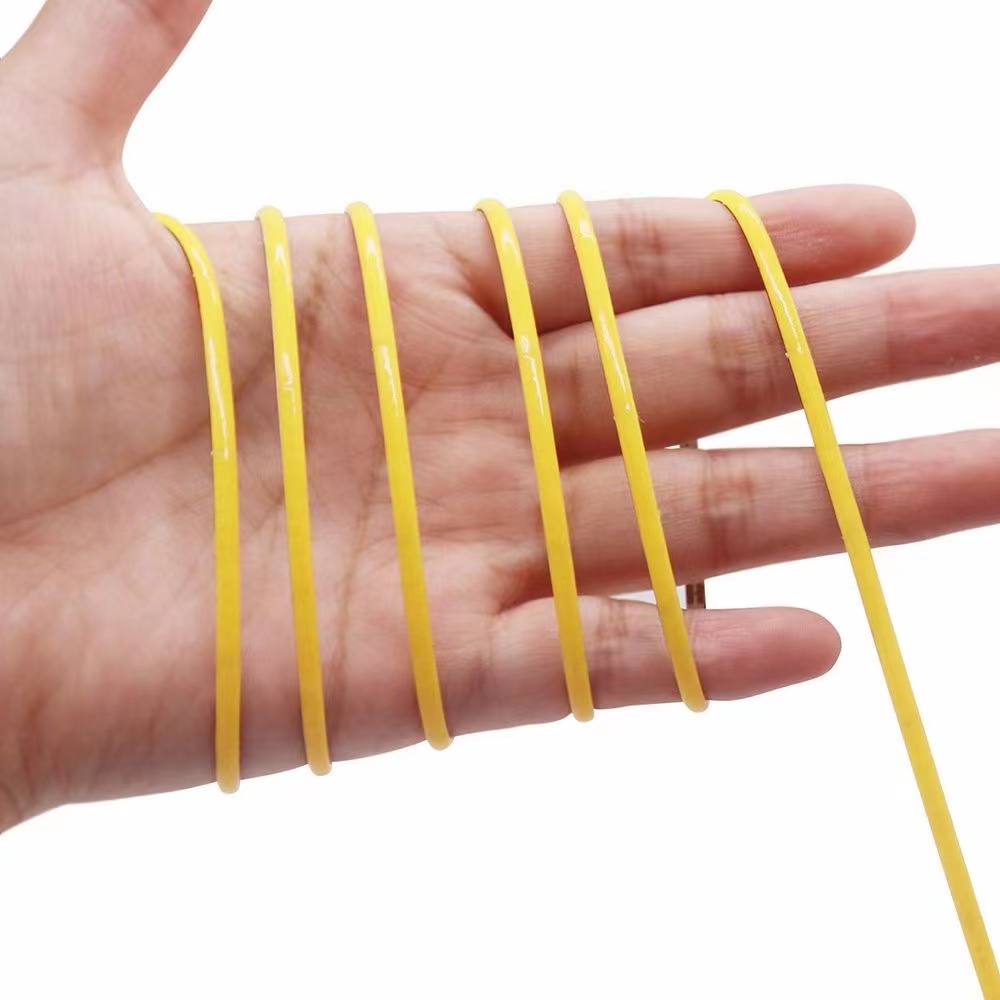

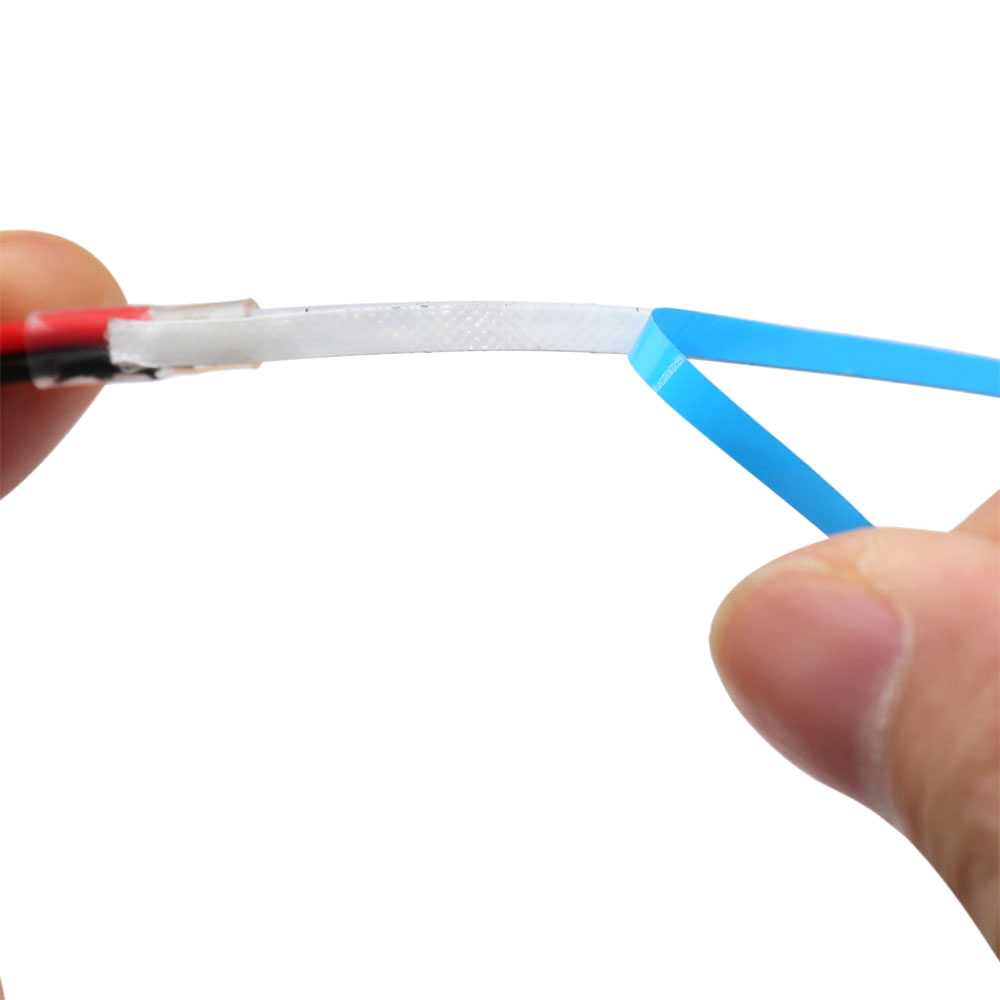

    The narrow led light strip has good load-bearing capacity and resistance to fall. The stool can be folded arbitrarily, with high folding force and strong additional force. It can be used in various shapes.

    Low-voltage ultra thin led strip lights, safe and stable, harmless to the human body, safe to use. The super thin led strip light is ultra-narrow, you can install it in a narrow environment.

    The double-sided adopts FPC gold-plated electrolytic copper wire circuit board, which adopts gold-plating process, which is resistant to oxidation and high temperature.

    If you want to buy a ultra narrow LED strip light kit, we can recommend a suitable controller and power supply for you. Because the power of the narrow led light is small, then we recommend a controller kit for you, which has a controller, and a matching remote controller.



    Standards and Certifications

    DC12V CE FCC UL RoHS ISA SGS ISO LIFETIME warranty led factory

    Product Specification

    LED Strip Type:  COB LED PDF
    LED Chip:  Epistar Chip
    Input Voltage:  DC12V
    Power:  8W/m, 40W/roll
    Working Temperature:  -20℃~+45℃

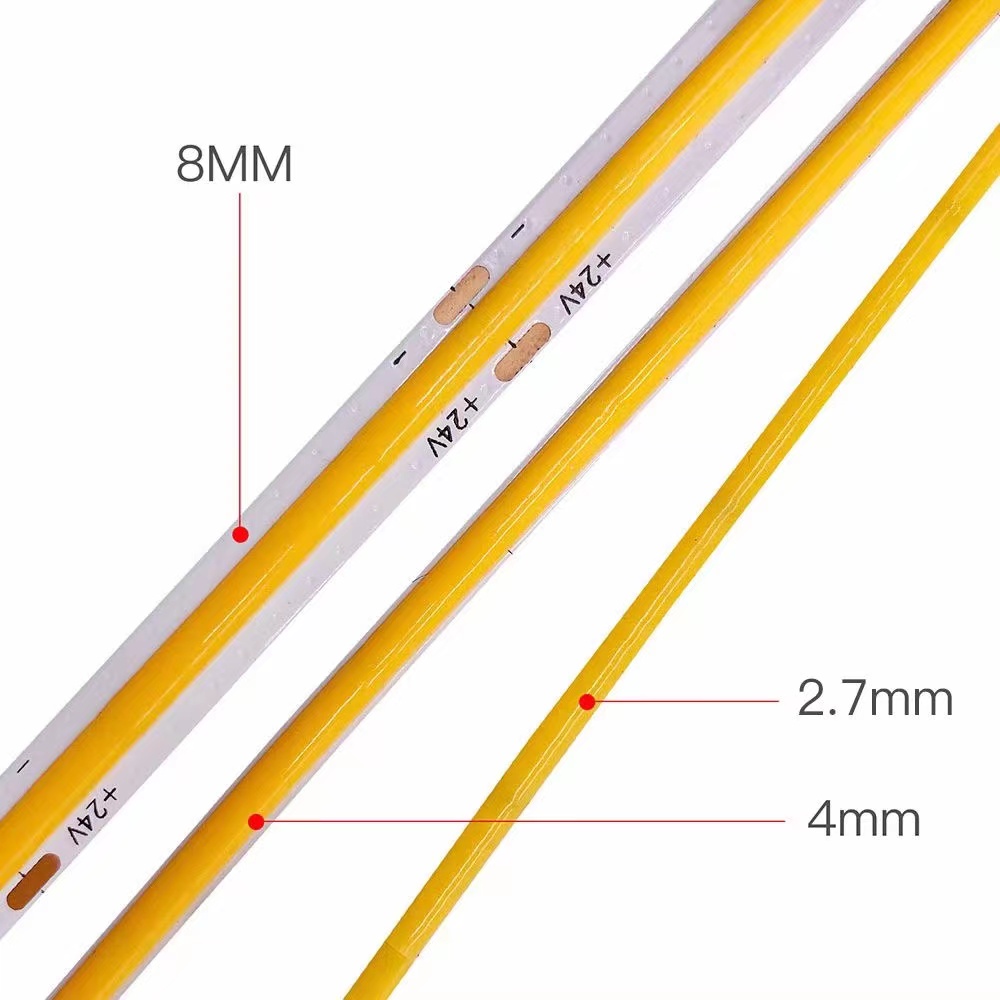

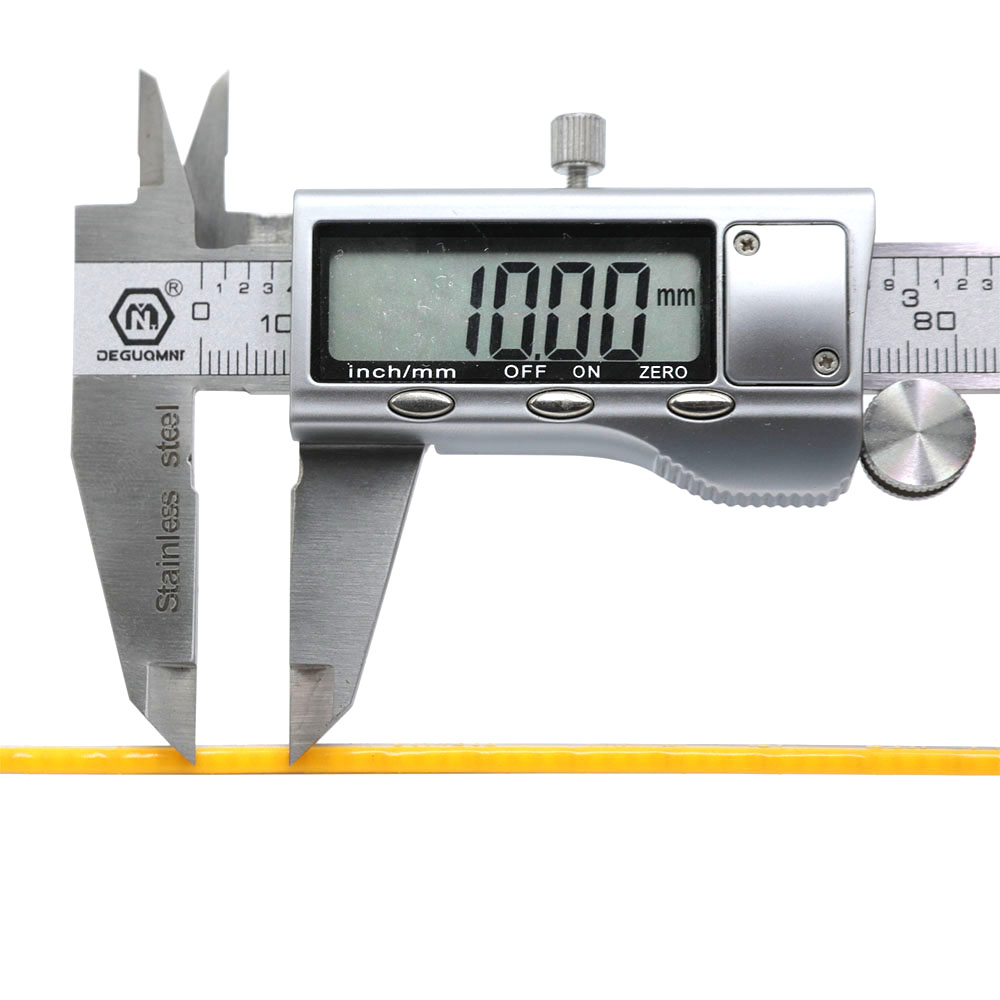

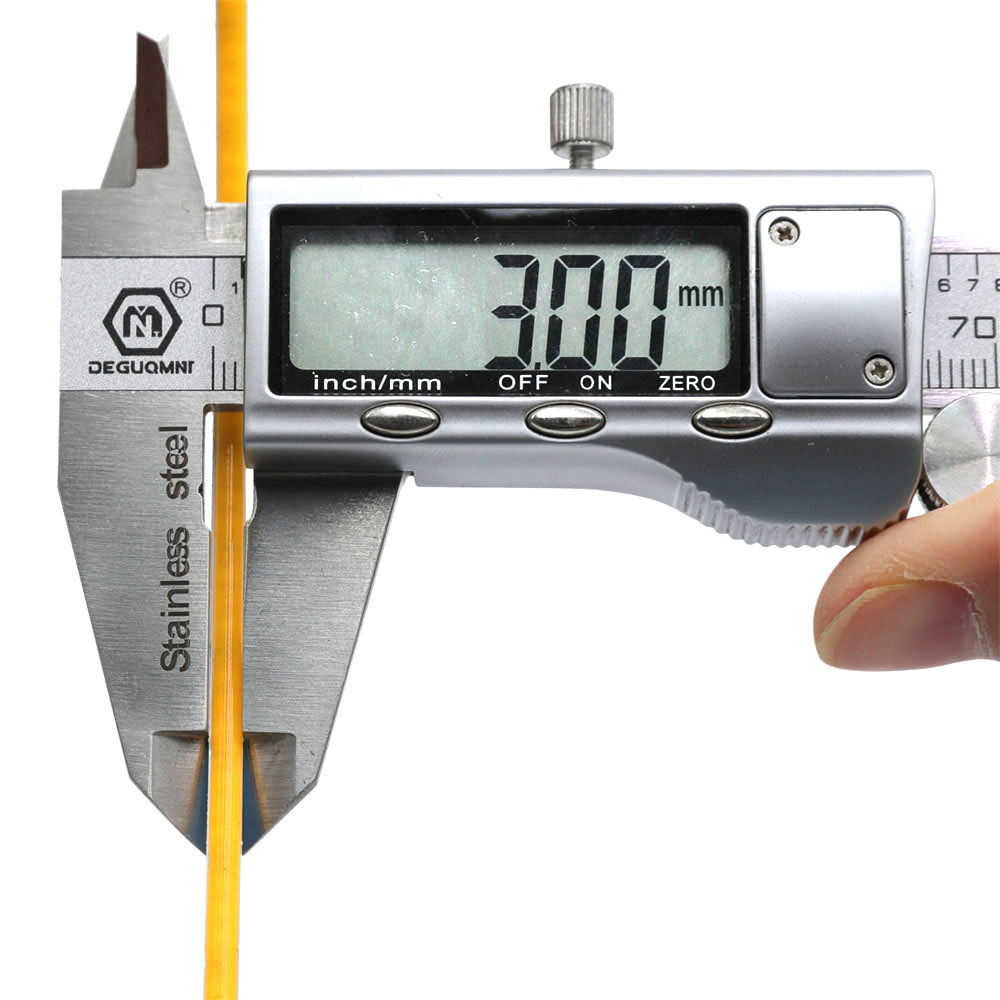

    PCB Width:  3mm/0.12in
    LED Quantity:  384 chips/M

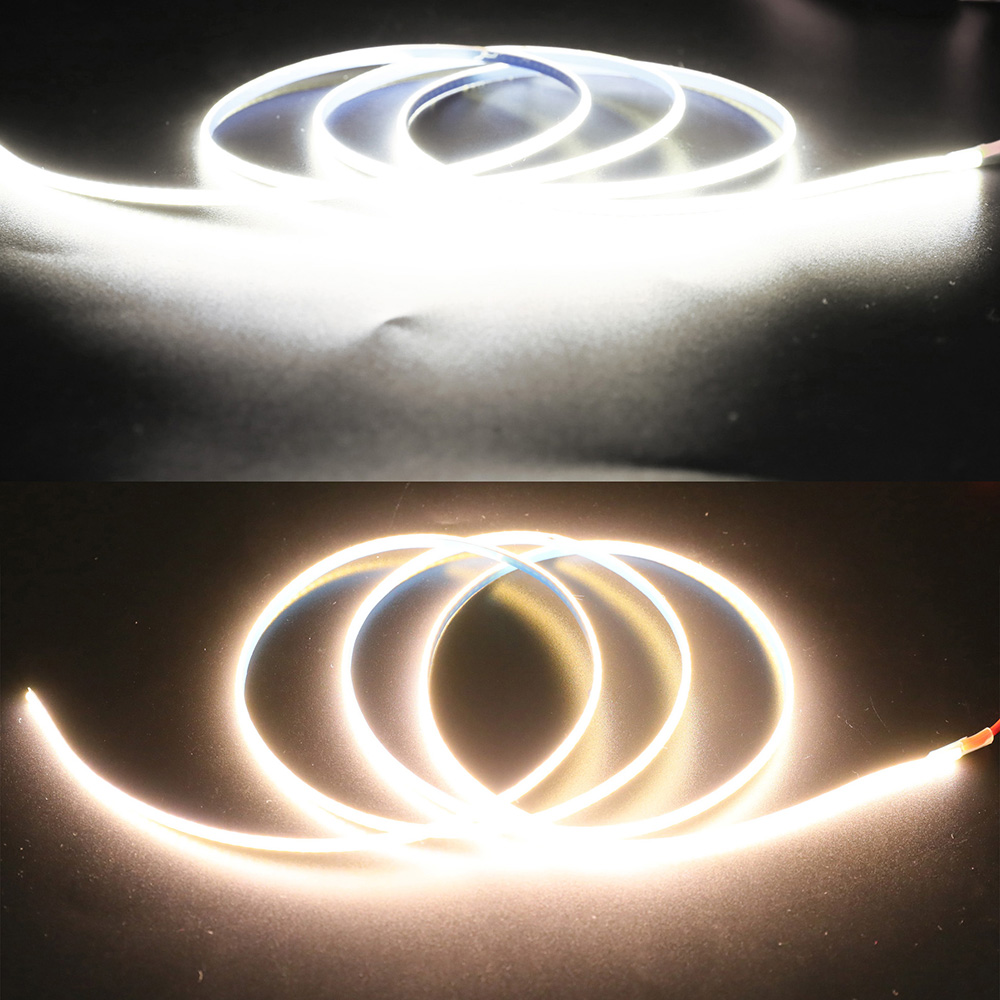

    White Color Temperature:  Warm white(3000k), Nature whtie(4000K), Daylight White(6000K)

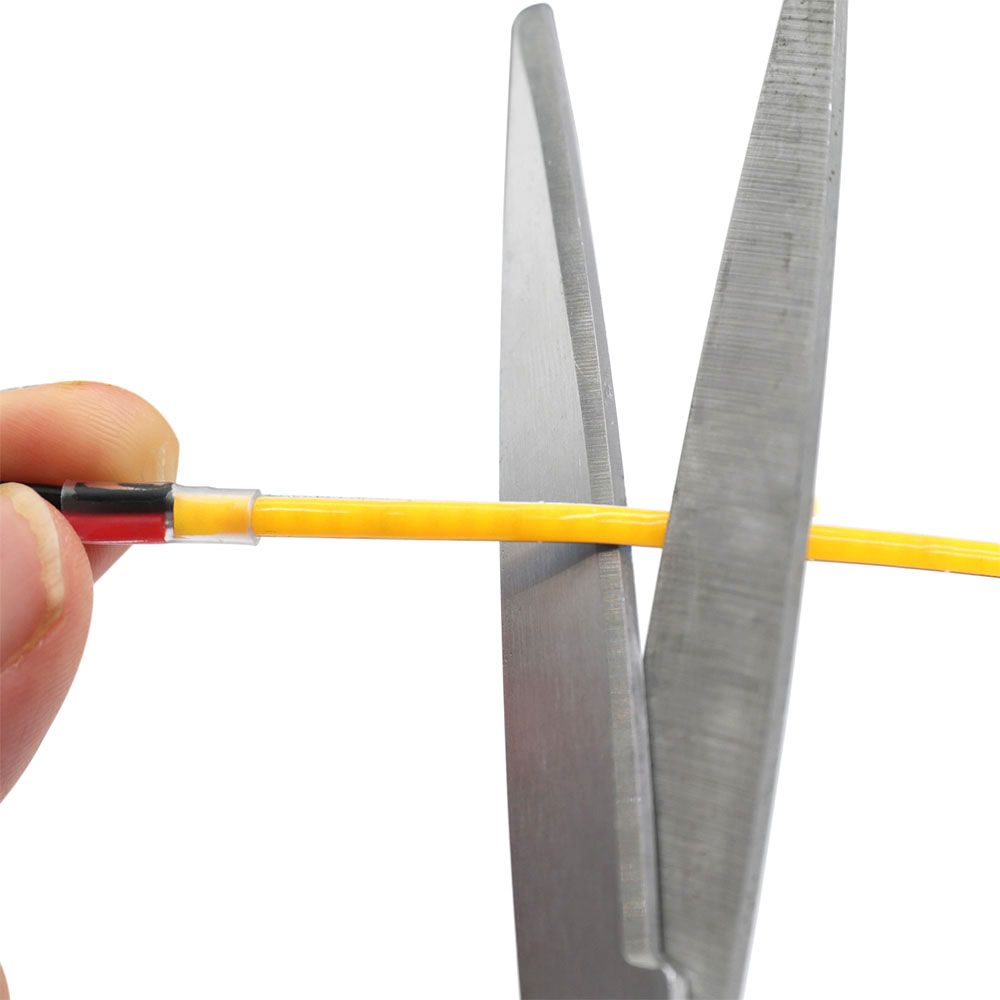

    Cut Length:  20.83mm/0.82in, 5V 2.7mm - 25mm/0.98in
    PCB Color:  White
    Storage Temperature:  -40°F (-40°C) ~ 176°F (80°C)
    Beam Angle:  180°
    Strip Length:  5m/16.4ft
    CRI:  90+
    Waterproof Rating:

    IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

    IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);



    How to choose LED strip lights kit?

    You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.

    In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.

    LED Strip

    Kit Knowledge
    5m/16.4Ft COB LED Strip

    Controller: V1 + RT1 , you can visit our Single Color Dimmer Series.

    Power supply: 12V 48W power supply adapter

    How to choose led strip light controllers?

    How to calculate power for led strip lights?

    How to choose led strip light power supply?





    Color Temperature and CRI

    Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.

    •  Warm white 3000K LED light is similar to the color of sunset, giving people a warm and comfortable feeling, suitable for installation in the living room, bedroom and other places.

    •  Natural white 4000K LED light is suitable for task lighting like kitchens or offices and is closer to white than 3000K. Requires more precision for lighting objects, 4000K light strips are more suitable for you than 3000K.

    •  Daylight white 6000K LED light shows more details and create a clear and transparent environment, suitable for working and task lighting.

    CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.

    LED strip color temperature value

    CRI led strip



    Installation Diagram

    single color led strip light wiring diagram

    Aluminum profiles and LED flex neon tubes can be used as led light strip accessories. LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.



    Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90Narrowest 3mm COB LED White Light Strip 12V 384chips/M CRI90
