Recessed Black Aluminum LED Light Strip Channel For 10mm DC5V LED Tape Lights

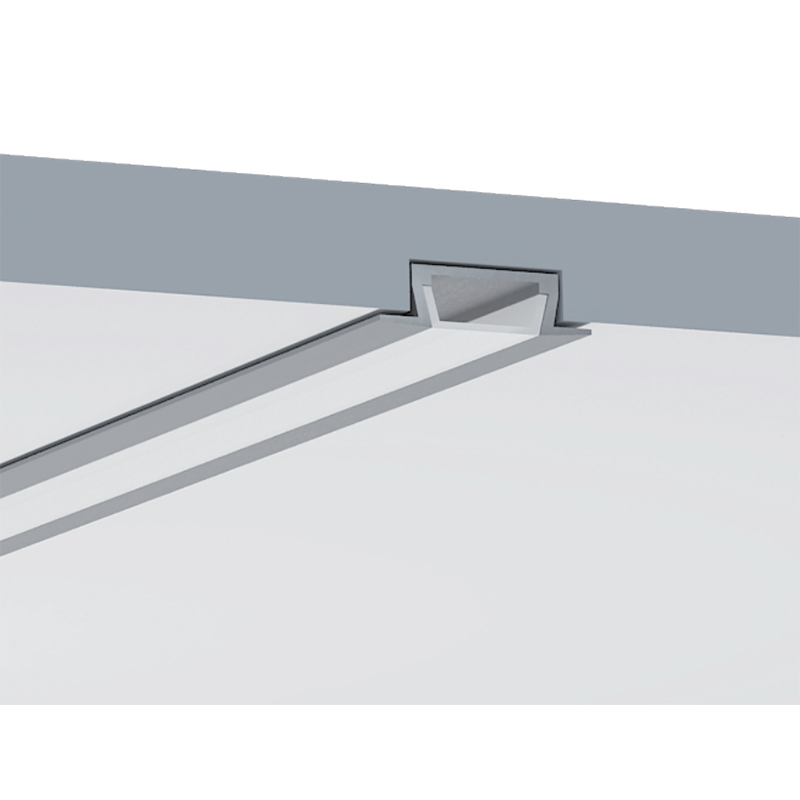

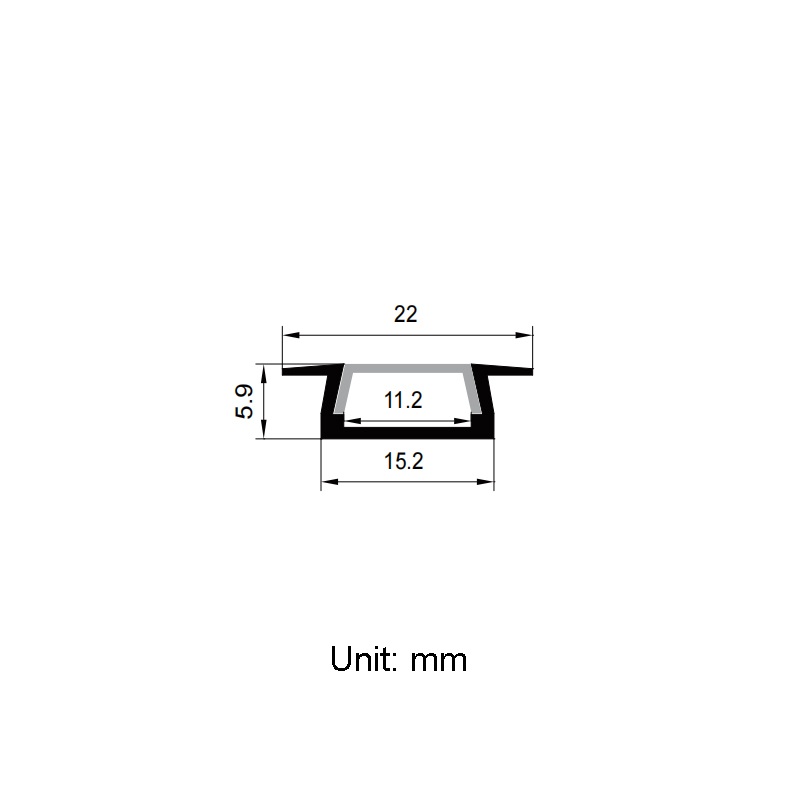

Check this recessed LED strip channel with flange, matching slide-in PC led light diffusers, 11.2mm/0.44in inner width, suitable for 10mm or 8mm wide led light strips. The aluminum channel with flange can well block the size reserved for embedding and integrate with the embedded object like drywalls, furniture, etc.

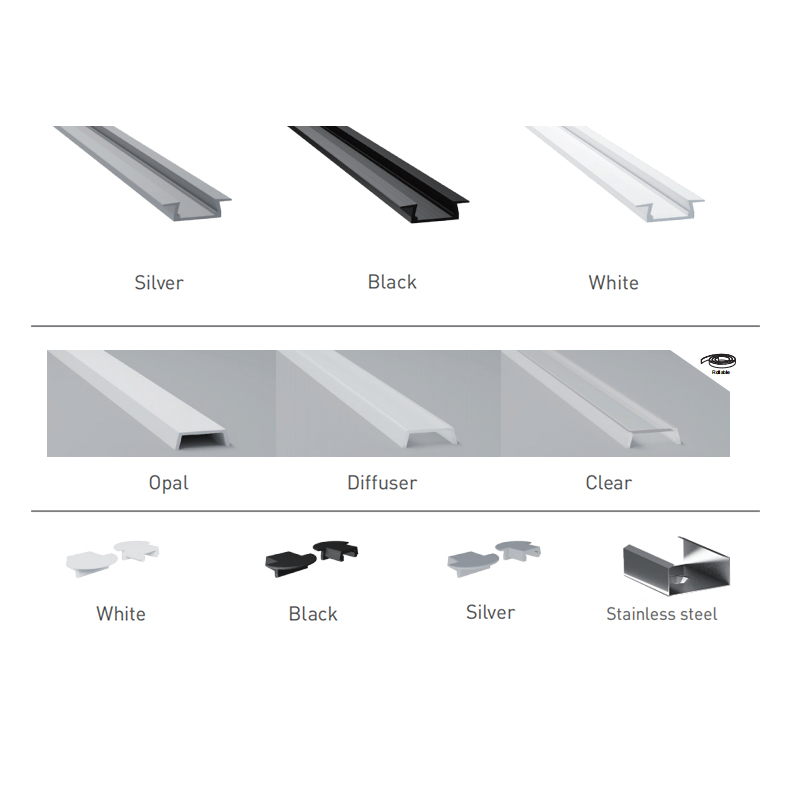

The LED diffuser channel is used as a led light strip accessory to provide protection for the strip. With different led light diffuser types, different light diffusion effects can be obtained. The advantage of the led strip diffuser channel is that it has three different finishes (Silver, White, or Black) to choose from, which can match different decoration styles. The common length is one meter.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser /Black PC diffuser|
|Accessory||End cap without hole, end cap with wire hole, stainless steel mounting clips|
|Apply to||8mm/10mm 5050/2216/2110/3014/5630/5730/COB/CCT flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
