LED Wire to Wire Quick Splice Connector with Caps

Model: WSC-CONNECTOR1930-CAPS
LED Wire to Wire Quick Splice Connector with Caps
  • LED Wire to Wire Quick Splice Connector with Caps
  • LED Wire to Wire Quick Splice Connector with Caps
  • LED Wire to Wire Quick Splice Connector with Caps
  • LED Wire to Wire Quick Splice Connector with Caps

Select Specifications:

Select Quantity:

$9.99

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-64
$9.99
65-79
$9.49
80-99
$9.19
100+
$8.99
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

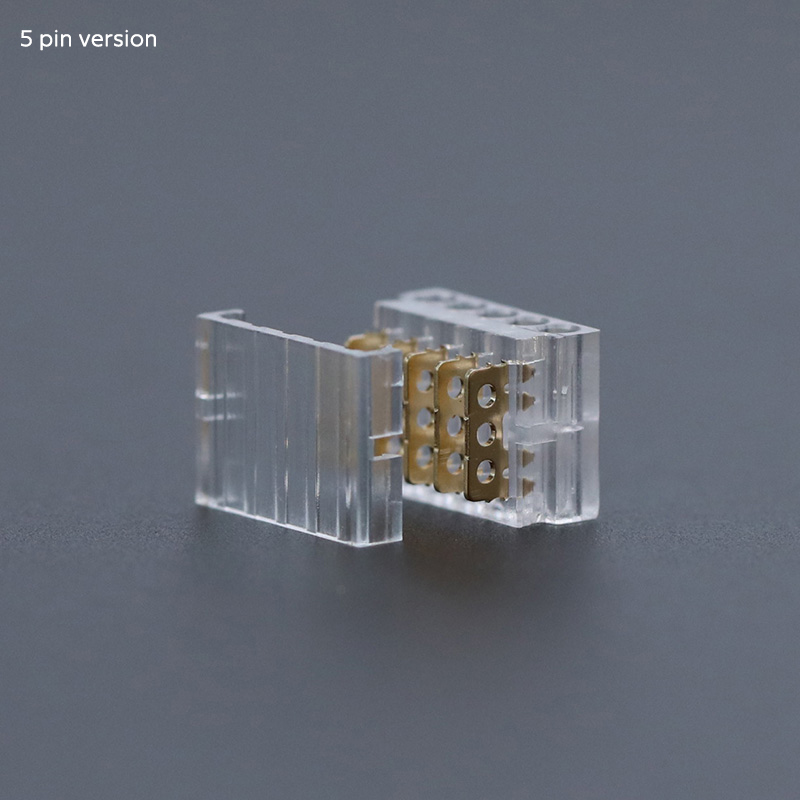

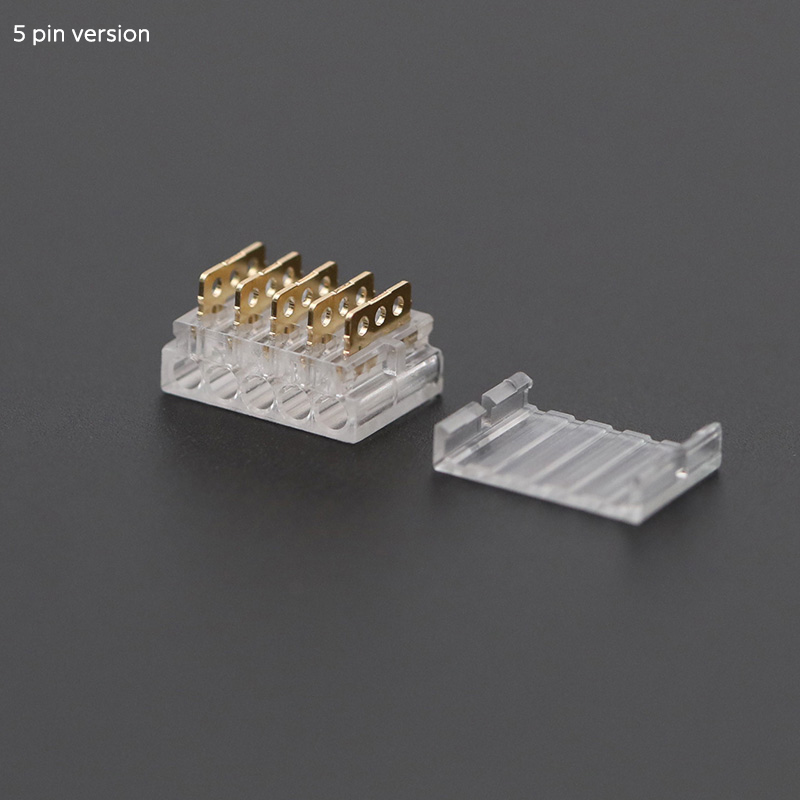

    This led wire to wire connector, featuring 1.8mm hole diameter, is suitable for connecting 20-24AWG wires, available in 2pin, 3pin, 4pin, 5pin and 6pin version.

    Quick splice connectors come with transparent caps, easy to use. Just insert the wires into the corresponding holes, then use pliers to press the gold protruding part to ensure that the wires are securely connected to each other. The last thing need to do is to cover the connector with caps. All work can be done within several minutes. Made of plastic, these connectors are compact, lightweight and easy to carry. Led solderless connectors provide a safe and convenient connection experience, helping you to quickly link LED strip over long distance to other devices such as power supply and change the lighting layout.

    These connectors are sold at minimum quantities of 500pcs. If you need customization service or print your own logo on these connectors, please contact us.



    Features:

    1. Wire to wire connectors, push in wire and press the connector with pliers to complete the connection, no need to solder.

    2. Each hole diameter is 1.8mm, suitable for 20-24AWG wires.

    3. Offering a variety of options: 2-pin, 3-pin, 4-pin, 5-pin, and 6-pin versions.

    4. Transparent plastic shell, easy to observe the connection status, long service life.

    5. The size of this connector is L1.5mm*W0.7mm*H1.1mm.

    6. IP20 non-waterproof, please use it in a dry environment and avoid contact with liquids.





    Suitable Strip Light: 2pin Single white led strip, 3pin CCT led strip, 4pin RGB led strip, 5 pin RGBW led strip, 6 pin RGBTW led strip

    Wire Gauge: 20-24AWG

    Hole Diameter: 1.8mm

    Size: L1.5mm*W0.7mm*H1.1mm

    IP Rating: IP20 non-waterproof

    Package: 10 pcs



    Caution: Please operate the wire connection while the power is off.

    LED Wire to Wire Quick Splice Connector with Caps

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
