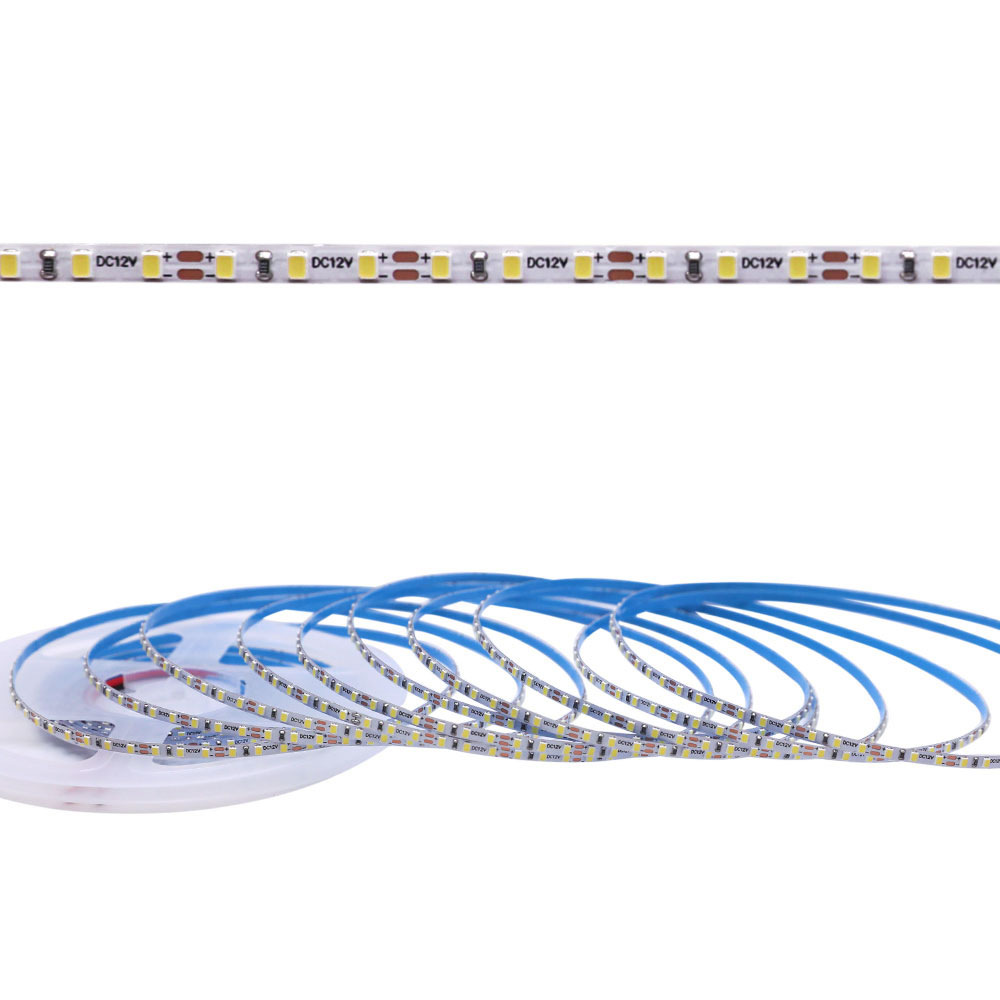

Mini 3mm 12V 2216 SMD Bright White LED Light Strips 900 Diodes
Cheapest ultra narrow 3mm high density led strip. This white led strip lights are suitable as supplemental lighting to illuminate your cabinet space. It's also a good idea to add a motion sensor to use it as a night light. You can supplement your home's lighting system with this cheap and cost-effective strip.

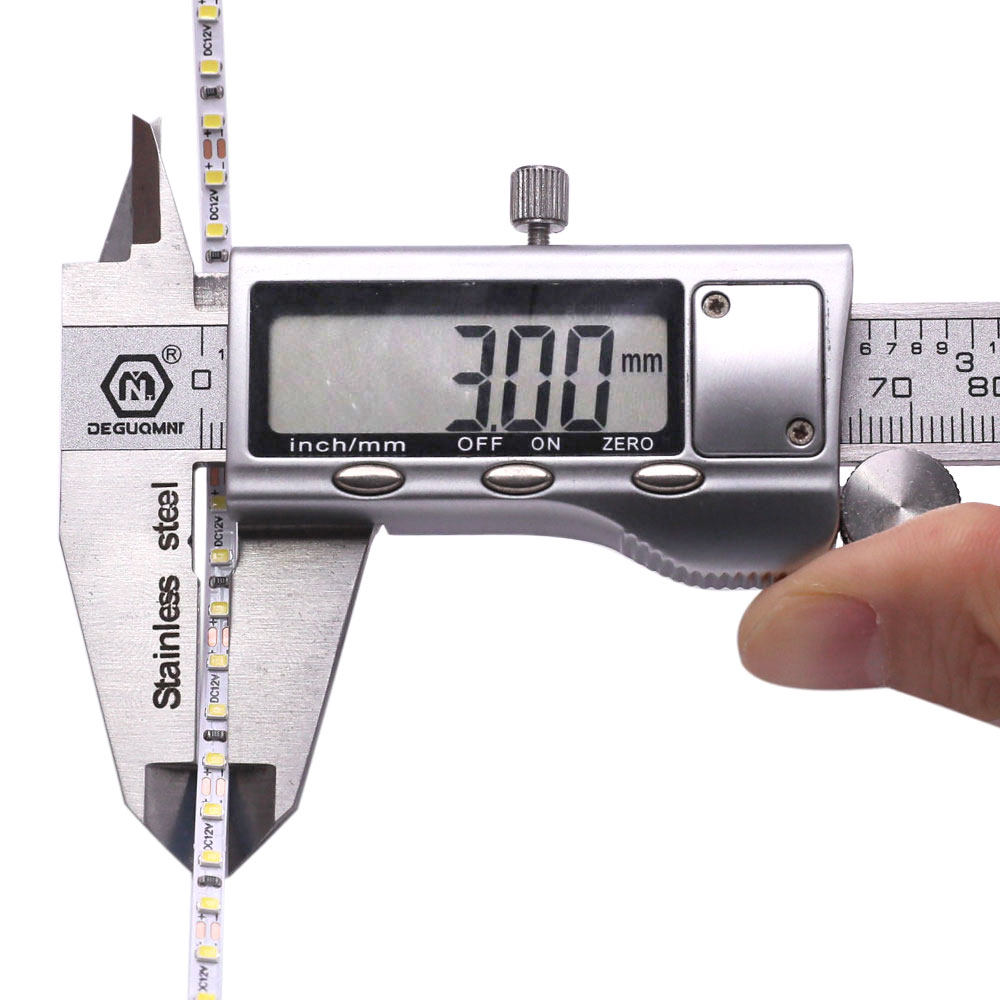

If you are not very strict about the color temperature, this small led strip lights are your best choice. There are alsoavailable in red strip lights, green strip lights, and blue strip lights. It is only three millimeters wide and will barely make the presence of the light fixture felt.

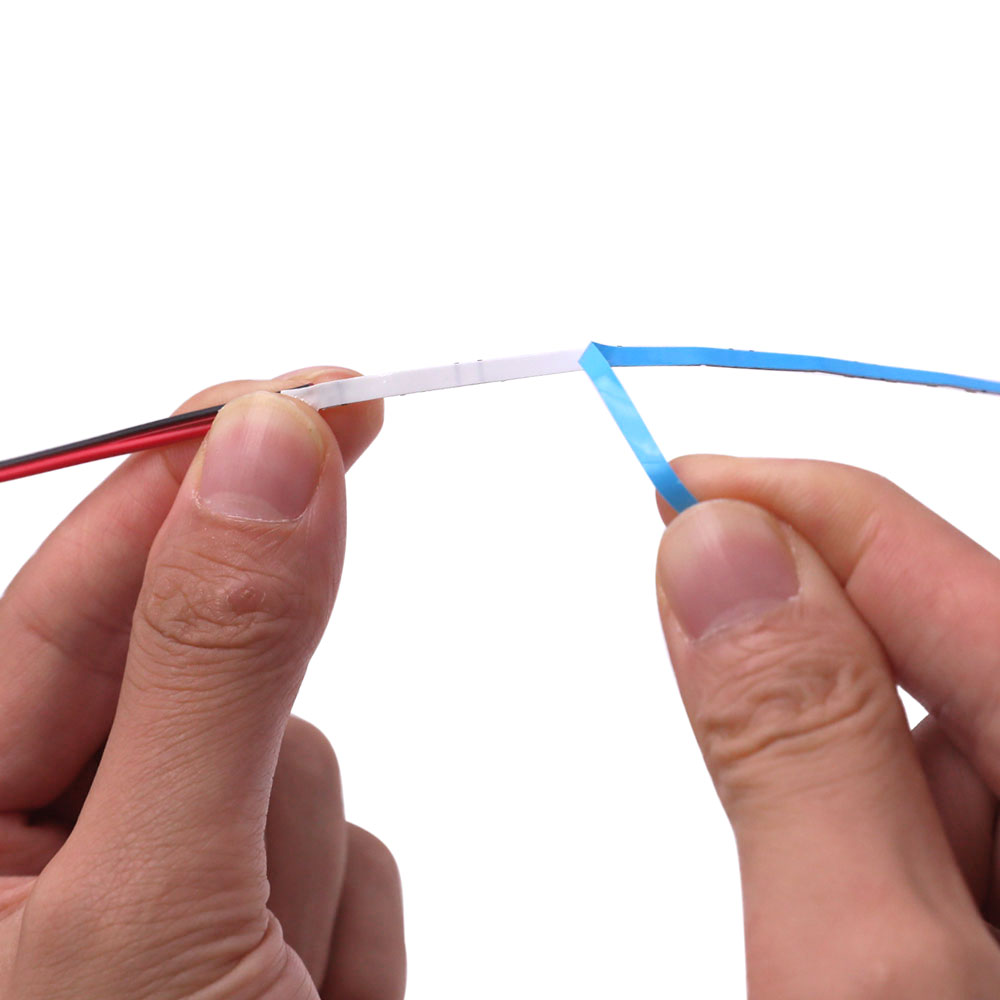

With a double-sided adhesive tape, easy to installation, peel off the blue tape and stick the light strip to any location. The both ends of the thin led strip come with a 2pin bare wire.
Standards and Certifications
|LED Strip Type:||White led strip lights|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||6000K daylight, 3000K warm white, red, blue, green|

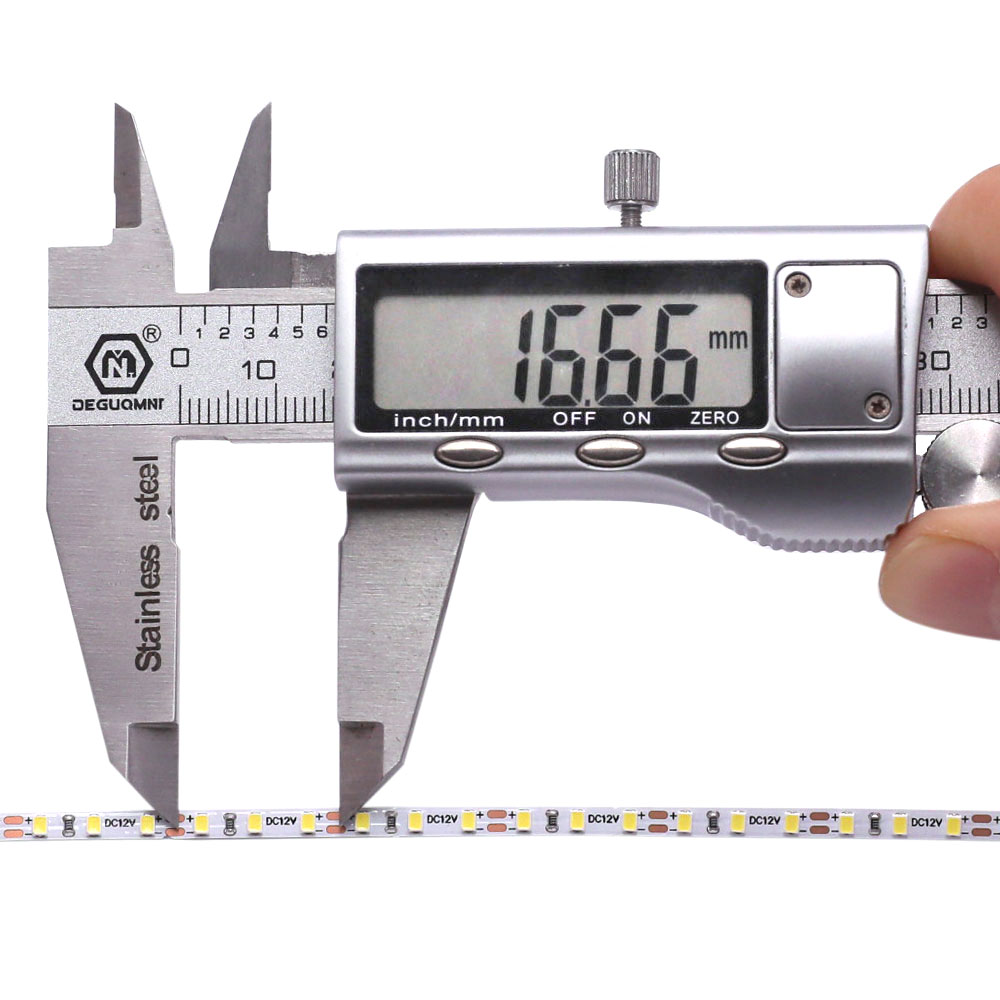

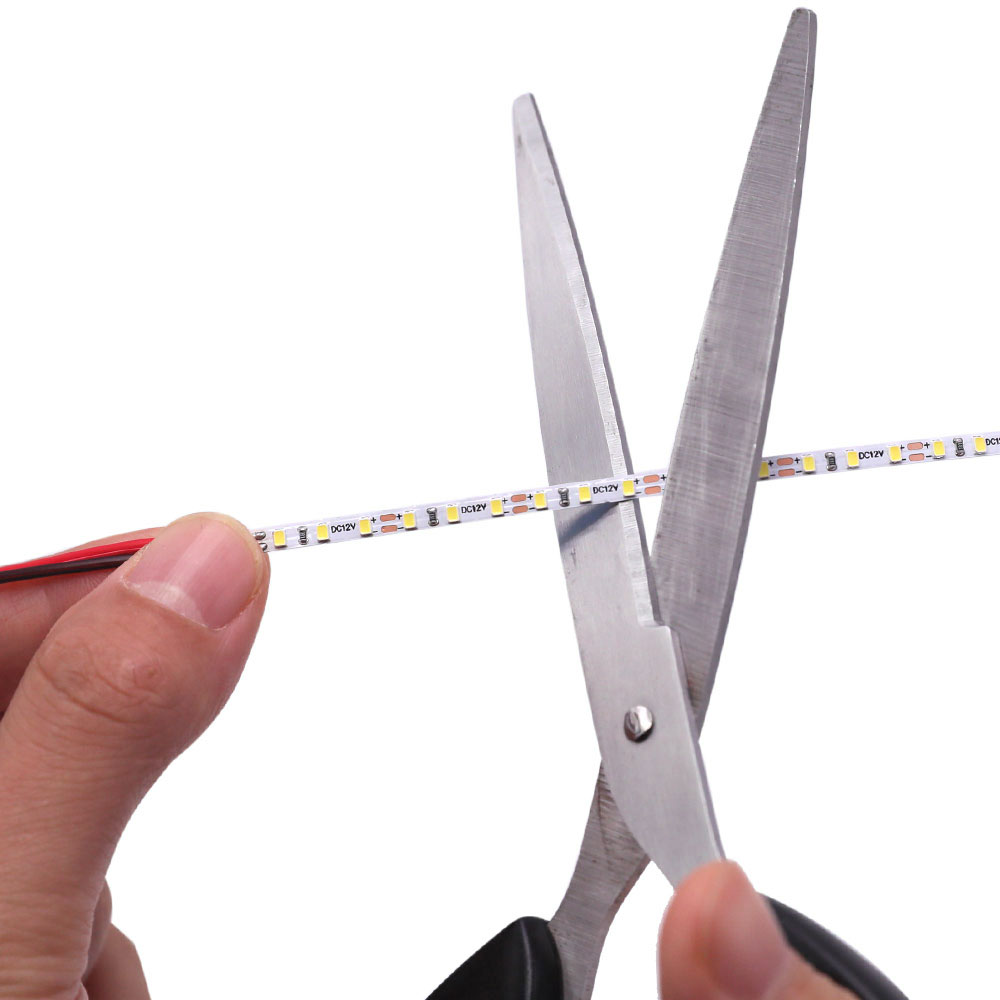

|Dimension:||16.4ft/roll, every 3 PCS LED can be cut|
|LED Quantity:||180 LEDs per meter|
|Input Voltage:||12V DC|
|Working Power:||8w/m, 40W/16.4Ft|
|Lamp Luminous Flux(lm):||4~6lm/LEDs|
|Beam Pattern:||120 degrees|
|Waterproof:||Non-waterproof IP20 / Waterproof IP67|
1. The white led strip light is directly connect to the power supply:

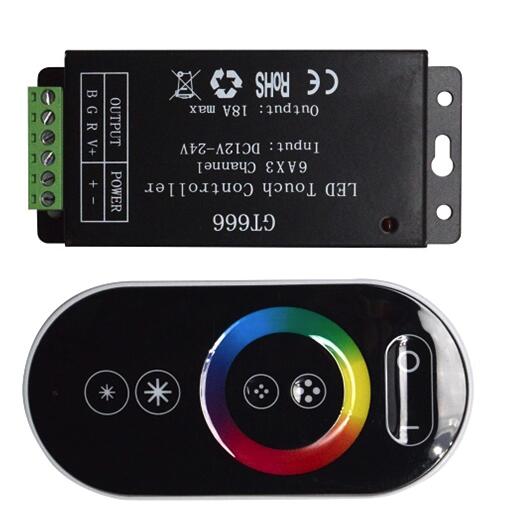

2. The white led strip lighting is controlled by a dimmer, and then connected to the power adapter:

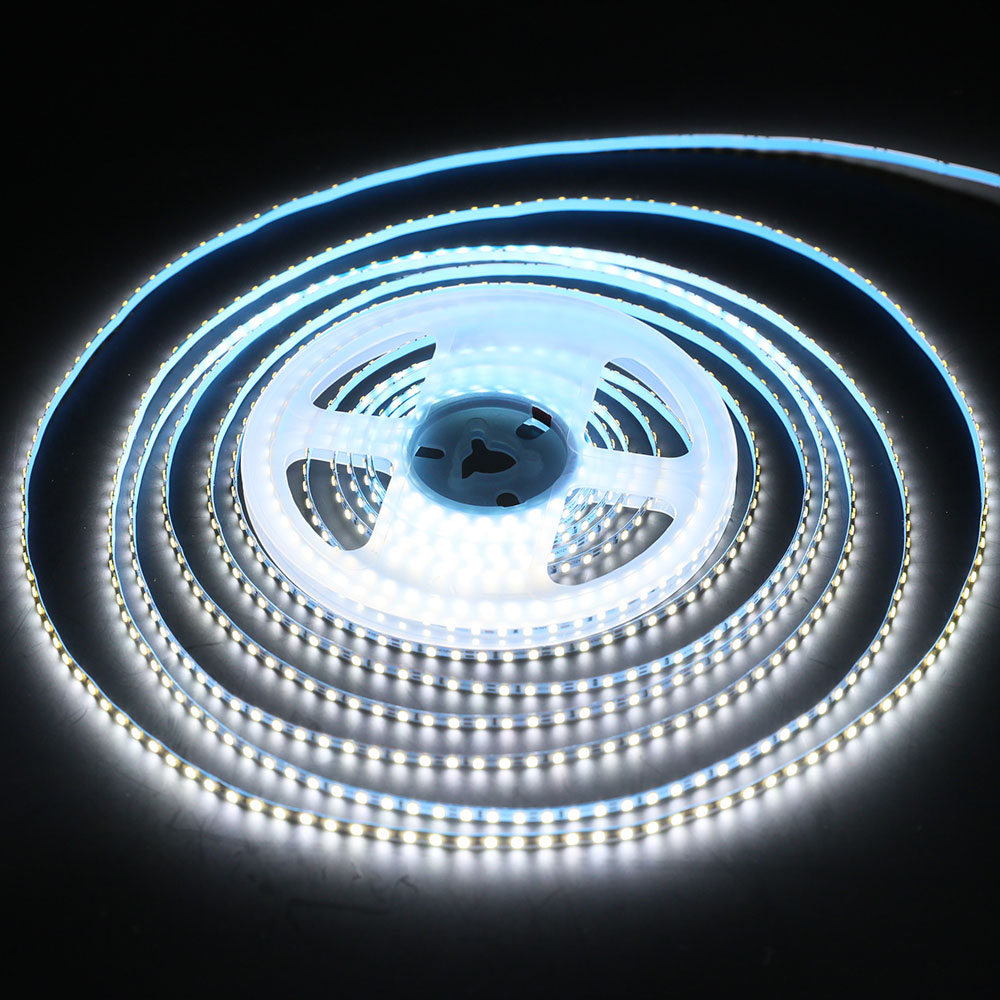

The effect of lighting up the 6000K daylight led strip:
