4CH 5A Constant Voltage RF 2.4G Receiver WiFi controlled V4 For single color, dual color and RGB/RGBW LED strip light installation

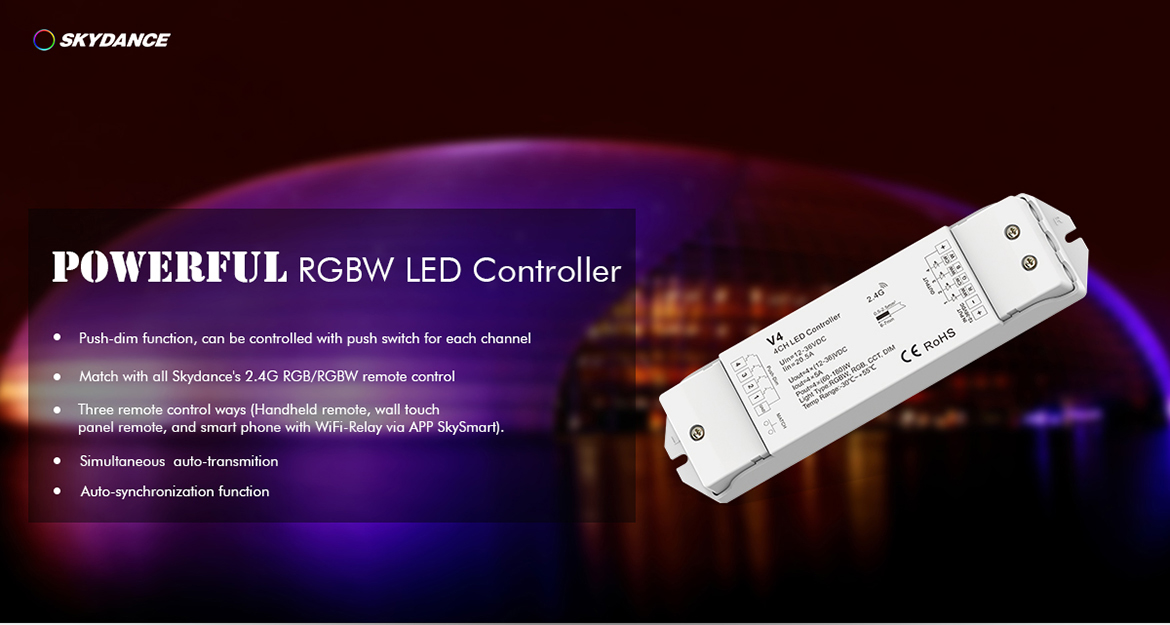

5A 4CH PWM constant voltage controller.
Default as RGBW controller, need match RGBW remoter,create colorful static or dynamic effect.
Can also be used as RGB, color temperature or dimming controller, good compatibility.
Full compatibility with a variety of single color, dual color and RGB/RGBW remoters.

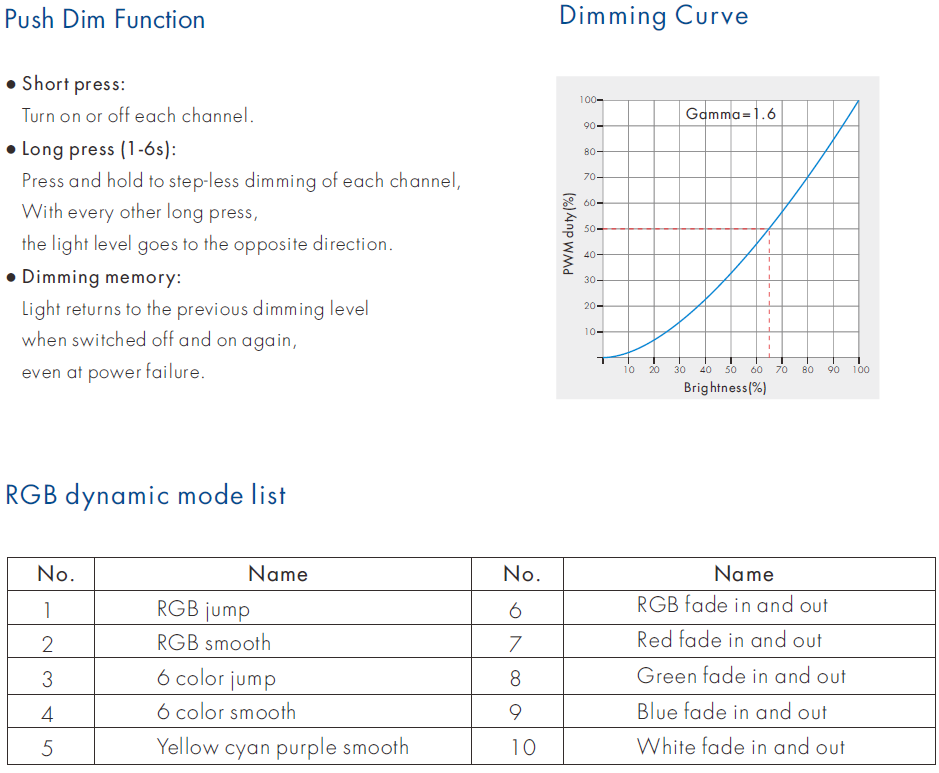

PWM achieve 4096 levels flicker-less dimming.
When control RGB/RGBW lamp, built in 30 change mode optional.

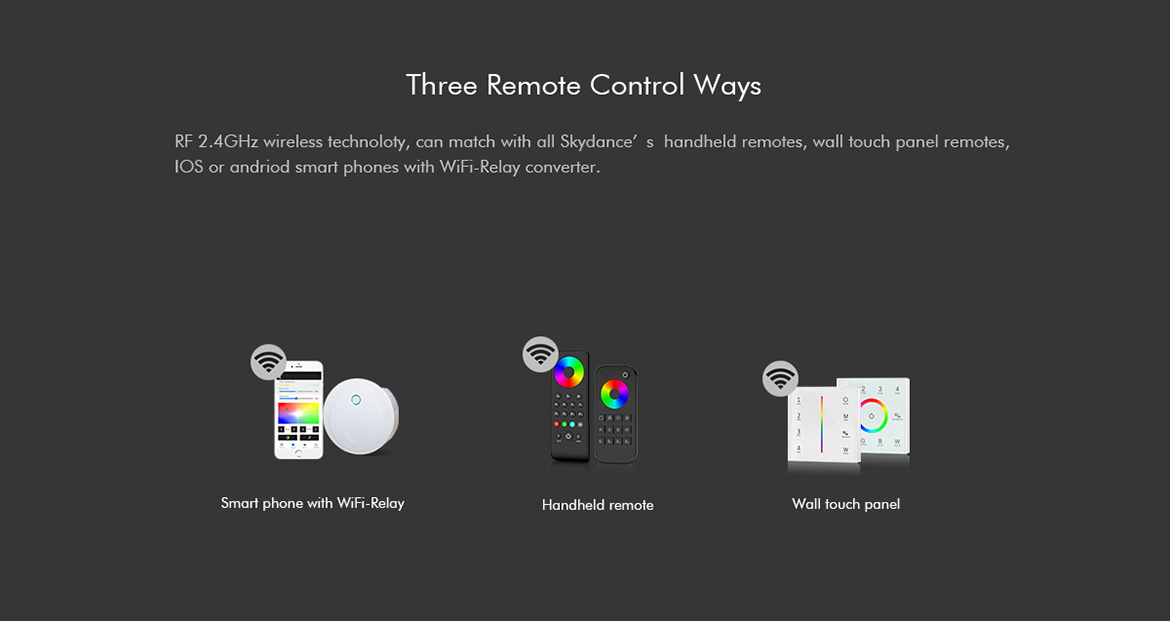

Adopt 2.4GHz wireless technology, can accept up to 10 remoters control.
Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.

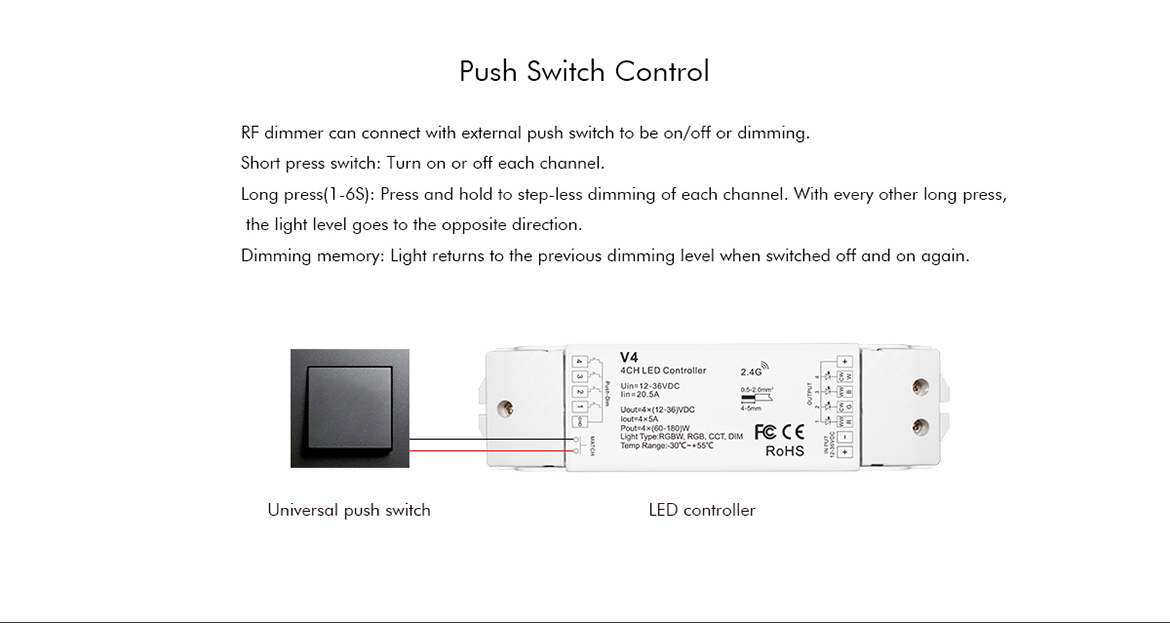

Can connect with external switches to achieve on/off and scene change function.
Work with power repeater to expand output unlimitedly.
Standards and Certifications
Input voltage: 12-36VDC
Output type: PWM constant voltage
Output current: 4CH, 5A/CH
Output power: 4 x (60-180)W
Grey levels: 4096/CH
Dimming range: 0-100%
Remote distance: 30m
Working temperature: -30℃~55℃

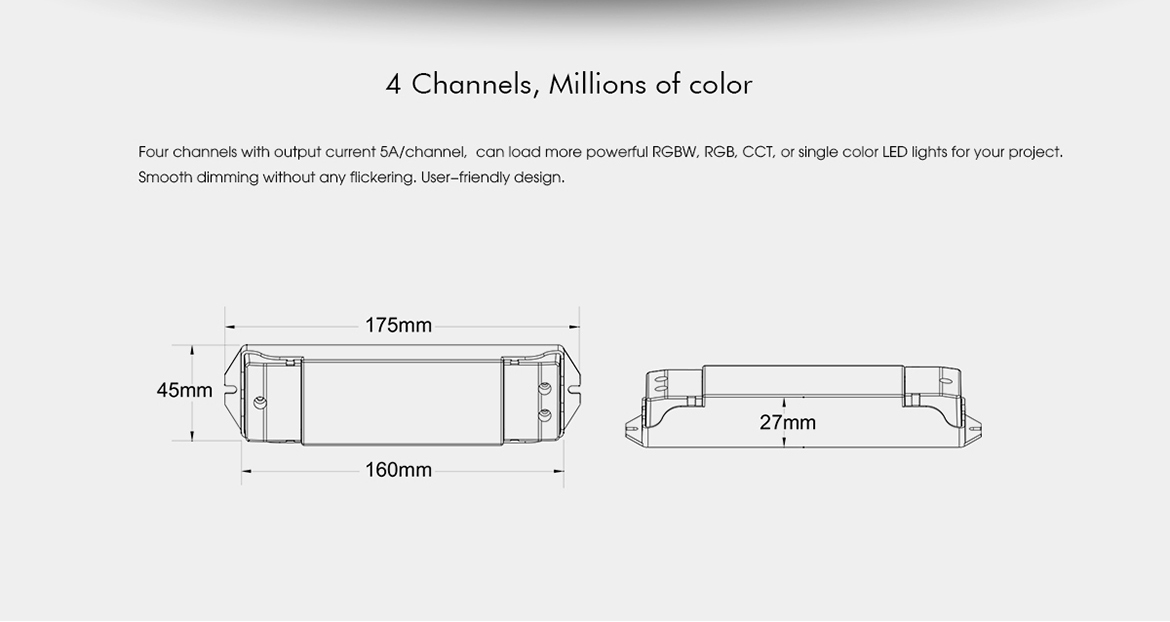

Product size: L175×W45×H27mm
Net weight: 110g
