5m RGBW Color Changing LED Strip Lights - 12V/24V Super Bright - Black Board
Universal RGB+White super bright color changing LED light strip adapts RGB lights and white lights to mix to produce a wide variety of colors, suitable for mood lighting and task lighting. Use the RGBW controller to change the LED color, light brightness, and color mode. White light can be selected from warm white 3000K, natural white 4000K, and daylight white 6000K color temperature.
12V RGBW LED Strip vs 24V RGBW LED Strip:

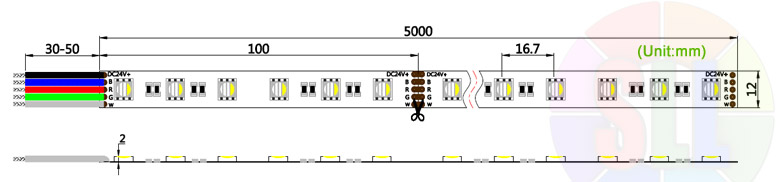

DC12V RGBW led strip lights integrate 3LEDs between the two PCB cut lines, each 50mm/1.97in can be cut (3LEDs cuttable)
DC24V RGBW led strip lights integrate 6LEDs between the two PCB cut lines, each 100mm/3.94in can be cut (6LEDs cuttable)
Standards and Certifications
|LED Strip Type:||SMD 5050 4in1 RGBW 300LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB+W3000K, RGB+W4000K, RGB+W6000K|
|Dimension:||16.4ft/roll, every 3/6 PCS LED can be cut|
|LED Quantity:||60 LEDs per 1meter (3.28 ft)|
|Strip Width:||12mm (0.47in)|
|Input Voltage(V):||12/24 VDC|
|Working Power:||96W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||20~22Lumen 6600lm Max /16.4ft 402lm/feet 68.75lm/watt|
|Beam Pattern:||120 degree|
|Waterproof:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
