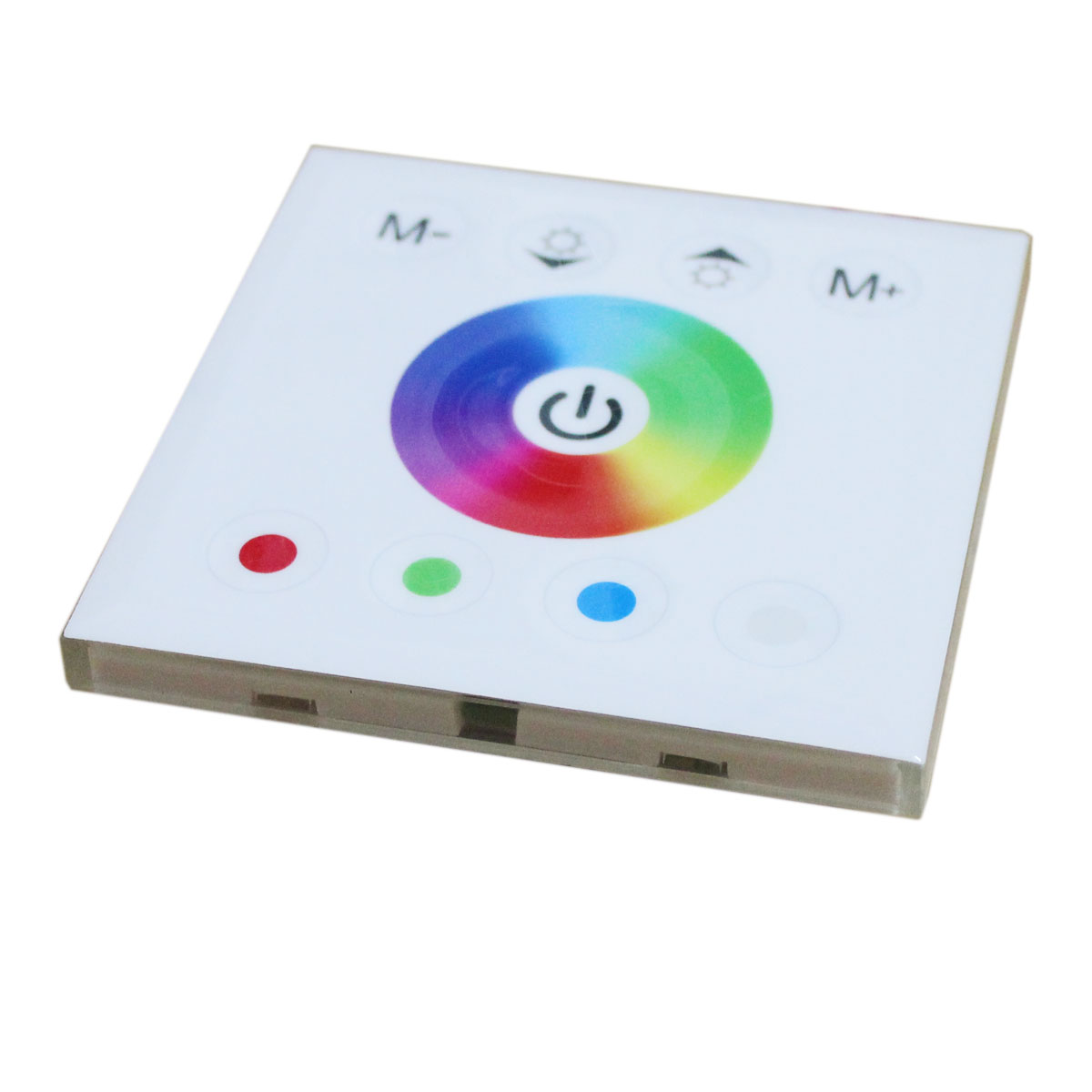

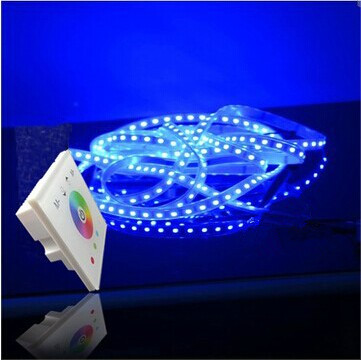

DC12/24V Max 16A 4Ax4CH, Universal Wall Mounted Acrylic LED RGBW Touch Panel Full Color Controller For 5050 RGBW Strips light
This RGBW touching Controller is new generated product. is a new high-end controller which newly developed by our company. The controller is adopted glass panel and PC plastic to base. Professional PCB design to avoid circuit problem. Luxury Design,Fashion appearance. The controller can be installed embed to wall. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. Can be connected to all led lights in DC5,DC12-24V. Example: led module string, dot matrix light,flexible led light strips, wall washer ect. Install convenience and operate easily. Can be allocated to hotel decoration, home decoration, commercial lighting area and leisure place ect. it has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Standards and Cerifitcations
Controller Type: RGBW Touch Panel Controller
Input Voltage: DC12-24V
Output Current: RGBW:<4A*4
Output Power: 12V<192W, 24V<384W
Output: RGBW: 4 channels, Double Color and Single Color: 2 channels
Static Power Consumption: <1W
Connection Mode: common anode
Working Temperature: -20~60 degree
External Dimension: L86 x W86 x H32 mm
Packing Size: L105 x W105 x H47 mm
Color: White or black
net weight : 108.5g
gross weight: 170g
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 5/12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

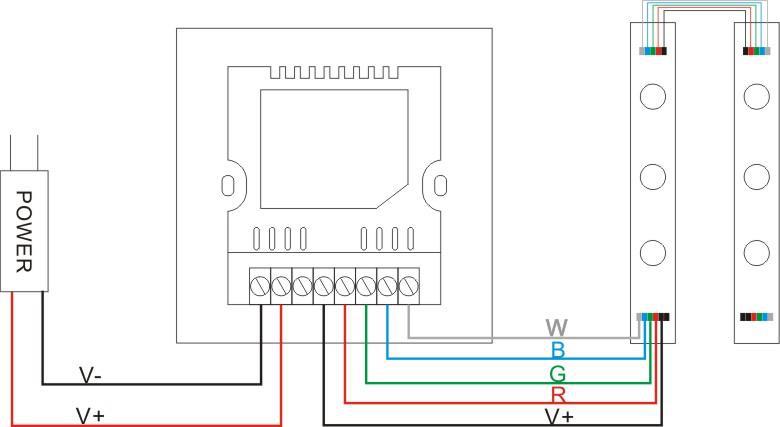

Connect according to the Wiring Schematic drawing.
Controller can control a maximum of 30 meters of our Flexible RGBW LED Strip. Over 30 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one Horse Race Amplifier for every 15 meters of additional LED Strips.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Not suitable for automobile applications.
1 x 16A Touch LED Controller
