1CH 8A Constant Voltage RF 2.4G Receiver V1 For dimmable led strip lights
Mini-style RF dimmer, one channel constant voltage output.
● 4096 levels 0-100% dimming smoothly without any flash.
● Match with Skydance’s 2.4G single zone or multiple zones dimming remote control.
● One RF controller accepts up to 10 remote control.

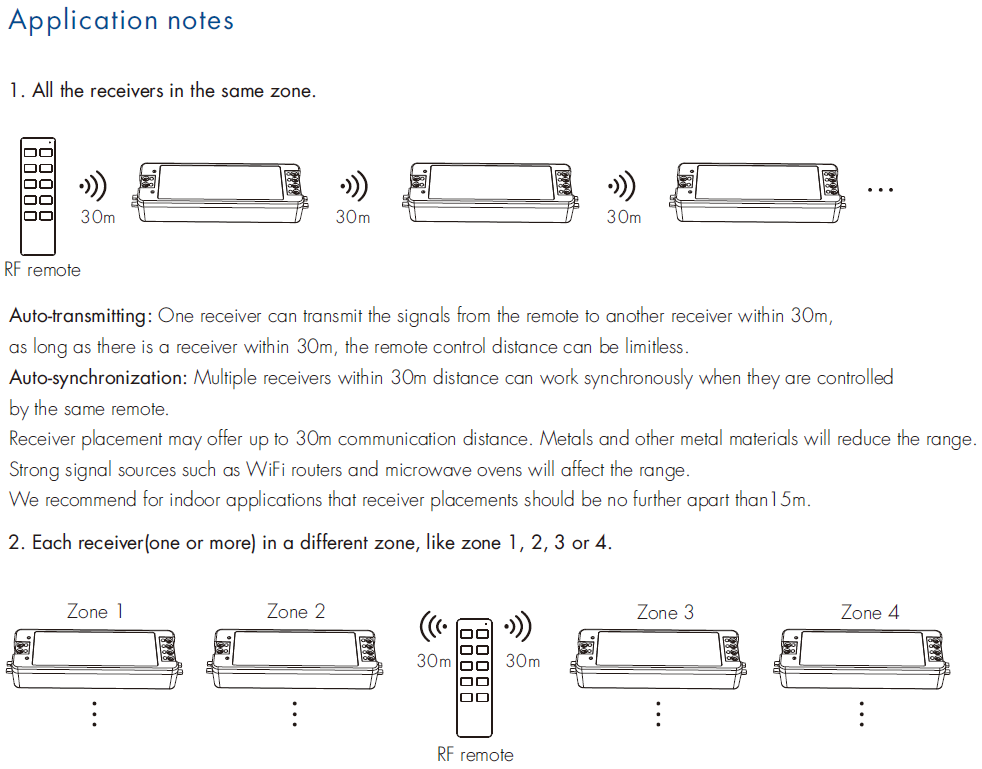

● Auto-transmitting function: Controller automatically transmits a signal to another controller with a 30m control distance.
● Synchronize on multiple controllers.

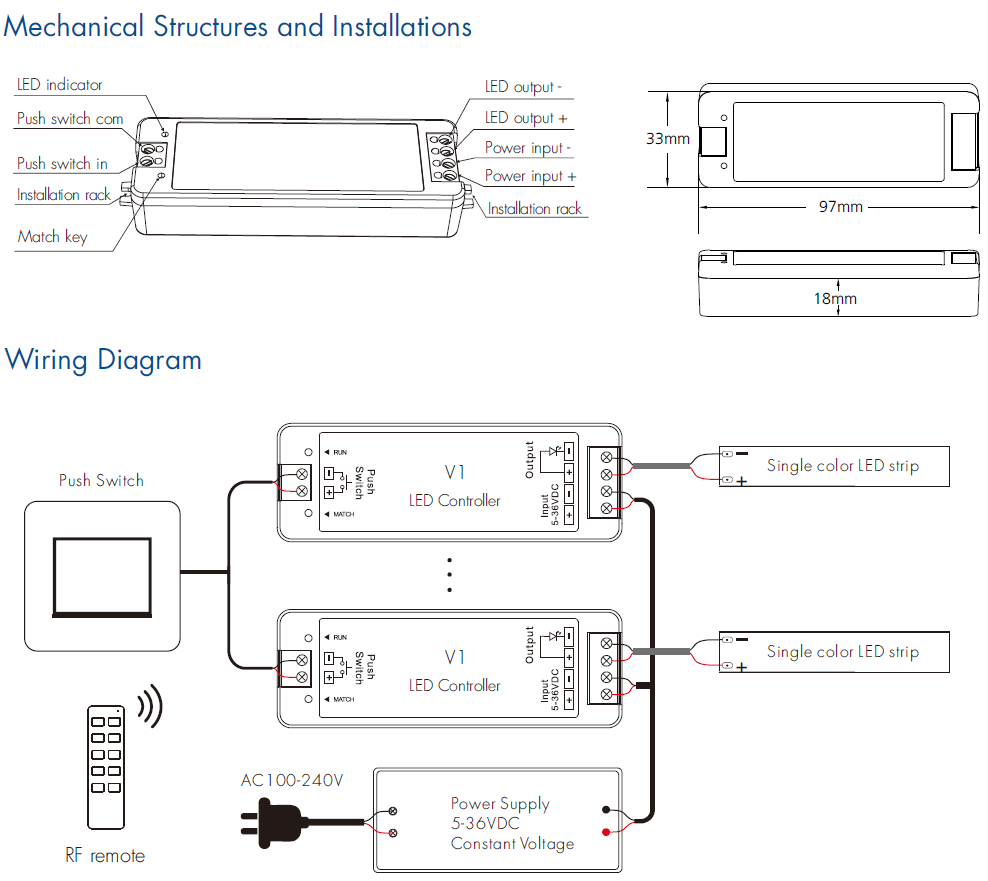

● Connect with external push switch to achieve on/off and 0-100% dimming function.
Input signal: RF 2.4GHz + Push Dim
Control distance: 30m
Dimming level: 4096 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 500Hz (default)
Standards and Certifications
Push Dim Function
The provided Push-Dim interface allows for a simple dimming method using a commercially available non-latching (momentary) wall switch.
● Short press:
Turn on or off the light.
● Long press (1-6s):
Press and hold to step-less dimming, With every other long press, the light level goes in the opposite direction.
● Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure.
If more than one controller is connected to the same push switch, do a long press for more than 10s,
then the system is synchronized and all lights in the group dim up to 100%. This means there is no need for any additional synchrony wire in larger installations. We recommend the number of controllers connected to a push switch does not exceed 25 pieces,
The maximum length of the wires from push to the controller should be no more than 20 meters.
