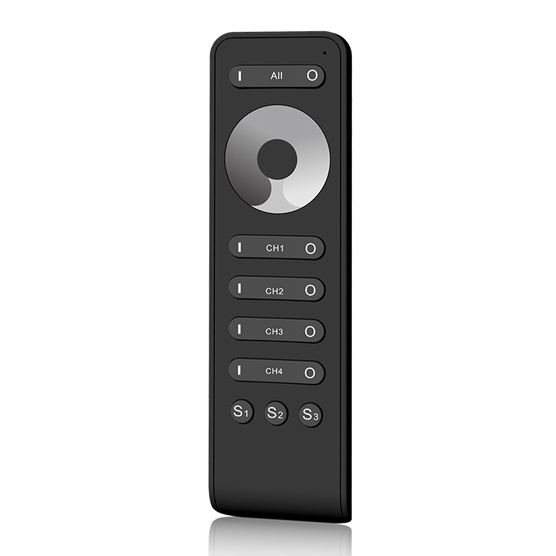

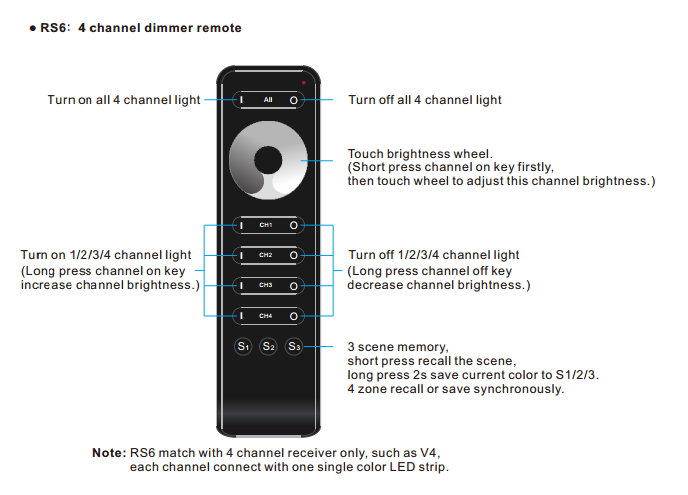

4 Channel RF 2.4G LED Dimming Remote RS6 For single color LED controller, dimming driver or smart lamp

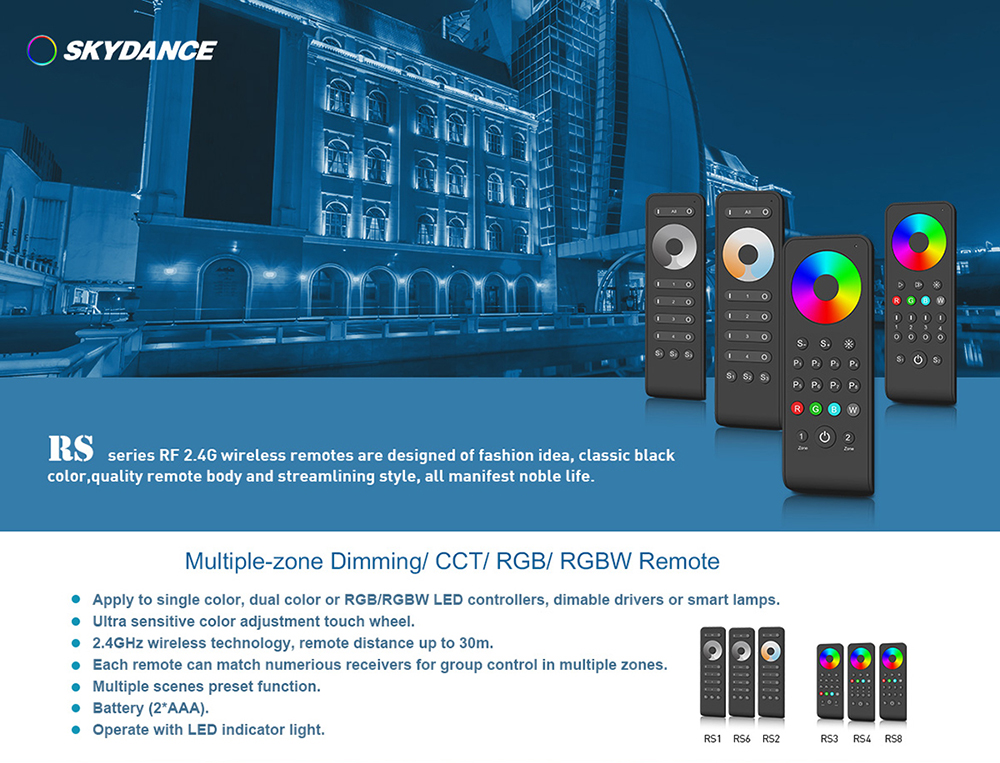

Apply to single color LED controller, dimming driver or smart lamp.
Ultra sensitive color adjustment touch wheel.

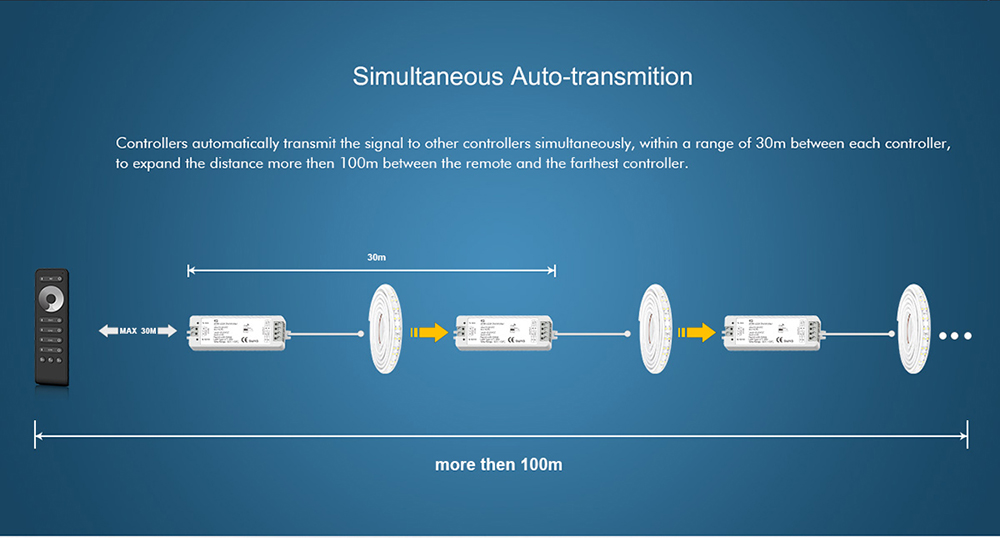

Adopt 2.4GHz wireless technology, remote distance up to 30m.

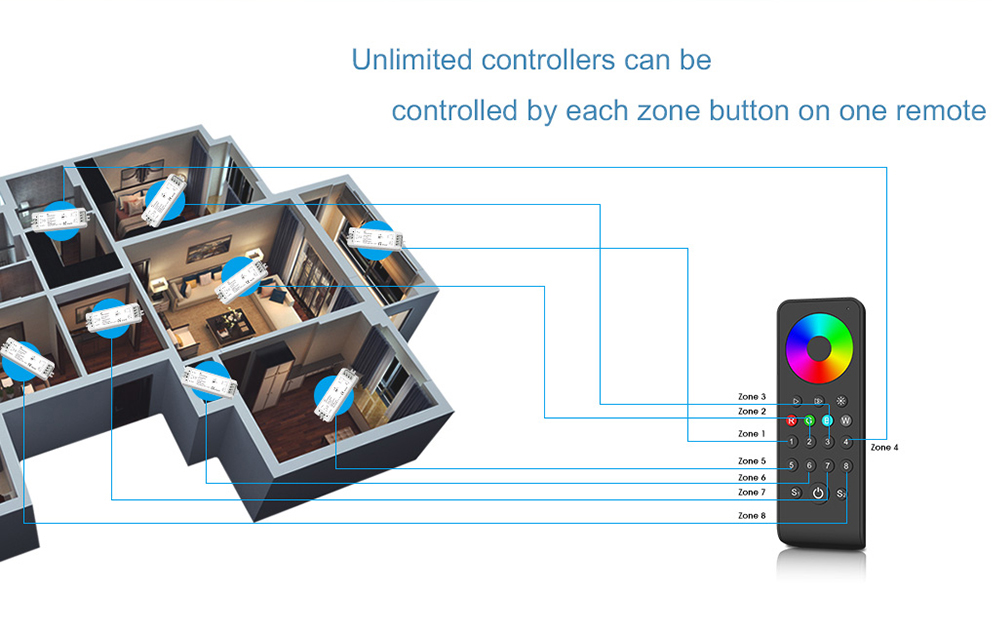

Each remote can match one or more receiver.
Battery powered (2 x AAA).
Operate with LED indicator light.

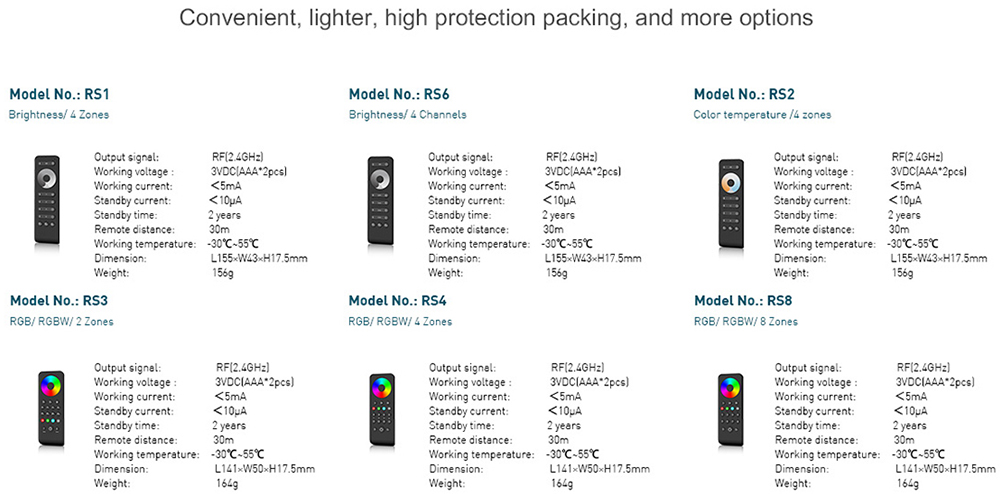

Output signal: RF(2.4GHz)
Working voltage: 3VDC(AAA*2pcs)
Working current: ＜20mA
Standby current: ＜10μA
Standby time: 12 months
Remote distance: 30m
Working temperature: -30℃~55℃
Standards and Certifications
