V1-W(D) 12-24VDC CV Mini Dimmable RF Controller - 3A/channel

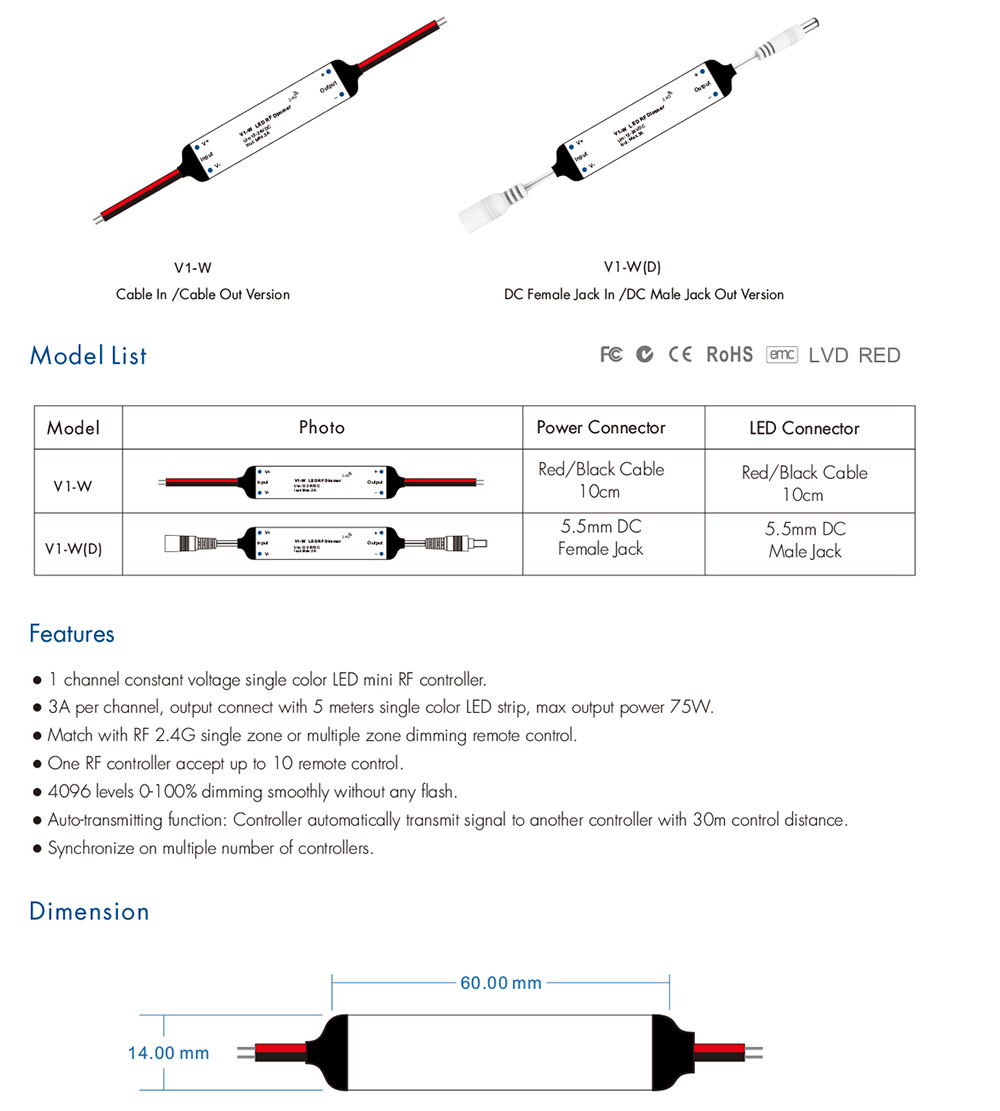

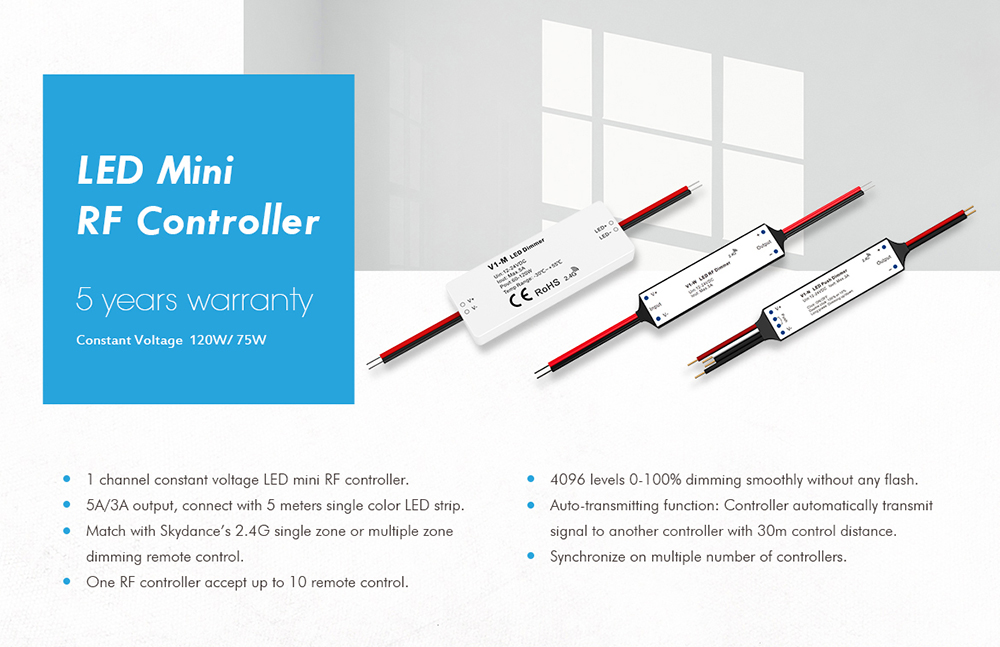

1 channel constant voltage single color LED mini RF controller.

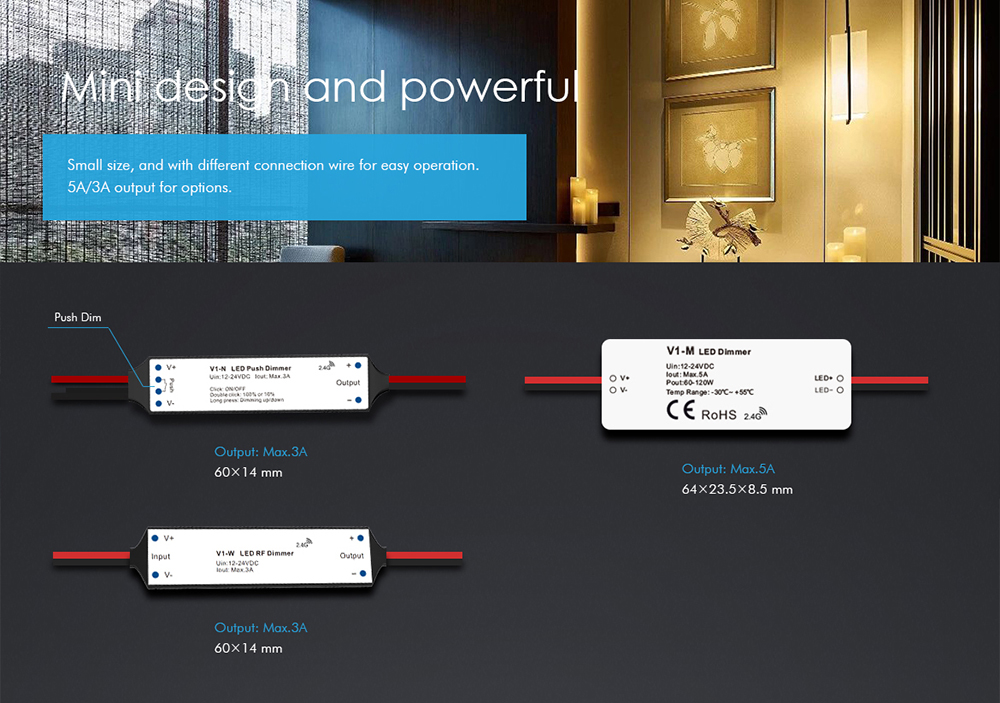

3A per channel, output connect with 5 meters single color LED strip, max output power 75W.

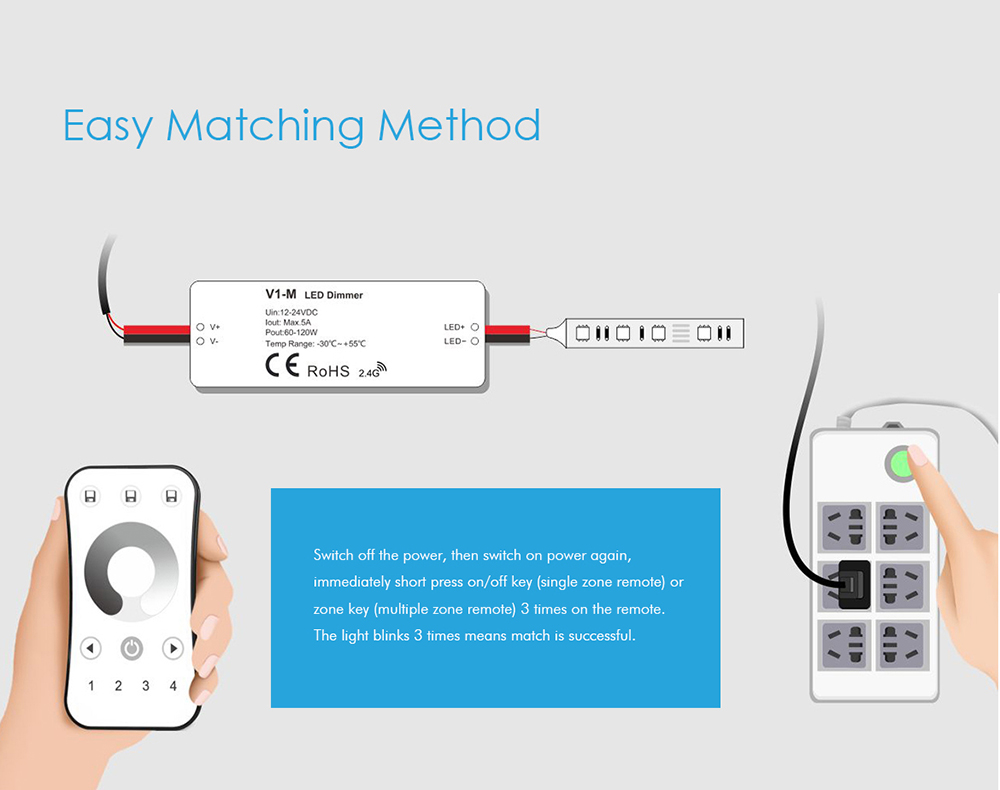

Match with RF 2.4G single zone or multiple zone dimming remote control.
One RF controller accept up to 10 remote control.
4096 levels 0-100% dimming smoothly without any flash.
Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.

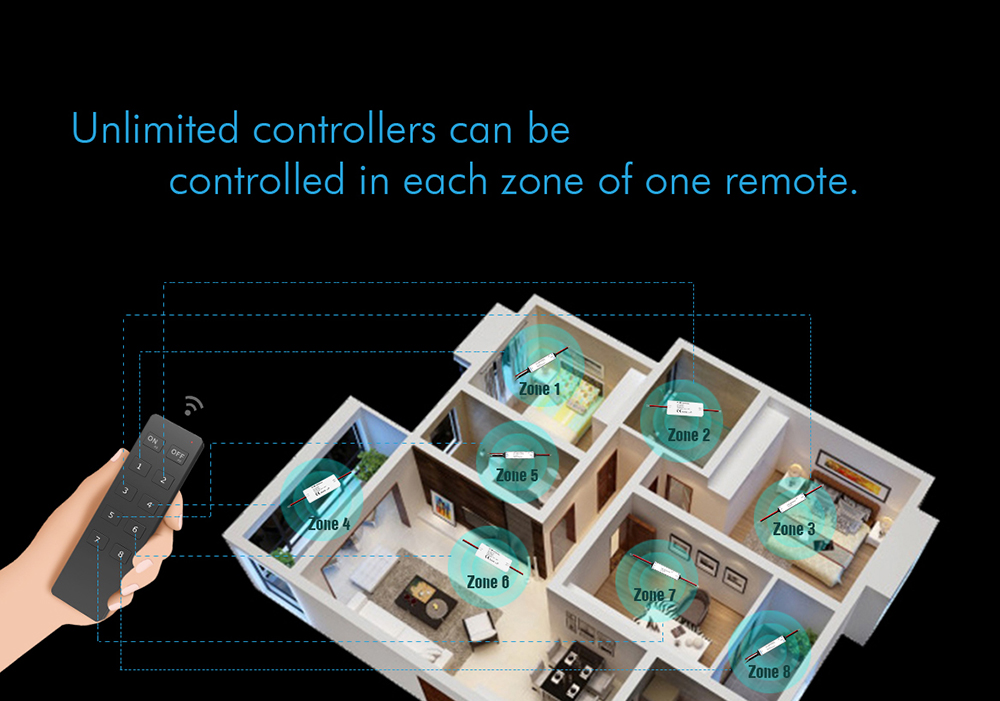

Synchronize on multiple number of controllers.

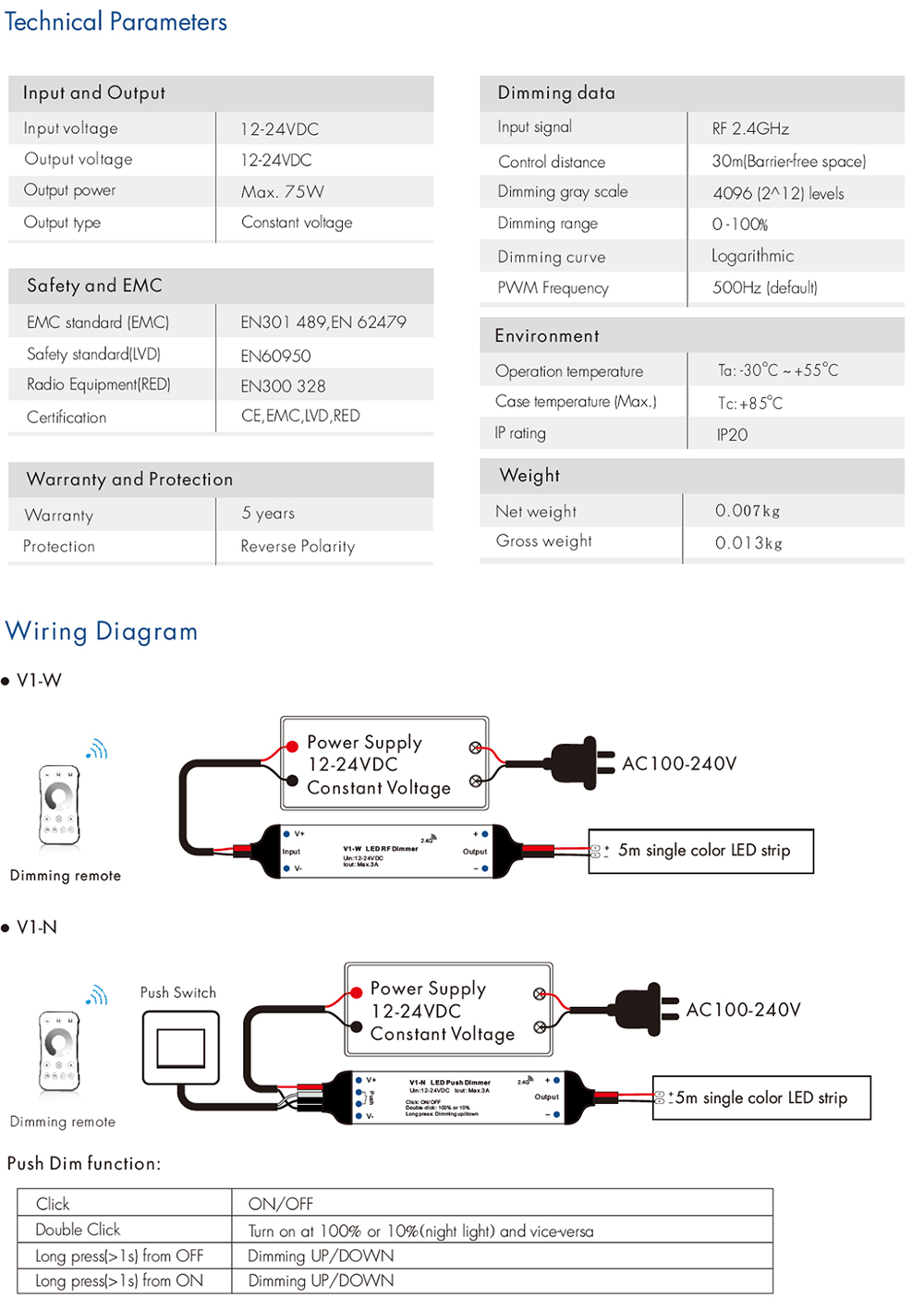

Input and Output
Input voltage: 12-24VDC
Output voltage: 12-24VDC
Output power: Max. 75W
Output type: Constant voltage
Input signal: RF 2.4GHz
Control distance: 30m
Dimming level: 4096(2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 500Hz (default)
Safety and EMC
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-17 V3.2.4
Safety standard(LVD): EN 62368-1:2020+A11:2020
Radio Equipment(RED): ETSI EN 300 328 V2.2.2
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
