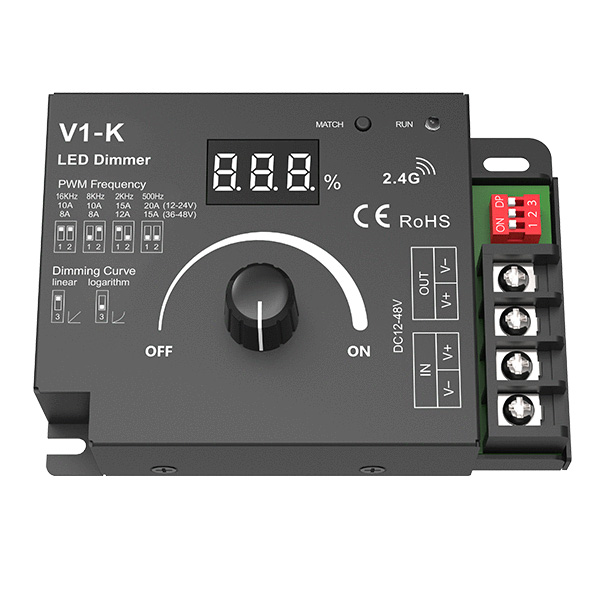

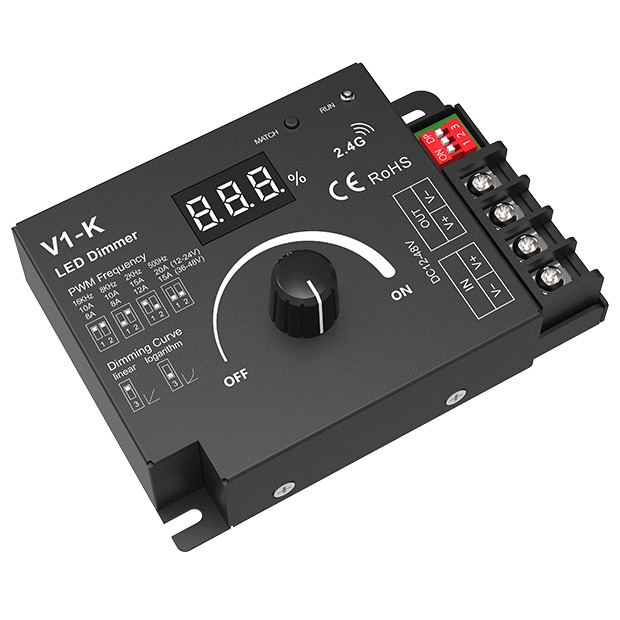

DC12-24V 20A 1CH*20A 12-24VDC CV 2,000Hz Dimming Controller V1-K For Quad Row LED Strips
● Rotary dimmer with the digital numeric display, visible dimming level.
● Match with Skydance’s 2.4G single-zone
or multiple zones dimming remote control optional.
● 0-100% dimming smoothly without any flash.
● High load current up to 20A.
● Logarithmic or linear dimming curve selectable.

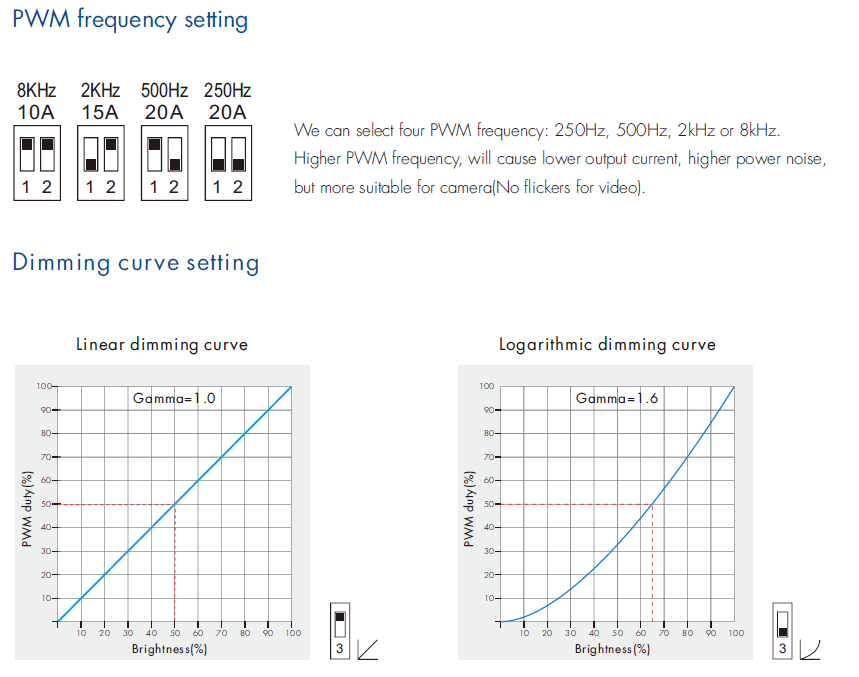

● PWM frequency 250Hz, 500Hz, 2kHz, or 8kHz selectable.
● Over-heat / Over-load / Short circuit protection, recover automatically.
Input and Output
Input voltage: DC12-24V
Input current: 20A
Output voltage: 12-24VDC
Output current: 1CH,20A Max.
Output power: 240W/480W Max.
@ (12V/24V) 250Hz PWM
Output type: Constant voltage
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
PWM Frequency: 250Hz, 500Hz, 2kHz, 8kHz
Dimming level: 100 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic or linear.
Standards and Certifications
Use Match key
Short press match key, immediately press on/off key (single-zone remote) or zone key (multiple zones remote) on the remote.
The LED indicator fast flashes a few times means the match is successful.
Press and hold match key for 5s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.
Use Power Restart
Switch off the power, then switch on power again, an immediate short press on/off key (single-zone remote) or zone key (multiple zones remote) 3 times on the remote. The light blinks 3 times means the match is successful.
Switch off the power, then switch on power again, an immediate short press on/off key (single-zone remote) or zone key (multiple zones remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
