Navigate sharp corners and create flawless 90-degree angles in your lighting layout with the 5-Pin L-Shape Solderless Corner Connector. Designed specifically for 5-conductor SMD lighting, this connector is the perfect solution for creating continuous runs of 5-pin SMD RGBW LED strips or DMX LED strips without soldering. Its unique design ensures no LEDs are blocked, maintaining perfectly even illumination even on high-density strips. Available for both 10mm and 12mm wide PCBs, this connector offers a secure and reliable way to extend your lighting around corners for under-cabinet, cove, and display applications. Choose between a rigid one-piece connector for perfect right angles or a flexible wired version for navigating custom turns.
Key Features
Effortless 90° Corners
Creates clean, professional-looking right-angle turns without needing to bend or damage your LED strip.
Solderless Piercing Connection
Features an insulation-piercing pins that create a strong, reliable connection with just a squeeze from a pair of pliers.
Dual Width Compatibility
Available in two sizes to perfectly fit either 10mm or 12mm wide 5-pin RGBW and DMX LED strip lights.
Two Style Options
Select the rigid one-piece L-shape for perfect angles or the flexible 10cm wire version for navigating slightly irregular corners.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | RGBW-SMD-L |
| Product Type | L-Shape Corner Connector |
| Pin Count | 5-Pin |
| Connection Method | Solderless, Insulation-Piercing Clamp |
| Compatible PCB Width | 10mm (0.39in) or 12mm (0.47in) |
| Compatible Strip Types | 5-Pin SMD RGBW LED Strips, 5-Pin DMX LED Strips |
| Selectable Styles | One-piece L-Shape, Two Connectors + 10cm Wire |
| Housing Material | Plastic |
| Pin Material | Copper |
Application Scenarios
How to Use This Solderless Corner Connector
- Ensure the power to your LED strip is completely turned off before installation.
- Cut your LED strip cleanly along the designated copper cut line.
- Carefully slide the end of the LED strip into the connector. Ensure the 5 copper pads on the strip align perfectly with the 5 metal pins inside the connector.
- Use a pair of pliers to gently but firmly press the metal pins down until they pierce through the strip's PCB.
- Repeat the process for the second LED strip on the other side of the connector.
- Once both sides are connected, you can power on the strips to test the connection and enjoy your perfectly cornered lighting.
- Verify that you are using the correct connector size (10mm or 12mm) for your specific LED strip width.
- When connecting strips, ensure the polarity markings (+, G, R, B, W) align correctly through the connector to prevent malfunction.
- Designed for non-waterproof (IP20) LED strips. If using on a waterproof strip, the silicone coating must be carefully removed from the contact area before insertion.
What's in the Box
- ✓Based on your selection:
- ✓1 x One-piece L-Shape Connector
- ✓OR

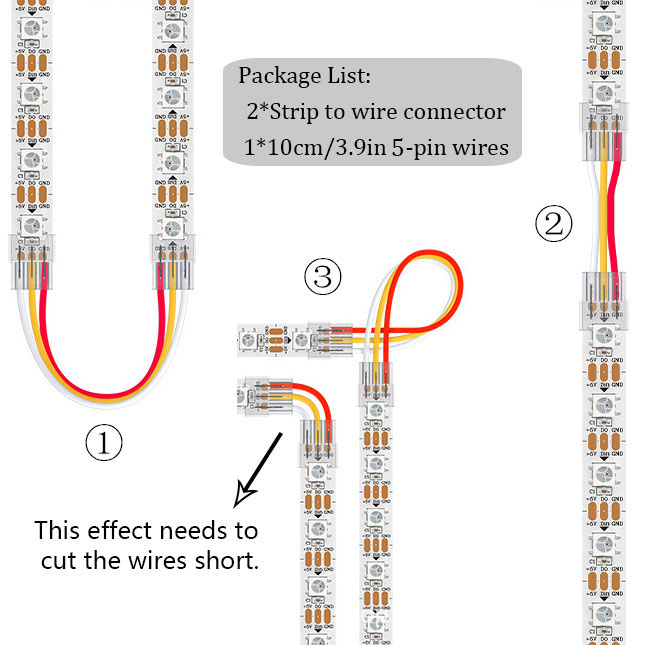

- ✓2 x Strip-to-Wire Connectors + 1 x 10cm 5-Pin Wire
Frequently Asked Questions
Q: What is the difference between the 'One-piece' and 'Strip to Wire' options?
A:The 'One-piece' is a rigid plastic connector that creates a perfect 90-degree angle. The 'Strip to Wire' version uses a flexible 10cm wire between two connectors, which is ideal for navigating slightly off-angle or imperfect corners.
