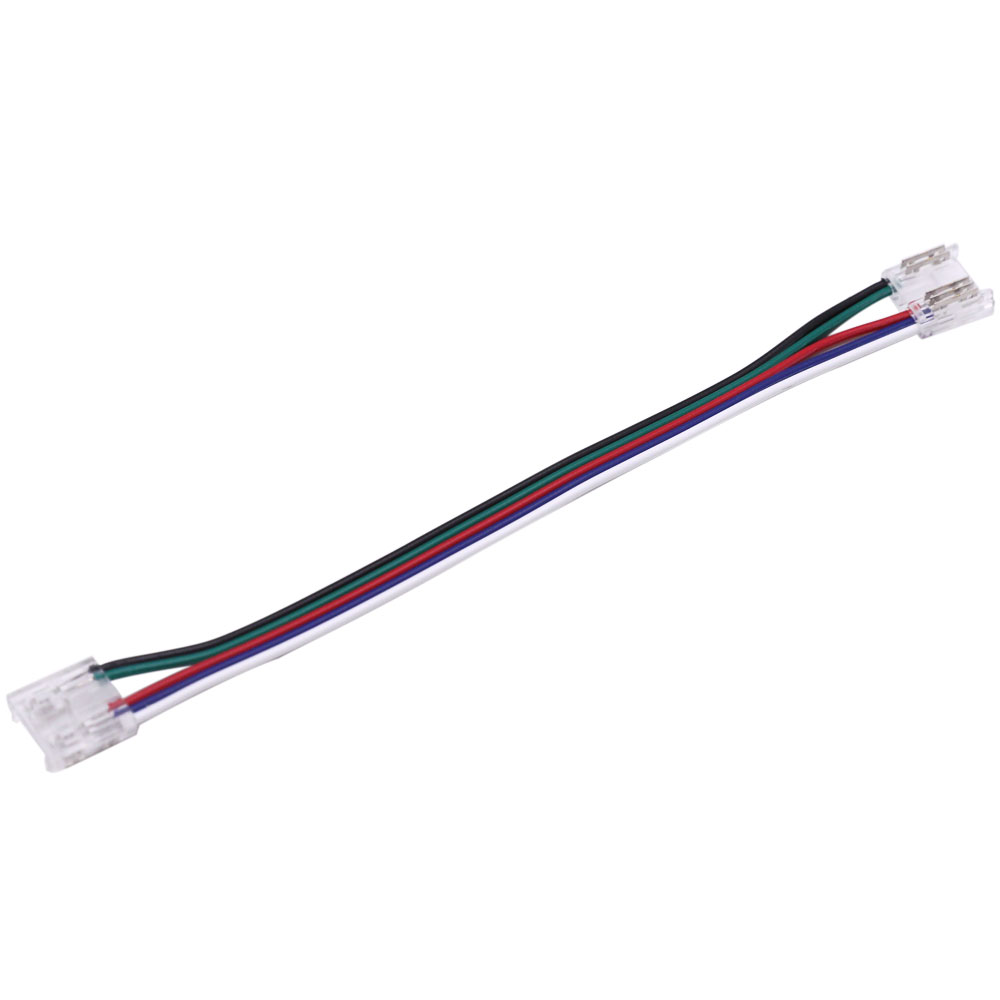

Create seamless, continuous runs of multicolor lighting with the 15cm Wire 5-Pin 12mm RGBW COB LED Connector. Specifically engineered for joining two sections of non-waterproof, 12mm-wide cob led RGBW strip lights, this connector cable eliminates the need for soldering. The integrated 15cm wire is perfect for bridging gaps, navigating corners, or bypassing obstacles in your installation, such as cabinet supports or wall fixtures.
Its unique insulation-piercing design ensures a secure, reliable connection by biting directly into the strip's circuit board. This lighting connector is a key component in our family of 5-Pin RGBW LED Strips Parts, designed to make your custom lighting projects faster and easier.
Key Features
Designed for COB Strips
Exclusively engineered for 12mm wide, 5-pin RGBW COB LED strips, ensuring a perfect fit and reliable performance.
15cm Bridge Wire
The flexible 6-inch wire allows you to easily make turns and jump over obstacles for complex lighting layouts.
Solderless Piercing Connection
Features sharp pins that pierce the LED strip's PCB for a strong, vibration-resistant electrical connection without any soldering.
Strip-to-Strip Extension
Equipped with a connector on each end to seamlessly link two separate lengths of COB strip light into one continuous run.
Multiple Pin Configurations
Available in two different pin layouts (3+2 to 2+3 and 2+3 to 2+3) to match the specific design of your COB strips.
Product Specifications
| Parameter | Details |
|---|---|
| Model | COB-RGBW-ACCESSORIE-2 |
| Product Type | Strip-to-Strip Connector |
| Pin Count | 5-Pin |
| Wire Length | 15 cm (approx. 6 inches) |
| Compatible Strip Width | 12mm |
| Compatible Strip Type | IP20 Non-Waterproof RGBW COB LED Strips |
| Incompatible Strip Type | SMD LED Strips, Waterproof Strips, Other Widths |
| Connection Method | Solderless, Insulation-Piercing |
| Available Pin Types | 3+2 to 2+3 pin type, 2+3 to 2+3 pin type |
| Housing Material | Plastic + Metal |
Application Scenarios
How to Use This COB LED Connector
- Ensure the power to your LED strip system is completely turned off before installation.

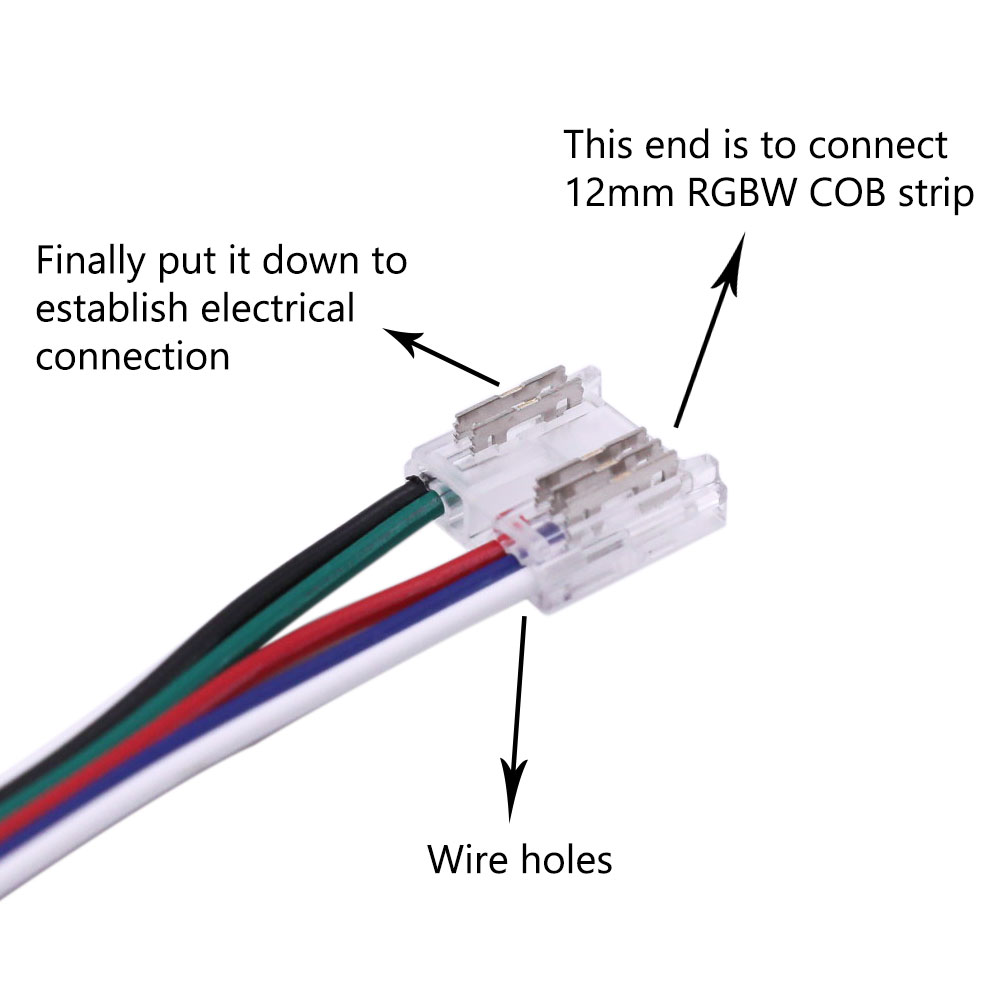

- Carefully slide the end of your 12mm RGBW COB strip into the connector. Make sure the copper contact points on the strip align correctly with the metal pins inside.
- Use a pair of pliers to apply pressure across the connector. This action drives the pins through the strip's PCB, securing the connection.
- Gently tug on both strips to ensure they are securely fastened. Once confirmed, you can restore power to test the connection.
- This connector is designed exclusively for 12mm wide, 5-pin, IP20 non-waterproof RGBW COB LED strips. It will not work with SMD strips, waterproof strips, or strips of any other width.
- Always verify that the polarity and color channels (+, R, G, B, W) on your strip align with the markings or pin positions of the connector before closing the clamps.
- Applying firm pressure with pliers is crucial for a reliable, long-lasting connection. An improper connection may result in flickering or no light.
Frequently Asked Questions
Q: Do I need to solder anything?
A:No, this is a completely solderless led connector. It uses an insulation-piercing clamp system to create a secure electrical connection.
Q: Why do I need to use pliers?
A:Using pliers to clamp the cover shut ensures the metal pins fully pierce the flexible PCB of the COB strip. This creates a much more secure and reliable connection than finger pressure alone.

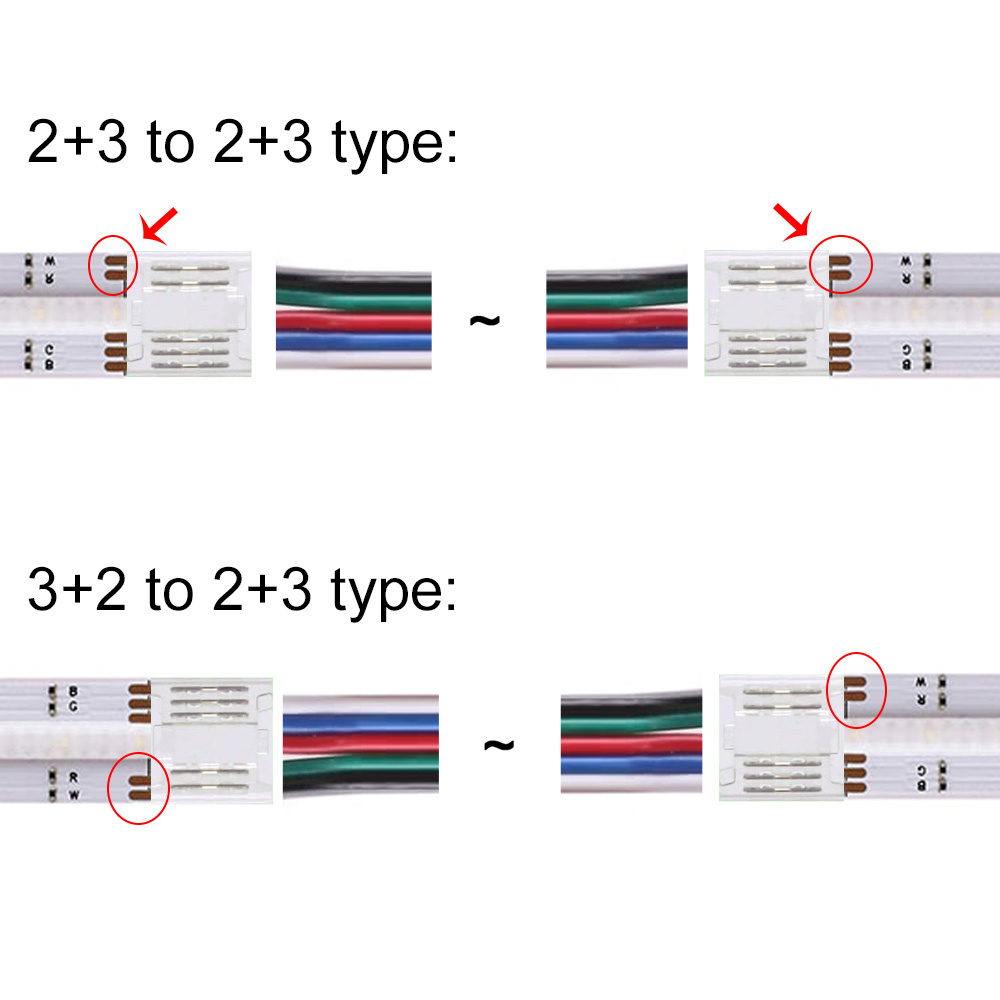

Q: What is the difference between the '3+2 to 2+3 pin type' and '2+3 to 2+3 pin type' options?
A:This refers to the physical arrangement of the pins inside the connector housing. Different COB strips have different layouts, so please inspect your strip's pin configuration to select the matching connector.
Q: Can I use this 5 pin connector to go around a 90-degree corner?
A:Absolutely. The flexible 15cm wire is ideal for making sharp turns, including 90-degree corners, without risking damage to the LED strip itself.
Q: Can I cut the wire to make it shorter?
A:While it is physically possible, we do not recommend modifying the connector. Cutting the wire would require you to re-strip and connect it manually, defeating the purpose of a solderless solution.
