Product Information

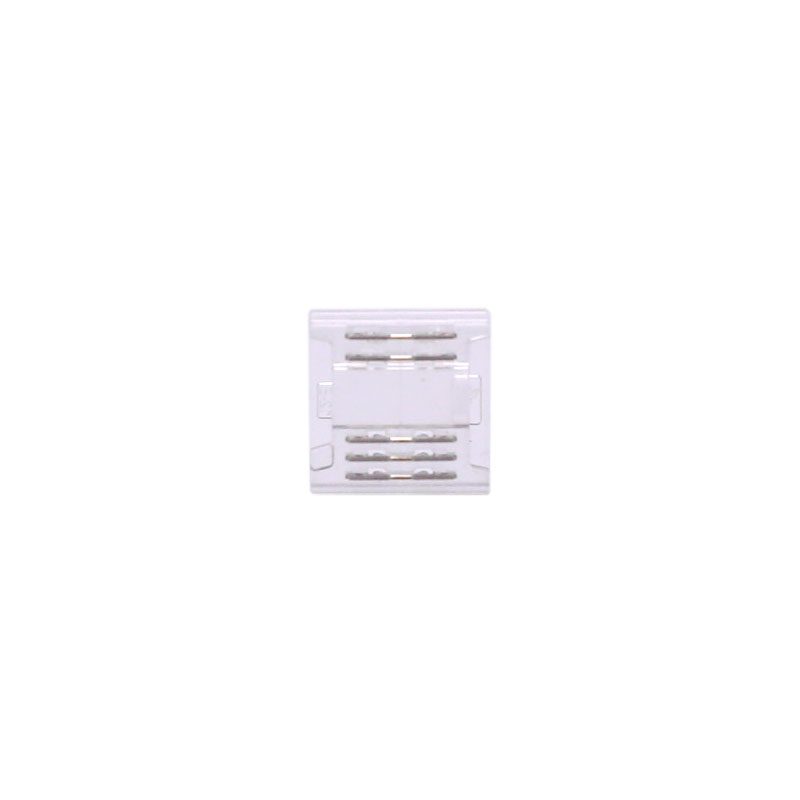

Create flawless, professional RGBW Cob lighting installations with our 12mm 5-Pin Solderless LED Connectors, designed exclusively for RGBW COB LED strips. These quick connectors eliminate the need for soldering, utilizing a sharp piercing mechanism to create a secure and reliable electrical bond. The compact, transparent design ensures a tight fit that minimizes light gaps, maintaining the seamless, dotless appearance of your COB lighting.

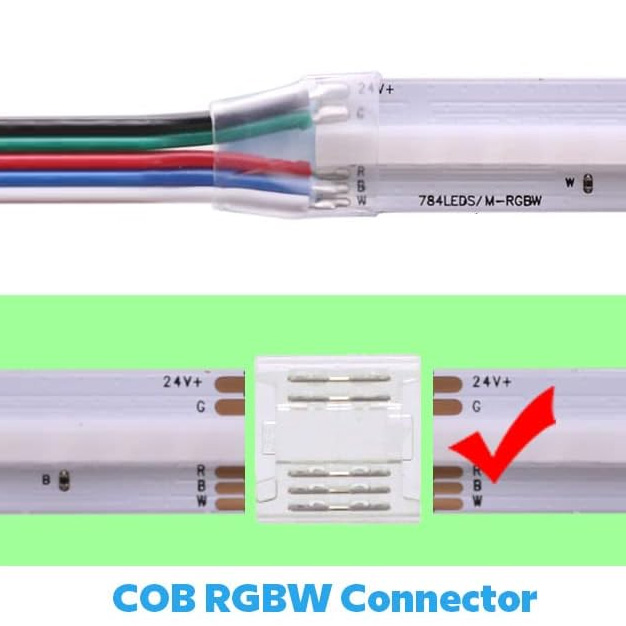

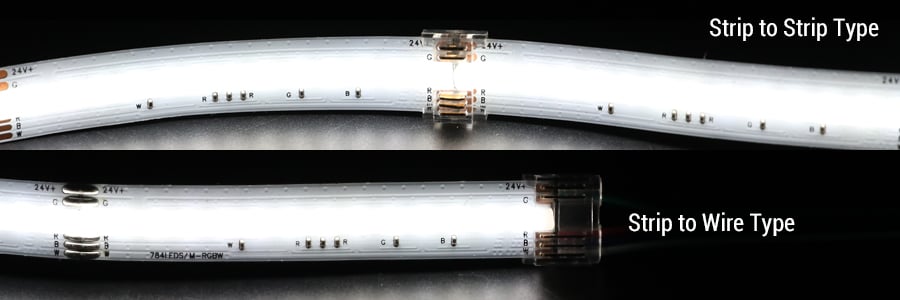

Available in two essential types: choose the Strip-to-Strip connector to seamlessly join two RGBW cob strip segments for longer, continuous runs, or select the Strip-to-Wire version to easily connect your RGBW cob light strip to an RGBW controller or power source. This secure piercing connector system is the perfect solution for custom-fitting COB strips into tight spaces, under cabinets, or along complex architectural lines without specialized tools.
Key Features
Solderless Piercing Design
Features sharp internal contacts that pierce the LED strip's PCB for a strong, reliable connection without any soldering.
Engineered for COB Strips
Specifically designed to work with the unique flexible circuit board of 12mm 5-pin RGBW COB LED strips (IP20).
Seamless, Gapless Connection
Provides a tight, secure link between strips, preserving the continuous, dot-free glow of your COB lighting.
Two Versatile Options
Available in Strip-to-Strip for extending lengths and Strip-to-Wire for connecting to power and control systems.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | COB-RGBW-ACCESSORIE |
| Product Type | Solderless Piercing Connector |
| Available Styles | Strip to Wire, Strip to Strip |
| Pin Quantity | 5-Pin |
| Compatible Strip Width | 12mm |
| Compatible Strip Type | IP20 Non-Waterproof RGBW COB LED Strips |
| Incompatible Strip Type | SMD strips, Waterproof/Coated strips |
| Material | Plastic + Metal |
| Color | Transparent |
Application Scenarios
How to Use This COB Strip Connector
- Ensure the main power is turned off before installation.
- Cut your 12mm RGBW COB strip cleanly at the designated cut mark.
- Carefully slide the end of the COB strip into the connector. Ensure the 5 copper pads on the strip are aligned with the 5 metal pins inside.
- For the Strip-to-Wire model, insert the five corresponding wires (22AWG) into their guide channels.
- Firmly press the metal pins down. This action drives the pins through the strip's backing, making the connection.
- Gently tug on the strip (and wires, if applicable) to confirm they are securely fastened.
- This connector is designed exclusively for 12mm wide, 5-pin, IP20 non-waterproof RGBW COB LED strips.
- Double-check that the polarity markings on the strip align correctly before closing the connector.
Frequently Asked Questions
Q: What is the difference between 'Strip to Strip' and 'Strip to Wire'?
A:The 'Strip-to-Strip' type joins two separate COB strips end-to-end to create a longer, continuous run. The 'Strip-to-Wire' type connects a COB strip to loose wires for linking to a power supply or an RGBW controller.
Q: Do I need to solder anything?
A:No, this is a completely solderless connector. It uses a piercing clamp mechanism to establish a secure electrical connection when you snap it shut.
Q: Will this leave a dark spot in my lighting?
A:This connector is designed to be very compact, holding the strip ends close together to minimize any unlit gaps and maintain a seamless appearance.
Q: What tools are required for installation?
A:You only need a pair of scissors to cut the COB strip at the designated cut points and a crimping pliers to press the connector pins down. No other special tools are required.
