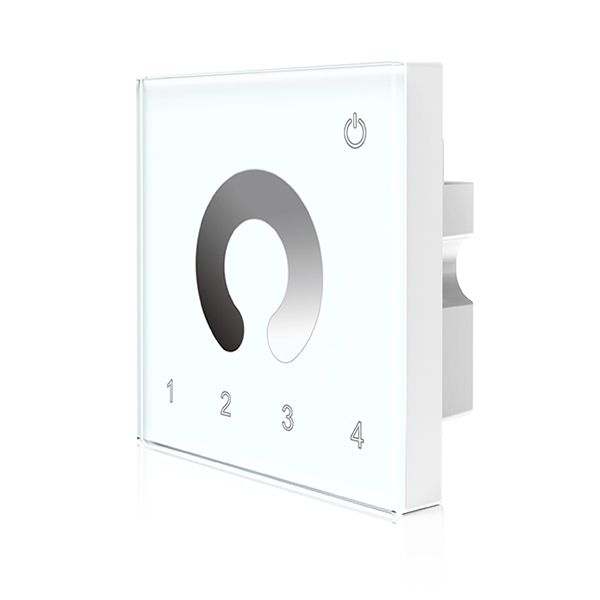

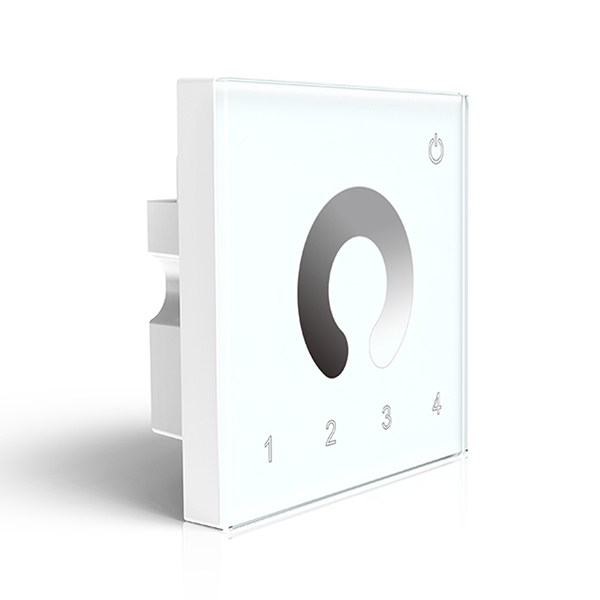

Touch Panel Single Color LED Constant Voltage Controller T1 For Single Color LED Strip Light
Touch panel DIM PWM constant voltage controller can also be used as DIM remoter.
Select 4 Zone or 4 Scene, whether as a remoter through 2bit DIP switch.
Ultrasensitive high strength glass touch panel with touch color wheel in the middle and backlighting.
256 level dimming, smooth dimming without any flicking.
Adopt 2.4GHz wireless technology, when used as a controller, can accept up to 10 remoter control. when used as remoter, can remote control multiple dimming controllers.
Can work with WiFi-relay controller after install APP on IOS and Android system.
Work with power repeater to expand output unlimitedly.
Standards and Certifications
LED power supply voltage and power select :
● 12V lamp, Input 12V power supply, can load 0~144W,
● 24V lamp, Input 24V power supply, can load 0~288W, The power supply power must larger than load power 20%.
Match Remote Control (two-match ways)
The touch panel controller can also match with the RF remote (optional). End-user can choose the suitable match/delete ways. Two options are offered for selection:
Use On/Off key
Turn on light, turn off, immediately press the On/Off key of the panel for 5s, then press on/off key (single-zone remote) or zone key (multiple zones remote) of the RF remote within 5s.
The LED indicator fast flashes 3 times means the match is successful.
Turn on light, turn off, immediately press the On/Off key of the panel for 10s, delete all matched RF remote. The LED indicator fast flash 6 times means all matched remotes were deleted
Use Power Restart
Switch off the power, then switch on power again,
an immediately short press on/off key (single-zone remote)
or zone key (multiple zones remote) 3 times on the remote.
The light blinks 3 times means the match is successful.
Switch off the power, then switch on power again, an immediate short press on/off key (single-zone remote) or zone key (multiple zones remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
