Sign Lighting Lens LED Light Module
20 productsLED module light with lens connects multiple modules through wires, which is easy to install and maintain. This flexible design makes it very suitable for DIY-ing advertising signs, lightbox and so on. Compared with flexible LED sheet lights, the diffuse reflection modular LED light features high-brightness LED beads and wide-angle lenses, which can disperse the light evenly in all directions to form soft and even illumination. The even illumination can effectively eliminate light spots and shadows. Therefore, the modular LED lights with lens are widely used in letters design, advertising signs, light boxes, landscape layout, stage decoration, wall decorative lighting and so on.
The LED light modules with lens adopts LED chip as the light source, which has the advantages of energy saving and long service life. The lens LED strip module is available in a variety of colors, including single color, dual color, RGB, RGBW, RGBIC, etc., which can create colorful effects. SPI LED lens modules light can create dynamic lighting effects via pixel LED controllers. We also have addressable LED strips that are more flexible to adapt to irregular spaces.
DC24V 3030 Diffuse Reflection Lens RGB CCT LED Module Light Signs
DC24V RGBW LED Module Light Diffuse Reflection Lens for Lightbox
24V Lensed Cuttable Flexible LED Light Sheet For Backlighting
DC24V Diffused Lens Dual White CCT Bright LED Modules for Signs
DC24V Tunable White Diffuse Reflective LED Module with Lens
DC24V Diffused 175 Degrees Lens RGBW LED Pixel Module TM1814
IP65 Waterproof 12V 3W LED Sign Modules - 7 Colors, High CRI 90
DC12V 2W SMD3030 LED Modules - 7 Colors, IP65 Sign & Cabinet Lighting
12V SMD2835 Single Color LED Module Lights String, 20pcs/string
DC12V 1.5W IP65 SMD3030 Linear LED Modules - 7 Colors, Signage Lighting
1.5W 3030 SMD LED Module IP65 - 7 Colors, High CRI 90 Sign Lighting
DC12V 1.5W SMD3030 Linear LED Sign Modules - IP65, 7 Colors, High CRI90
DC24V Diffuse Reflection Single White Round LED Module Lights Lens
DC24V Diffused RGB LED Sign Modules Light with Lens 175 Degrees
DC24V Diffuse Reflections Lens RGBW DMX LED Module for Signage
DC24V Diffused LED DMX512 RGBW Module Light with Wide Angle Lens
DC24V White 175 Degrees Lens Diffused LED Sign Lighting Modules
UCS7604 DC24V Diffuse Lens SPI RGBW LED Backlight Module Lightbox

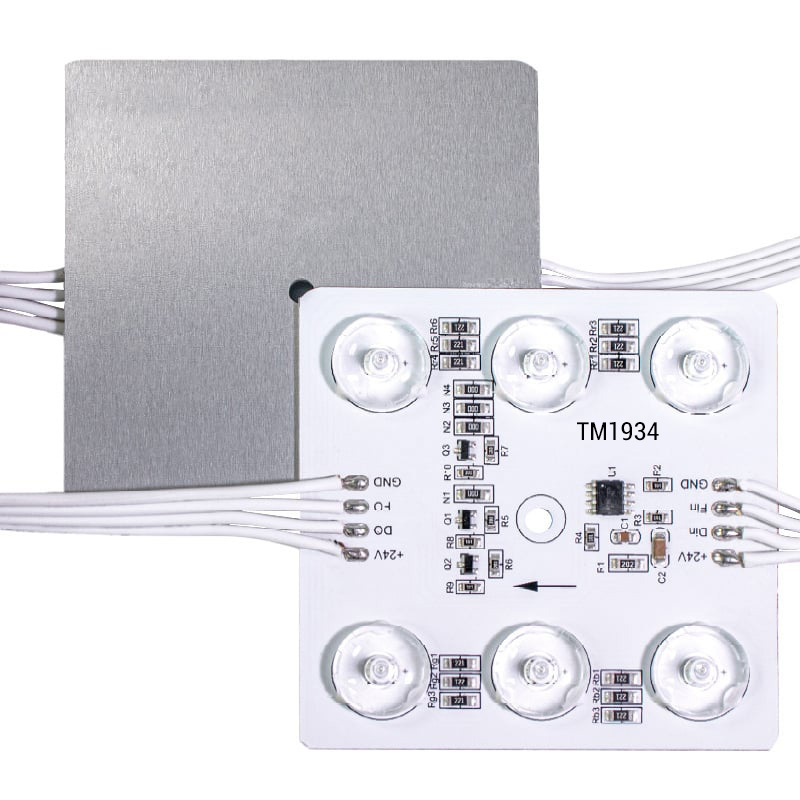

DC24V Diffused RGB Addressable LED Module Light with Lens TM1934
Frequently Asked Questions About Sign Lighting Lens LED Modules
Got a question about setting up your lightbox or channel letters? I've answered thousands of them over the years. Here are the most common ones.
They're individual, high-power LEDs, each with its own optical lens, linked by wires into a string. Unlike a continuous LED strip, these modules are designed to be spaced apart to create a large, evenly lit area, perfect for backlighting sign cabinets or channel letters. The lens spreads the light wide, usually 175 degrees, so you can use fewer modules and still get a smooth, hotspot-free look.
Some are. You need to check the IP rating on the specific model's data sheet. We list several modules rated at IP65, which means they are dust-tight and protected against water jets. This is suitable for most outdoor sign cabinets where they're inside a housing. If the modules will be directly exposed to rain, you should look for a higher rating.
For very large signs, you can't just run one long string. The standard practice for these LED module lights is to inject power every 20-40 modules (check the spec sheet for the specific model). This means running parallel power lines from your power supply to multiple points in your module grid. This ensures every module gets the full 24V and maintains consistent brightness.
