D5-W72 72W RGB+CCT LED Wall Washer Light ( DMX512 & RDM )
The following is the description of the kit optional:
If you choose LED Wall Washer Light, we will send you 1* D5-W72
if you want to control the LED wall panel controller by smart phone, you can purchase WL-Box1
Product Name: 72W RGB+CCT LED Wall Washer Light ( DMX512 & RDM )
Model No.: D5-W72

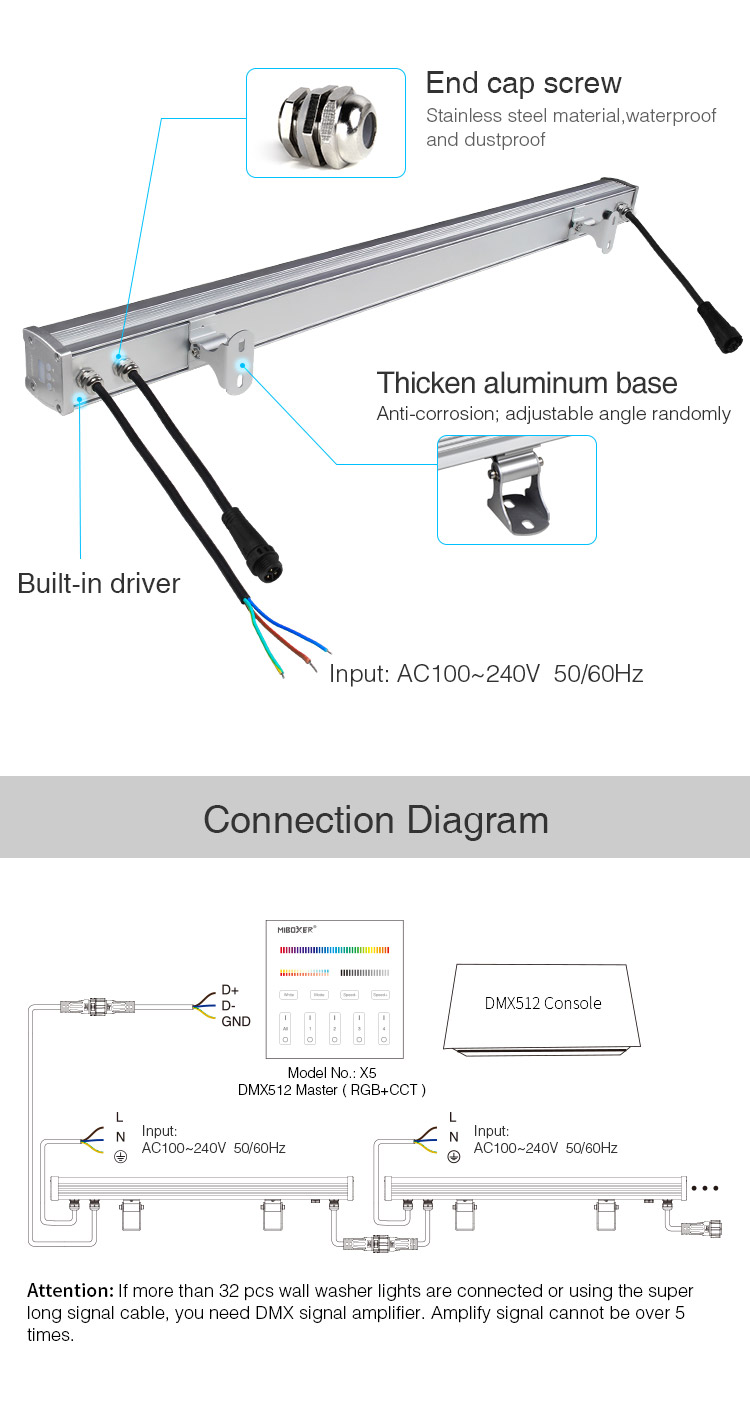

Input Voltage: AC100~240V 50/60Hz
Color Temp.: 2700~3000K
Beam Angle: 15*60°
Working Temp.: -20~45℃

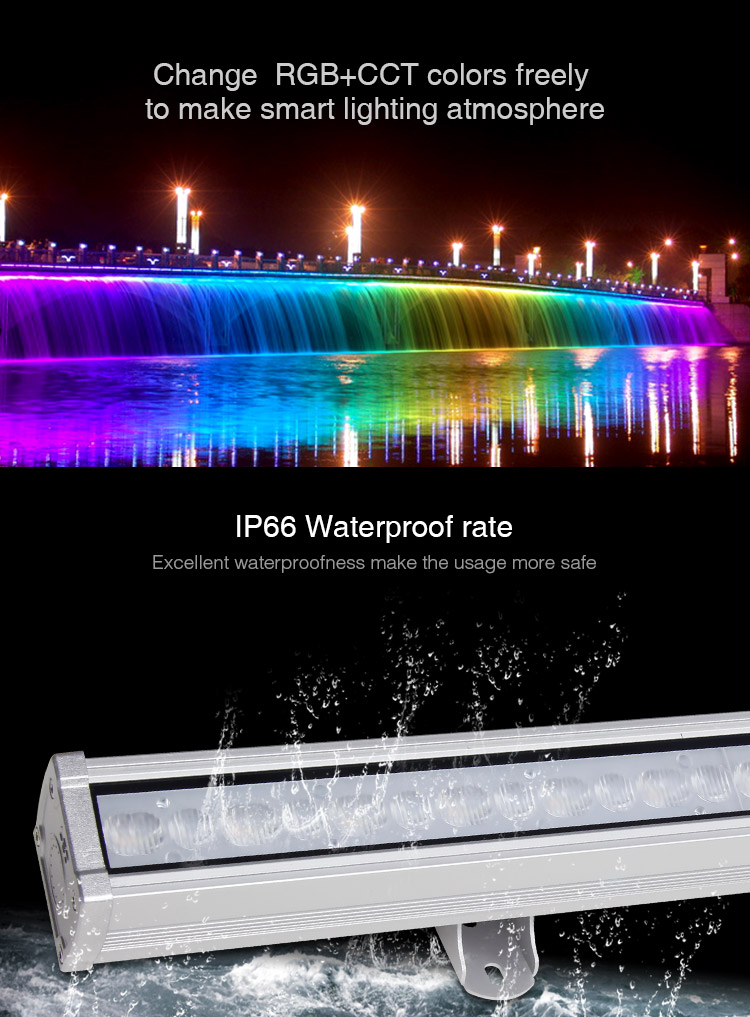

Waterproof Rating: IP66
Luminous Flux: R:280LM G:540LM B:150LM CW:1800LM WW:1650LM

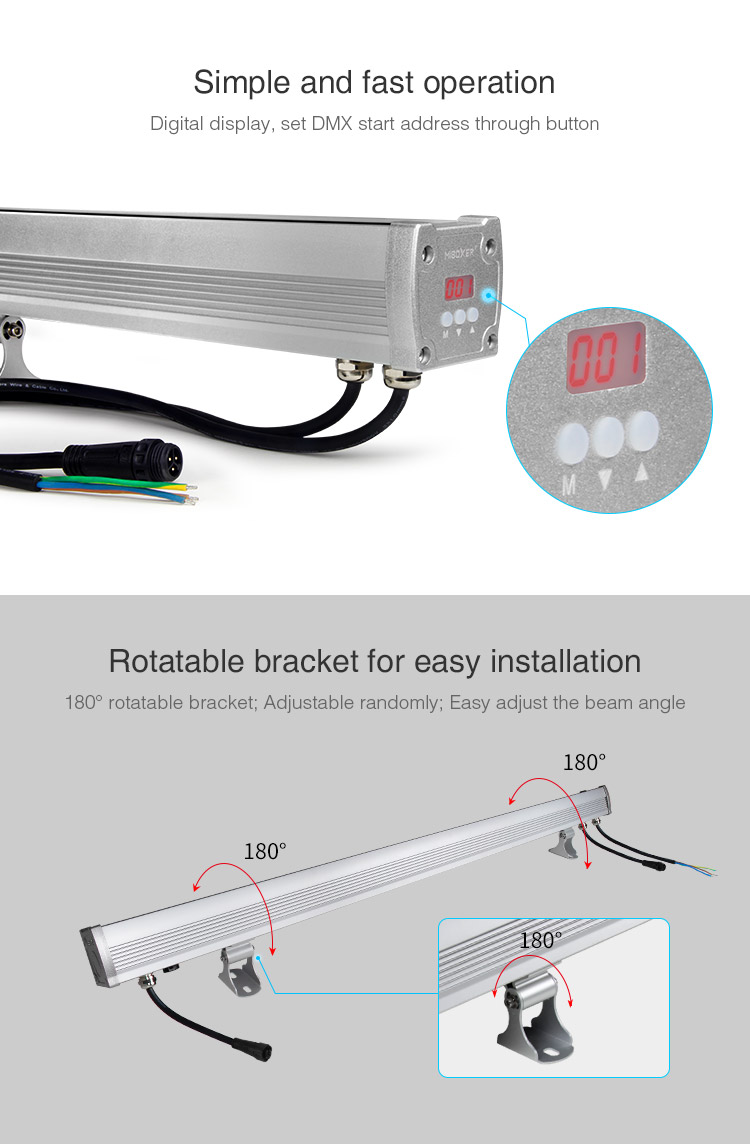

Occupy 5 DMX Address
