Product Information
Key Features
Versatile 4-Channel Output
Perfectly suited for RGBW LED strips, or for controlling up to four separate single-color LED zones with a single device.
DMX512 & RDM Compatible
Integrates seamlessly into any standard DMX system, while RDM allows for easy remote configuration and device management.
High Load Capacity
Delivers up to 5A per channel with a maximum total output of 20A, supporting substantial lengths of constant voltage LED strips.
Wide Voltage Compatibility
Operates on DC12V to DC24V, making it compatible with a wide range of common LED lighting systems.

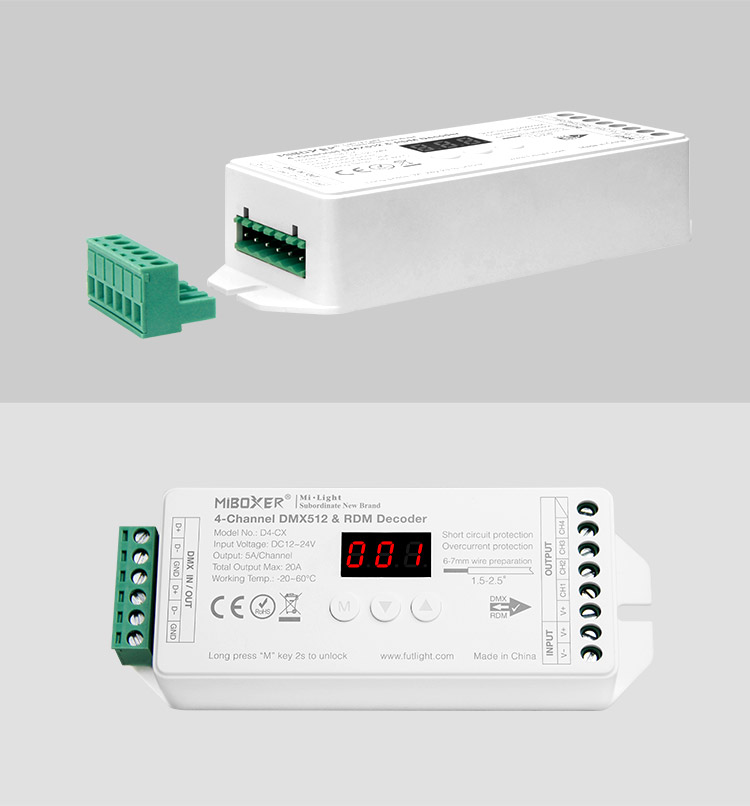

User-Friendly Interface
Features a clear digital display and buttons for quick and easy manual setting of the DMX starting address.

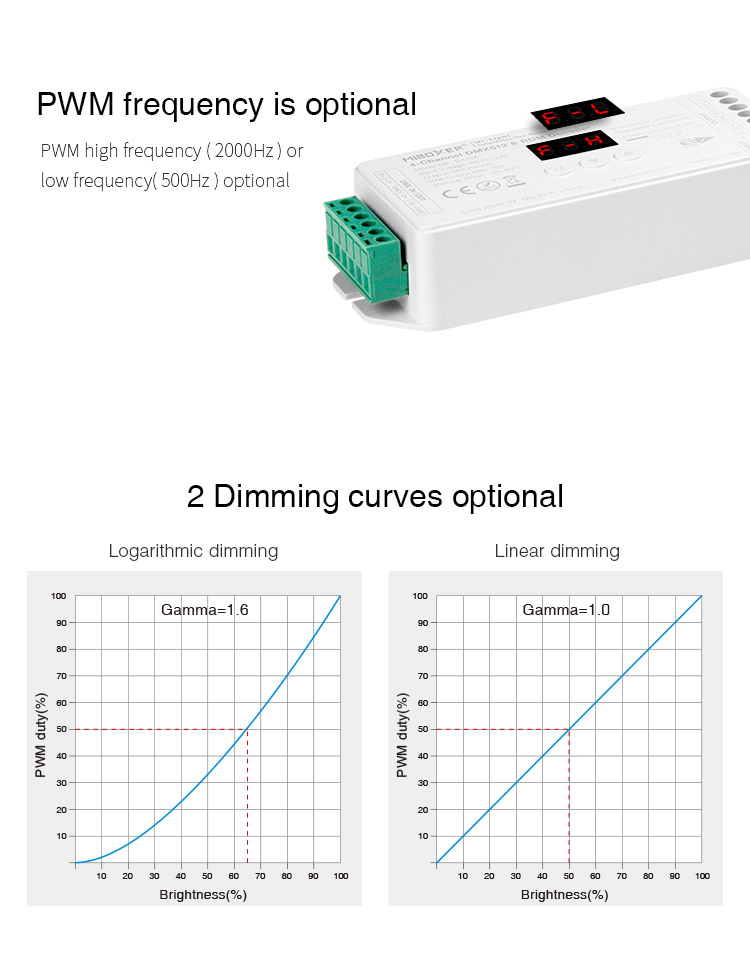

PWM Frequency Options
Selectable high or low PWM frequency to ensure smooth, flicker-free dimming, even for high-speed camera applications.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 4-Channel Constant Voltage DMX512 & RDM Decoder |
| Model No. | D4-CX |
| Input Voltage | DC12~24V |
| Input Signal | DMX512, RDM |
| Output Type | Constant Voltage (PWM) |
| Output Channels | 4 Channels |
| Output Current | 5A / Channel |
| Total Output Current | Max 20A |
| DMX Sockets | 3-pin XLR, RJ45, Screw Terminals |
| DMX Address Range | 1-512 |
| DMX Address Occupied | 4 Addresses |
| Working Temperature | -20~60℃ |
Application Scenarios
How to Control & Use This Controller

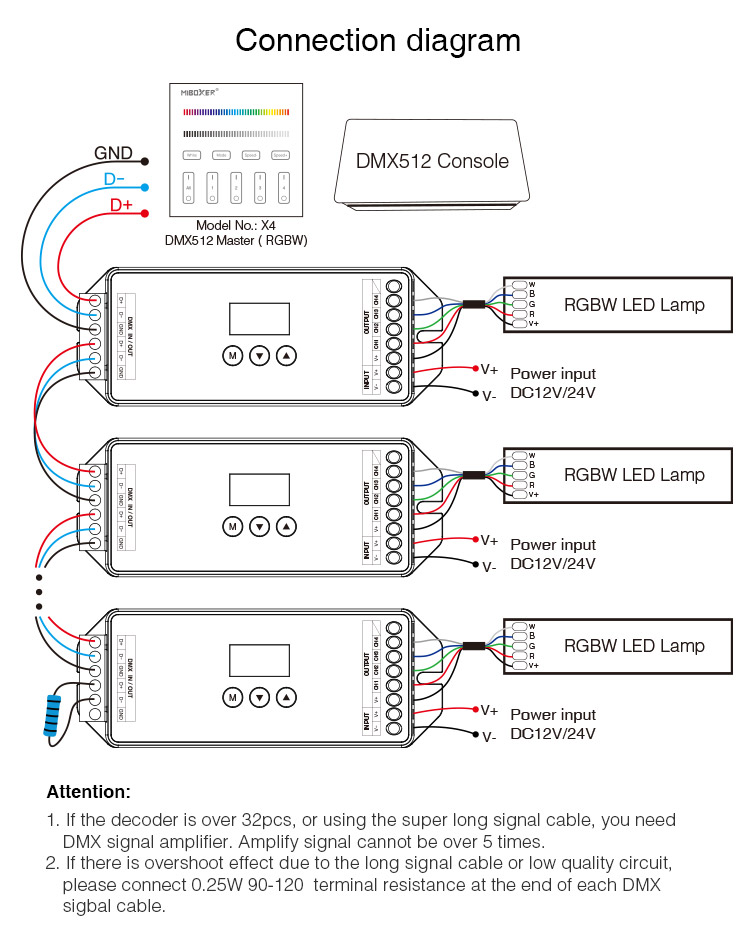

- Ensure the power is off before wiring.
- Connect your DC12V or DC24V LED power supply to the decoder's power input terminals (V+, V-). Ensure the voltage matches your LED strips.
- Connect your LED strips to the output terminals. For an RGBW strip, connect the corresponding wires to R, G, B, W and the common positive to V+.
- Connect the DMX signal from your DMX512 master console to one of the DMX IN ports (XLR, RJ45, or screw terminals).
- Use the digital display and buttons on the decoder to set the desired DMX starting address. This decoder will occupy 4 consecutive addresses starting from the one you set.
- Power on the system. You can now use your DMX console to control the connected LED strips.
- For a detailed DMX512 decoder manual, please see the PDF in the Downloads section below.
- Always use a power supply with a voltage that matches your LED strips (12V or 24V).
- Do not exceed the maximum load of 5A per channel or 20A total for the decoder.
- Ensure all wiring connections are secure and polarities are correct to prevent damage.
- Provide adequate ventilation around the decoder to prevent overheating.

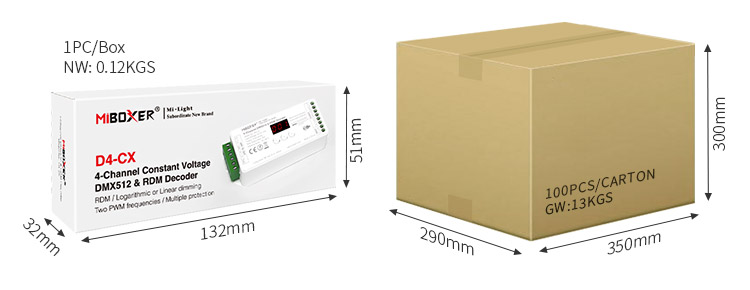

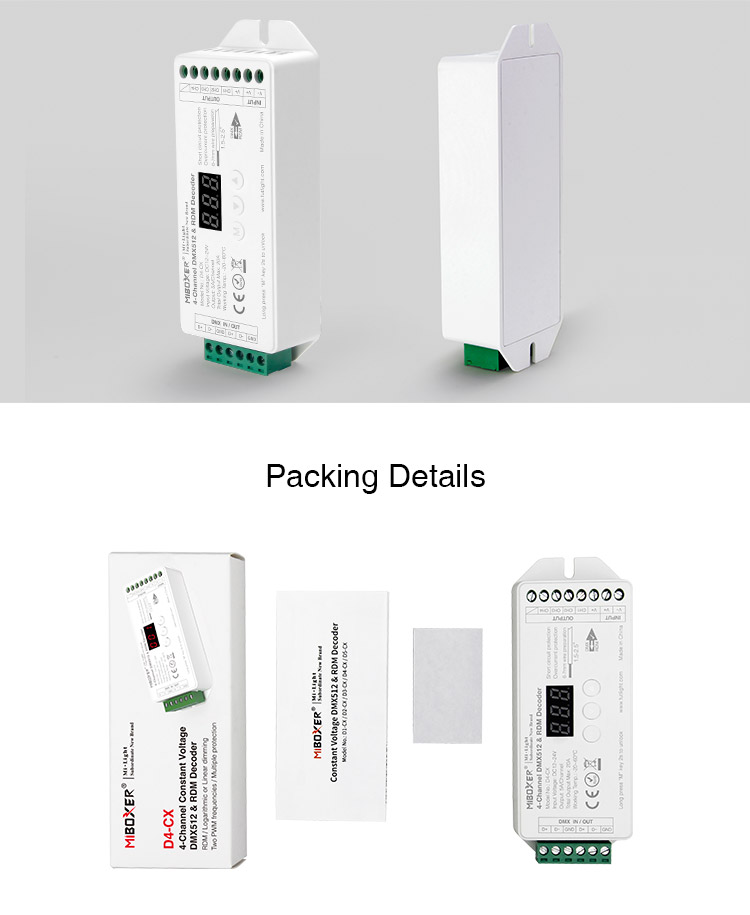

What's in the Box
- ✓1x D4-CX DMX512 & RDM Decoder
- ✓1x User Manual
⇩ Downloads & Documents
Frequently Asked Questions
Q: What kind of LED strips can I control with the D4-CX?
A:This decoder is ideal for 4-channel constant voltage strips like RGBW. You can also control RGB strips (using 3 channels), CCT tunable white strips (using 2 channels), or up to four independent single color LED strips.
Q: What is RDM and why is it useful?
A:RDM stands for Remote Device Management. It allows your DMX controller to communicate back and forth with the decoder, enabling you to set the DMX address and change settings remotely, which simplifies installation and maintenance.
Q: Can I use this decoder without a DMX console?
A:No, this is a DMX512 decoder and requires a DMX controller or DMX master to send it control signals. It does not have standalone modes.
Q: What type of LED power supply should I use?
A:You need a constant voltage DC12V or DC24V LED power supply. The wattage should be at least 20% greater than the total power consumption of all connected LED strips.
