Product Information
Key Features
5-Channel Output
Perfectly suited for controlling Single Color, CCT, RGB, RGBW, and full 5-in-1 RGBCCT LED strips.
DMX512 & RDM Compatible
Integrates with standard DMX512 master consoles and supports RDM for remote configuration and status monitoring.
High Current Capacity
Delivers a robust 4A per channel with a total maximum output of 20A, capable of powering long runs of LED tape.
Wide Voltage Input
Operates on DC12V to DC24V, making it compatible with a wide range of constant voltage LED strips.

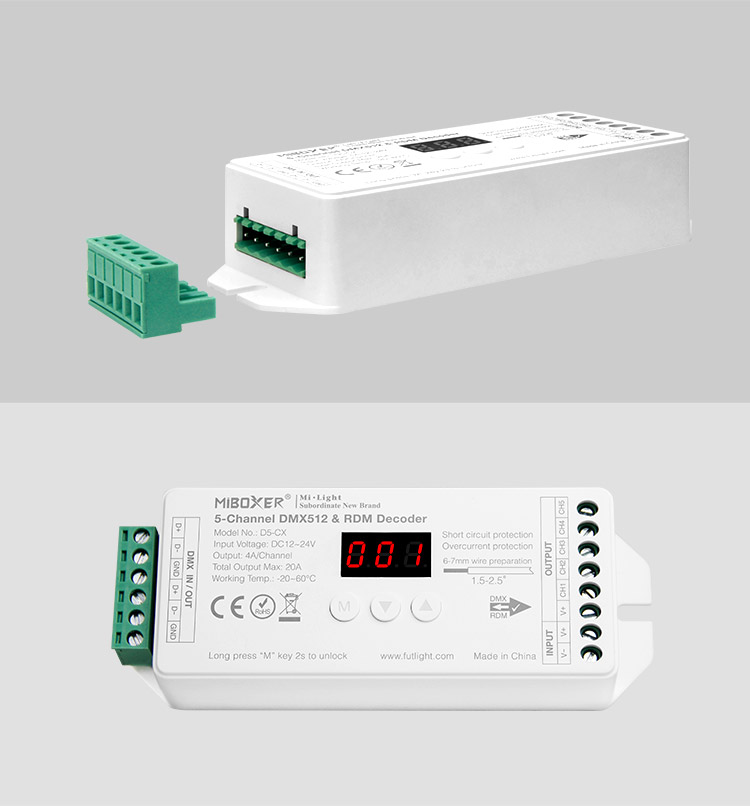

Digital Address Display
Features an easy-to-read numeric digital display for quick and accurate DMX address setting without dip switches.
Professional Grade Terminals
Equipped with secure screw-down terminals for reliable power and signal connections in demanding environments.
Technical Highlights
- RDM bi-directional communication allows for easy discovery, addressing, and monitoring of decoders from a compatible RDM controller.

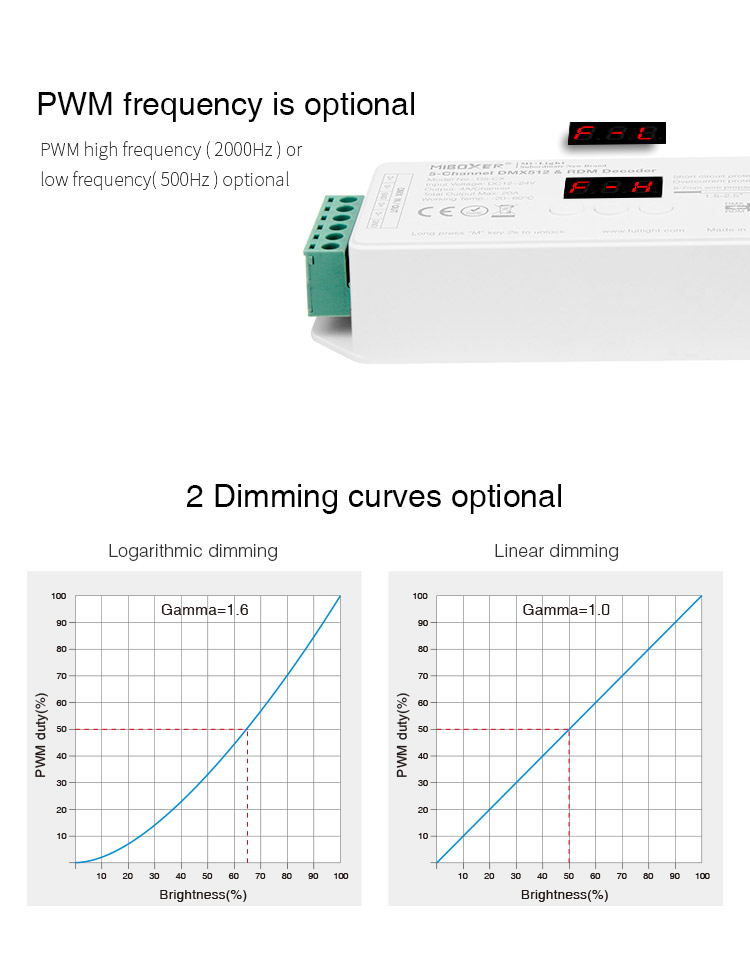

- High-frequency PWM output ensures smooth, flicker-free dimming, making it suitable for applications where video recording is present.
- Occupies 5 DMX addresses, providing granular control over each of the five output channels.
- Robust design with a wide operating temperature range of -20 to 60°C ensures reliability in various installation environments.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 5-Channel Constant Voltage DMX512 & RDM Decoder |
| Model No. | D5-CX |
| Input Voltage | DC12V ~ 24V |
| Input Signal | DMX512, RDM |
| DMX Socket | Green Terminal |
| Output Current | 4A / Channel |
| Total Output Current | Max 20A |
| Output Connection | Common Anode |
| Working Temperature | -20 ~ 60℃ |
| DMX Address Assignment | 5 DMX Addresses |
Application Scenarios
How to Control & Use This Controller

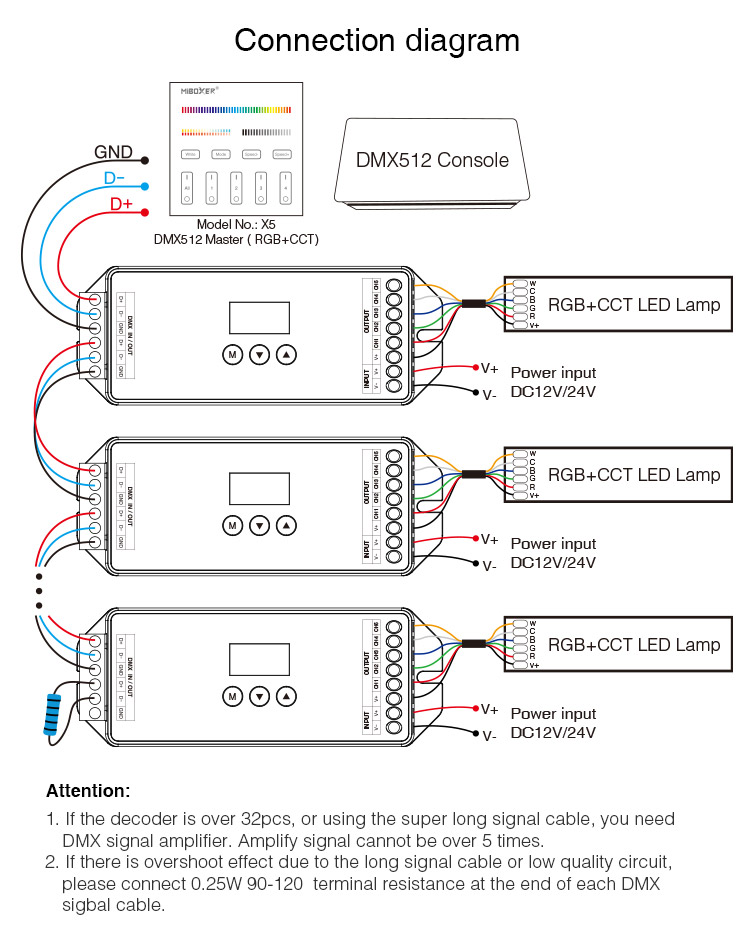

- Ensure the power is off before wiring. Connect your DC12V or DC24V constant voltage power supply to the decoder's power input terminals, observing correct polarity (+ and -).
- Connect your constant voltage LED strips to the output terminals. The V+ terminal is the common anode. Connect the negative wires for each color to the corresponding channel outputs (CH1 to CH5).
- Connect your DMX signal cables from your DMX master console or the previous decoder in the chain to the DMX signal input terminals.
- Power on the decoder. Use the buttons next to the digital display to set the starting DMX address. The decoder will automatically occupy this address plus the next four (total of 5 addresses).
- Use your DMX controller to send signals to the assigned addresses to control dimming and color on each of the 5 channels.
- The input voltage of the power supply must match the required voltage of your LED strips (e.g., use a 24V power supply for 24V strips).
- Do not exceed the maximum load of 4A per channel or a total of 20A for the entire decoder.
- Ensure all wiring connections are secure to prevent short circuits.

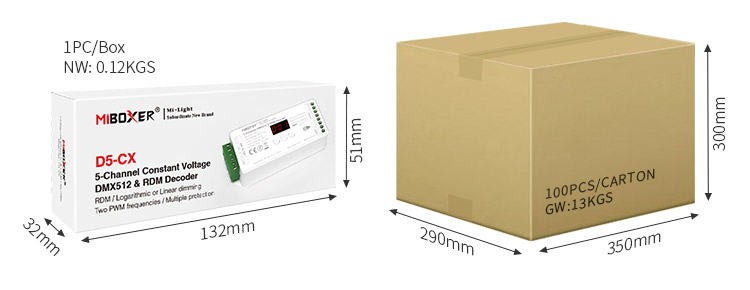

What's in the Box
- ✓1 x D5-CX 5-Channel DMX512 & RDM Decoder
- ✓1 x User Manual
⇩ Downloads & Documents
Frequently Asked Questions
Q: What is the main difference between the D5-CX and the D4-CX models?
A:The D5-CX has five output channels, making it perfect for 5-in-1 RGBCCT LED strips. The D4-CX has only four channels, suitable for RGBW strips. Choose the D5-CX for the most versatile color and temperature control.
Q: What does RDM (Remote Device Management) do?
A:RDM allows for two-way communication between the decoder and an RDM-enabled DMX controller. This lets you remotely set the DMX address and monitor the device's status, which is extremely helpful in large installations.
Q: Can I use this decoder with a 12V RGBW LED strip?
A:Yes, absolutely. This decoder works with both DC12V and DC24V strips. Just ensure your power supply matches your strip's voltage (12V in this case) and connect your strip to four of the five available channels.
Q: How do I set the DMX address on the D5-CX?
A:Use the physical buttons on the unit to cycle through numbers on the digital display. Set it to your desired starting address, and it will automatically use that address and the next four.
Q: What type of power supply is required for this DMX512 decoder?
A:You need a constant voltage power supply with a DC12V or DC24V output. The power supply's wattage capacity must be sufficient to handle the total load of all connected LED strips.
