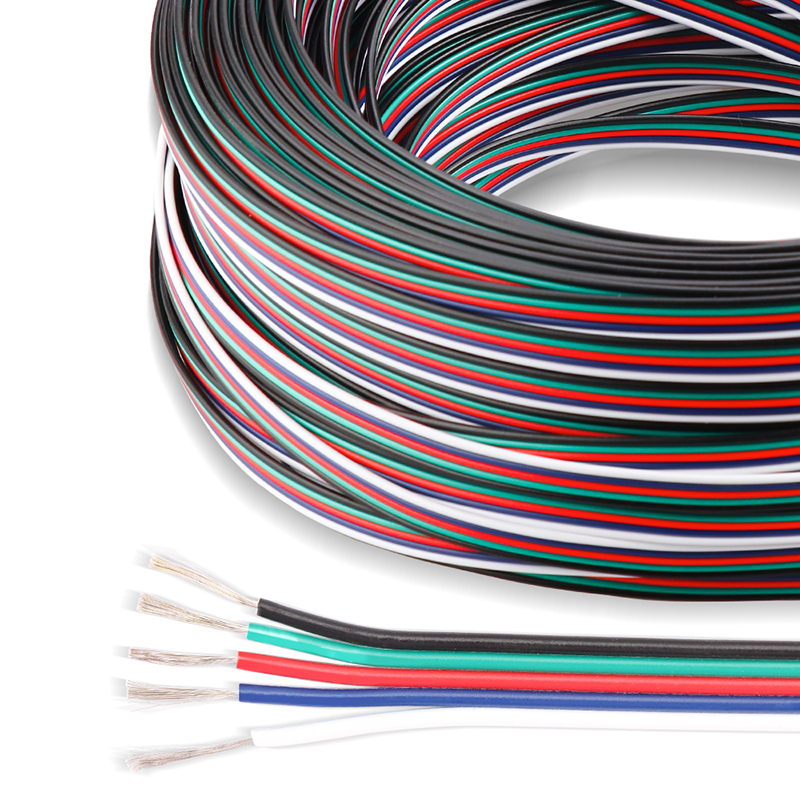

20/22AWG 5Pin Power Wire Cable 1m For RGBW Color Changing LED Strip Lights
Related Products
20/22AWG 5Pin Power Wire...
$2.00 $1.7911% off
Color Change RGBW LED...
$59.98 $24.9858% off
24V 120LEDs/m High...
$44.98 $27.9838% off
Brightest LED Color...
$39.98 $17.9855% off
DC24V RGBW LED Strip -...
$80.00 $64.9819% off
5m RGBW Color Changing...
$37.98 $29.9821% off
RGBW Waterproof LED...
$79.98 $75.985% off- Special Price: $2.00 $1.7911% off
Achieve professional installations with our 5-Pin LED Power Wire, engineered specifically for RGB+W color-changing LED strip lights. This versatile cable is the ideal solution for creating custom-length extensions, bridging gaps between strip segments, or connecting your strips back to an RGBW controller. Unlike pre-made connectors, this wire gives you the freedom to cut the exact length needed, ensuring a clean setup with minimal waste.
Featuring five color-coded, stranded copper conductors inside a flexible PVC jacket, it simplifies the process of wiring your RGBW LED strips correctly. Choose between 22AWG for general use or the heavier 20AWG for longer runs or higher-power applications to ensure stable performance and minimal voltage drop.
Key Features
Designed for RGBW Lighting

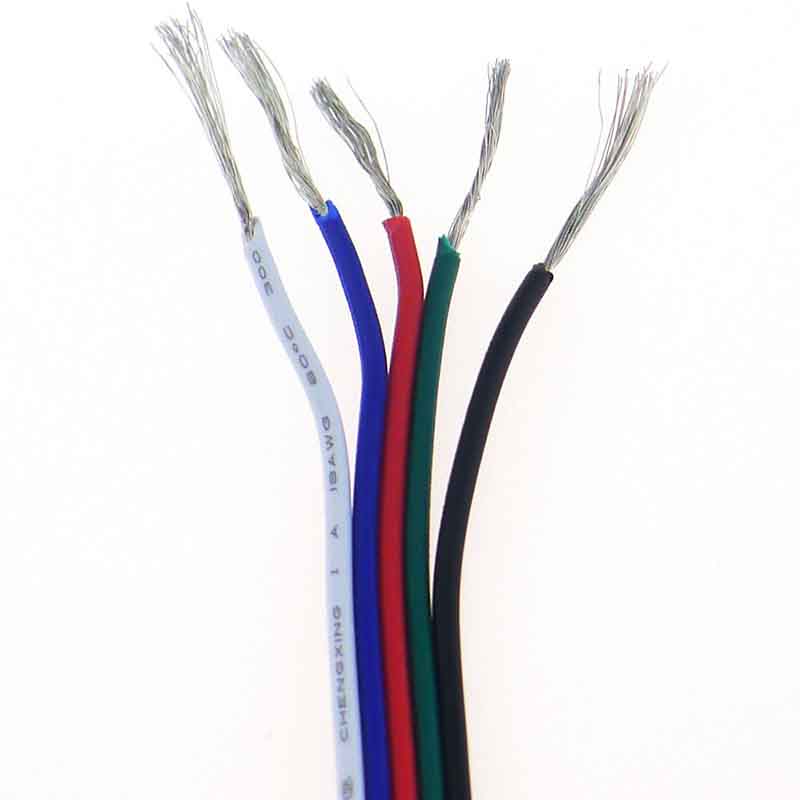

Features five conductors (Red, Green, Blue, White, Black) perfectly matching the layout of 5-pin RGBW LED strips.
Selectable Wire Gauge
Available in 22AWG for standard projects and a thicker 20AWG to better handle longer distances and higher power loads, reducing voltage drop.
Pure Copper Conductors
Ensures excellent conductivity and reliable power transmission for consistent brightness and color from your LED strips.
Flexible PVC Insulation
The durable and flexible PVC jacket protects the inner wires while being easy to strip and route through tight spaces.
Custom Lengths
Sold by the meter, allowing you to purchase the precise amount required for your project. Orders for multiple meters are sent as one continuous length.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | RGBW-ACCESSORIE-001 |
| Product Type | 5-Conductor Power Wire |
| Wire Gauge Options | 22AWG (0.34mm²), 20AWG (0.5mm²) |
| Number of Conductors | 5 |
| Conductor Material | Stranded Copper |
| Jacket Material | Flexible PVC |
| Wire Colors | Red, Green, Blue, White, Black |
| Rated Voltage | 5V / 12V / 24V / 48V DC |
| Rated Temperature | 80°C |
| Unit Length | 1 Meter / 3.28 Feet |
| Compatibility | Any 5-pin low-voltage lighting |
Application Scenarios
- Always double-check that the wire colors match the correct inputs on your LED strip and controller.
- For runs longer than 10-15 feet, it is recommended to use the thicker 20AWG wire to minimize voltage drop and ensure consistent light quality.
- This cable is designed for low-voltage DC applications only. Do not use with AC line voltage.
- This wire is intended for indoor use. It is not UV-resistant or rated for direct burial.
- Please note: When you order a quantity greater than one, we will ship a single, continuous length of that many meters (e.g., an order of 20 will be one 20-meter roll).
Frequently Asked Questions
Q: What is the difference between 20AWG and 22AWG wire?
A:AWG (American Wire Gauge) measures wire thickness; a lower number means a thicker wire. 20AWG is thicker than 22AWG and can carry more current over longer distances with less voltage drop, making it better for long runs or high-power LED strips.
Q: Can I use this 5-pin wire for a 4-pin RGB strip?
A:Yes, you can. You would simply use four of the five wires (e.g., Red, Green, Blue, and Black for V+) and leave the fifth wire (White) unused and capped off.
Q: What do the five wire colors correspond to on an RGBW strip?
A:Typically, the colors align with the functions: Red for the Red channel, Green for Green, Blue for Blue, White for the White channel, and Black for the positive voltage (V+).
Q: If I order a quantity of 15, will I receive a single 15-meter length?
A:Yes, we supply orders for multiple meters as one continuous, uncut length up to the length of a full roll (typically 20m or more).
Q: Is this wire suitable for outdoor installations?
A:No, this cable features a standard PVC jacket and is rated for indoor use only. It is not waterproof or UV-protected.
Q: How do I connect this wire to my LED strip?
A:The most reliable method is soldering the wires directly to the copper pads on the LED strip. You can also use 5-pin strip to wire connectors.
