USB To DC 5.5*2.1mm Connector 1m 20AWG For DC5V Addressable LED Strips

Model: SC-ACCESSORIES-012 Review stars 5.0 (1 Reviews) Various options in stock
Price$2.98
Select Specifications:
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

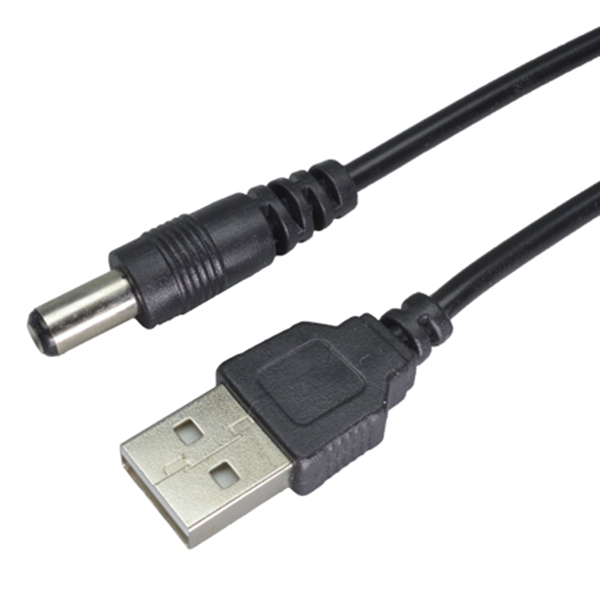

The SC-ACCESSORIES-012 USB to DC 5.5x2.1mm power cable delivers direct 5V electrical delivery from standard USB Type-A ports to 5V addressable LED strip lights, digital LED controllers, and low-voltage accessories. Constructed with low-resistance 20AWG pure copper conductors across a 1m (3.28ft) span, this power adapter line bypasses cumbersome dedicated power bricks by tapping into USB power banks, computer ports, 5V USB wall adapters, or television USB sockets. Available in two hardware formats—a molded DC 5.5x2.1mm male barrel plug or a stripped 2-pin positive/negative pigtail lead—it provides plug-and-play wiring for desktop accent lighting, portable wearable projects, TV backlights, and 5V micro-controller benches.

USB to 2-pin stripped wire and DC male plug options

Core Functional Features

20AWG Pure Copper Core

Constructed with multi-strand pure copper wire to provide low electrical resistance and prevent voltage drop over the 1m run.

Universal 5V USB Input

Converts any 5V USB-A socket on computers, battery banks, or wall chargers into an LED strip power source.

Standard 5.5x2.1mm Barrel Connector

Features an outer 5.5mm diameter and inner 2.1mm pin with standard center-positive (+) and sleeve-negative (-) polarity.

Dual Output Configuration Options

Offered in two distinct termination styles: standard molded DC male barrel jack or open 2-pin wire pigtail leads.

3A Continuous Current Handling

Engineered to safely carry up to 3A (15W at 5V), sufficient for short runs of 5V digital and analog LED strip lights.

Flexible PVC Outer Jacket

Insulated with heat-resistant, anti-abrasion PVC that withstands repetitive bending behind tight displays and computer desks.

Technical Performance & Build Quality

  • 20AWG multi-strand bare copper conductors ensure reliable electrical conductivity and resist oxidation over extended run cycles.
  • Precision molded USB Type-A male plug integrates reinforced strain relief tested to endure tight cable routing behind televisions and furniture.
  • Center-positive 5.5mm outer / 2.1mm inner plug configuration ensures native compatibility with standard DC female sockets on LED controllers and splitters.
  • Available 2P-wire pigtail version features pre-stripped, pre-tinned lead ends for direct soldering or clamp connection to solderless terminal blocks.
  • Supports up to 3000mA continuous load without overheating when paired with high-amperage 5V USB charging bricks.
  • Low transmission line loss preserves 5.0V bus integrity, preventing data corruption and color shifting on digital IC pixel strips.

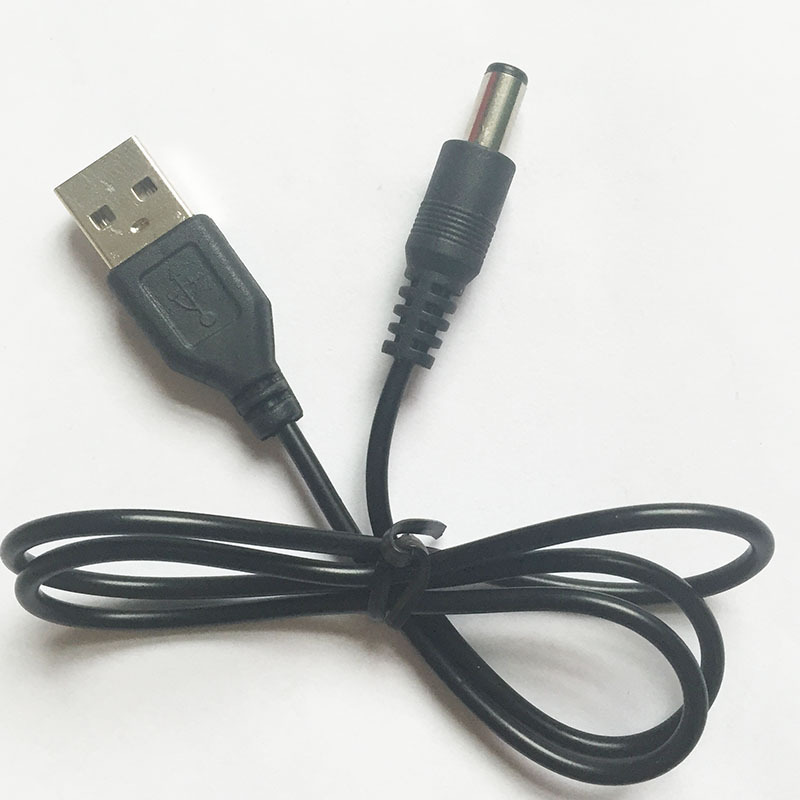

USB to DC 5.5x2.1mm male power cable full length view

Technical Specifications

ParameterDetails
Product ModelSC-ACCESSORIES-012
Product CategoryLED Light Strip Accessories > 2-Pin Single Color LED Strips Parts
Input InterfaceUSB Type-A Male Plug
Output OptionsDC 5.5x2.1mm Male Plug or 2-Pin Tinned Wire Leads
Operating VoltageDC 5V (Matches Input Source)
Maximum Current Rating3.0A Max
Maximum Load Power15W at DC 5V
Total Cable Length1.0 Meter (3.28 Feet)
Conductor Gauge20AWG
Conductor MaterialMulti-strand Pure Oxygen-Free Copper
Insulation MaterialFlexible Black PVC
DC Connector Outer Diameter5.5mm
DC Connector Inner Diameter2.1mm
Polarity LayoutCenter Core Positive (+), Outer Sleeve Negative (-)
Operating Temperature-20℃ to +60℃
Storage Temperature-30℃ to +80℃
Net Weight32g per piece
ComplianceCE, RoHS
Detailed dimensions of DC 5.5x2.1mm barrel connector and USB-A plug
Internal 20AWG pure copper core wiring structure

Verified Application Scenarios

TV & Monitor Bias Backlighting Supplies regulated 5V power to addressable LED strip lights directly from a smart TV or monitor USB port, eliminating bulky wall adapters behind screen brackets.
Portable & Battery-Powered LED Strip Displays Enables 5V addressable LED strips and mini pixel controllers to operate from standard USB power banks for illuminated cosplays, wearable electronics, and trade show displays.
Computer Desk & PC Rig Ambient Illumination Powers under-desk single color or addressable LED tape light directly through motherboard or powered hub USB slots, synchronized with computer workstation power.
5V LED Controller & Router Power Supply Supplies constant 5.5x2.1mm DC barrel power to mini inline SPI dream color controllers, network routers, and optical equipment without running extra 120V AC wiring.

How to Connect & Wire This 5V USB Power Cable

  1. Verify your LED load voltage: Ensure your LED strip lights and controller operate strictly on DC 5V. This cable is a straight-through conductor and does not convert voltage.
  2. Calculate total amp draw: Sum the total wattage of your LED strip run (e.g., 60 LEDs at 0.06A per pixel = 3.6A theoretical maximum; calibrate your brightness limit in software or keep lengths below 1.5m to stay under 3A).
  3. Connect the DC terminal: For the DC male version, insert the 5.5x2.1mm plug firmly into your 5V controller or DC female jack. For the 2P-wire version, connect red wire to 5V+ and black wire to GND/- using a solderless connector or solder pads.
  4. Plug into a verified USB port: Insert the USB-A male jack into a 5V USB wall charging block (2A to 3A rated recommended), portable battery bank, or computer USB 3.0 port.
  5. Check polarity and operation: Verify that center positive (+) contacts align with your device input. Turn on power and verify stable, flicker-free illumination.
⚠ Installation Precautions & Voltage Warnings
  • ⚠ VOLTAGE PASSTHROUGH ONLY: This cable transmits raw USB voltage (5V). It does NOT step up voltage to 12V or 24V. Connecting 12V or 24V LED strip lights to a 5V port will result in insufficient power or complete failure.
  • Do not overload the source USB socket: Standard USB 2.0 ports deliver 0.5A (2.5W); USB 3.0 delivers 0.9A (4.5W). For LED loads exceeding 1A, always utilize a dedicated 5V 2A or 5V 3A USB wall adapter.
  • Observe polarity: Red lead or center barrel contact is 5V Positive (+); black lead or outer barrel sleeve is Ground / Negative (-). Reversing polarity can destroy addressable LED IC chips.
  • Ensure dry indoor installation: This accessory is rated IP20. Protect connection joints from water, moisture, and high humidity.

What's in the Box

  • ✓1 x SC-ACCESSORIES-012 1m 20AWG USB to DC Power Cable (Selected Connector Style)

Frequently Asked Questions

Q: Can this USB cable boost 5V up to 12V for a 12V LED strip?

A:No. This cable contains straight-through 20AWG copper conductors with no internal boost converter. It outputs exactly 5V DC matching the USB source port.

Q: How long of a 5V addressable LED strip can I power with this cable?

A:Because standard USB power supplies deliver between 1A and 3A, this cable safely powers up to 1m to 2m of 5V WS2812B or SK6812 LED strips depending on brightness levels.

Q: What is the difference between the DC-Male Cable and the 2P-Wire Cable?

A:The DC-Male version terminates in a molded 5.5x2.1mm barrel jack for plug-in hardware, while the 2P-Wire version has exposed red and black wire leads for direct soldering or wire splicing.

Q: Can I plug this into a computer USB 3.0 port?

A:Yes, but standard computer USB 3.0 ports are current-limited to 0.9A (4.5W). For longer 5V LED strip setups, use a dedicated 2A or 3A USB wall charger.

Q: Are the inner and outer dimensions of the DC plug compatible with 5.5x2.5mm jacks?

A:The plug outer diameter is 5.5mm and inner diameter is 2.1mm. While it fits some sprung 2.5mm sockets, a snug, reliable connection requires a matching 5.5x2.1mm female jack.

Q: Why is 20AWG wire gauge important for this 1m USB cable?

A:20AWG copper has thicker conductor cross-sections than cheap 24AWG or 28AWG data cables, dramatically minimizing line resistance and voltage drop at low 5V operating voltages.

Q: Is this USB power cord waterproof?

A:No, both the USB Type-A connector and the DC 5.5x2.1mm terminal are rated IP20 for dry indoor environments only.



Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

D
07/02/2026

Good cable

Works perfectly for my 5v led strip.

Downloads

Files for SC-ACCESSORIES-012
Need CAD drawings, IES files or a signed test report? Contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

 USB To DC 5.5*2.1mm Connector 1m 20AWG For DC5V Addressable LED Strips
