3 Pin LED Strip Connector 10mm With 1.64ft Extension Wire UL Listed 22 Gauge 3 Conductor, DIY Both Strip to Power Lead and Strip to Strip Jumper, Waterproof Optional

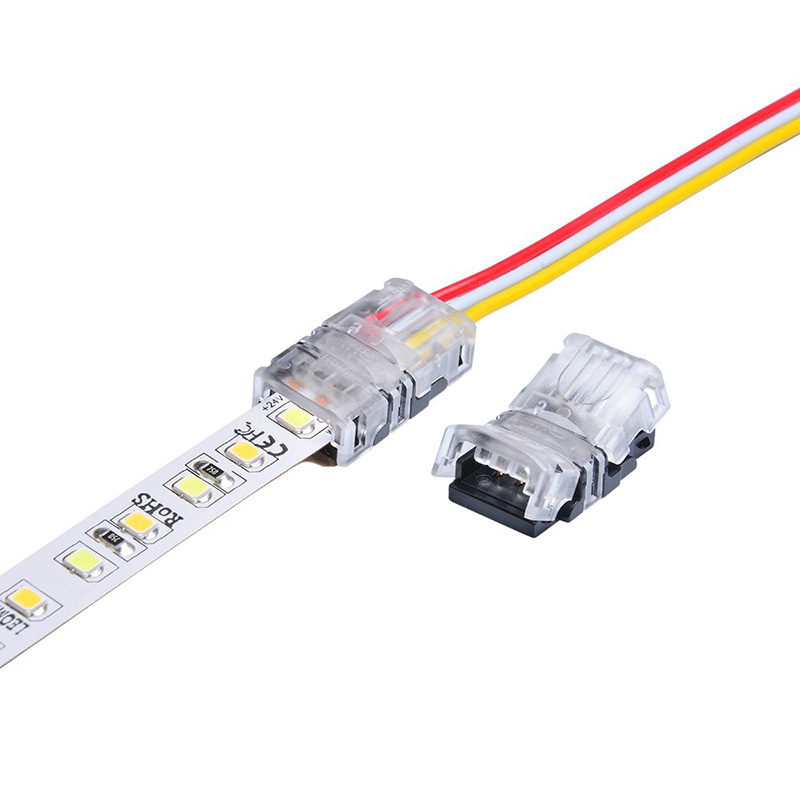

1. With 1.64ft 3 conductor flat wire ready, you can DIY both strip-to-strip-bridge(jumper) and strip-to-power-lead connector wire that is up to 0.5 meters long, no stripping or soldering needed

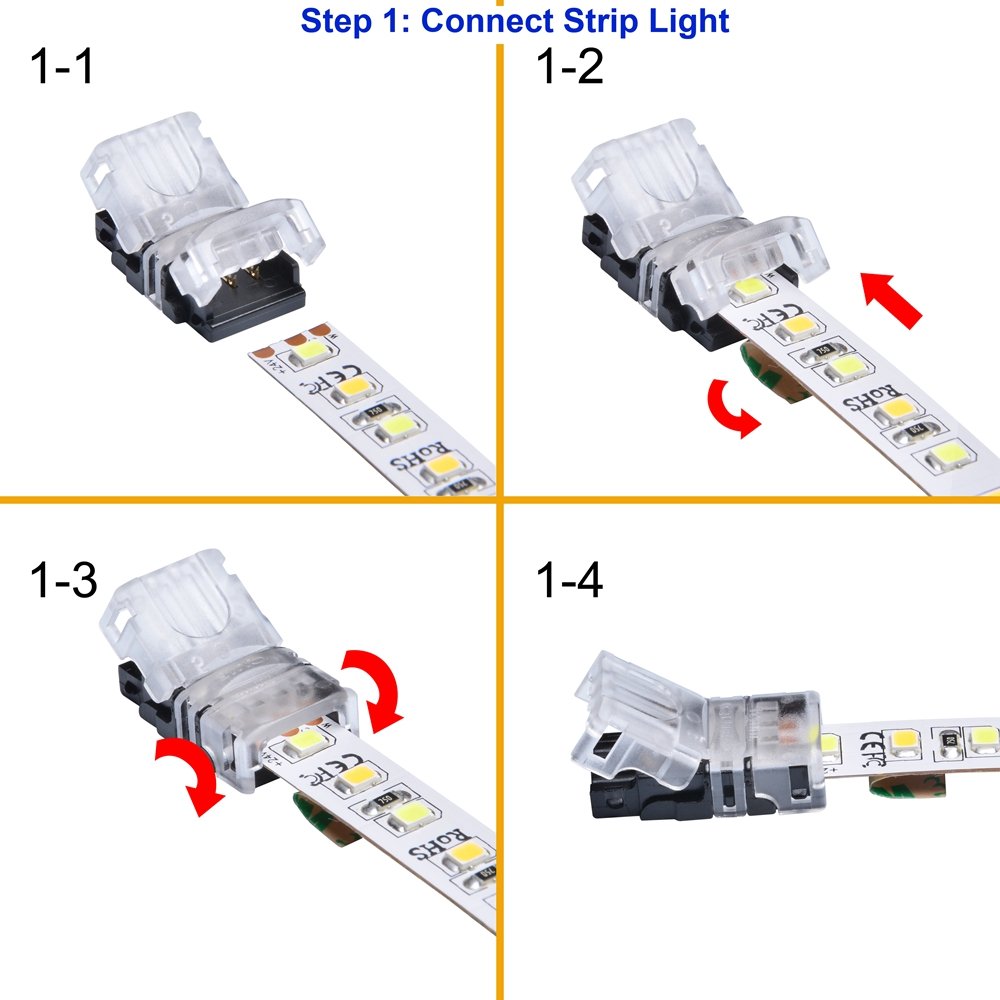

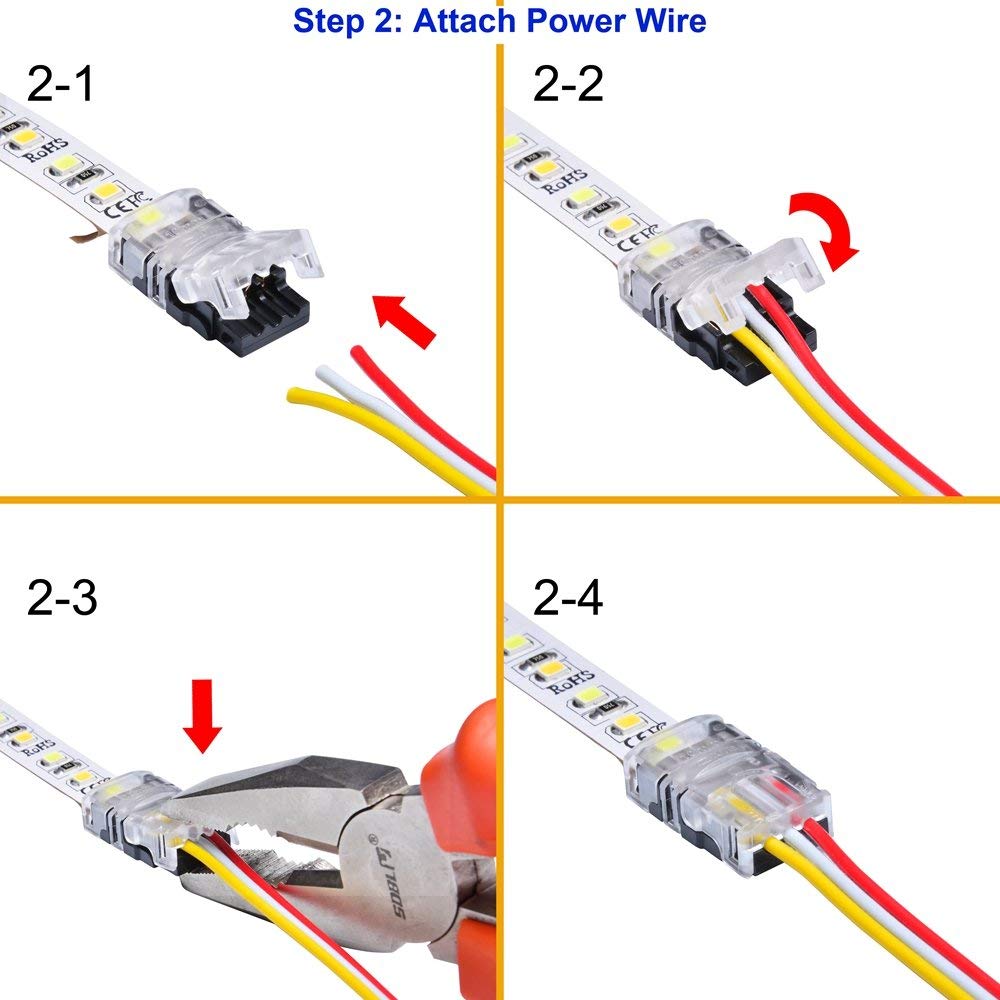

2. Just place strip light or wire above connector's pin, then press cap down by pliers, the connection will be done well. Easily connect your dual color led strip to dimmer or controller
3. Powerful with as much as total 10A current supported, allowing you to connect longer LED strip by one connector, reducing cost and connection work

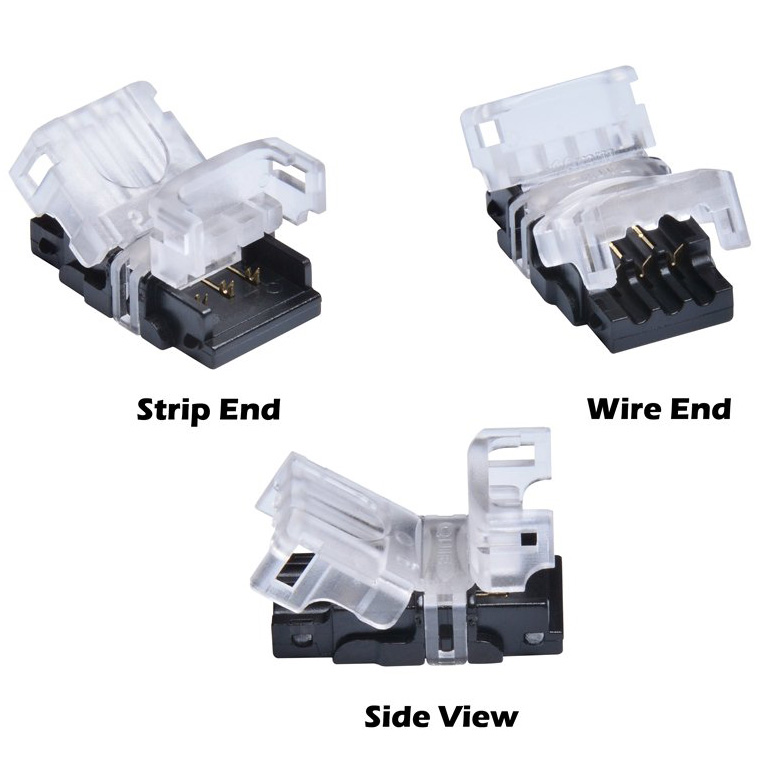

4. At strip end, the pin will go through PCB from strip light back, at wire end the blade will pierce the insulation, so the connector can grip strip light and wire tightly, never worry them getting out of the connector. Even workable to strip light with 3M VHB red foam adhesive tape
5. Applicable for non-waterproof dimmable(CCT) SMD3528 /3014 /2835 /2016 strip light in different LED density ranging 30~120 LEDs per meter
Package Dimensions: 5 x 2 x 0.2 inches
Size: 1 of 10 mm Connectors + 1.64ft Feet Wire
Color: Red-White-Yellow for Dual Color Non-Waterproof IP20 or Waterproof IP65
Finish: Copper Pin
Power Source: DC
Voltage: 5-24 volts
Type of Bulb: LED
Special Features: Max Current 10A,Max Voltage 24V
Usage: LED Strip Light

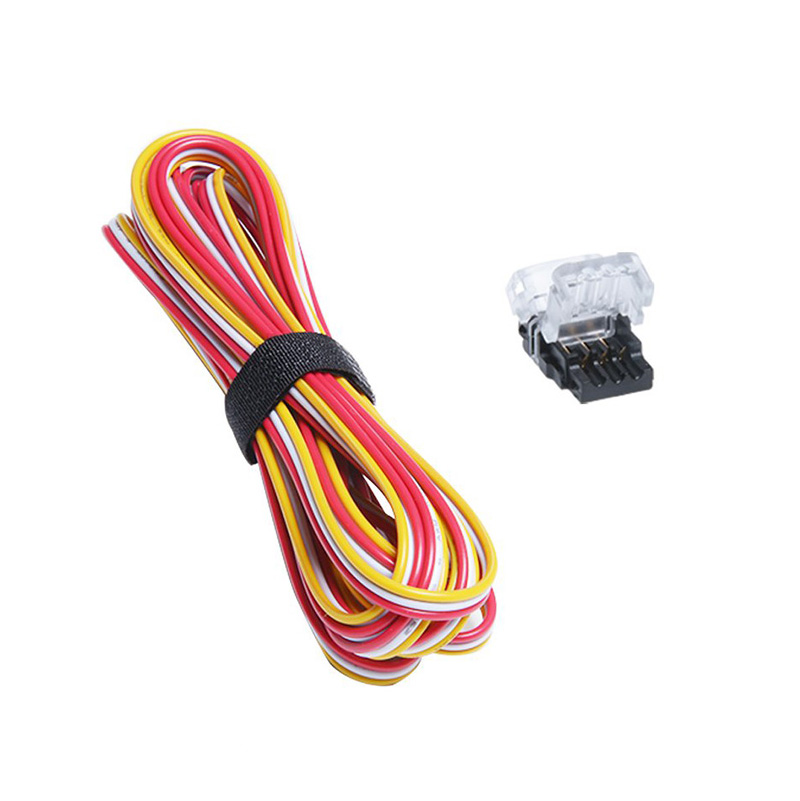

Included Components: 1 pcs connectors, 1.64ft wire
