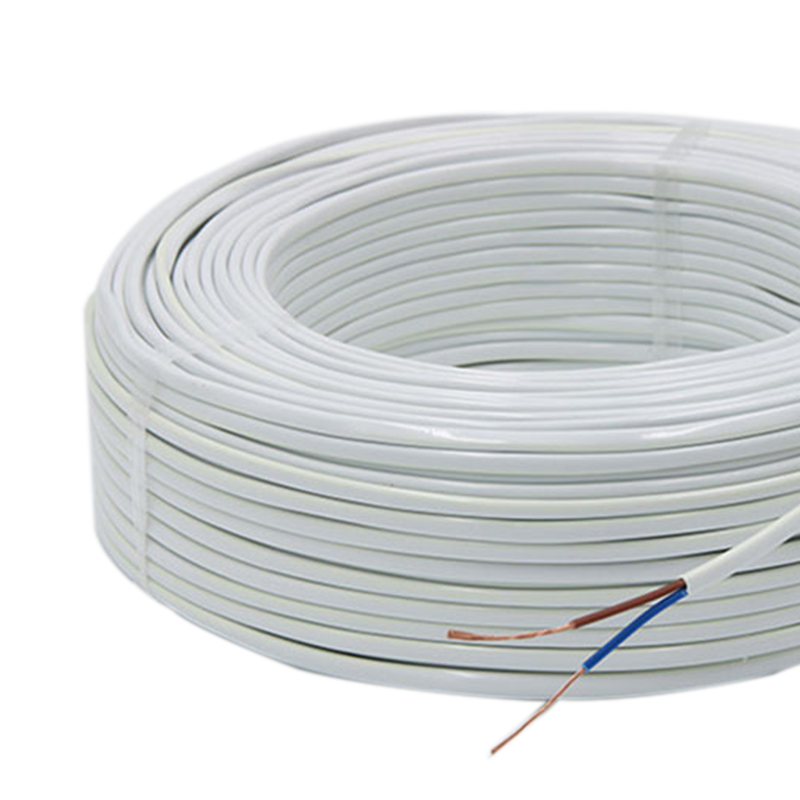

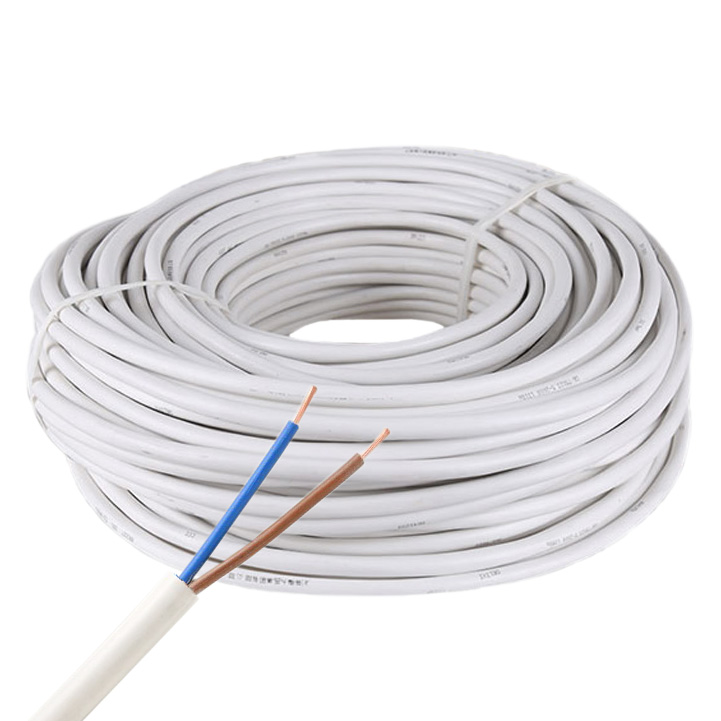

Create robust, weather-resistant connections for your outdoor and indoor lighting projects with our 2-Pin Waterproof Power Cable. Specifically designed for single-color LED strips, this cable features a durable, dual-layer RVV-style PVC sheath that provides IP65-rated protection against dust and moisture. This makes it the ideal choice for extending power to your single color led light strip in gardens, on patios, or in damp indoor locations. With a wide selection of eight different wire gauges, from 22AWG for shorter runs to heavy-duty 10AWG for long-distance power delivery, you can effectively combat voltage drop and ensure your lights perform at their best. The flexible yet strong construction prevents breakage and ensures stable, long-term power transmission.
Key Features
Weatherproof RVV Construction
Features a dual-layer PVC sheath (RVV type) for IP65-rated protection against dust and water jets, perfect for outdoor installations.
Extensive Gauge Selection
Choose from 8 wire sizes (22AWG to 10AWG) to perfectly match your project's power needs and minimize voltage drop over long distances.
Flexible and Durable

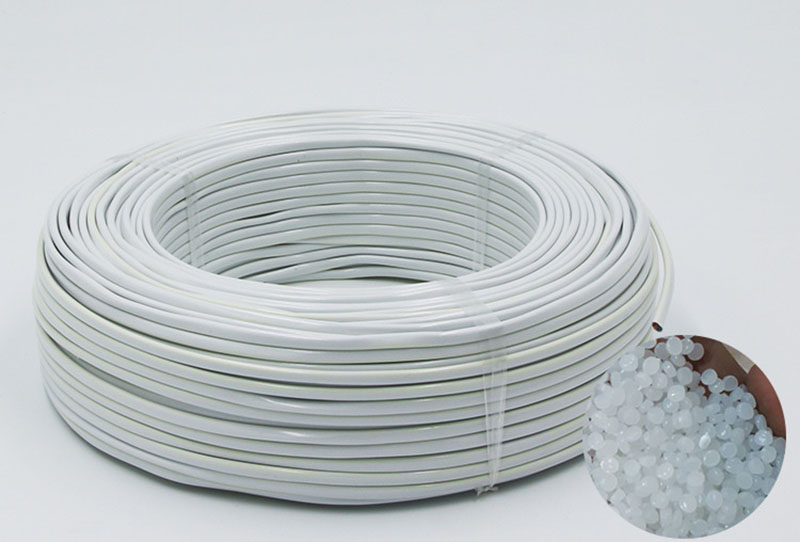

Made from high-strength, flexible plastic that resists breaking, ensuring a stable and long-lasting connection for your lighting.
Aesthetic Options
Available in both black and white sheaths to blend seamlessly with different installation environments and surfaces.
Continuous Lengths
Sold in 1-meter increments and shipped as a single, uncut roll for custom-length installations when ordering multiple units.
Built for Durability
- Dual-layer PVC insulation and outer sheath provide enhanced mechanical and weather protection.

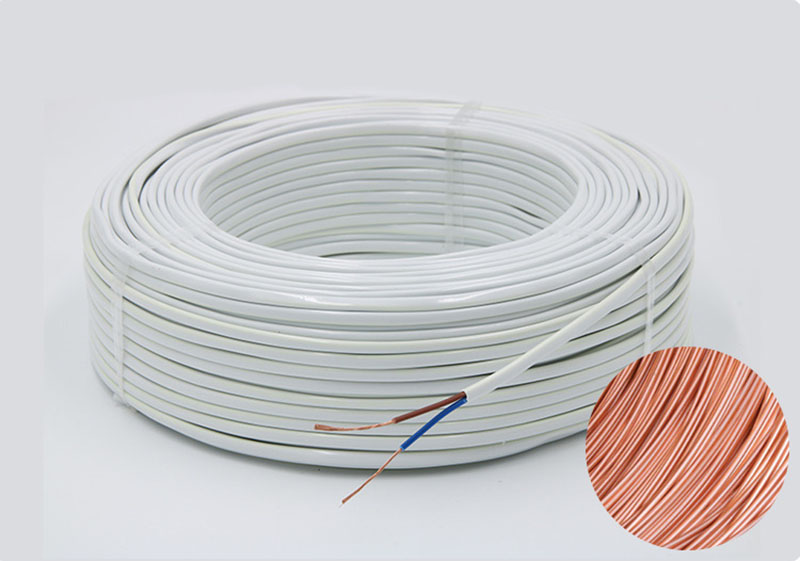

- High-purity copper conductors ensure stable and efficient power transmission.
- IP65 rating certifies suitability for outdoor and damp locations (not for submersion).
- Flexible design allows for easy routing around corners and obstacles without damage.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | HV-ACCESSORIE-2PIN |
| Product Type | 2-Pin Waterproof Sheathed Power Cable |
| Jacket Type | RVV (Dual-layer PVC) |
| Conductor Material | Copper |
| Available Wire Sizes | 22AWG (0.34mm²), 20AWG (0.5mm²), 18AWG (0.75mm²), 17AWG (1.0mm²), 16AWG (1.5mm²), 14AWG (2.5mm²), 12AWG (4.0mm²), 10AWG (6.0mm²) |
| Available Shell Colors | Black (22AWG-10AWG), White (22AWG-14AWG) |
| Length Per Unit | 3.28ft / 1m |
| Waterproof Rating | IP65 |
| Cable Diameter (22AWG Black) | Outer: 4.3mm, Inner: 1.6mm |
| Cable Diameter (20AWG Black) | Outer: 5.4mm, Inner: 1.9mm |
| Cable Diameter (18AWG Black) | Outer: 6.1mm, Inner: 2.2mm |
| Cable Diameter (17AWG Black) | Outer: 6.8mm, Inner: 2.5mm |
| Cable Diameter (16AWG Black) | Outer: 7.5mm, Inner: 2.9mm |
| Cable Diameter (14AWG Black) | Outer: 9.2mm, Inner: 3.6mm |
| Cable Diameter (12AWG Black) | Outer: 10.6mm, Inner: 4.2mm |
| Cable Diameter (10AWG Black) | Outer: 12.4mm, Inner: 5mm |
Application Scenarios
How to Use This Waterproof Power Cable
- Select the Right Gauge: Choose a wire gauge (AWG) based on your LED strip's total power (wattage) and the cable length. Use a thicker gauge (lower AWG number) for longer distances to prevent voltage drop.
- Choose Your Color: Select the black or white sheath to best match your mounting surface or aesthetic needs.
- Cut to Length: Use wire cutters to trim the cable to your desired length. If you ordered multiple units, it will arrive as a single continuous piece.
- Strip the Wires: Carefully remove the outer PVC sheath and then the inner insulation from the two conductor wires to expose the copper ends.
- Connect Securely: Connect the wires to your power supply and your single-color LED strip, ensuring correct polarity (+ to +, - to -). Use waterproof connectors or other sealing methods to maintain the IP65 rating at all connection points.
- This cable is rated IP65, meaning it is protected from water jets but is not submersible. Do not use for underwater applications.
- To ensure a fully waterproof system, all connections must be sealed with appropriate methods like adhesive-lined heat shrink tubing or waterproof wire nuts.
- Always disconnect the power source before cutting, stripping, or making any electrical connections.
What's in the Box
- ✓1 meter (3.28ft) of 2-Pin Waterproof Power Cable in your selected gauge and color (shipped as a continuous length if multiple quantities are ordered).
- ✓
🚚 Shipping & Warranty
Shipping: We ship worldwide. Orders are typically processed within 1-2 business days. For detailed shipping times and costs, please see our shipping policy page.
Warranty: This product is covered by a 3-year warranty against manufacturing defects. Please contact our customer service for any warranty claims.
Return Policy: We offer a 30-day return policy on unused and unopened products. Please review our full return policy for details and instructions.
Frequently Asked Questions
Q: What does the RVV jacket on this cable mean?
A:RVV indicates a dual-layer construction with a flexible PVC inner insulation and a durable PVC outer sheath. This design provides superior flexibility, durability, and weather resistance for outdoor use.
Q: Can I use this cable underwater in a pool or fountain?
A:No. This cable has an IP65 rating, which protects it from rain and water jets from any direction. It is not designed for continuous submersion in water.
Q: How do I choose the correct wire gauge (AWG)?
A:The right gauge depends on your LED strip's power consumption and the cable length. For longer runs or higher-wattage strips, use a thicker wire (lower AWG number, like 16AWG or 14AWG) to minimize voltage drop.
Q: If I order 5 units, will I get five 1-meter pieces?
A:No, you will receive one continuous 5-meter roll of cable. This allows you to cut the exact lengths you need for your project without unnecessary splices.
Q: What is the difference between the black and white shell options?
A:The performance is identical. The color choice is purely for aesthetics, allowing you to choose the cable that best blends in with your installation surface.
Q: Is this cable compatible with RGB or tunable white LED strips?
A:No, this is a 2-pin cable designed specifically for single-color LED strips, which have one positive (+) and one negative (-) connection. RGB or CCT strips require cables with more conductors (4-pin, 5-pin, etc.).
