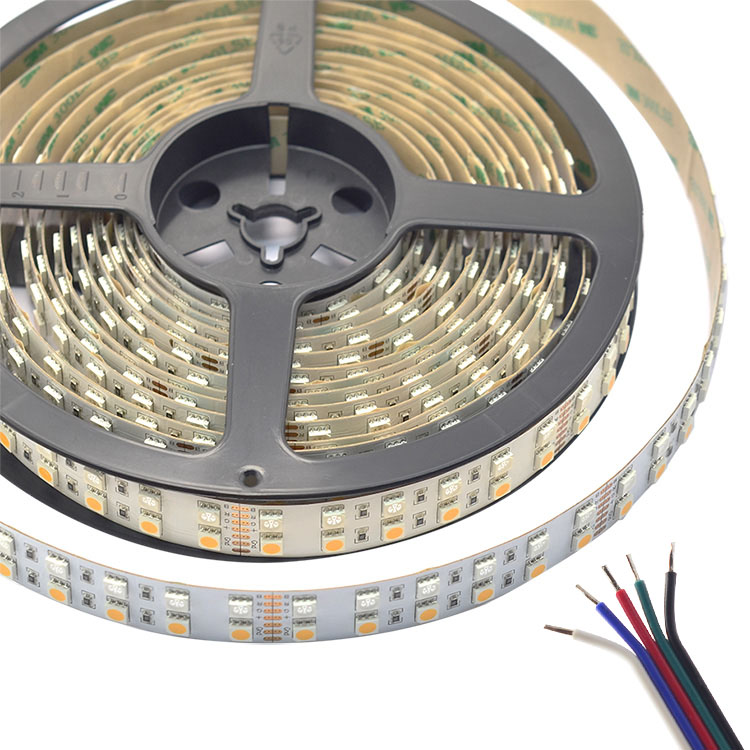

Dual Row RGBW Super Bright Series DC24V 5050SMD 720LEDs Flexible LED Strip Lights Waterproof Optional 16.4ft Per Reel By Sale
Universal RGB+White dual row super bright LED flexible light strip with high power 5050SMD(Surface Mounted Devices) RGBW LEDs. 720 LEDs per reel, 1meter(3.28ft) and 5meter(16.4ft) Per Reel By Sale.
Our brightest Flexible LED RGB+White light Strips soft and easy bent for installation. Available in 5 meters (197 in) Waterproof optional flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 12-LED segments, so you could cut a different length for your project and request.
The led strip has low light decline and long lifespan with copper, black, or white PCB background. The LED light strips Suitable for the indoor or outdoor average home lighting as well as lighting professionals. The 24VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. How can I get high quality led strip lights. Color Controllable - Connect LED Smart RGBW Controllers.
Standards and Certifications
LED Strip Type: SMD 5050 RGBW 720LEDs/16.4ft
LED Chip: Epistar super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, every 12 PCS LED can be cut
LED Quantity: 144 LEDs per meter (3.28 ft)
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W2.0cm(0.78 in ) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 172W/16.4ft Max
Lumen Per LED: 20-22Lumen 15840lm Max /16.4ft 956 lm/feet 92lm/watt
Wavelength NM(RGBY): 2000-2500mcd
Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(5200-6800k), Cool White(8000-10000k)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
