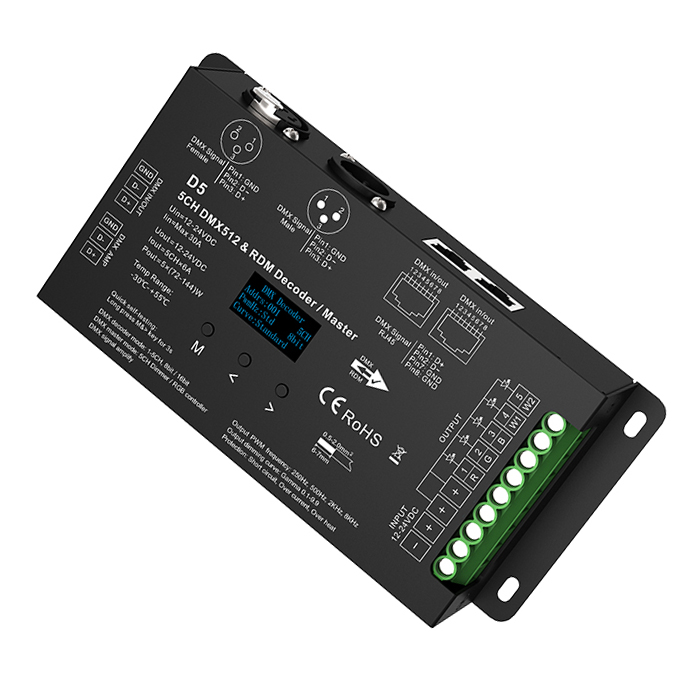

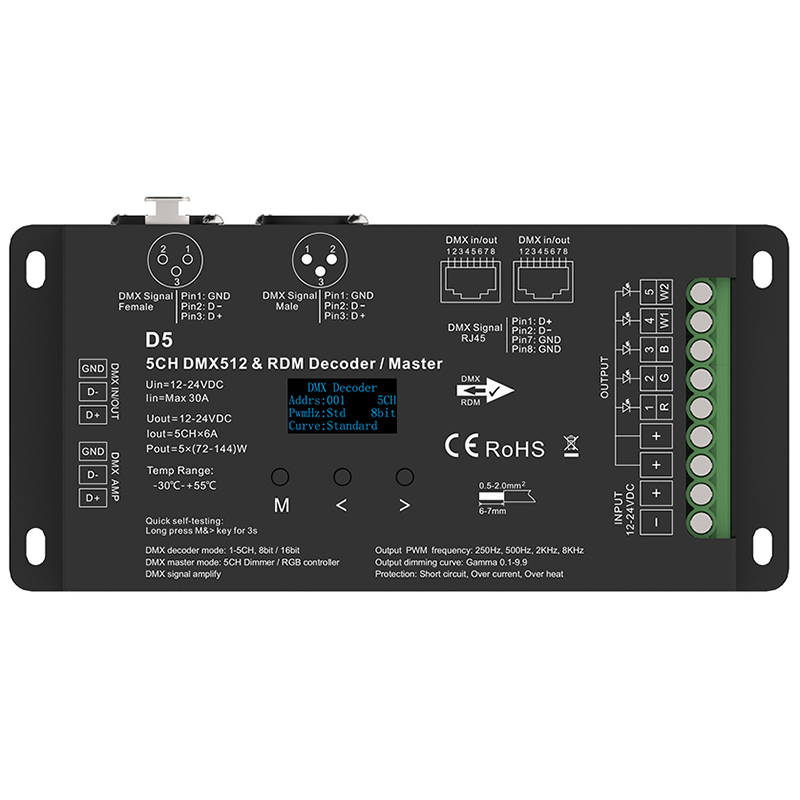

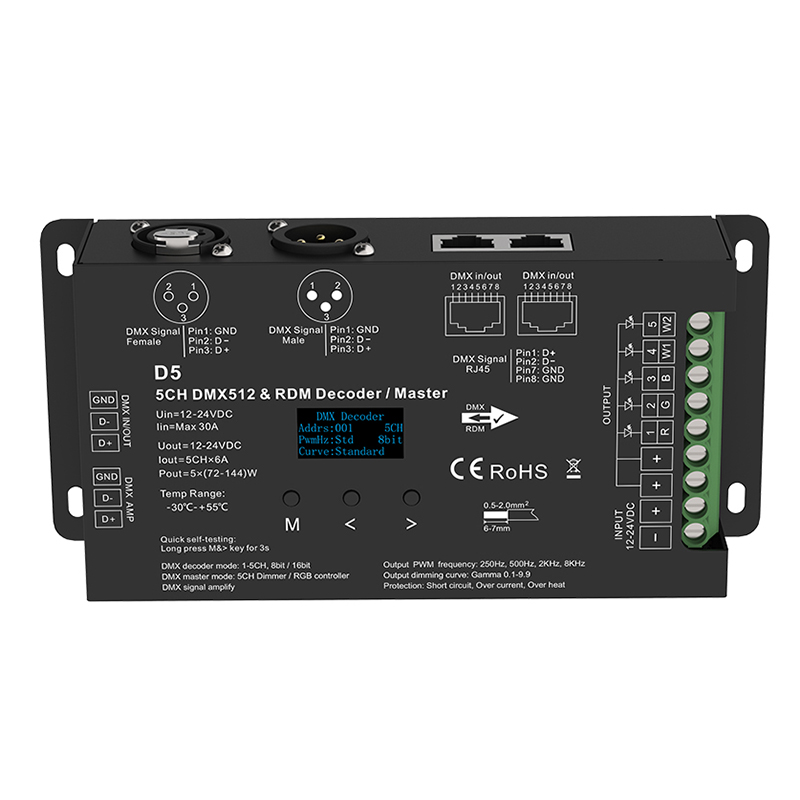

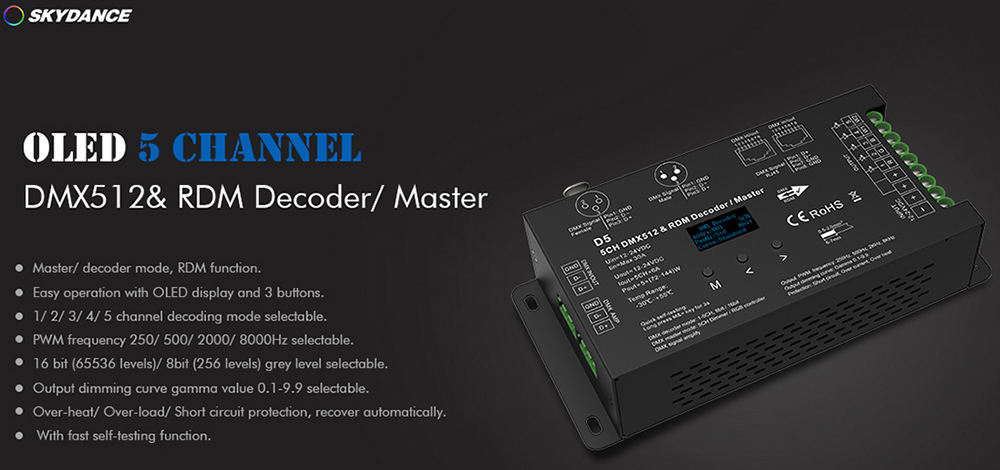

5CH*6A 12-24VDC CV DMX Decoder D5
5 channels constant voltage output, Max. 6A current per channel, up to 720W output power.

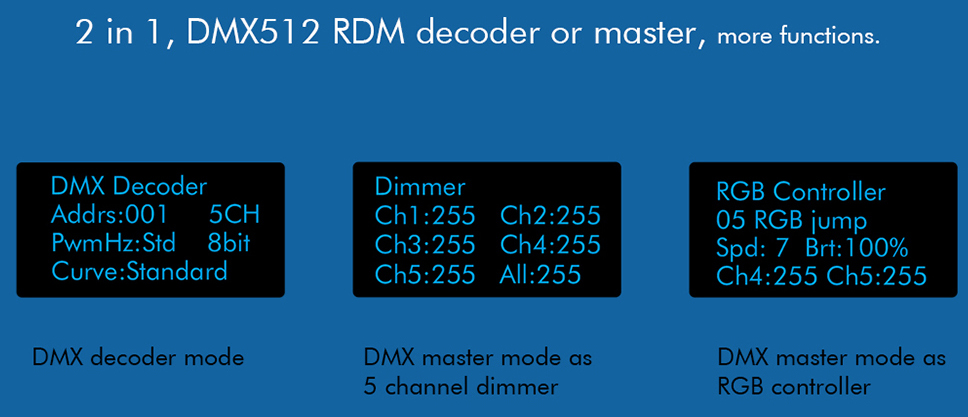

Master & decoder mode, RDM function.

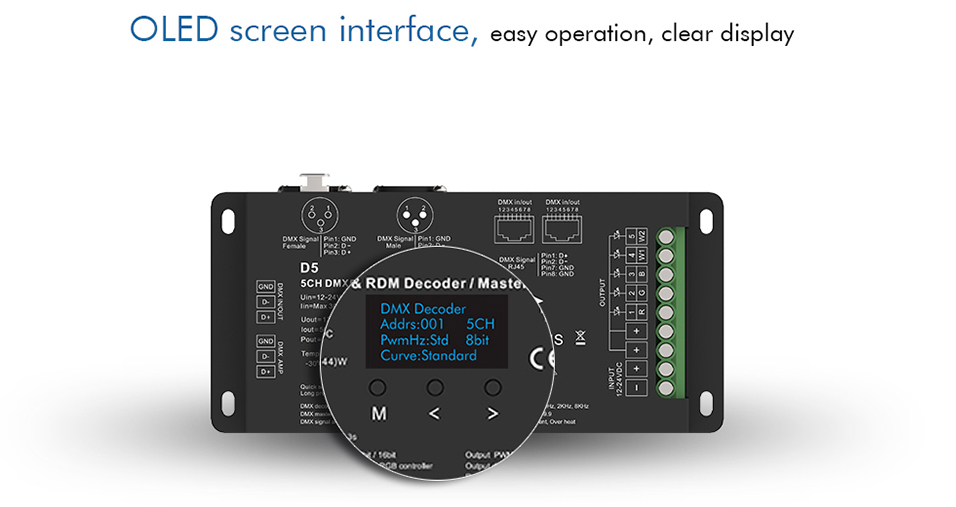

Easy operation with OLED display and 3 buttons.
1/2/3/4/5 channel decoding mode selectable.

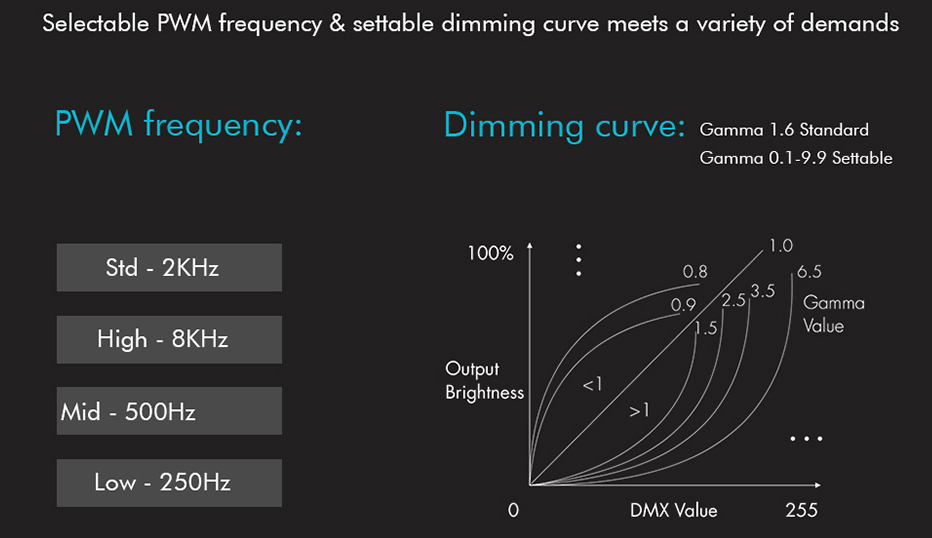

PWM frequency 250/500/2000/8000Hz is selectable.
16bit (65536 levels) /8bit (256 levels) grey level selectable.
Output dimming curve gamma value 0.1-9.9 selectable.
Stand-alone RGB mode and 5 channel dimmer mode selectable,

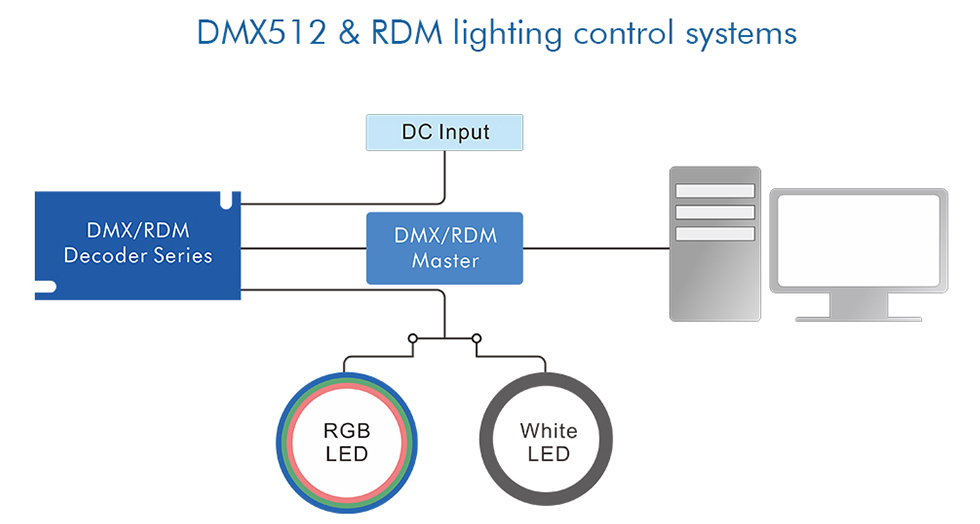

work as DMX master(8 bit) to control other decoders.
Built-in 25 RGB programs, speed, and brightness adjustable.

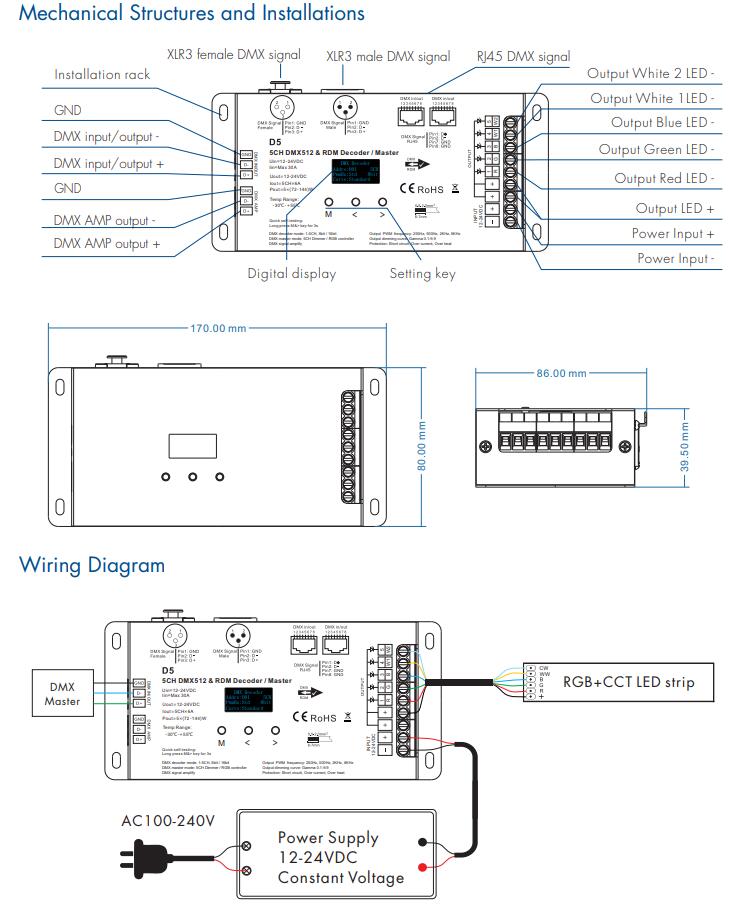

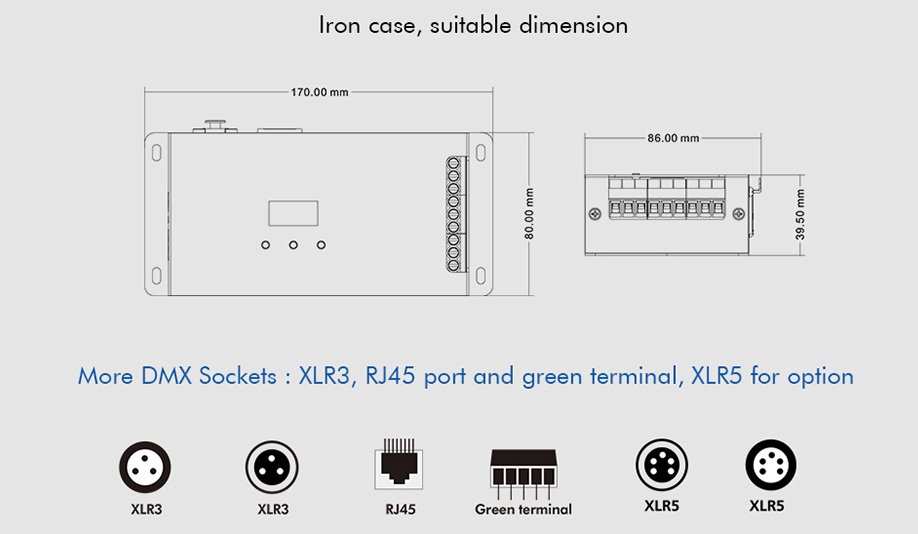

Support 3 kinds of DMX ports: Green terminal(amplify output), XLR3 and RJ45 port.
Comply with the DMX512 standard protocols.
Over-heat / Over-load / Short circuit protection, recover automatically.
With fast self-testing function
Input voltage: 12-24VDC
Input current: 30.5A
Output voltage: 5 x (12-24)VDC
Output current: 5CH,6A/CH
Output power: 5 x (72-144)W
Output type: Constant voltage
