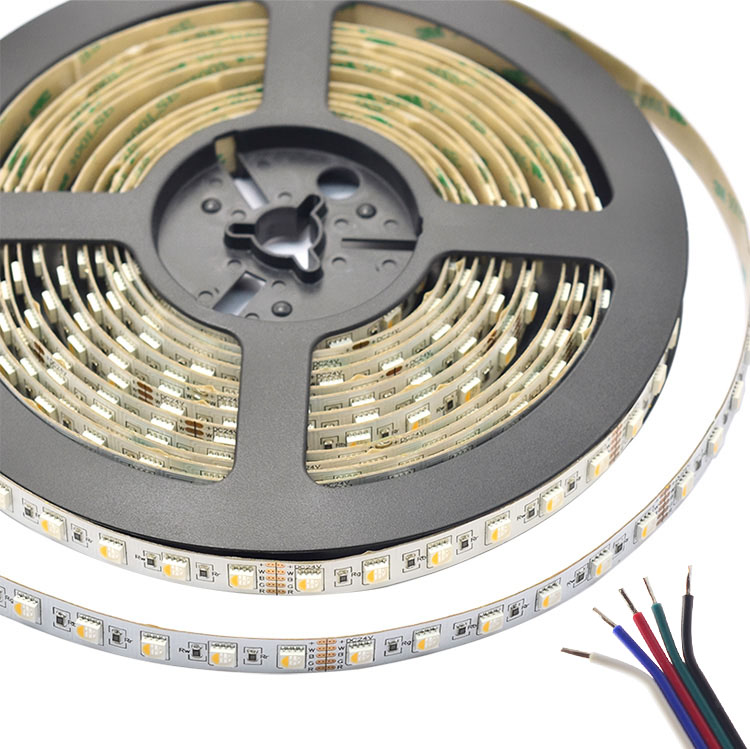

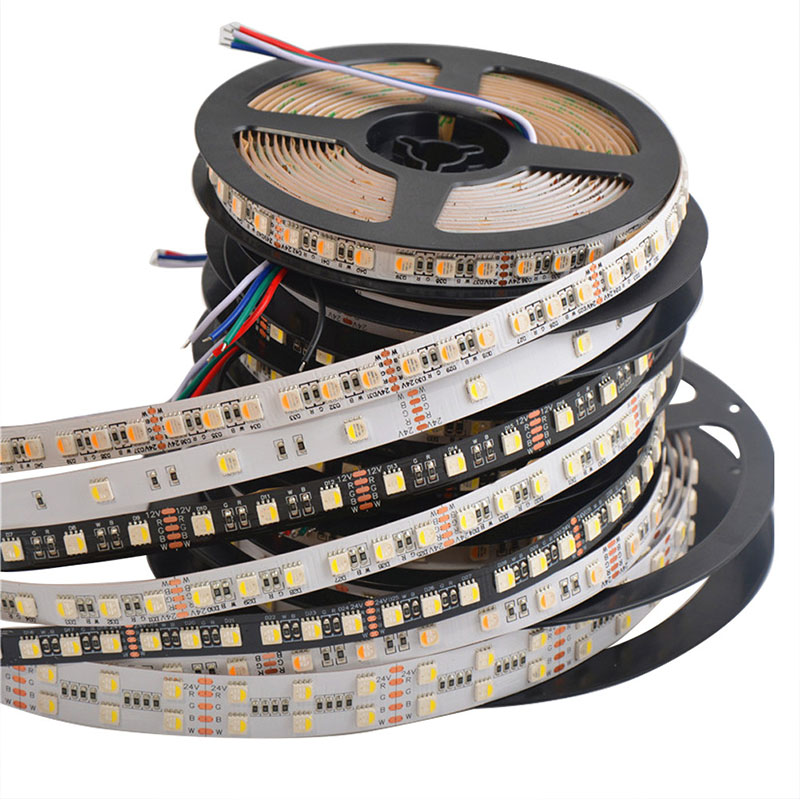

Multi Color RGBW LED Strip Lights - 84LEDs/m 24V LED Strip - 3000K/4000K/6000K White

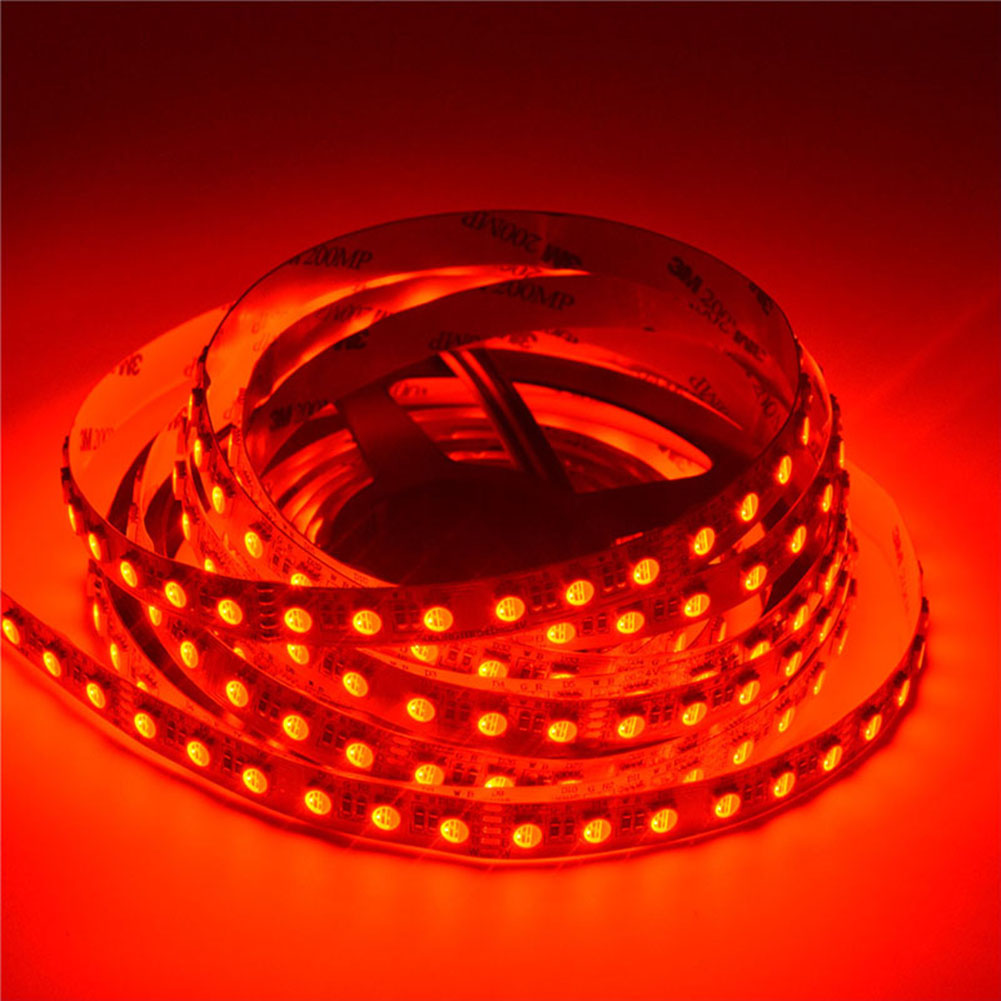

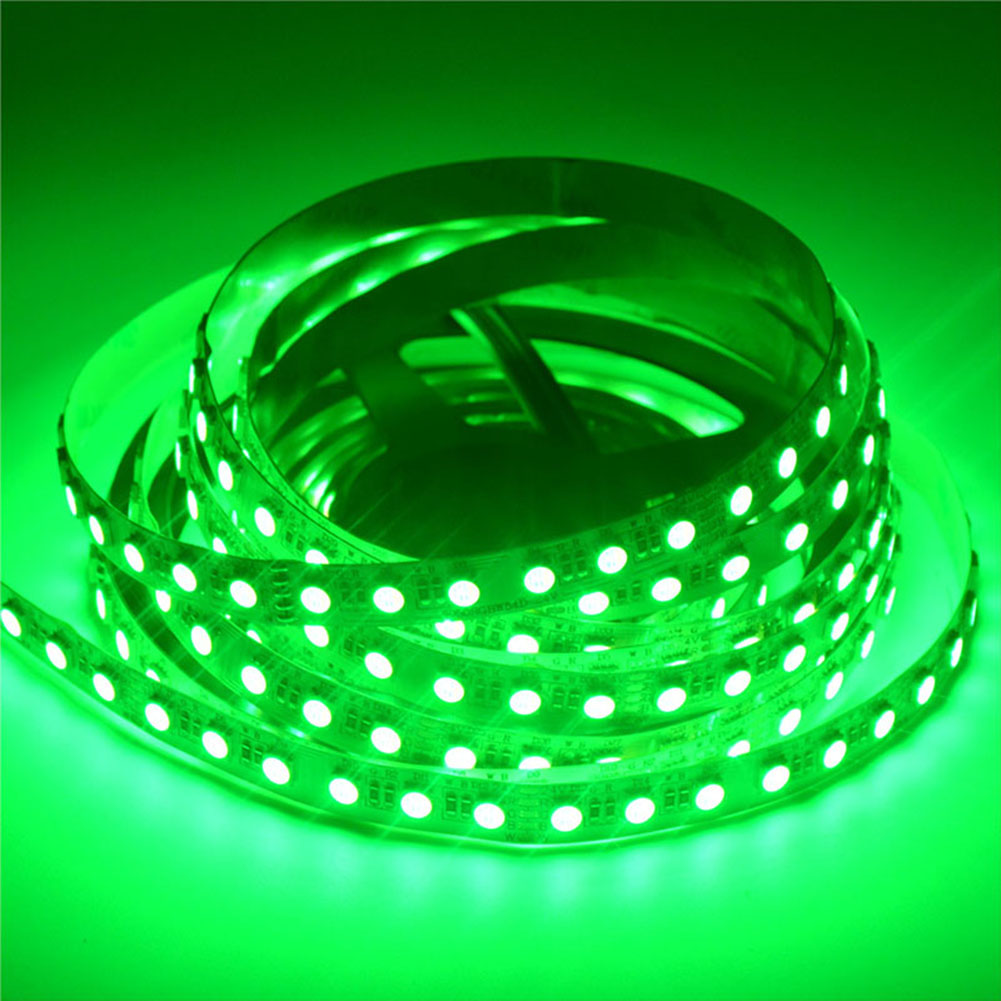

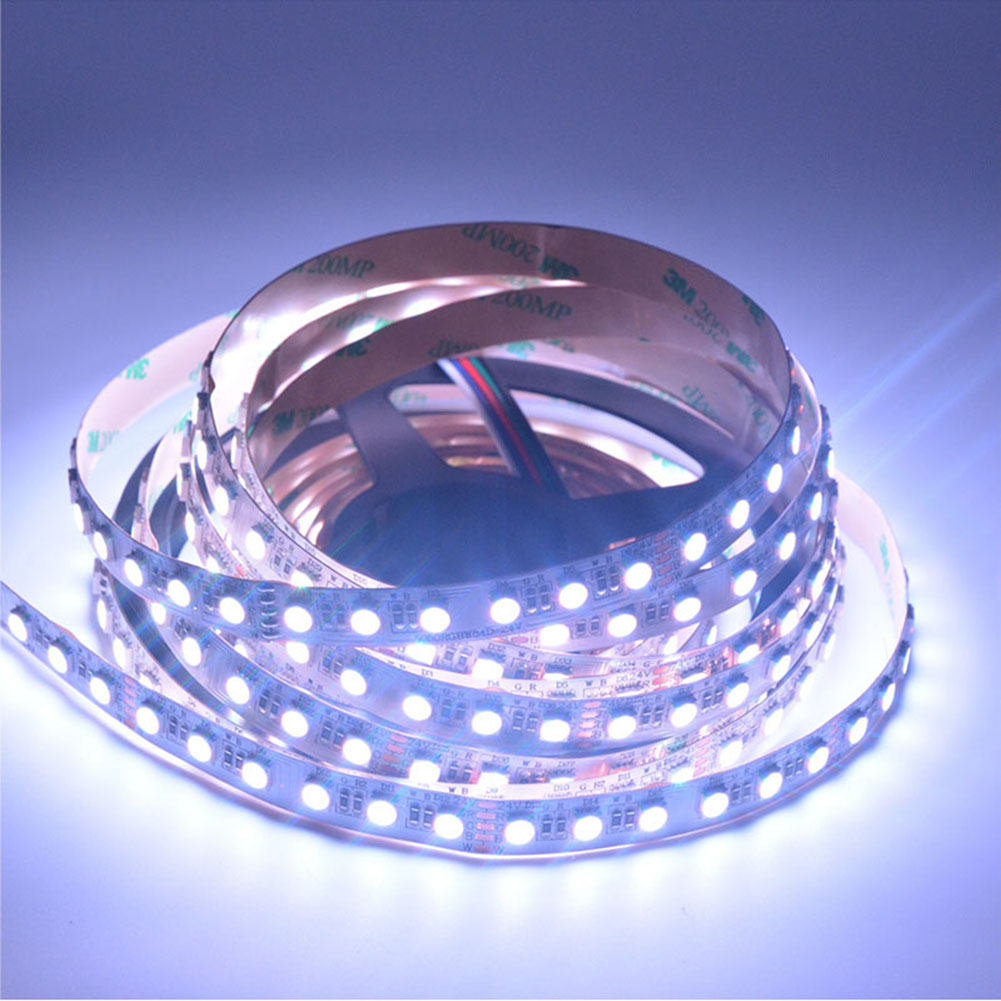

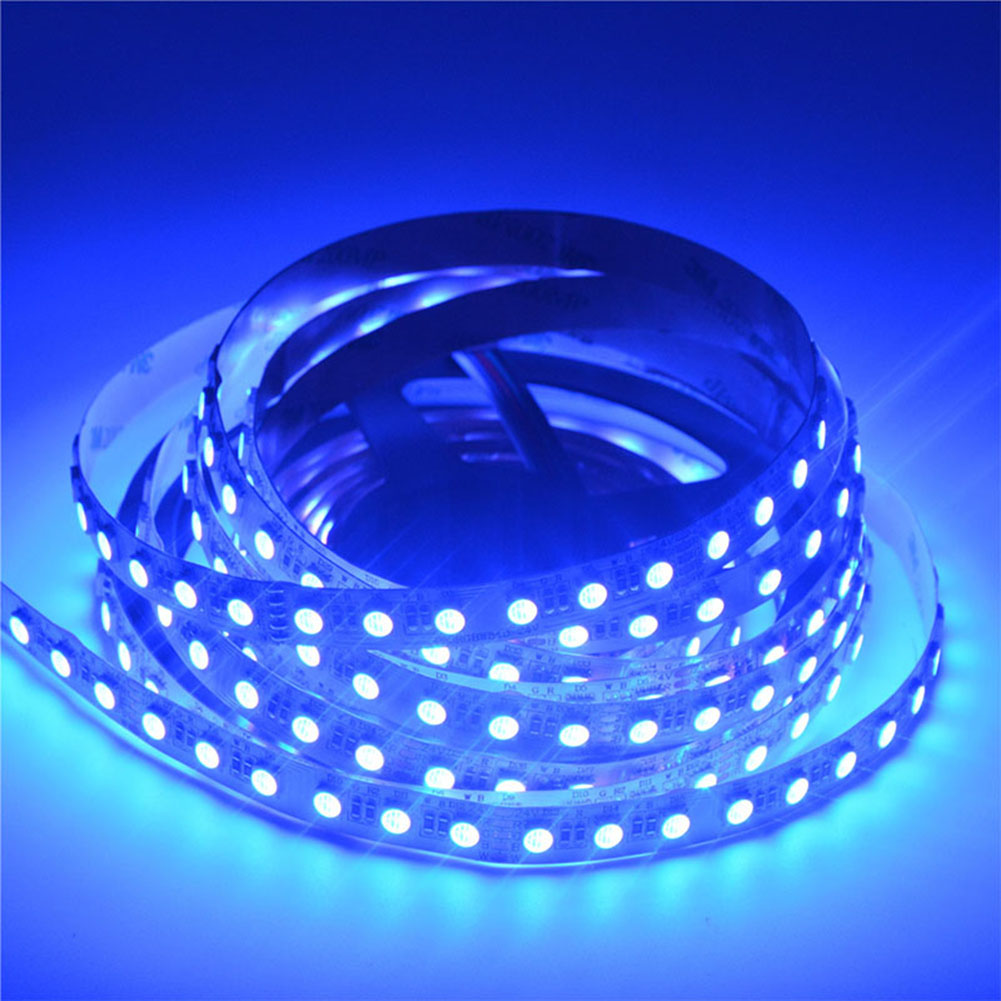

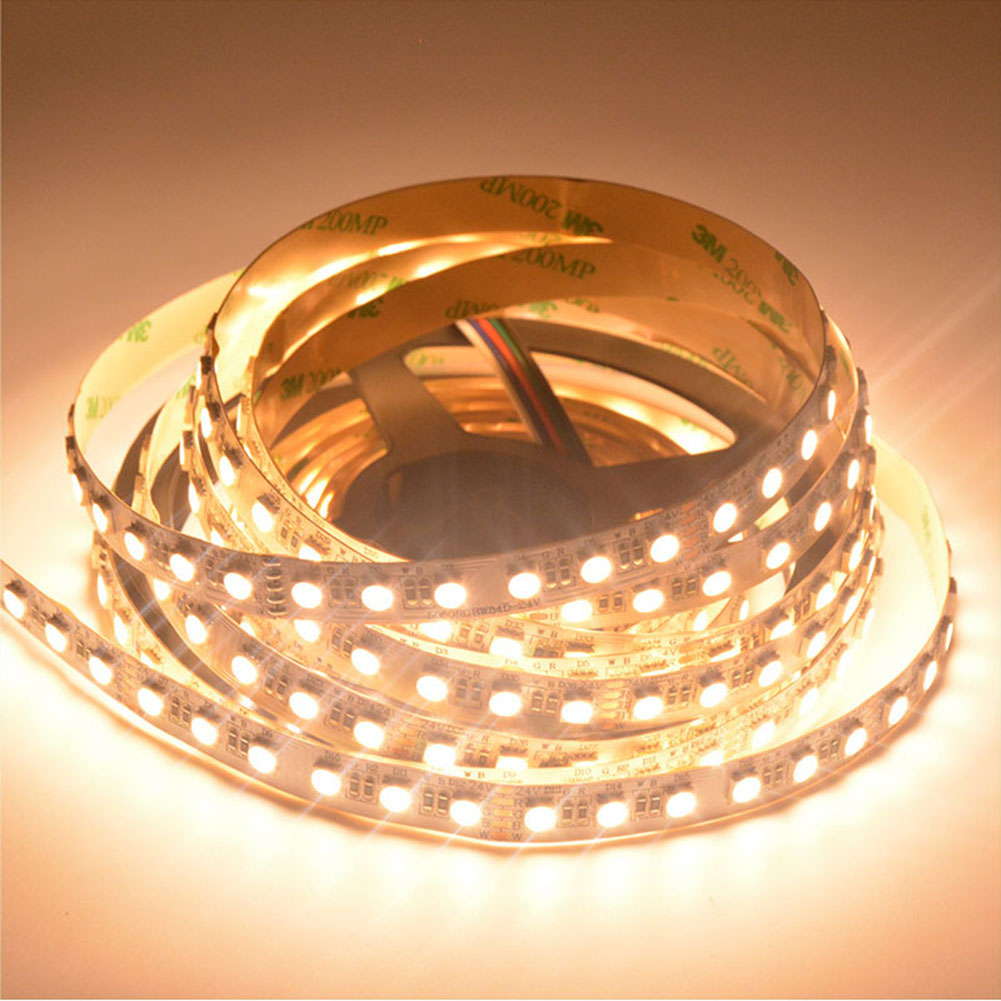

Universal RGBW color changing LED lights strip adapts RGB lights and white lights to mix to produce a wide variety of colors, suitable for mood lighting and task lighting. Use the RGBW controller to change the LED color, light brightness, and color mode. White light can be selected from warm white 3000K, natural white 4000K, and daylight white 6000K.
24VDC operation. This RGBW led strip can be cut into 6-LED segments, so you could cut a different length for your project and request. Our Flexible color changing RGB+White LED light Strips are soft and easy bended for installation, with adhesive backing and can be stuck just about anywhere (IP67/IP68 waterproof led strip lights type which will come with mounting brackets).
Standards and Certifications
|LED Strip Type:||SMD 5050 4in1 RGBW 420LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB+W3000K, RGB+W4000K, RGB+W6000K|
|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||84 LEDs per 1meter (3.28 ft)|
|Strip Width:||12mm (0.47in)|
|Input Voltage(V):||24 VDC|
|Working Power:||134W /16.4ft Max|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
