Color Change RGBW LED Strip - 96LEDs/m 12V/24V - 2700/3000K/4000K/6000K White Light
Universal RGBW color changing LED lights strip adapts RGB lights and white lights to mix to produce a wide variety of colors, suitable for mood lighting and task lighting. Use the RGBW controller to change the LED color, light brightness, and color mode. Provide warm white 2700K, 3000K, natural white 4000K, and daylight white 6000K led color temperatures to choose from.

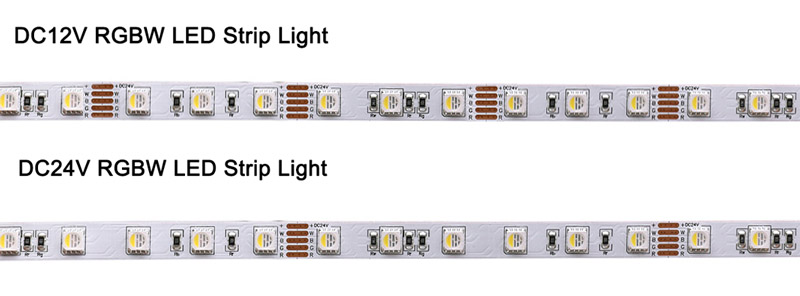

12V RGBW LED Strip vs 24V RGBW LED Strip:

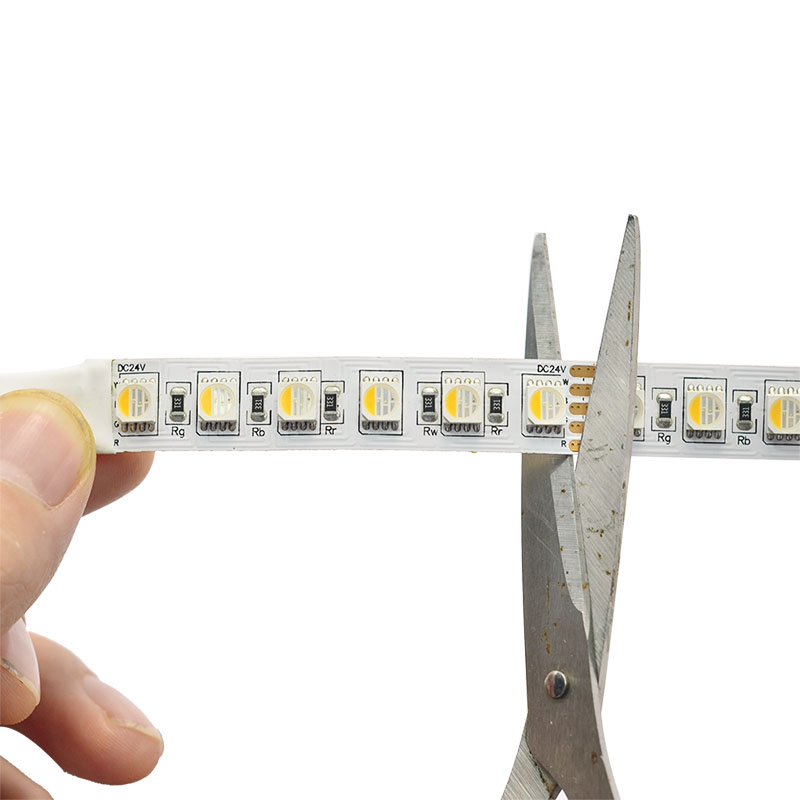

DC12V RGBW led strip lights integrate 3LEDs between the two PCB cut lines, each 50mm/1.97in can be cut (3LEDs cuttable)
DC24V RGBW led strip lights integrate 6LEDs between the two PCB cut lines, each 100mm/3.94in can be cut (6LEDs cuttable)
Standards and Certifications
|LED Strip Type:||SMD 5050 4in1 RGBW 480LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB+2700K, RGB+W3000K, RGB+W4000K, RGB+W6000K|
|Dimension:||16.4ft/roll, every 3/6 PCS LED can be cut|
|LED Quantity:||96 LEDs per 1meter (3.28 ft)|
|Strip Width:||12mm (0.47in)|
|Input Voltage(V):||12/24 VDC|
|Working Power:||153W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|

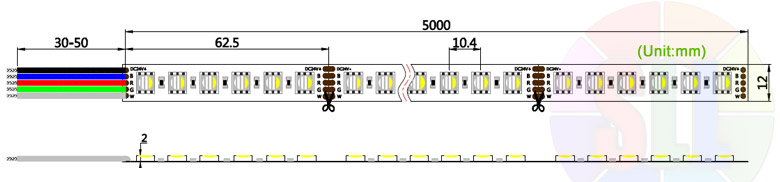

1. RGBW LED strip wiring diagram:

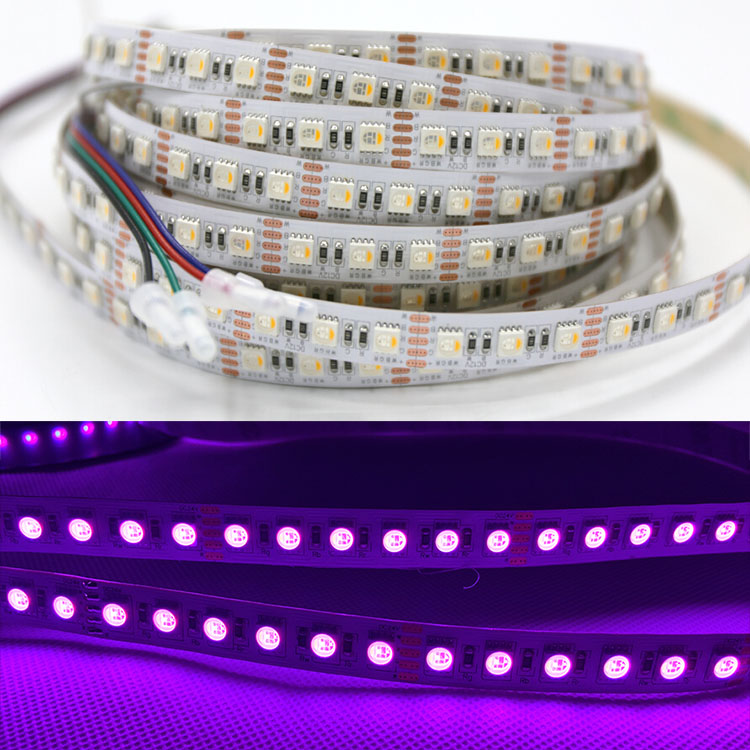

3. RGBW LED strip light effects:
|By : Oliver Hadatsch Date Added: 12/31/2018|
|This strip does not accept quick connectors because there is not enough room between the connectors and the first LED, you cannot close the connectors, the LED is in the way. I need to cut the quick connector cover or use the soldering method.|
|By : Michael Rebustillo Date Added: 11/01/2015|
|This light are super bright and the 5PIN connector is great I would give this a 5 star but they didn't have the strips in black which I need it them so bad in black but the lights are awesome and Im still willing to buy more.|
