RGBW Color Changing LED Strip Lights - 24V 120LEDs/m High Density LED Strip - Dual Row

Name: RGBW Color Changing LED Strip Lights - 24V 120LEDs/m High Density LED Strip - Dual Row
Brand: SuperLightingLED
SKU: FSLRGBW-4T1-5050X600
Price: 72.98 EUR
Availability: InStock

Model: FSLRGBW-4T1-5050X600 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: €64.44

Qty Discounts Off Price
1-4 €64.44	5-9 €63.15	10-14 €61.22	15+ €58.64
* Discounts may vary based on options below

Select Specifications:

Select Light Color :

Select Input Voltage:

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

Universal RGBW color changing LED lights strip adapts RGB lights and white lights to mix to produce a wide variety of colors, suitable for mood lighting and task lighting. Use the RGBW controller to change the LED color, light brightness, and color mode. Provide warm white 3000K, natural white 4000K, and daylight white 6000K led color temperatures to choose from.

The use of the best flexibility FPC as a substrate, FPC has good electrical conductivity, heat fast, resistant to bending.

Using SMD 5050 RGBW lamp beads, 5050RGB +Warm White/White color.

Through the RGBW Remote controller programming to achieve any of Flashing effects.

The use of low-voltage DC24V power supply, the user is more secure when used.

Can be made of the waterproof level of diversification, Glue Cover waterproof (IP65), all-inclusive casing waterproof (IP67), casing injection (IP68), as well as the latest process extrusion (IP68).

Standards and Certifications

24VDC

LED Strip Type:	SMD 5050 4in1 RGBW 600LEDs/16.4ft
LED Chip:	Epistar Chip
Working Temperature:	-4°F (-20°C) ~ 122°F (50°C)
Storage Temperature:	-40°F (-40°C) ~ 176°F (80°C)
Light Color:	RGB+W3000K, RGB+W4000K, RGB+W6000K
Dimension:	16.4ft/roll, every 6 PCS LED can be cut
LED Quantity:	120 LEDs per 1meter (3.28 ft)
Lifespan:	50,000+hours

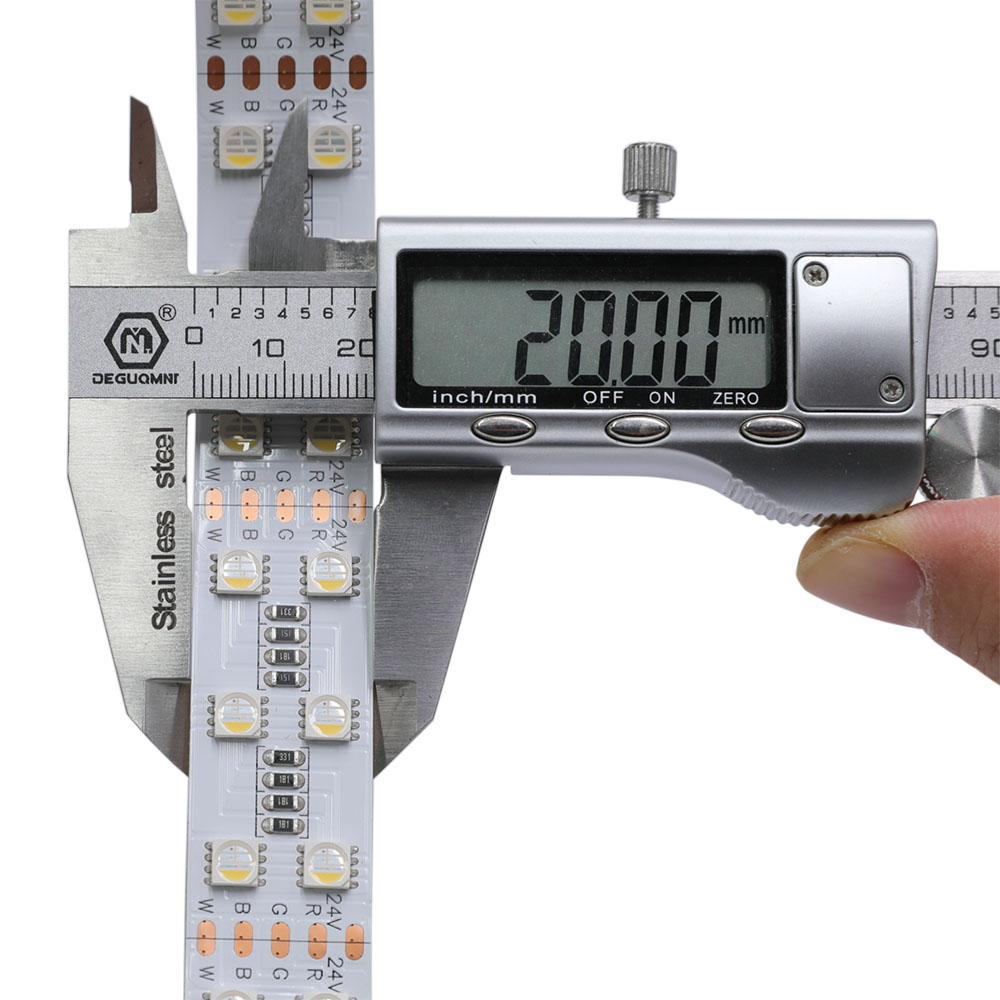

Strip Width:	20mm (0.78in)
Input Voltage(V):	24 VDC
Working Power:	192W /16.4ft Max
Lamp Luminous Flux(lm):	20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt
Wavelength NM(RGBY):	2000-2500mcd
Beam Pattern:	120 degree
Waterproof Rating:	Non-waterproof IP20, waterproof IP65 IP67 IP68
CRI:	95

How To Wire RGBW LED Strips?

1. RGBW LED strip wiring diagram:

rgbw led strip wiring diagram

2. LED light strip accessories: RGBW led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLRGBW-4T1-5050X600

PDFFSLRGBW-4T1-5050X600 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in DC12V - 16mm width · DC24V - 20mm width. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Which controller does it need?

Colour-changing LED strip lights need a controller with one output per colour channel — for this model that is a 5-pin RGBW controller at the same voltage. Choosing a controller

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

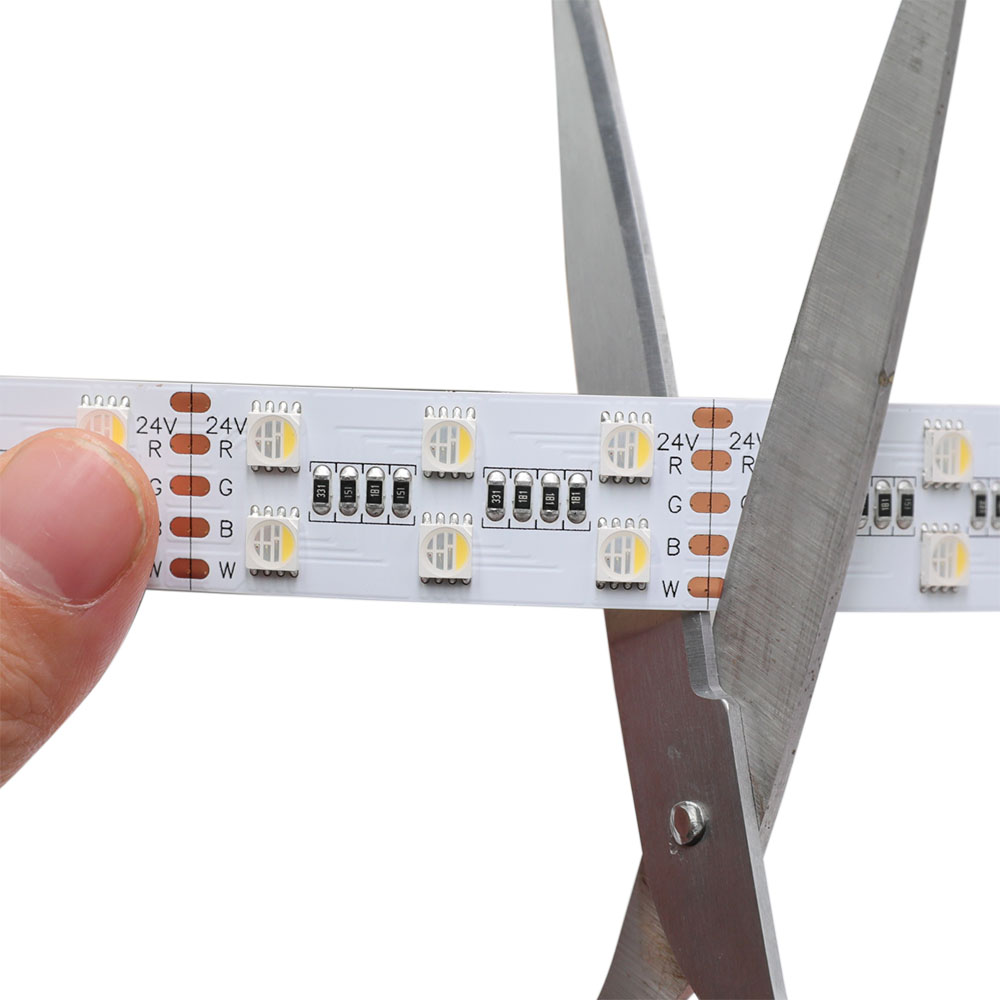

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
