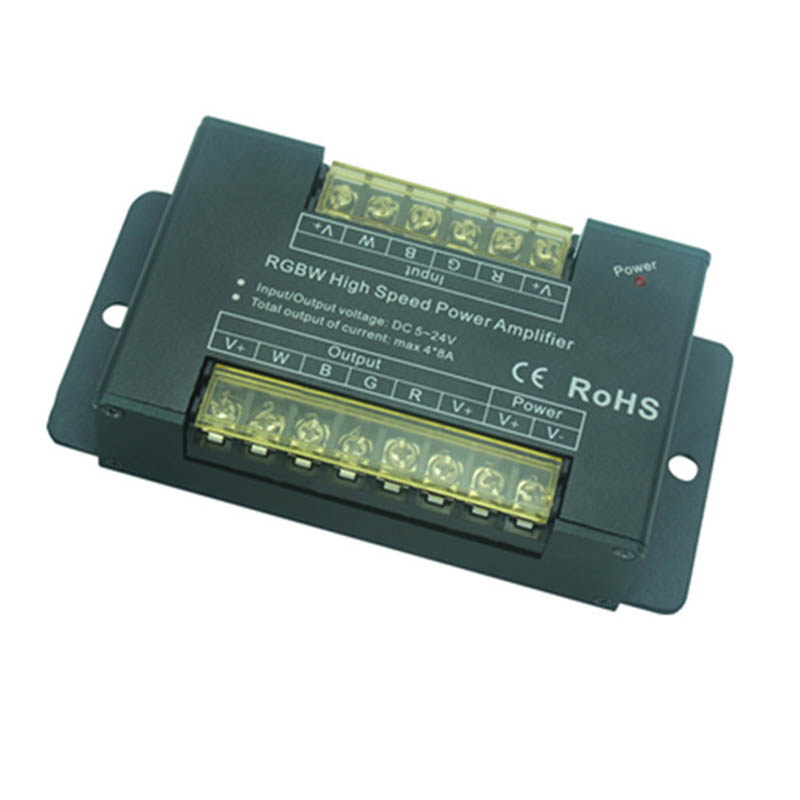

AP103 DC5V-24V High-speed Large Current RGBW Power Amplifier

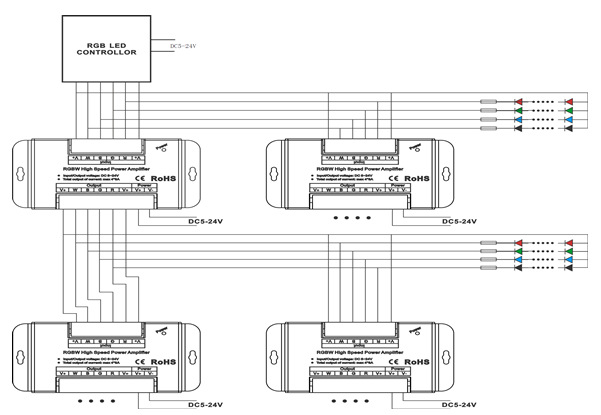

High-speed high-current power expander, suitable for PWM-controlled LED controller, can amplify the power of the LED controller, each additional expander can be connected to double to triple the number of LED lights, and can be cascaded, theory You can connect unlimited power expanders. It is convenient for the unified control of LED lamps with different voltages, high power and low power. Whether it is our company's products or other companies' products, as long as it is PWM controlled and the voltage is appropriate, you can use this series of power expanders. The use of high-speed optical coupling design can achieve extremely low delay time to ensure that multiple units are synchronous with the host.
Working Temperature: -20-60 ℃
Working Voltage: DC5V-24V
Signal Voltage: DC5V-24V
Input Signal: PWM dimming signal
Dimming Range: 0.1%-100%
Net Weight: 270g
Gross Weight: 372g

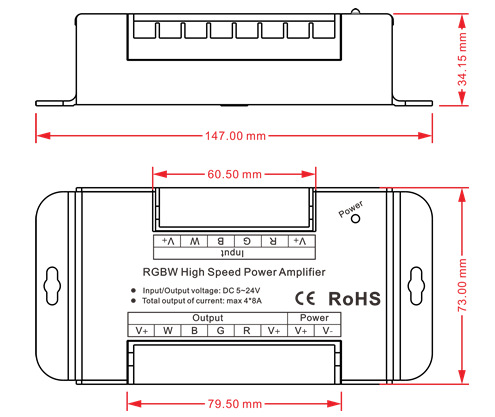

Dimensions: L147*W70*H34 mm
Packing Size: L152mm*75*75mm
Connection Terminal: screw connection mode, the diameter of the terminal is 7mm
Wiring Method: common anode
Output Current: <32A
Output Power: 5V: <160W, 24V: <768W
Power input/load output interface

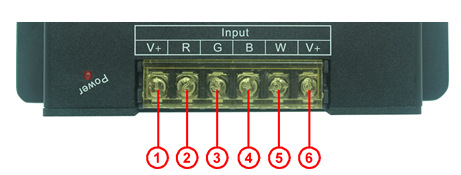

RGBW signal control interface
1: Common anode common pole
2: R channel input signal negative
3: G channel input signal negative
4: B channel input signal negative
5: W channel input signal negative
6: Common anode common pole

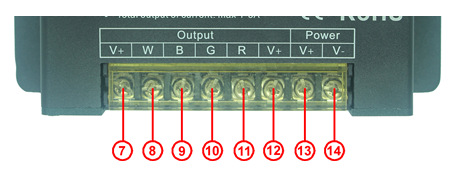

Power supply and load output interface:
7: load output common anode common pole
8: W load output negative
9: B-channel load output negative
10: G-channel load output negative
11: R load output negative
12: load output common anode common pole
13: positive input voltage
14: Power supply input voltage negative
