150W 24VDC CV DALI Driver LED Intelligent Driver DALI-15-150-700-F1A1
15W 150-700mA(100-240Vac) DALI-15-150-700-F1A1
LED Intelligent Driver

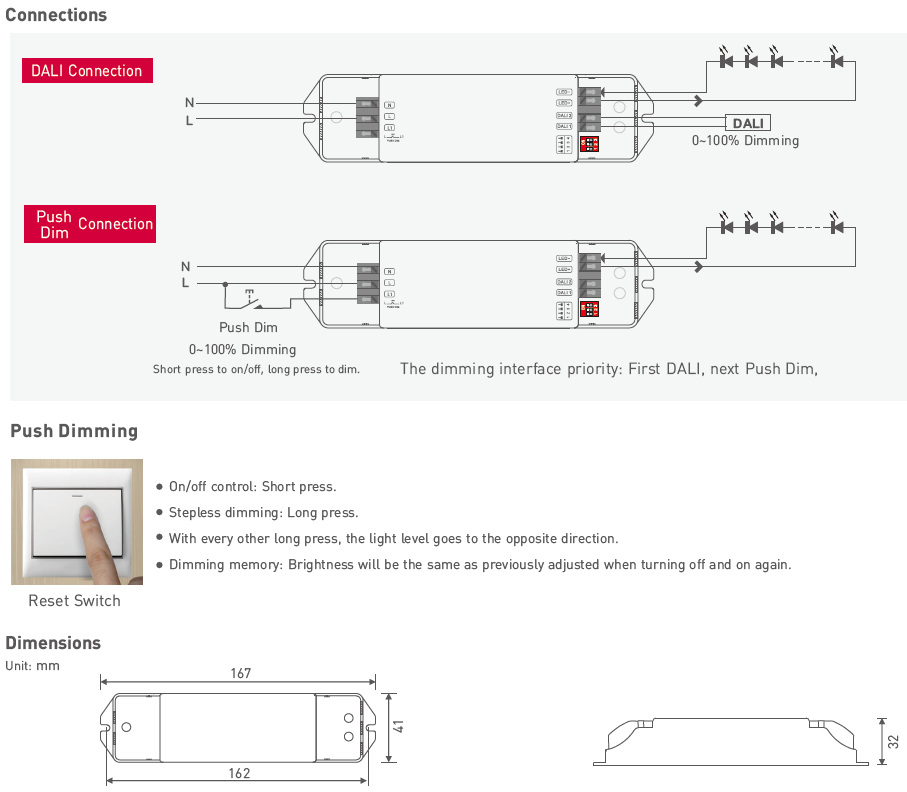

Dimming interface: DALI, Push Dim.
T-PWM digital dimming, present a perfect visual experience.
Dimming range: 0~100%, LED start at 0.01% possible.
Support lamp current state and fault feedback function.
DALI dimming curve: liner curve or logarithmic curve.
Flicker-free (IEEE 1789), achieve the level of exemption assessment.
Innovative thermal management technology, intelligent power life protection.
Multiple current & wide voltage, suitable for different power LED.
Over-heat / Overload / Short circuit protection, recover automatically.
Class 2 power supply. Full protective plastic housing.
DALI bus standard: IEC62386-101,102, 207.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
