DM010 DC5-24V DALI/0-10V LED Dimmer Controller, DALI/DMX Signal Decoder
The dimmer is small and compact, and the load output is controlled by inputting an analog signal of 0-10V. The dimmer provides a 0-10V port, which can externally input 0~10V dimming, or can be connected to a potentiometer for dimming; dimming output The signal adopts the current advanced PWM (Pulse Width Modulation) digital brightness adjustment technology, which can control various lamps with LED as the light source, such as point light source, soft light bar, wall washer, glass curtain wall lamp, etc.; Convenient wiring, easy to use and other advantages.
Working Temperature: -20-60℃
Power Supply Voltage: DC5~24V
Input: 0-10V dimming signal
Connection Method: Common
Output Current: <8A
Static Power Consumption: <1W
Output Power: 12V:<96W, 24V:<192W

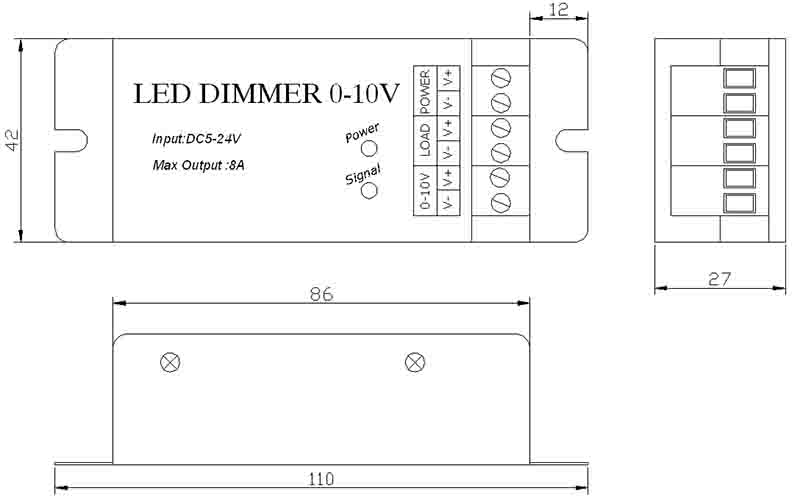

Dimensions: L108 Χ W42 Χ H27 mm
Packing Size: L110ΧW50ΧH40mm
Net Weight: 112g
Gross Weight: 195g

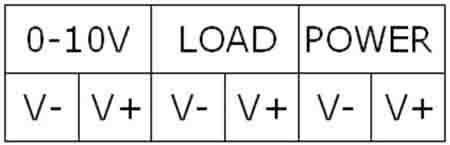

POWER: Power input interface, V+ is connected to the positive pole of the power supply, V- is connected to the negative pole of the power supply, and the power supply voltage range is DC5-24V.
LOAD: Load output interface, V+ is connected to the positive pole of the lamp, and V- is connected to the negative pole of the lamp.
0-10V: dimming signal input interface, can be externally input 0~10V dimming, or can be connected to a potentiometer for dimming.

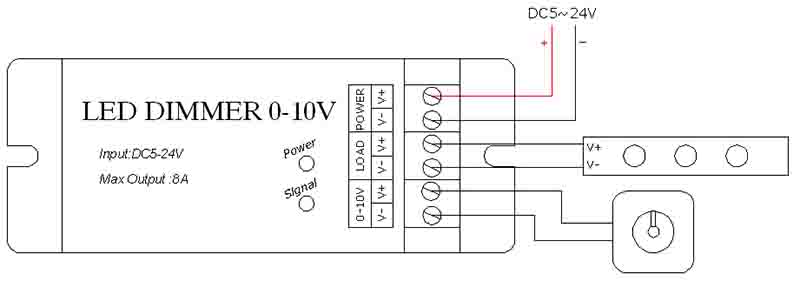

1. Dimming with a potentiometer (maximum resistance >100KΩ)

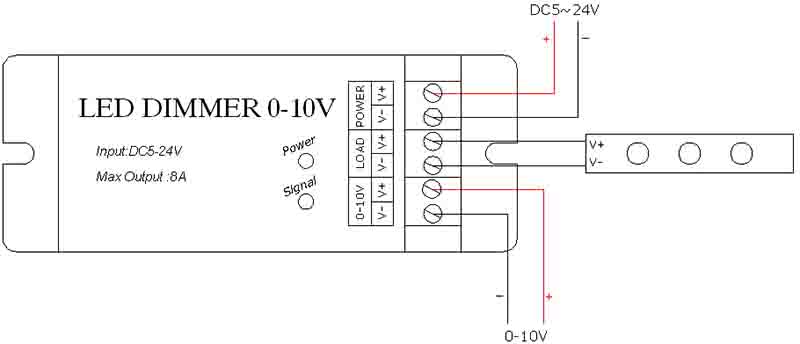

2. External 0-10V voltage dimming
