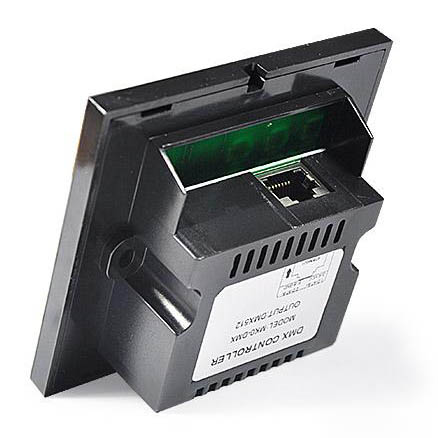

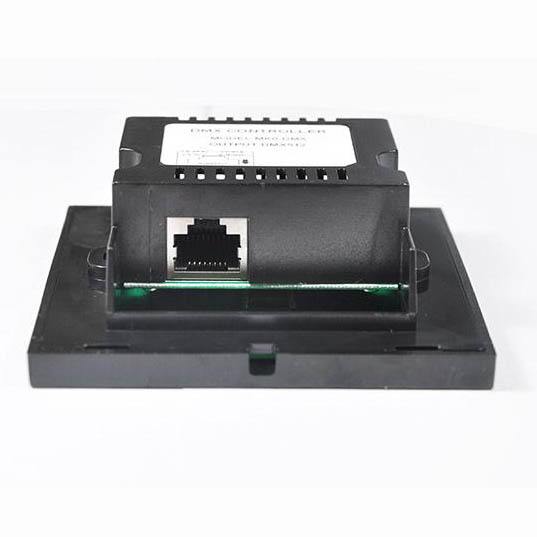

DC12/24V Max 16A 4Ax4CH, Universal Wall Install Series 36keys RF RGBW Panel DMX Controller For RGBW Strips light
This RGBW panel controller is our newly developed a new type of high-end controller, using 36 key panel design, and the 36-key radio button on the remote, It adopts PC panel design, look beautiful and stylish. It is mainly used to control a variety of led lamps as the light source, such as: point light source, soft light, panel light, etc.; with easy wiring, simple to use and so on. it has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Controller Type: RGBW 36Keys Panel Controller
Input Voltage: DC12-24V
Output Current: RGBW:<4A*4
Output Power: 12V<192W, 24V<384W
Output: four CMOS drain open-circuit output
Static Power Consumption: <1W
Connection Mode: common anode
Working Temperature: -20~60 degree
Dimensions: L86ΧW86ΧH36 mm
Package size: L110ΧW105ΧH55 mm
Color: White or black
net weight : 88.5g
gross weight: 130g

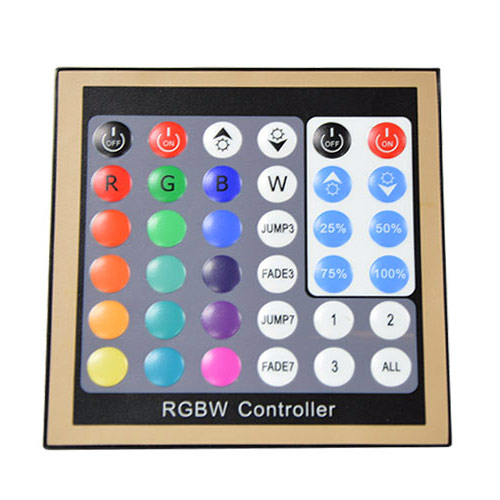

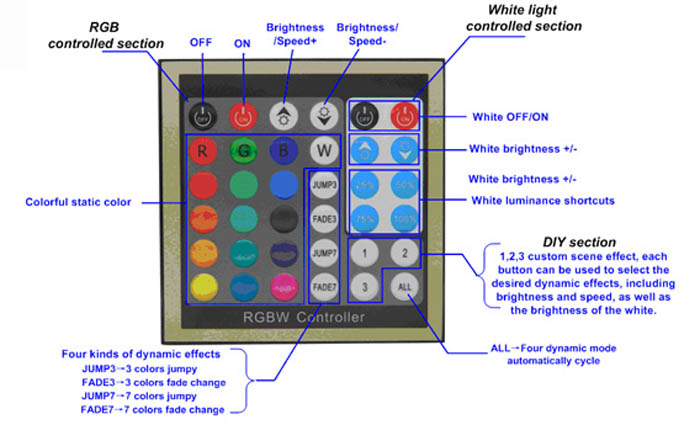

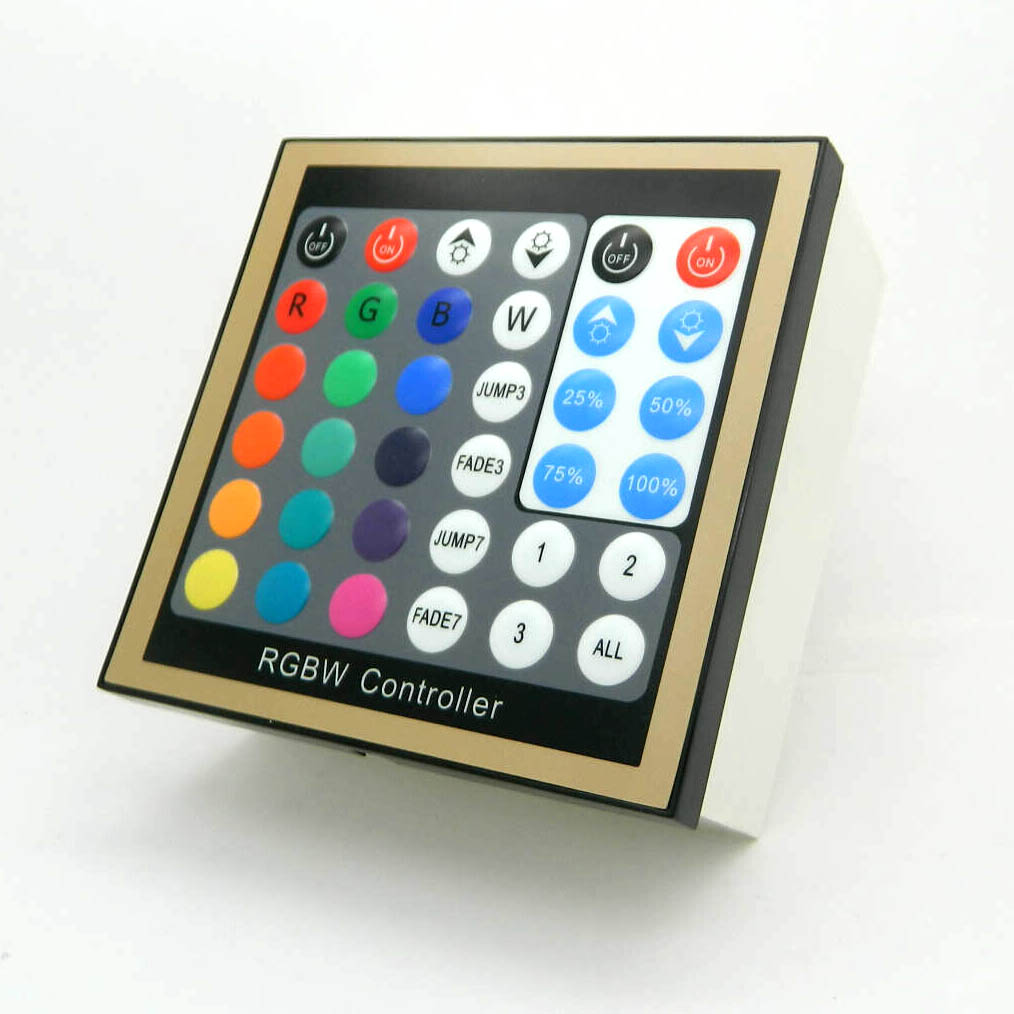

Panel Keys Description
Note: RGB and W are independent parts, the switch can be individually controlled, the brightness. For example: When you select a static red RGB mode, then you can still turn on or off according to the needs of W, or adjust the brightness according to the needs of W, RGB mode change does not happen, on the contrary part may be individually adjusted RGB mode and state. In addition, in FLASH mode can not be turned off W, this is the mode-specific changes in effect.
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 5/12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

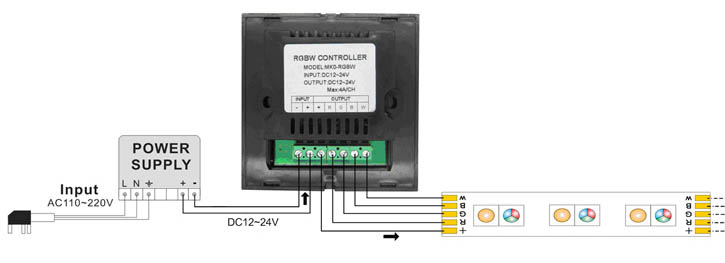

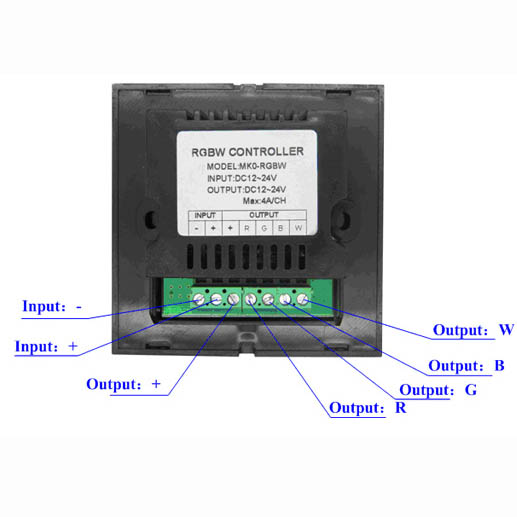

Connect according to the Wiring Schematic drawing.
Controller can control a maximum of 30 meters of our Flexible RGBW LED Strip. Over 30 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one Horse Race Amplifier for every 15 meters of additional LED Strips.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Not suitable for automobile applications.
1 x 16A 36Keys Panel RGBW LED Controller
