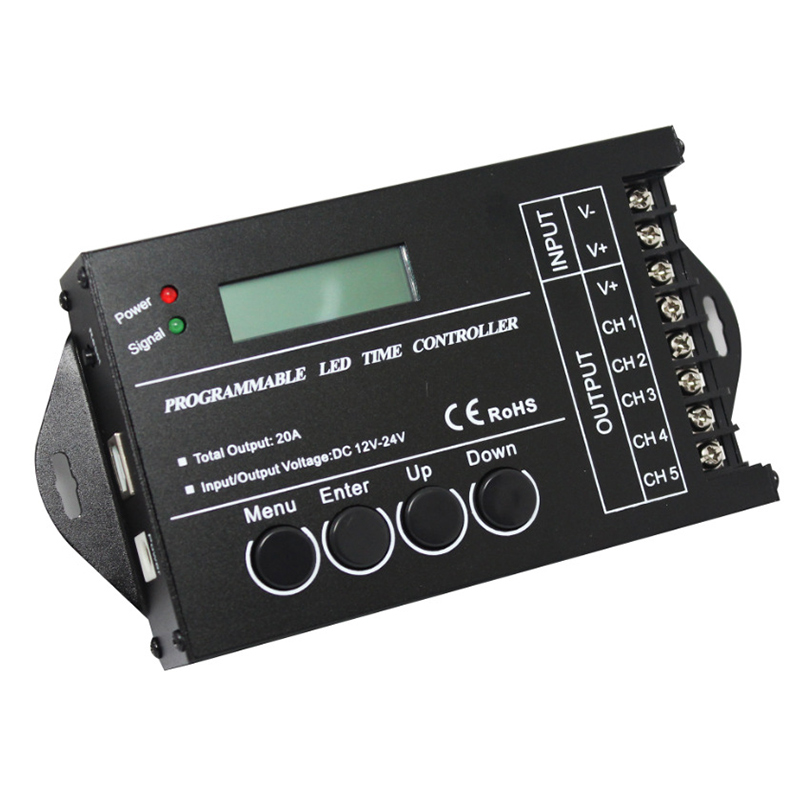

TC420 DC12-24V 5 Channel Time Programmable Controller, LED Controller
With the programmable time controller of the host computer, the load output can be changed with the change of time, and the customer can customize the schedule mode he wants through the host computer. Then download the required schedule to the controller through the USB port. In addition to the function of editing the schedule, the host computer can also set the time for the controller, that is, the synchronous clock function of the host computer. If users want to see the effect of the edited schedule, they can use the fast broadcast function of the host computer. The host computer is also equipped with a delete function. Once the delete function is executed, the mode name display area becomes blank. A programmable time controller with a host computer can control up to five loads of LED changes. The adjustment of the lighting change effect can be applied to plant lights, lightbox advertisements, stage setting, home decoration, etc.
Working Temperature: -20-60℃
Power Supply Voltage: DC12-24V
Static Power Consumption: <1W
Net Weight: 210g
Gross Weight: 420g

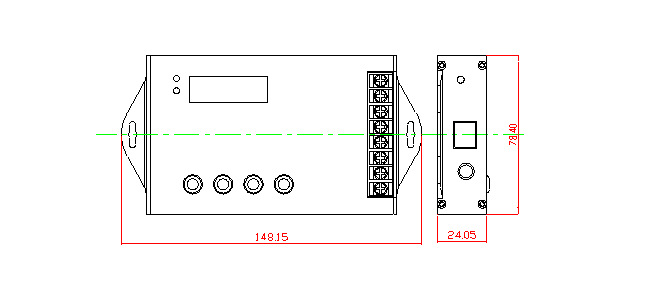

Dimensions: 150*78.5*26 MM
Packing Size: 185*180*54.8 MM
Output: 5 Channels
Maximum Output Current: 20A
Connection Method: Common anode
Controller Output Frequency 600HZ
1*Time programmable controller

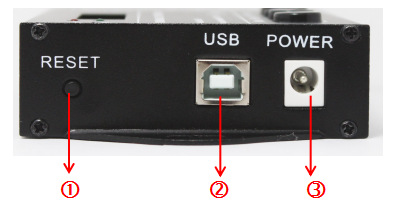

① is the reset button, when the controller crashes, you can touch this button to reset.
② It is a USB signal access port. After the mode of the host computer is edited, it can be downloaded to the controller through the USB cable.
③ DC plug, when the load power is small, you can choose this interface to input voltage.

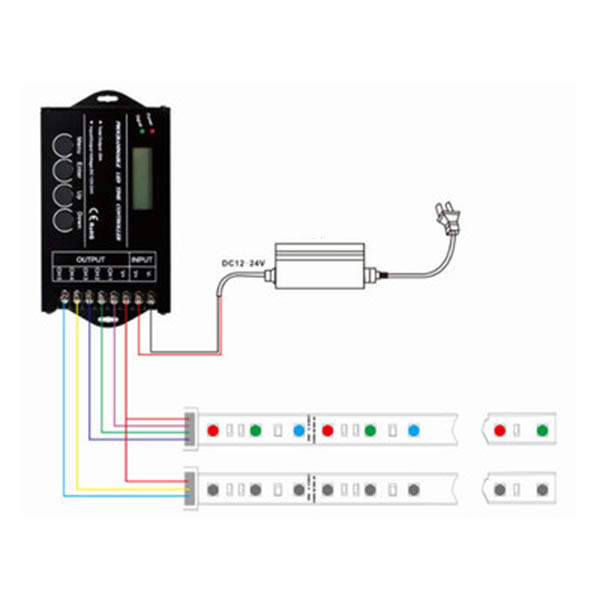

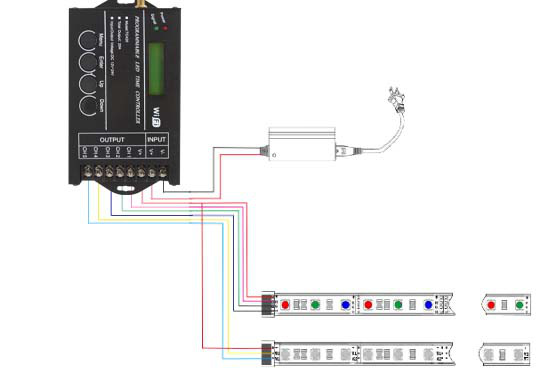

① It is the negative pole of load output No. 1;
② It is the negative pole of load output No. 2;
③ It is the negative pole of load output No. 3;
④ Output the negative pole of the 4th channel;
⑤ Output the negative pole of the 5th channel for the load;
⑥ It is the positive pole of load output;
⑦ ⑧ is the positive and negative input of the power supply. When the load power is too large, ⑦⑧ can be selected.
(Note: The DC head of the power input port and these two interfaces only need to choose one.)
