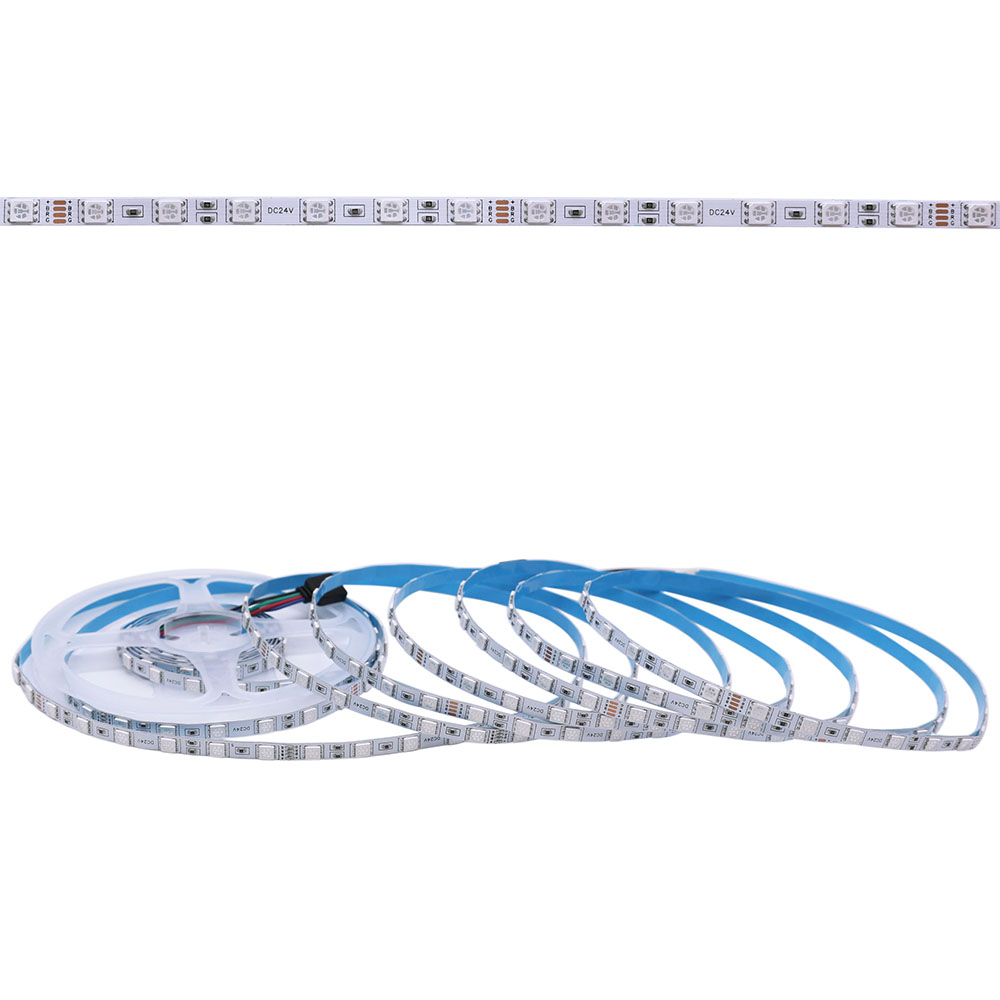

DC5/12/24V SMD5050 6MM Ultra-narrow 60LEDs/m LED Flexible RGB Strip Light,16.4ft/Roll
This LED product is an SMD5050 6mm RGB ultra-narrow led light strip, which has the characteristics of high brightness, good light efficiency, and wide application. Provide three voltage options: 5/12/24V, low voltage, energy-saving, and environmental protection, high efficiency.

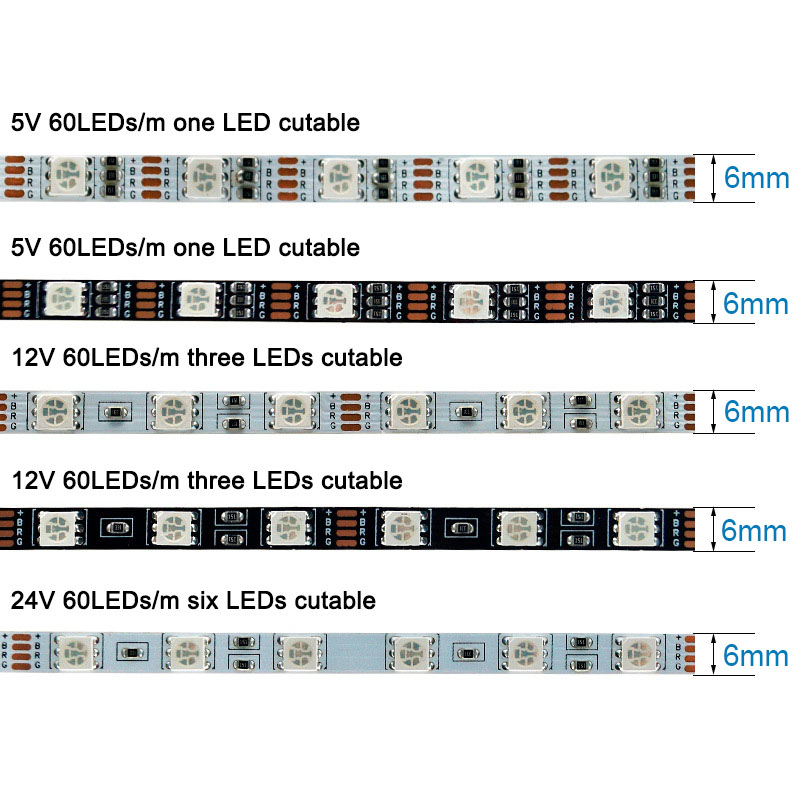

5V vs 12V vs 24V ultra thin led strip lights: 5V narronw LED strip can be cut for one LED, 12V thin led strip light can be cut for 3 LEDs, 24V ultra thin led strip light can be cut for 6 LEDs.
The 6mm ultra-narrow LED strip lighting can be used in places with small spaces. Both black and white PCBs are available for a wide range of choices, 4-channel narrow led RGB light strip, can be used in bar, nightclub, street, sidewalk, deck, park, porch, staircase, railing. - IP20 non-waterproof thin led strip vs IP67 outdoor waterproof narrow led light strip.
►Everything you need to know before buying led strip lights:
Standards and Certifications
LED Chip: SMD5050 super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, one LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)

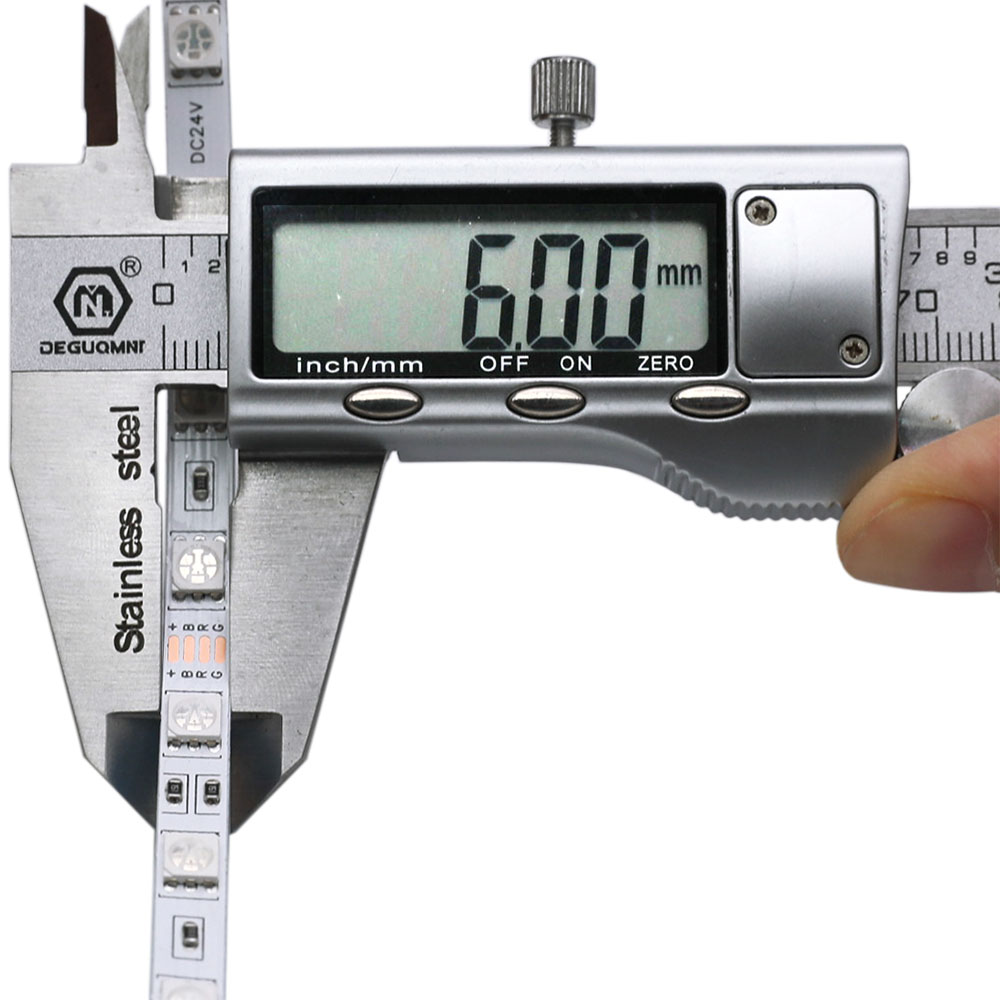

PCB Width: 6mm/ 0.24in
Warantty: 3 years
Input Voltage(V): 5/12/24VDC
Working Power: 72W/16.4ft Max
Beam Pattern: 120 degree
Water Proof: Waterproof IP20/IP67
PCB Color: White/Black
Package List: 1*5m 6mm RGB led strip light

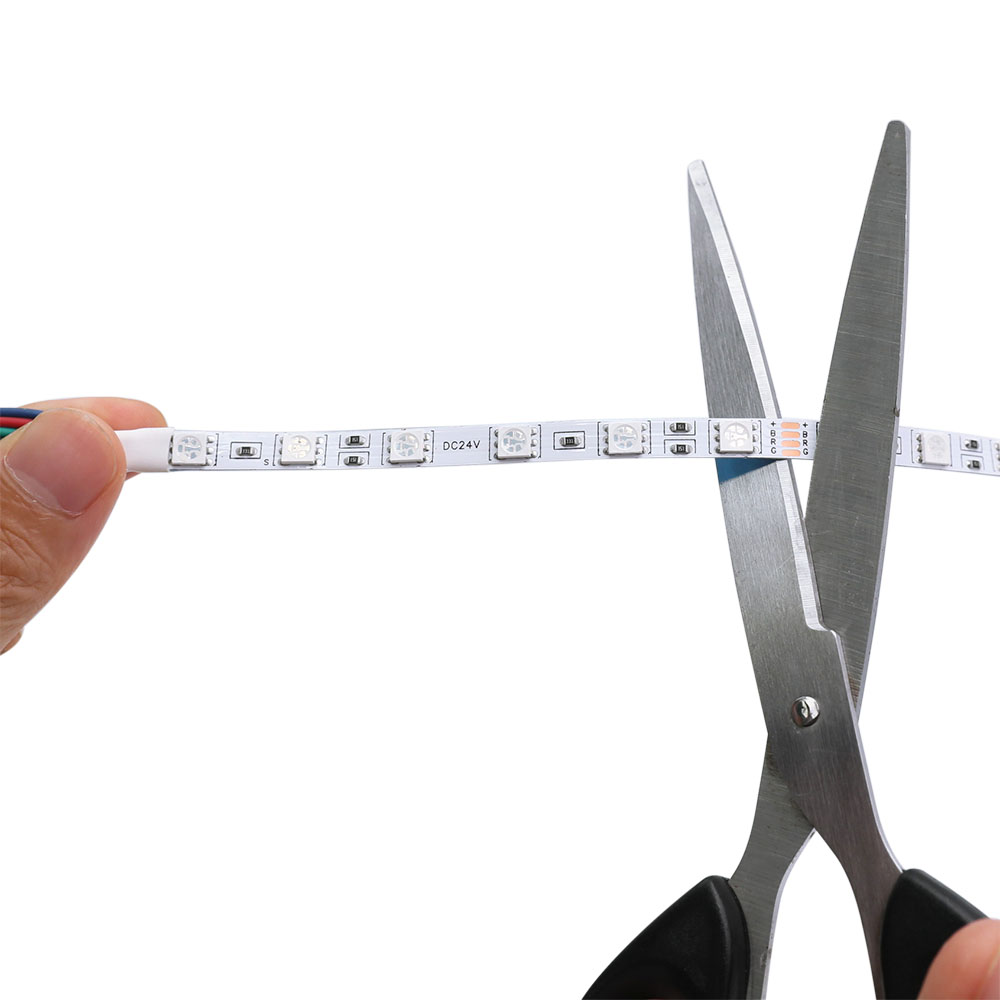

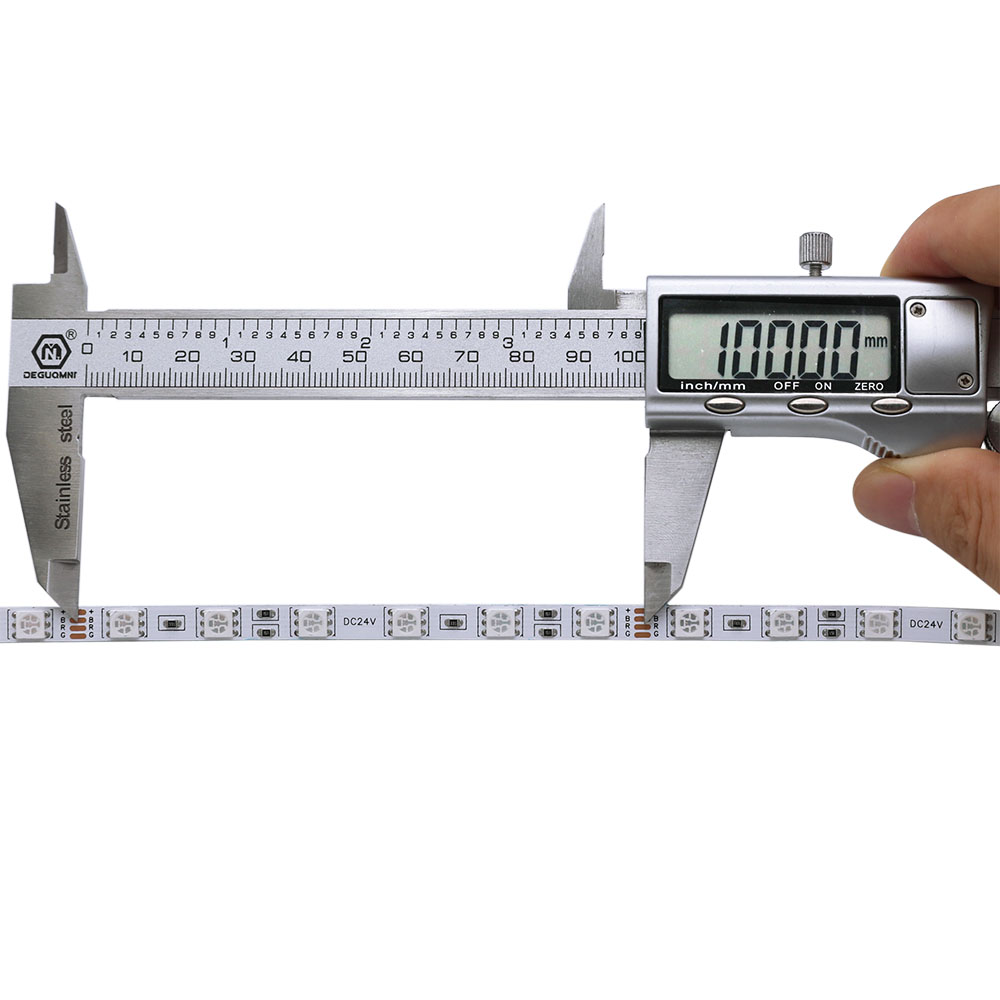

You can cut the flex RGB color changing LED lights every few inches(6 LEDs), allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.

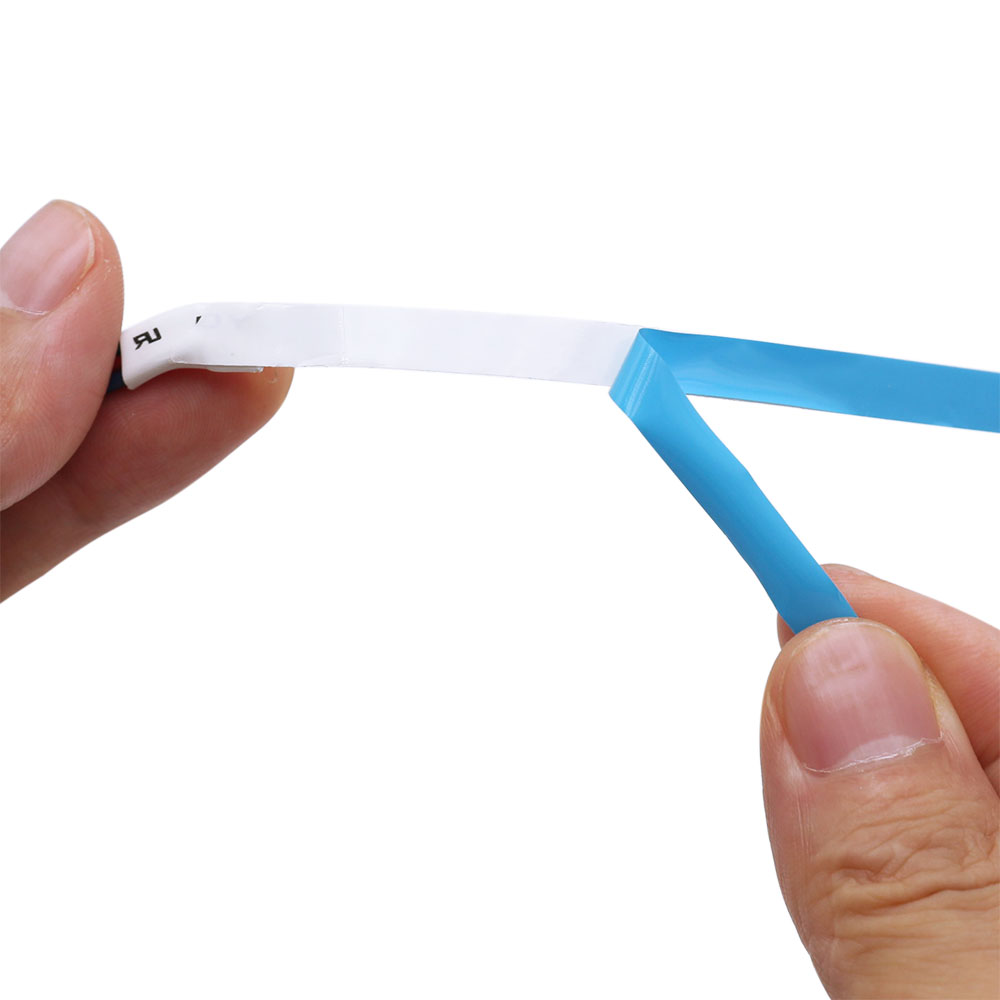

The back of the RGB LED strip is fitted with a strong 3M tape, allowing you to peel and stick the LED lights to anywhere.
IP67 waterproof LED type which will come with mounting brackets. And all the RGB LED strip lights can be installed with LED aluminum channel and LED neon tube to get an uniform, soft, and no light spot LED lighting effect.
►RGB LED strip wiring diagram:
*Click the wiring diagram picture to know more detail.
►Choose a suitable LED strip light power supply and an LED light RGB controller:
RGB LED Lights Applications
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
Home lighting decoration
