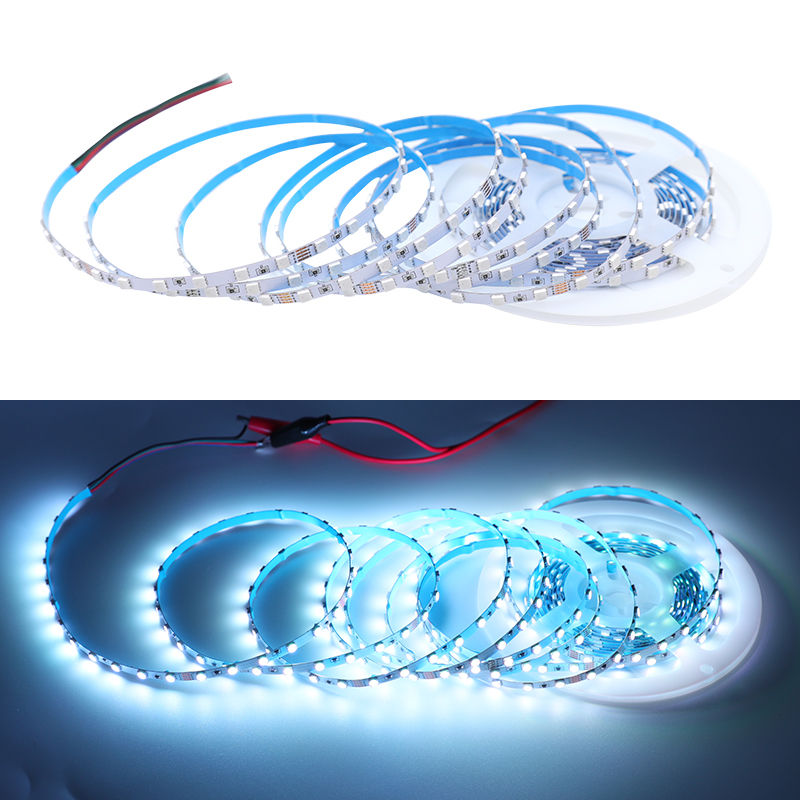

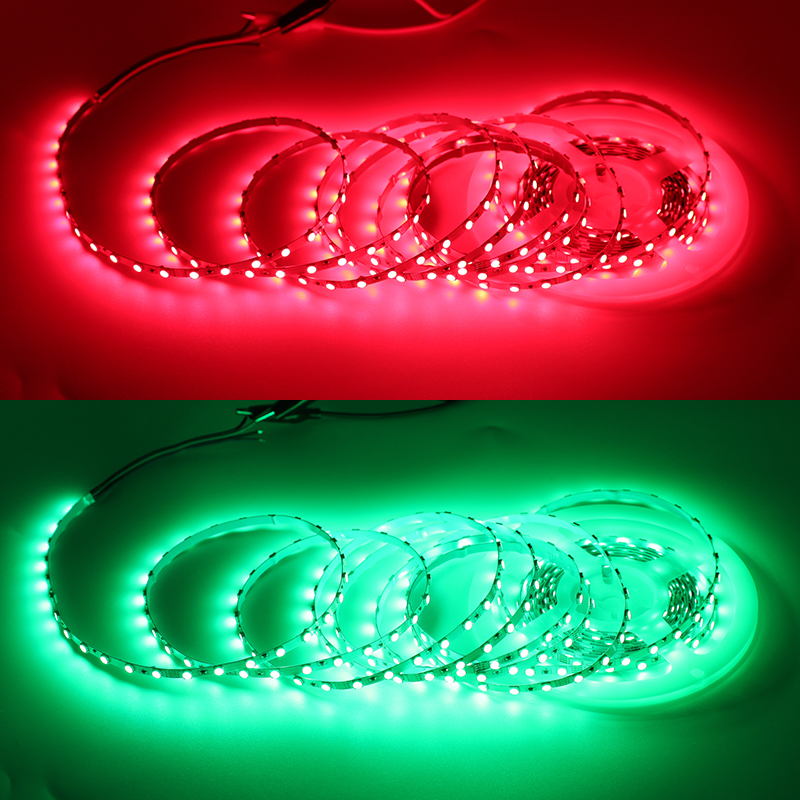

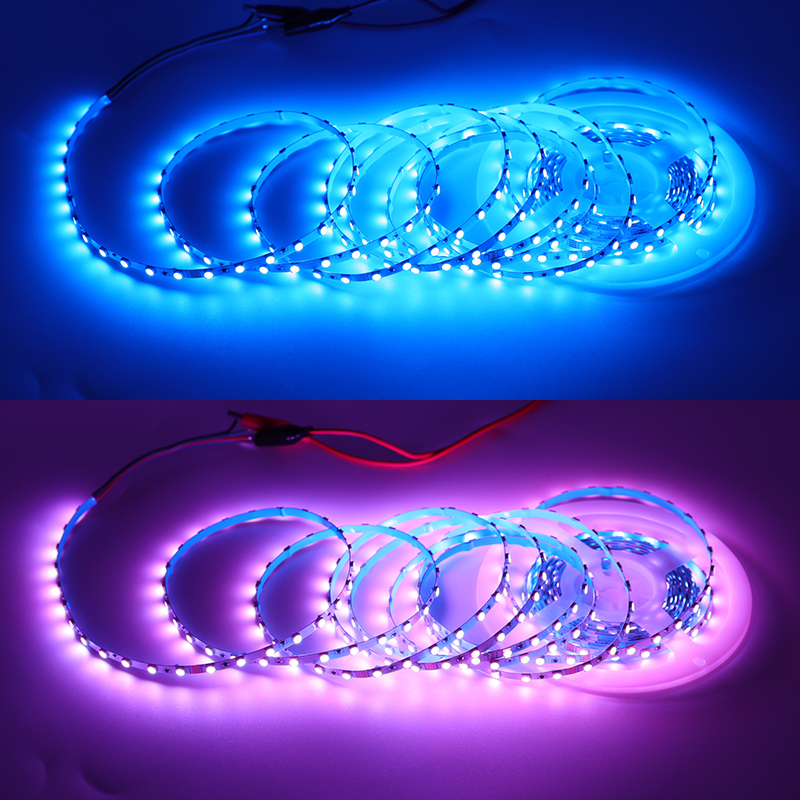

RGB color changing led strip lights use 3-in-1 RGB LEDs, which can display a variety of static colors and dynamic color effects through the control of the RGB controller. Use the mobile APP, remote control, or voice control to change the light color, brightness, and mode. It is the best item to use lights to create an entertainment atmosphere or mood lighting. This RGB led strip uses 24V safe voltage and needs to be driven by an AC to DC LED transformer.
1. Adopts high bright 4040 RGB SMD LED chips, with 3OZ FPCB materials as a lighting base, better heat dissipation, longer lifespan over 50,000 hours.

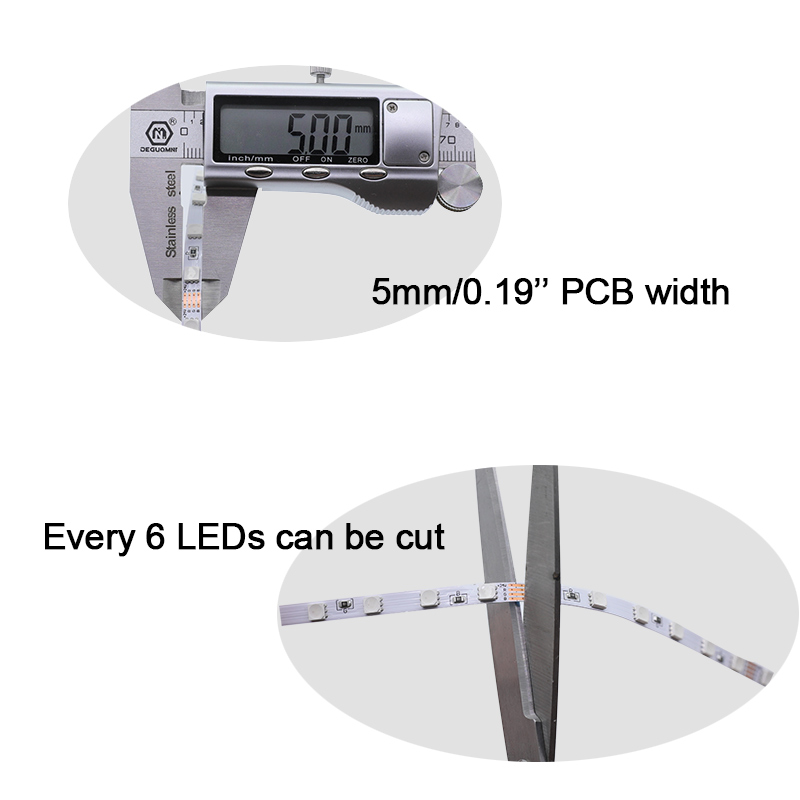

2. DC24V safe voltage, less voltage drop, every 6 RGB LEDs can be cut.
3. 5mm/0.20'' ultra narrow PCB width, higher density of 72 RGB LEDs per meter.
4. 5m/16.4ft in length, suitable for various lighting projects. You can cut and connect the RGB light strip to get your desired strip length.
5. IP20 waterproof rating, suitable for indoor LED lighting projects.
Standards and Certifications
|LED Strip Type:||SMD 4040 RGB 360LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||72 LEDs per 1meter (3.28 ft)|
|Dimensions:||L500cm(196.8 in ) x W0.5cm(0.20 in ) x H0.20cm(0.08 in )|
|Input Voltage(V):||24 VDC|
|Working Power:||17W/m, 85W /16.4ft Max|
|Lamp Luminous Flux(lm):||20-22 lm/LEDs 7920 lm/16.4ft|
|Wavelength NM(RGBY):||Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)|
|Beam Pattern:||120 degree|
LED Light Strip Accessories
72 density RGB light strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.
LED task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
