5mm Narrow RGB LED Strip Lights - 12V 4040 LED - 120LEDs/m High Density
5mm Narrow RGB LED Strip... $31.98 $28.989% off
Mini LED Channel Aluminum... $8.99
5A*5CH RGB+Color... $27.98
Mean Well LRS-100-12... $30.00 $25.9813% off

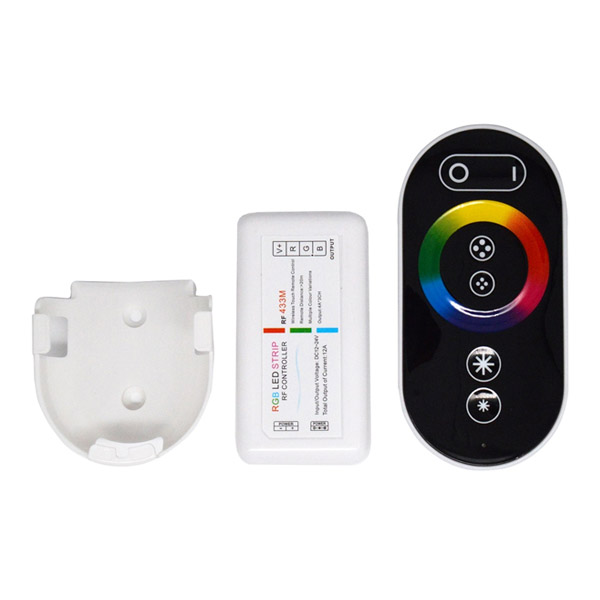

RGB Controller M7+M4-5A $32.98
$31.98 $28.989% off
5mm Narrow RGB LED Strip...
Mini LED Channel Aluminum...
Mean Well LRS-100-12...
RGB Controller M7+M4-5A
What are RGB Lights? The red, green and blue color mixing of 3in1 RGB LED lights can produce a variety of colors, which is a common product for ambient lighting.

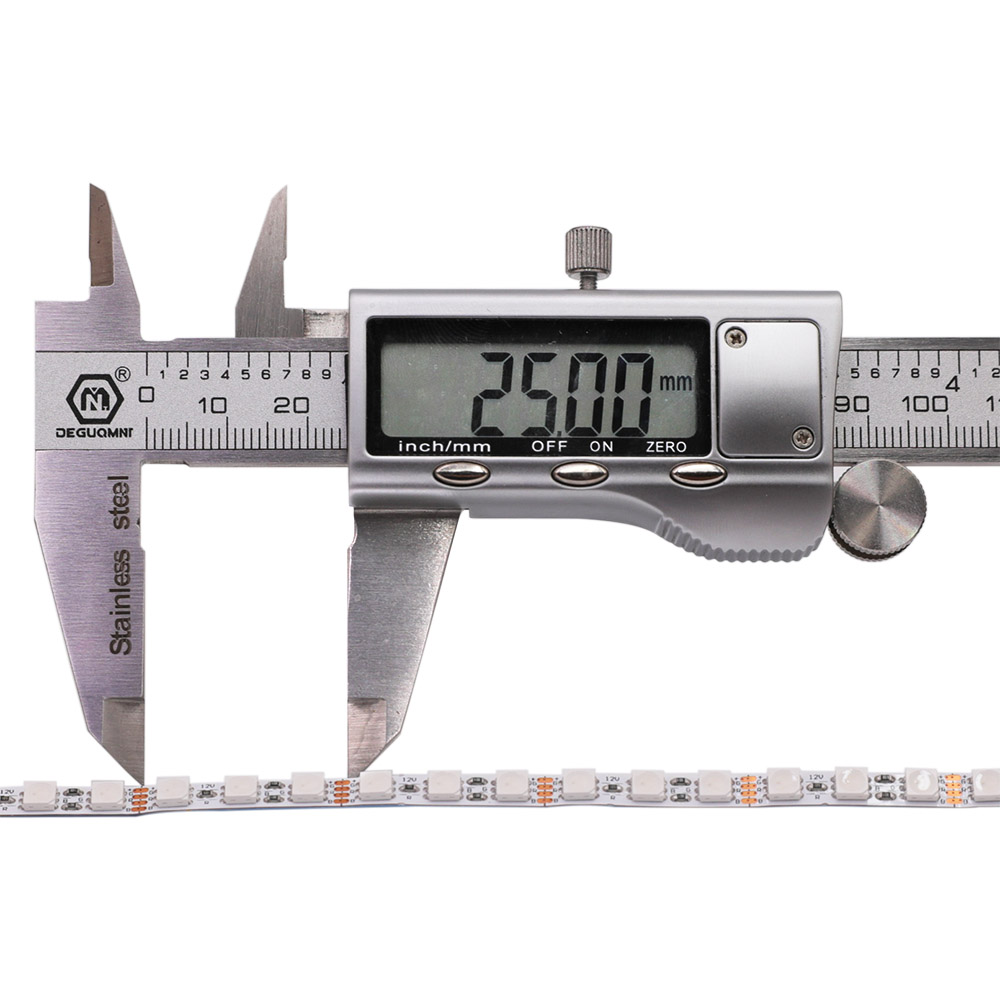

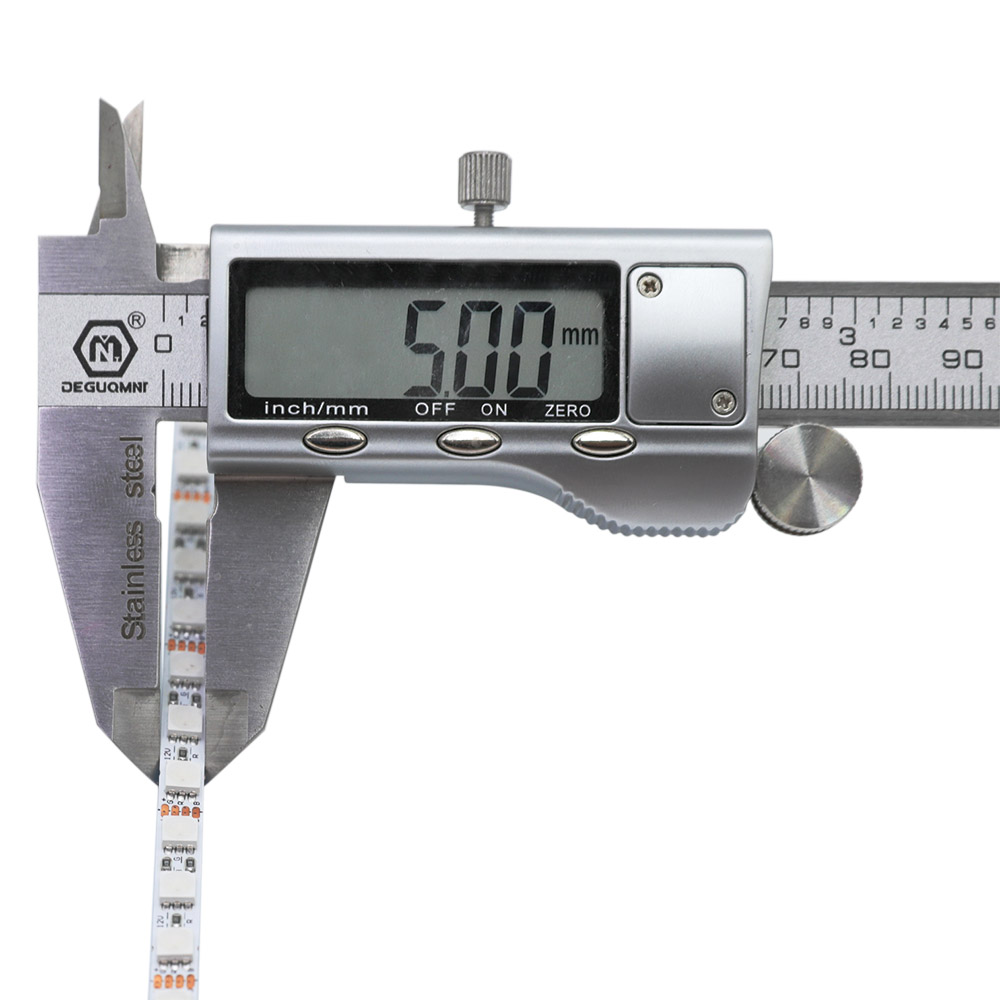

1. 4040 SMD LED RGB is an upgraded version of 3535 SMD RGB, ultra-narrow LED strip lights can be installed in a small space.
3. This ultra narrow RGB light strip is high density, 120 LEDs per 3.28 feet, no voltage drop.
4. Stable performance, high brightness, unique circuit technology can ensure the replacement of lamp beads.

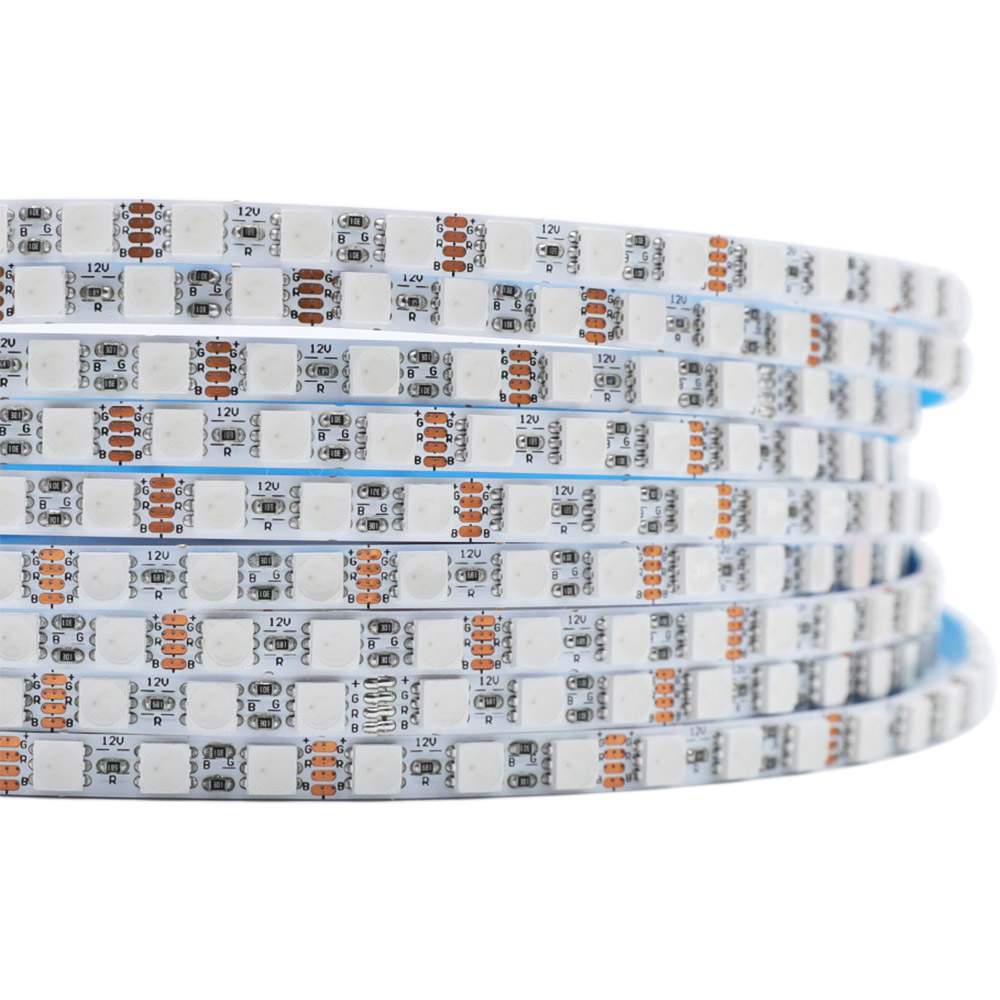

5. Flexible PCB board and tape of this color changing narrow RGB led strip, arbitrary bending and installation.
6. IP20/IP67 waterproof ratings, suitable for indoor and outdoor lighting projects.
Standards and Certifications
|LED Strip Type:||SMD4040 RGB 600LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB Color|

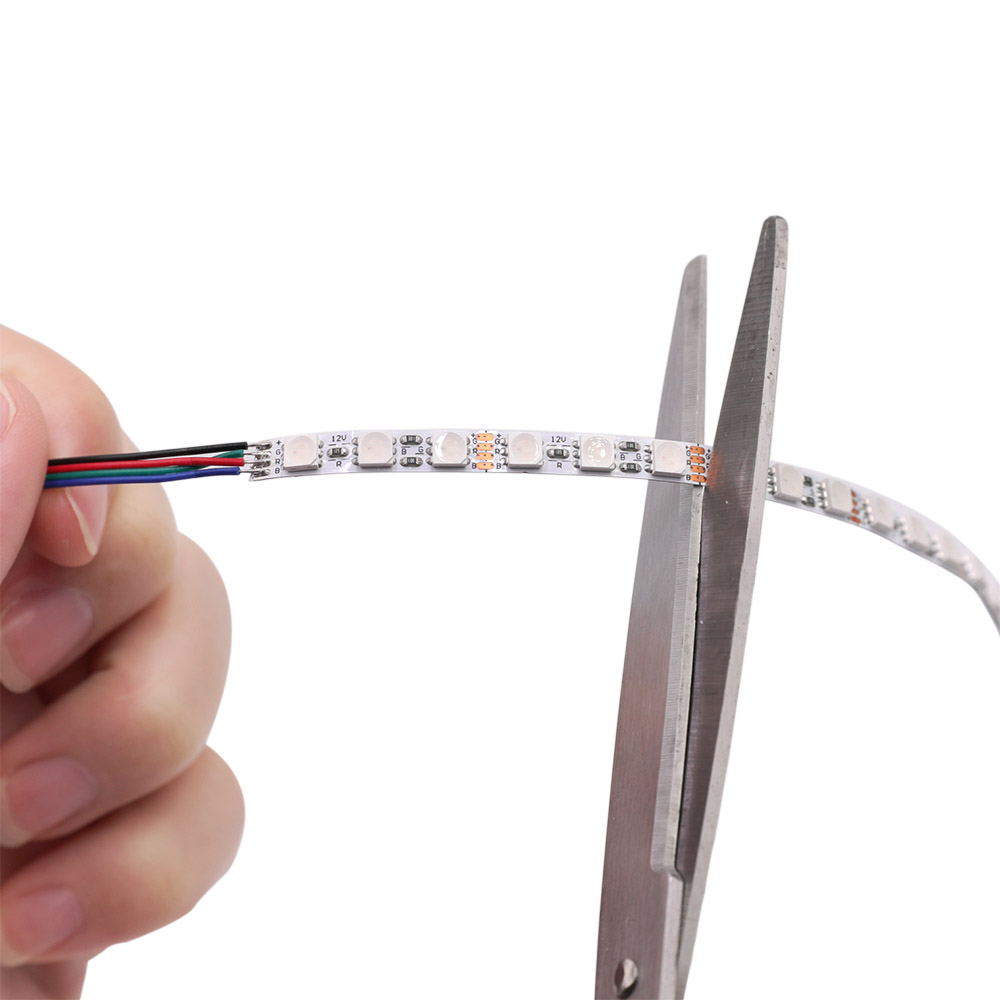

|Dimension:||16.4ft/roll, every 3 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|
|Input Voltage(V):||12 VDC|
|Working Power:||12W/m, 60W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||7-8 LM/LED, 4600LM/Roll|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP67|
How To Wire RGB LED Strip Lights?
1. RGB led strip wiring diagram:
2. LED light strip accessories: RGB light led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.
3. Installing RGB led strip lights: - How To Install LED Strip Lights?
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
