Super Narrow 0.12in Width 3mm - 3014SMDs 450LEDs Flexible LED Light Strip - DC12V

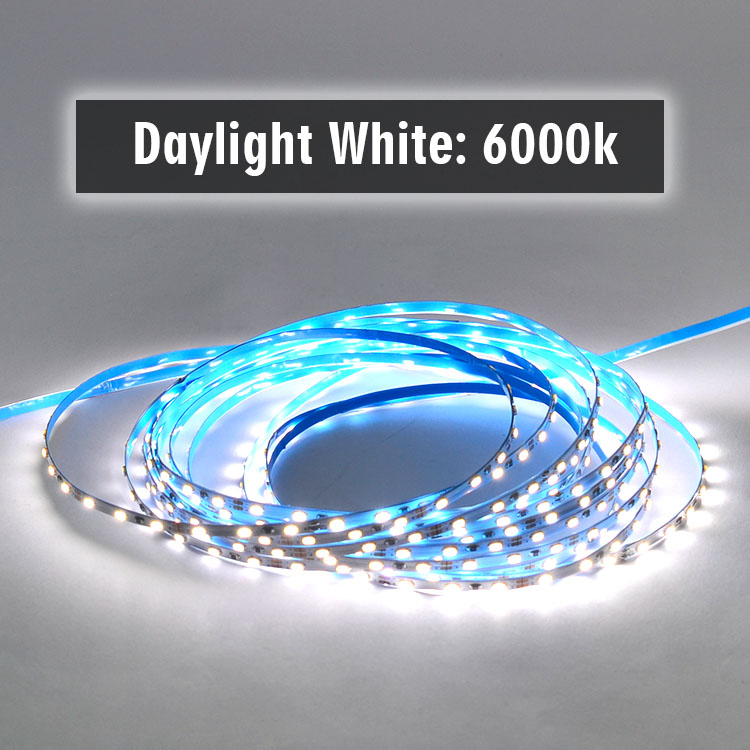

3mm/0.12in ultra slim led lights with single color super bright 3014 SMD(LED size 3.0mm*1.4mm), this flexible narrow led strip supports 3000K warm white, 4000K natural white, 6000K daylight white, 7000K cool white, red, green, blue, ice blue, yellow, and pink. - 3000K warm white vs 4000K natural white vs 6000K pure white vs 7000K cool white, what is the difference.
We also provide IP67 waterproof ultra narrow led light strip to meet your outdoor lighting project - IP20 non-waterproof thin led strip vs IP67 outdoor waterproof narrow led light strip.
12V DC operation. This slim led light can be cut into 3-LED segments, so you could cut a different length for your lighting project and request.
Our brightest 12volt ultra narrow led light strip is soft and easy bent for installation, with adhesive backing and can be stuck just about anywhere. The narroow LED strips are suitable for the average home lighting as well as lighting professionals.
Notice: 3014SMDs will be very very hot when it is working, please do not let the LED srip be in touch with anything including the LED Reel!
►Everything you need to know before buying led strip lights:
Standards and Certifications
LED Chip: Super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Ice Blue, Yellow, Pink (optional)
Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 90 LEDs per 1meter (3.28 ft)
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W0.3cm(0.12 in ) x H0.08cm(0.04 in )
Input Voltage(V): 12VDC
Working Power: 4A 50W /16.4ft Max
Lamp Luminous Flux(lm): 9~10lm/LEDs 5000lm/16.4ft
Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(4500-6500k), Cool White(7000-8500k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof
CRI (Ra>): 95
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP67 waterproof narrow led strip will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
You can cut the single color LED lights every few inches(6 LEDs), allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.

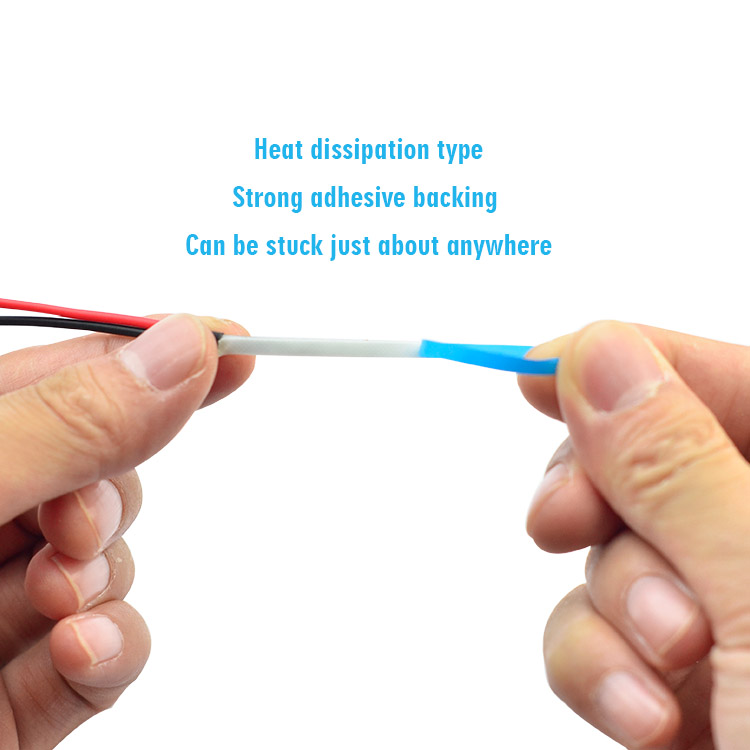

The back of the white LED strip is fitted with a strong 3M tape, allowing you to peel and stick the LED lights to anywhere.
IP67 waterproof LED type which will come with mounting brackets. And all the LED strip lights can be installed with LED aluminum channel to get an uniform, soft, and no light spot LED lighting effect.
How to wire single color led strip lights?
You will need a led strip light, a power supply(Please use a DC12V 75Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection.
►Detail knowledge about choosing a suitable LED strip light power supply:
►Single color led light strip wiring diagram:
Trademark lighting Logo lighting
|By : John Elliott Date Added: 03/20/2019|
|Very bright and very practical|
|By : Roy Elghanayan Date Added: 01/29/2019|
|I had a special application that would not allow for 5mm width of the LED strip. This fit perfectly and supplies the amount of light needed. Great result. Very glad I found this.|
|By : Jason T. Date Added: 12/08/2018|
|I needed a very narrow LED strip because they needed to go inside a clear tube. These worked. Very difficult to find this narrow size since for most the tape width is 5mm.|
|By : Jani Lehtim?ki Date Added: 10/08/2018|
|Lights worked great fixed a sign with them looks good.|
