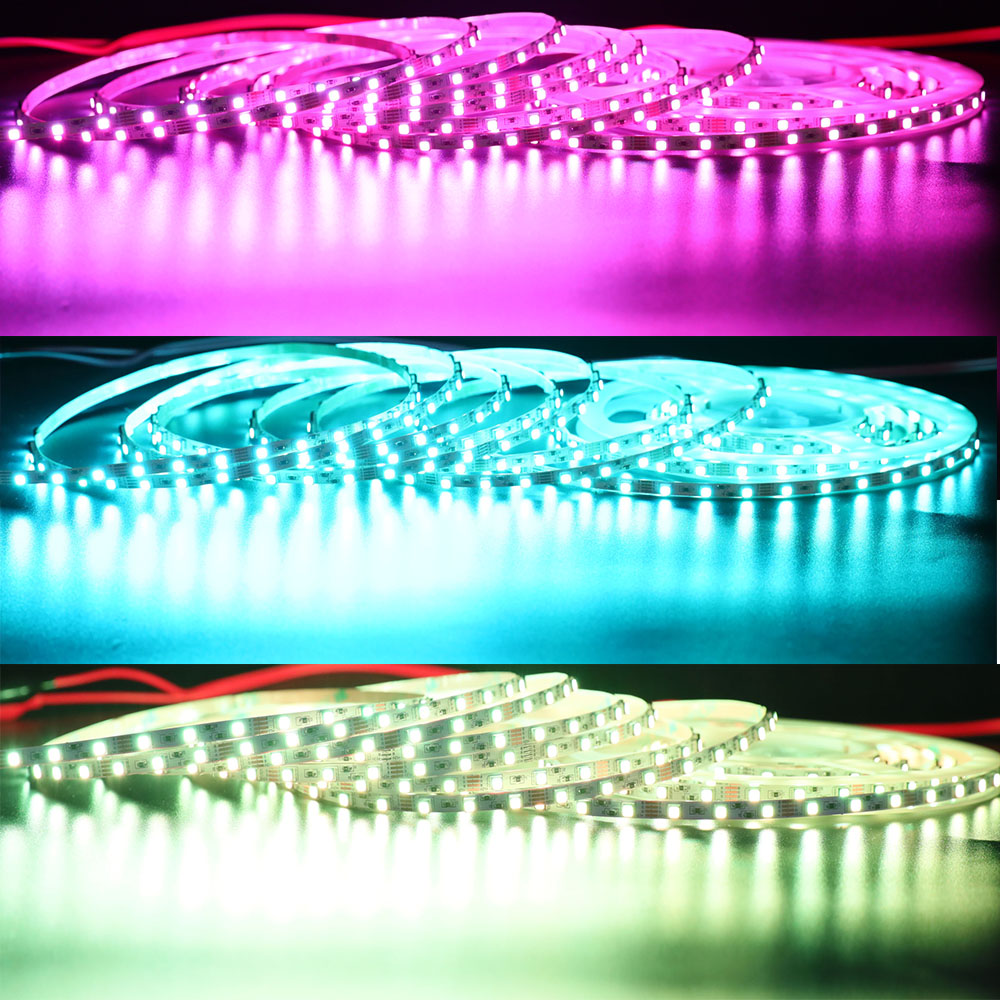

5mm Ultra Narrow RGB Color Changing LED light Strips - DC12V 72LEDs/m 16.4ft
The 12V RGB narrow led strip light product is a 5MM ultra-narrow flexible RGB LED strip, which is suitable for environments with relatively small spaces, easy installation.
Low voltage of this 12V thin RGB led strip not only can ensure the continuous and safe operation of the ultra thin LED strip light but also is harmless to the human body.

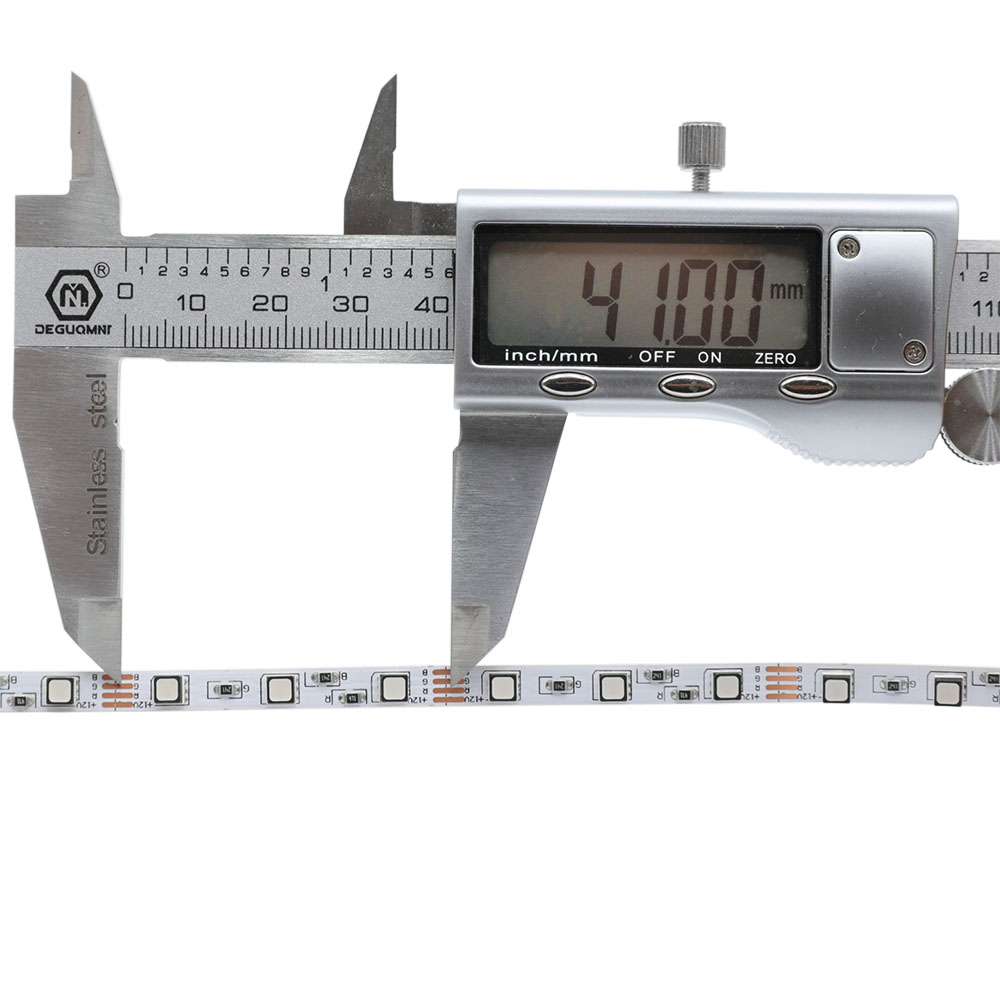

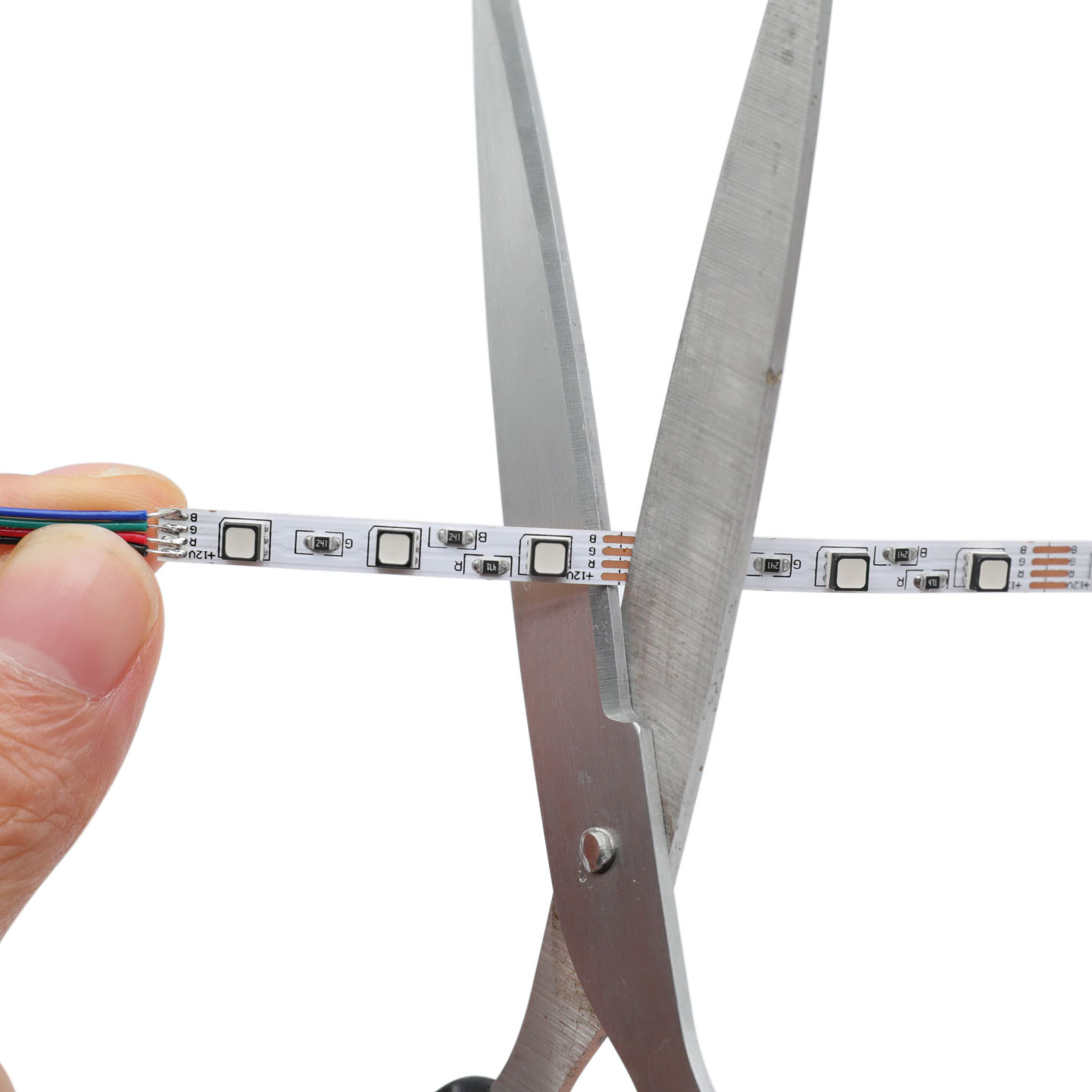

Every three LEDs of the 12V super thin led RGB light strip can be cut and can be cut arbitrarily according to customer needs.
Customizable IP67 waterproof casing for polycarbonate environment. If you choose waterproof IP67 ultra narrow led light strip,we will send you transparent heat shrinkable tube.
Standards and Certifications
|LED Strip Type:||Super Bright and Low Decay Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Dimension:||16.4ft/roll, every 3 PCS LED can be cut|
|LED Quantity:||72 LEDs per 1meter (3.28 ft)|

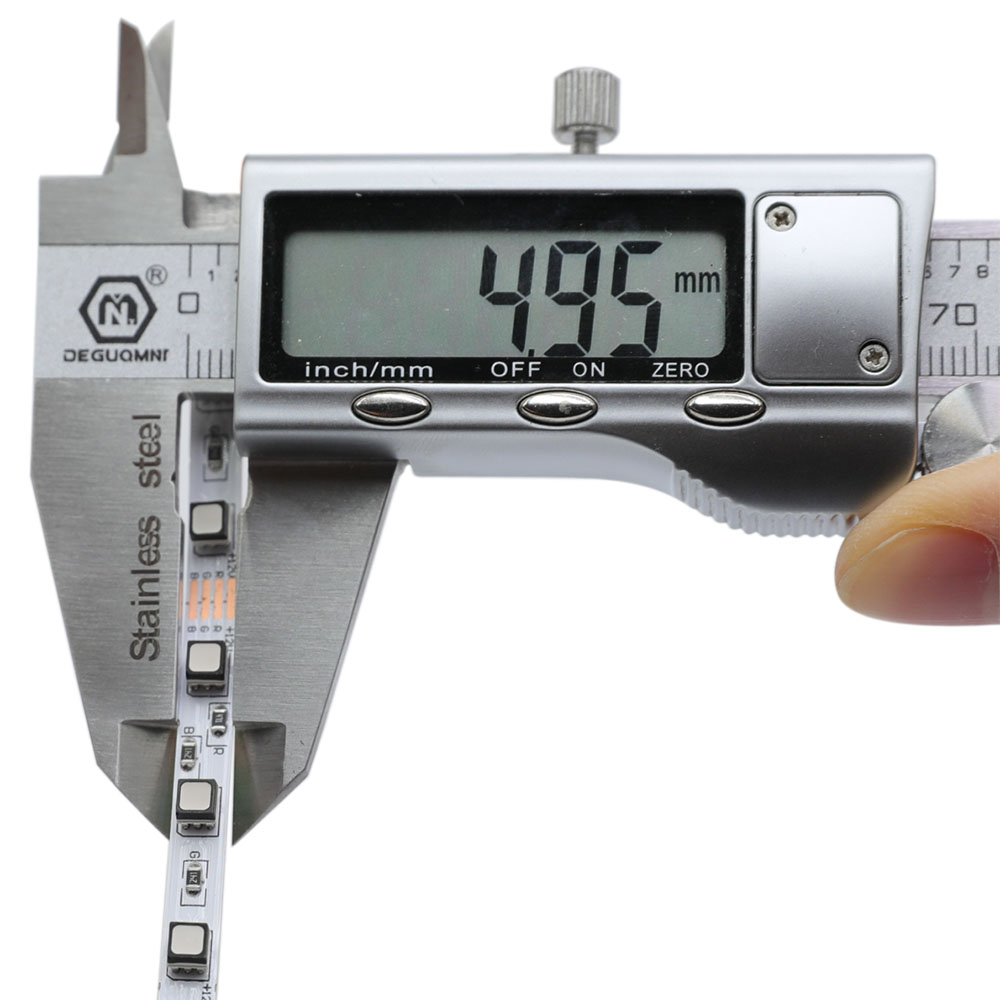

|Dimensions:||L500cm(196.8 in ) x W0.5cm(0.196 in )|
|Working Power:||17W/m, 85W /16.4ft Max|
|Lamp Luminous Flux(lm):||16-18lm/LED|
|Wavelength NM(RGBY):||Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)|
|Beam Pattern:||120 degree|
|Waterproof:||Non-Waterproof IP20, waterproof IP67|

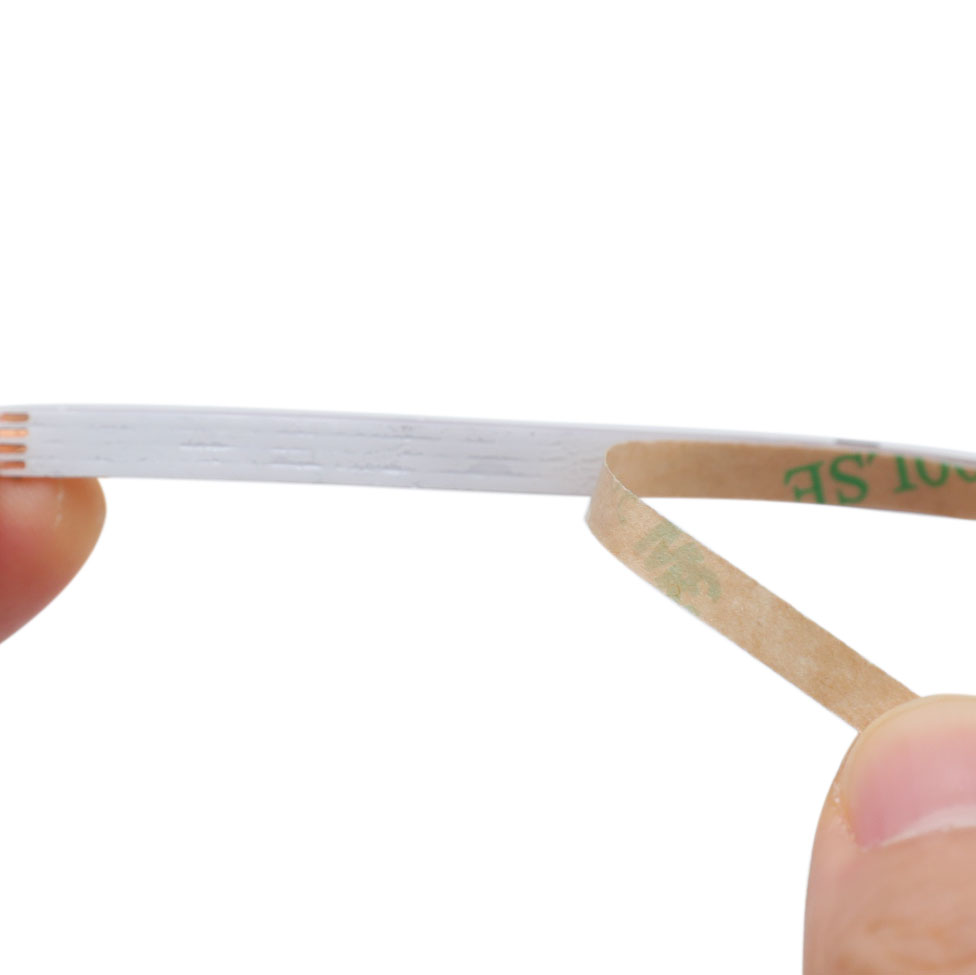

|You can cut the light strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the led strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof led light strip type which will come with mounting brackets.|
Aluminum profiles and LED flex neon tubes can be used as led light strip accessories. LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
►RGB color changing LED strip lights wiring diagram:
*Click the wiring diagram picture to know more detail.
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
