Product Information

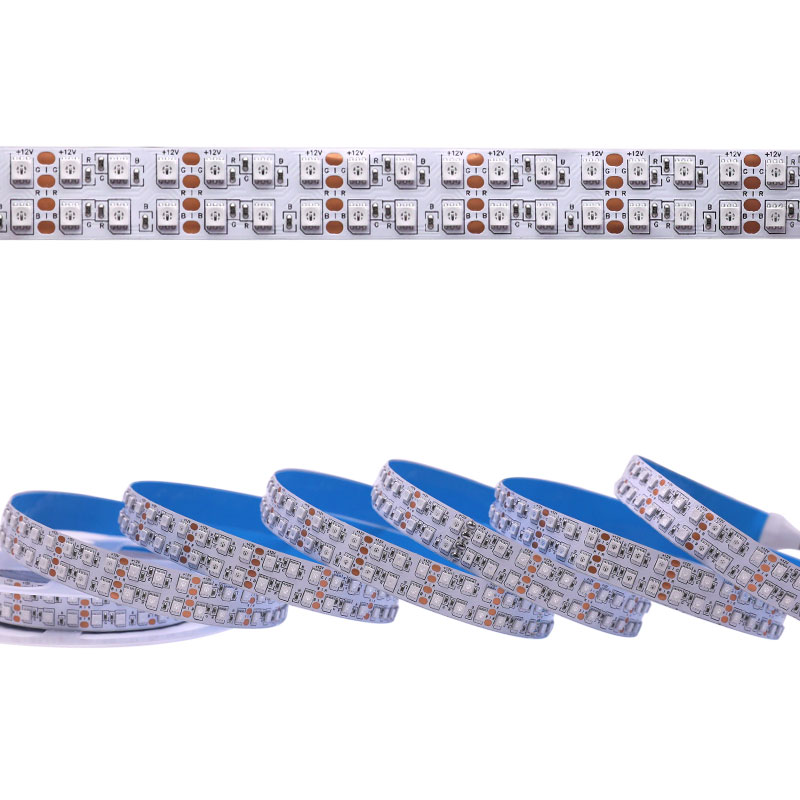

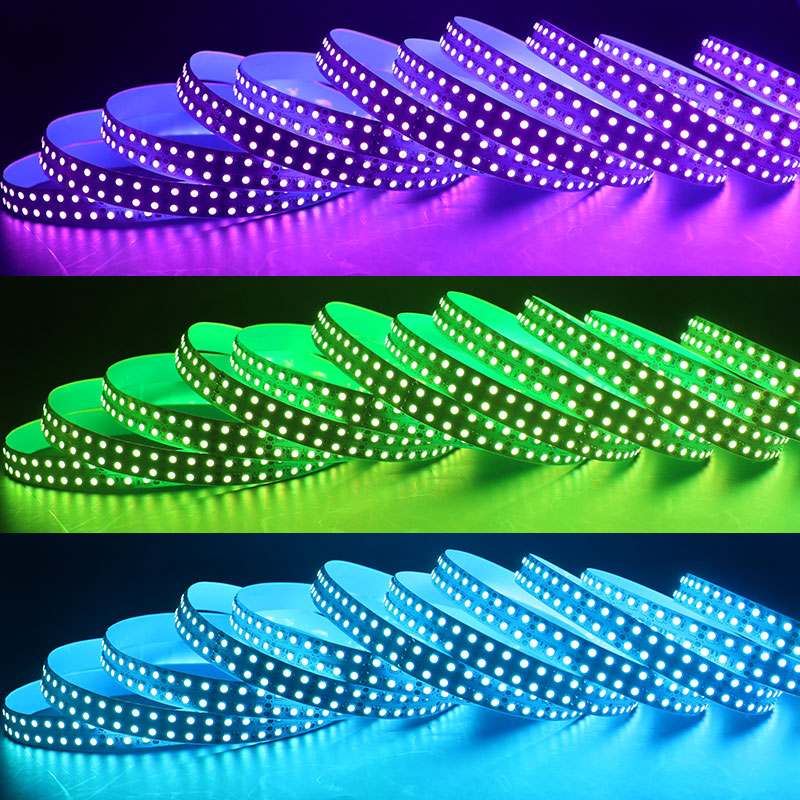

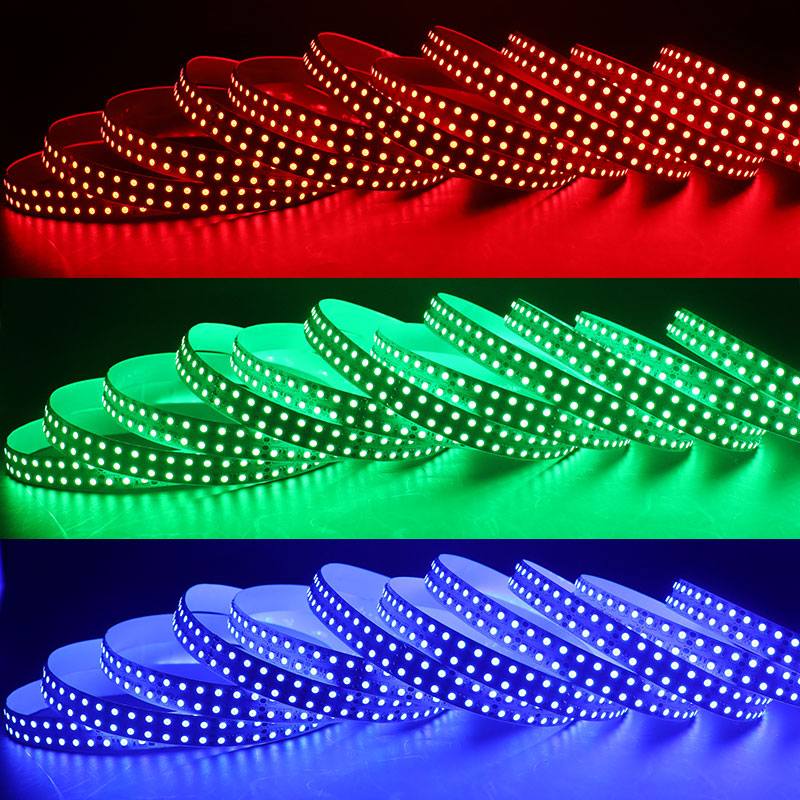

Two rows of RGB lights make this color changing led strip have higher brightness, to light up your place with different colors (red, green, blue, yellow, ice blue, purple, and white).
RGB led strips are versatile for atmosphere lighting, mood lighting, and decorative lighting. It is very common in home lighting and commercial lighting.
Use RGB led strip is quite easy. Cut the strip along the cutting lines to get your desired length. Solderless fast connectors are available to re-connect it, to suit your installation needs.
The RGB light strip comes with a 4 pin female and male terminal connector at both ends. To change the color freely, you need a RGB controller. There are various controller types, choose according to how you want to control the lights, a RF handheld remote or a mobile APP? Or multiple ways toghther?
12V power adapter or 12V switching power supply can be selected for this double row led strip. It's no voltage drop when power the 16.4ft strip at one end. But if you want to display the RGB white color, there is a slightly color difference. So we don't recommend to open the white light unless you can supply power at both ends.
When choosing the led controller and led power supply, please pay attention to the power consumption. Wattage capacity of controller and power supply > 1.2*led strip wattage.
LED channel is available to get a clean look for your room, kitchen, and more.
Standards and Certifications
| LED Strip Type: | Double Row RGB LED Strip |
| LED Chip: | SMD 3535 Epistar Chip |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | RGB Color Change |
| Dimension: | 16.4ft/roll, every 6 PCS LED can be cut |
| LED Quantity: | 240 LEDs per meter, 1200LEDs per roll |
| Lifespan: | 50,000+hours |

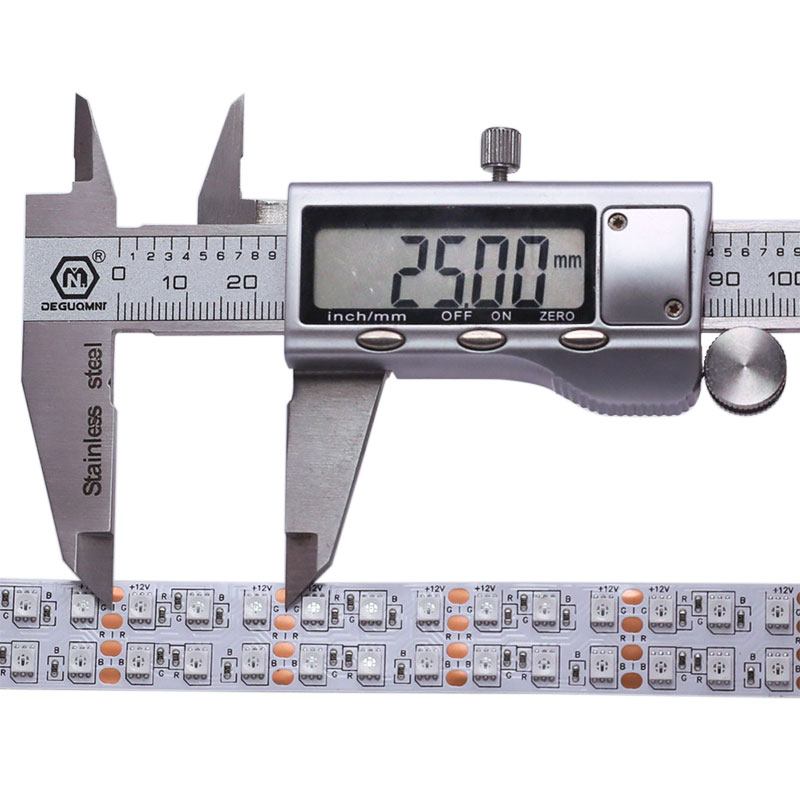

| Cut Unit: | 6-LED, 25mm/0.98" |

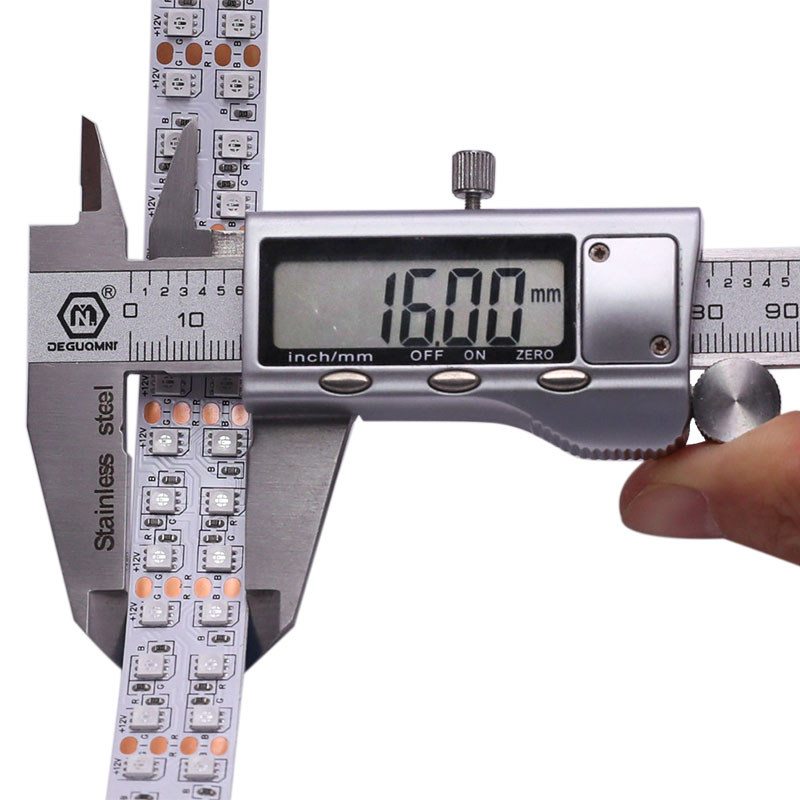

| PCB Width: | 16mm / 0.63" |
| Input Voltage(V): | 12V DC |
| Working Power: | 14W/m max |
| Beam Pattern: | 120 degrees |
| Waterproof: | Nonwaterproof IP20 / Waterproof IP67 |
How to connect RGB led strip lights?
Please wiring the RGB led strip like below. Or read our blog here.
