5m RGB Color Changing LED Strip Lights - 120LEDs/m High Density LED Strip - 12V/24V
- $55.00 $44.9818% off
- $10.00 $7.9920% off
- $30.00 $26.9810% off
$55.00 $44.9818% off

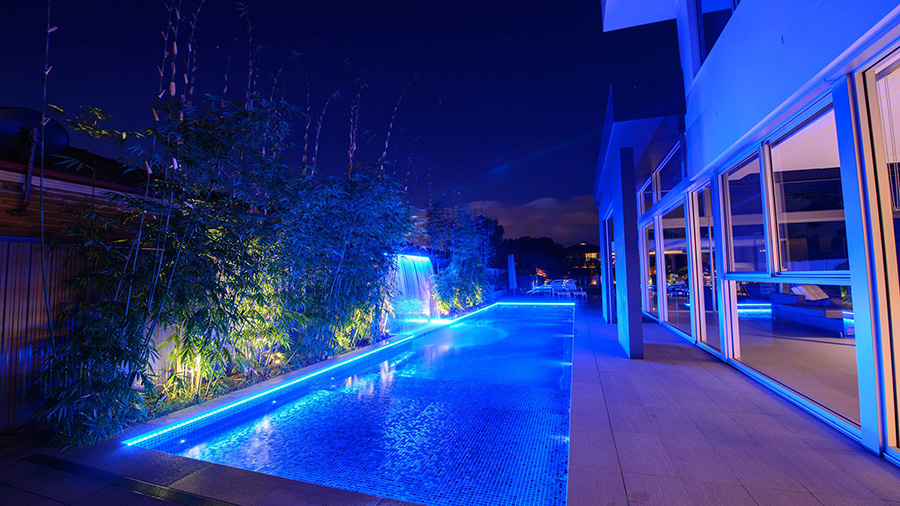

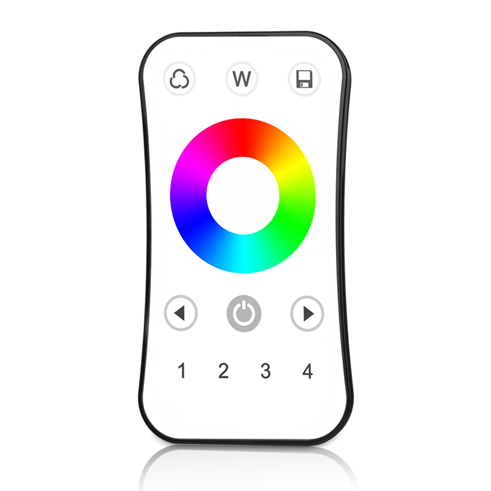

Multi color RGB led strip lights use 3-in-1 RGB LEDs, which can display a variety of static colors and dynamic color effects through the control of the RGB controller. Use the mobile APP, remote control, or voice control to change the light color, brightness, and mode. It is the best item to use lights to create an entertainment atmosphere or mood lighting. This RGB light strip uses 12V or 24V voltage and needs to be driven by an AC to DC LED transformer.
1. With the small size 3535SMD LED chips, making low voltage DC12/24V RGB light strips, every 3/6 RGB lights be cuttable, won't damage other segments.
2. Using Flexible PCB board, IP20 LED strip lights with the adhesive back tape (apply for indoor LED lighting), IP67 waterproof led strip lights with mounting brackects (for outdoor lighting), are able to be bent into any angle you need, and install anywhere you want, very convenient.
3. Adopt high quality SMD LED chips, high density of 120LEDs per 3.28ft, high bright, lower consumption, lower light attenuation, without color difference, longer life span.
|RGB LED Strip Lights||Strip Width||Cut Unit||PCB Color||Max Running Length|
|12V LED Strip||8mm||3 LEDs||White / Black||5m|
|24V LED Strip||10mm||6 LEDs||White||10m|
|24V LED Strip||12mm||6 LEDS||White||10m|
Standards and Certifications
|LED Strip Type:||SMD 3535 RGB 600LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Dimension:||16.4ft/roll, every 3/6 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|
L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in ) or L500cm(196.8 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in ) For DC24V
L500cm(196.8 in ) x W0.8cm(0.3 in ) x H0.25cm(0.10 in ) For DC12V
|Input Voltage(V):||24VDC / 12VDC|
|Working Power:||15W/m, 75W /16.4ft Max|
|Lamp Luminous Flux(lm):||20-22 lm/LEDs 13200 lm/16.4ft|
|Beam Pattern:||120 degree|
|Waterproof:||Non-Waterproof IP20, waterproof IP67|
|PCB Color:||Whie / Black ( 8mm wide)|
How To Install RGB LED Strip Lights?

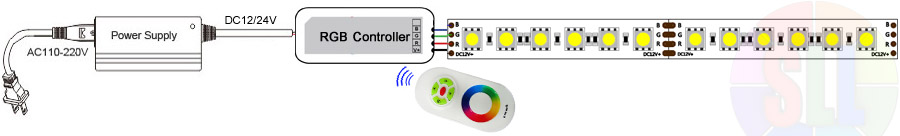

RGB LED Strip Wiring Diagram: - How To Wire RGB LED Strip Lights?
