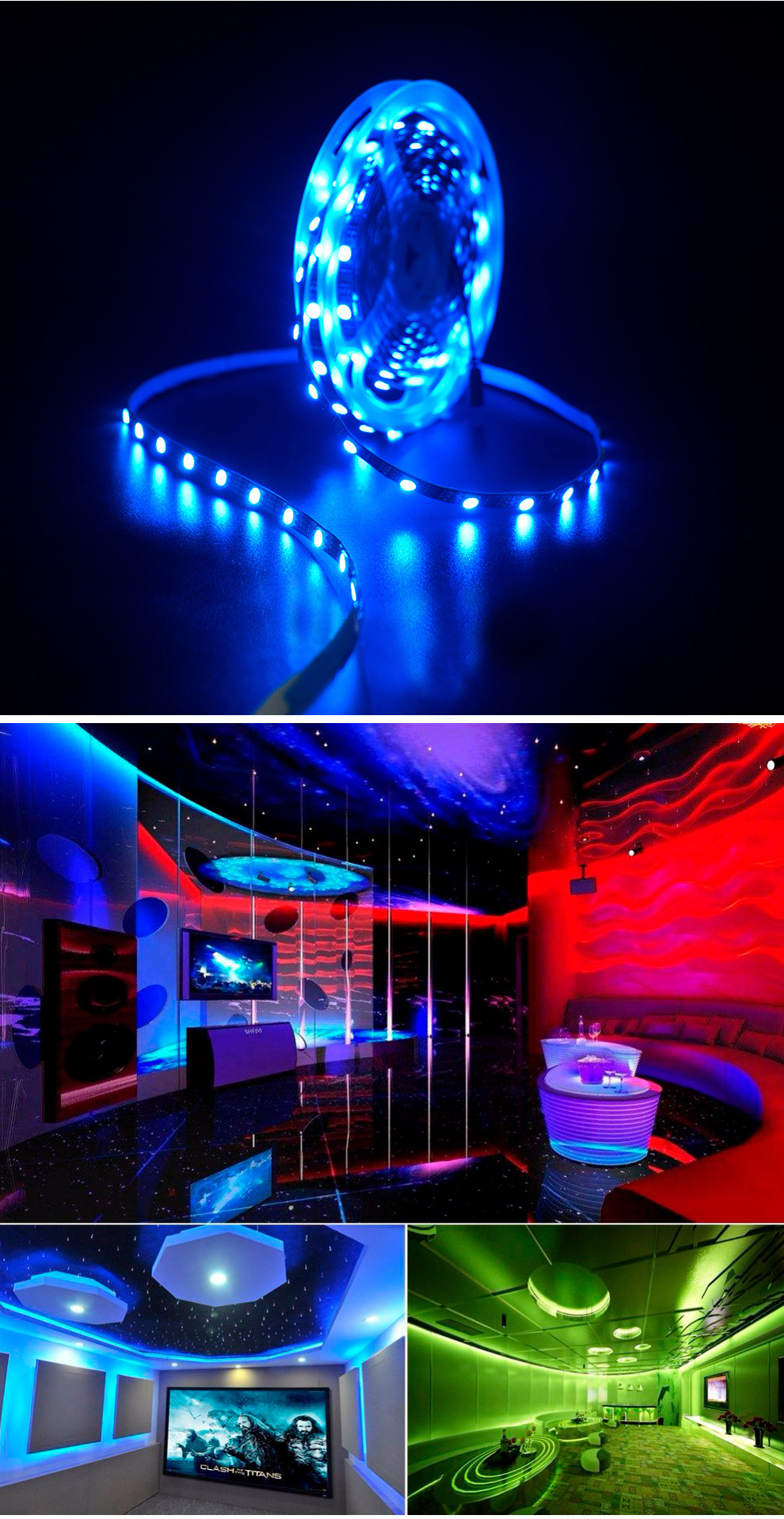

6mm RGB Color Change Thin LED Strip - 5V/12V/24V 60LEDs/m 16.4ft
This LED product is an SMD5050 6mm RGB ultra thin led light strip, which has the characteristics of high brightness, good light efficiency, and wide application. Provide three voltage options: 5/12/24V, safe low voltage, energy-saving, and environmental protection, high efficiency.
5V vs 12V vs 24V RGB ultra thin led strip lights: 5V RGB led strip can be cut for one LED, needs to be powered both ends. 12V RGB led strip can be cut for 3 LEDs, inject power at one end. 24V RGB led strip can be cut for 6 LEDs, and can run 10m with one end power injection.
The 6mm multi color RGB LED strip lighting can be used in places with small spaces. Both black and white PCBs are available for a wide range of choices, can be used in bar, nightclub, street, sidewalk, deck, park, porch, staircase, railing.
Standards and Certifications
|LED Strip Type:||SMD5050 Super Bright Chip|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|PCB Color:||White / Black|
|LED Quantity:||60 LEDs per 1meter (3.28 ft)|
|Dimensions:||L500cm(196.8 in ) x W6cm(0.24 in ) x H0.20cm(0.08 in )|
|Input Voltage(V):||5 / 12 /24 VDC|
|Working Power:||72W /16.4ft Max|
|Beam Pattern:||120 degree|
|Waterproof:||Non-Waterproof IP20, waterproof IP67|
You can cut the flex RGB color changing LED lights every few inches(6 LEDs), allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.
The back of the RGB LED strip is fitted with a strong 3M tape, allowing you to peel and stick the LED lights to anywhere.
IP67 waterproof LED type which will come with mounting brackets. And all the RGB LED strip lights can be installed with LED aluminum channel and LED neon tube to get an uniform, soft, and no light spot LED lighting effect.
►RGB LED strip wiring diagram:
*Click the wiring diagram picture to know more detail.
►Choose a suitable LED strip light power supply and an LED light RGB controller:
RGB LED Lights Applications
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
Home lighting decoration
