DC12-24V LED Dimmer Touch Switch For Single Color LED Strip Lights

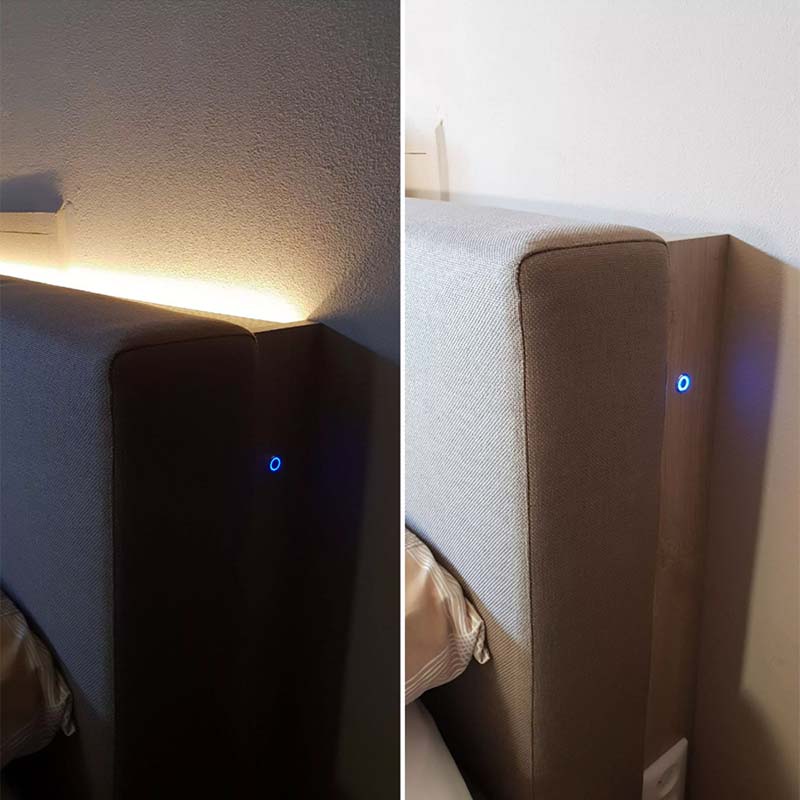

Mental touch dimmer switch for led lights with single color, suitable for 12V led strip lights and 24V led strip lights. When the touch light switch connects to the power, the color ring can be seen in the dark environment.

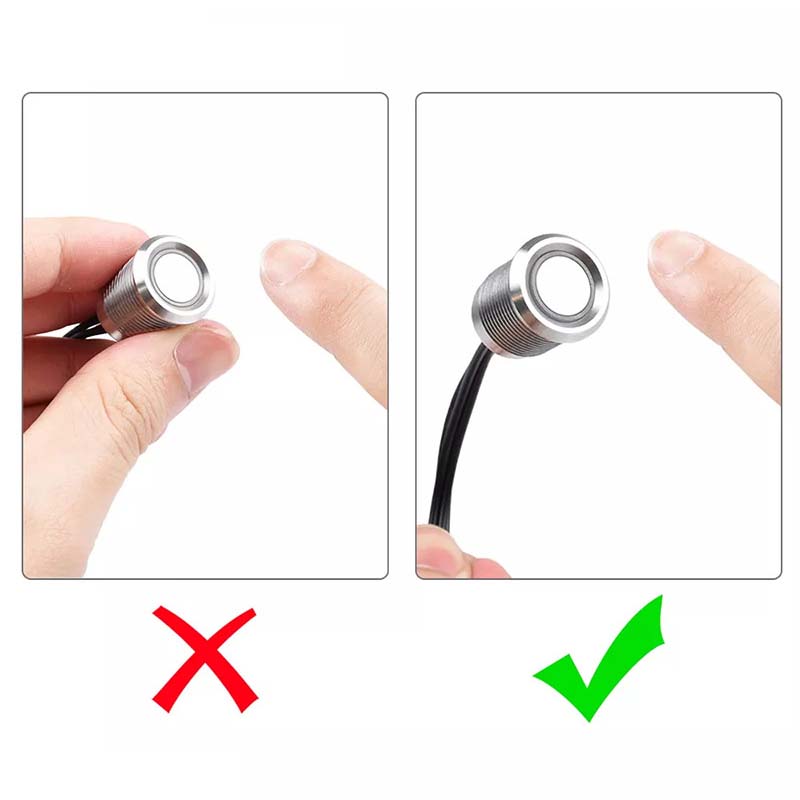

Short press the touch switch to turn on or turn off the led strip lighting, long press to dimmer the led lighting from 5%-100% brightness. Do not touch the edge of the metal case or the installation ring during use.

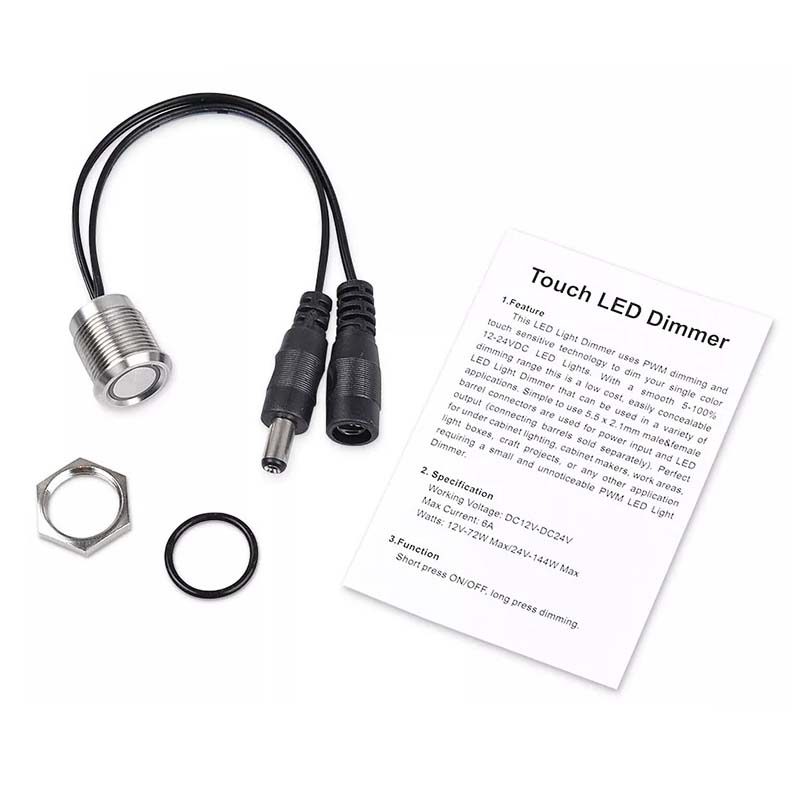

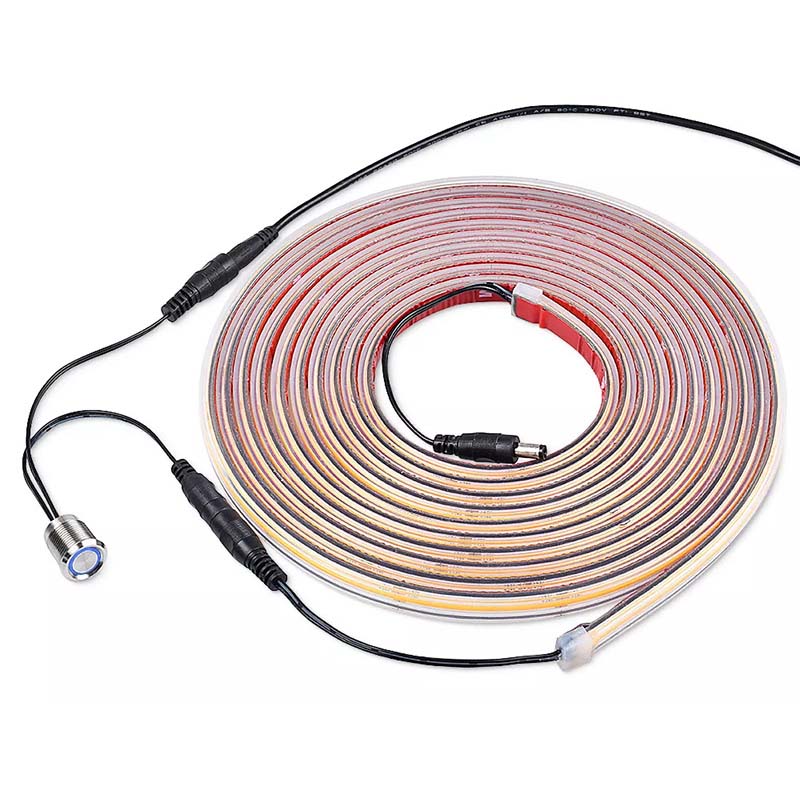

Comes with male connector and female connector, this touch dimmer light switch is connected to led strip light and led power supply, simple to use.
Working Voltage: DC12V-24V
Size: 16mm diameter
Max Current: 6A
Output Channel: 1
Max Power: 12V 72W, 24V 144W
Function: Short press to switch, long press to dimmer
Color Ring: Blue, Red, Yellow
