DC12-24V 6A PIR Motion Sensor LED Switch For Strip Lights, Staircase Lights
PIR motion sensor (human infrared sensor) is the newest and popular way to control LED lights. Add it to your LED strips or apply it to your stair lighting, and the way the lights turn on becomes different.
The PIR sensor lights up the LED light by detecting the infrared rays emitted by the human body. Once a person enters the sensor range (2-3 meters away from the sensor), the strip lights or stair lights turn on automatically immediately. After about 30~35 seconds of lighting up, the light automatically turns off again. Intelligent wireless control.
Please note the maximum load capacity when use it for your lights. It's for DC12/DC24V LED lights, with 6A maximum current.

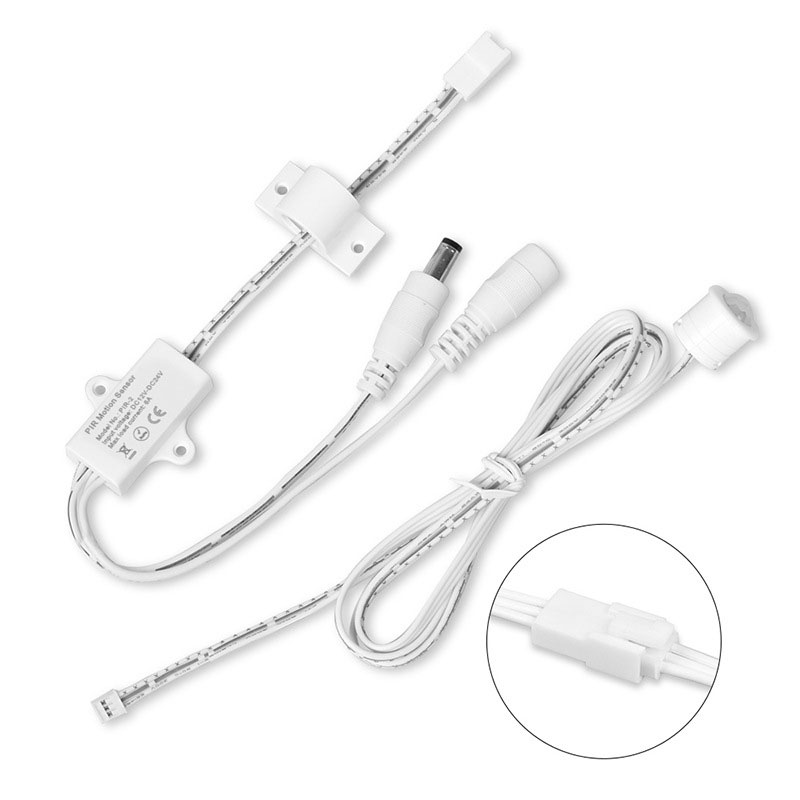

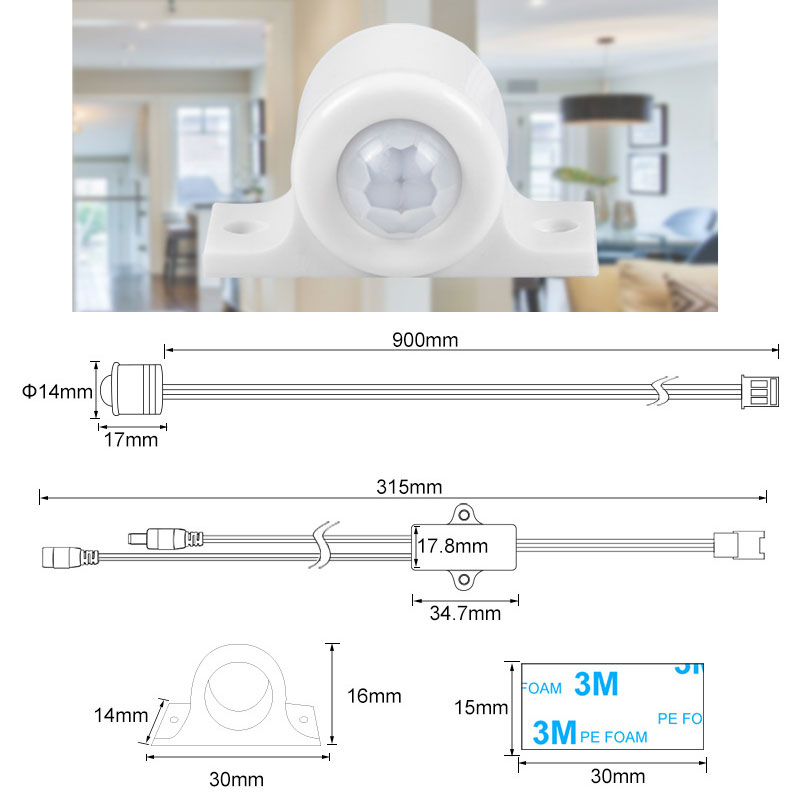

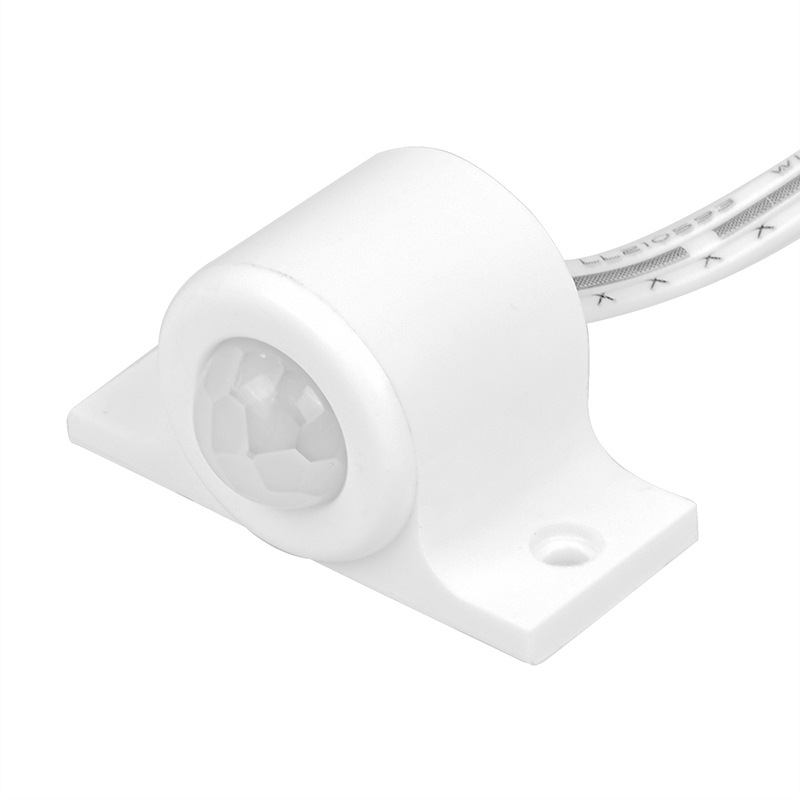

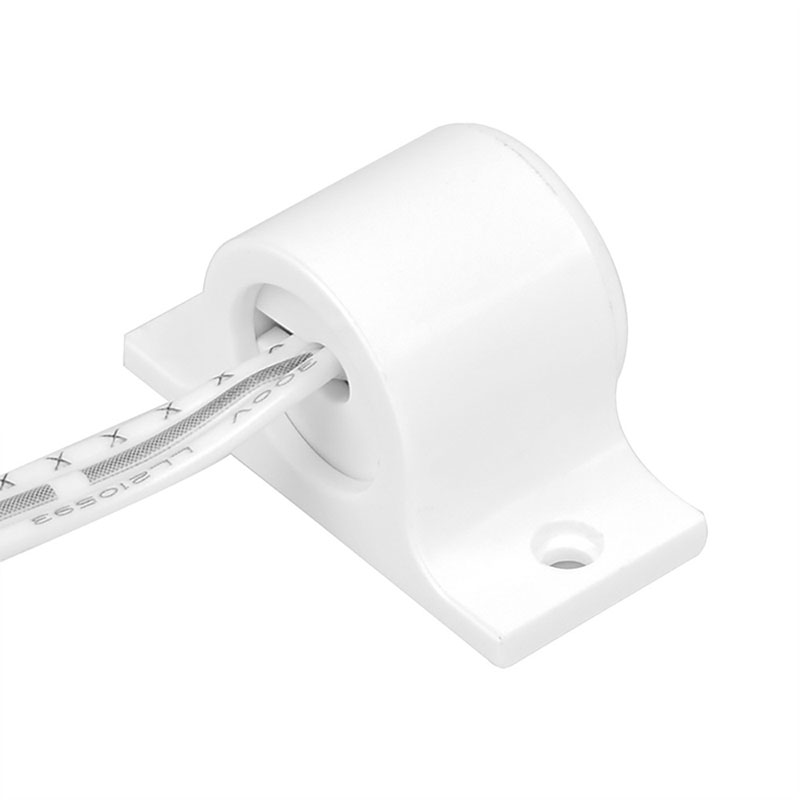

This PIR motion sensor can be recessed into a hole with 14mm diameter. The overall length is about 120cm/47". Comes with DC female and male connector at the end, easy to use.
Standards and Certifications
Product Series: Sensor switch
Rated voltage: 12~24VDC
Current: Max 6A
Sensing range: 2m
Shell material: ABS
Sensing method: Infrared PIR sensor
Protection function: Dustproof
Mechanical life: 20,000 times
Warranty: 2 years
Protection level: IP20
Delay time: Approx. 30-35 seconds
