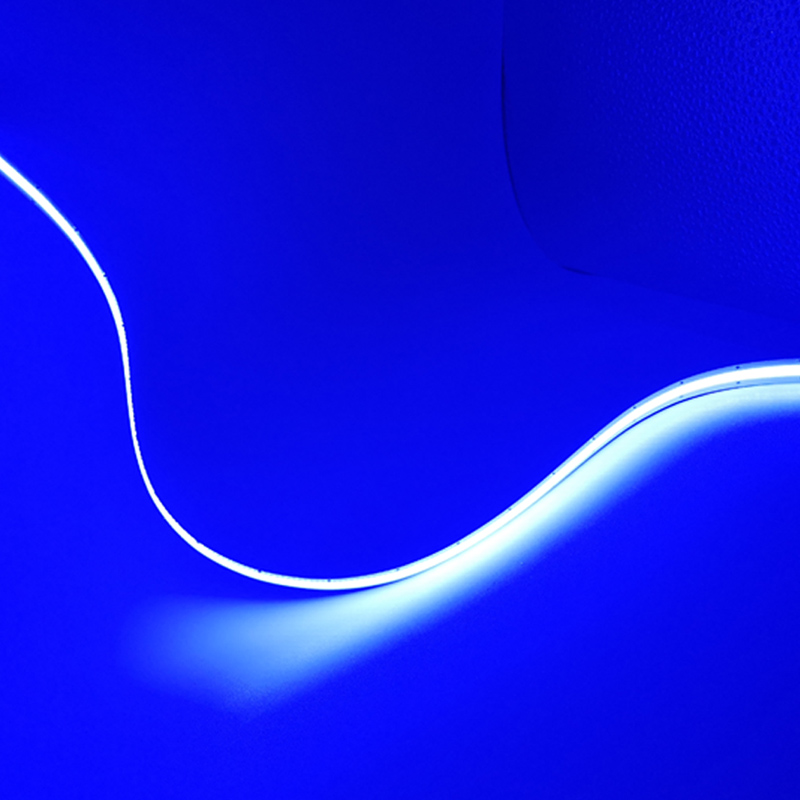

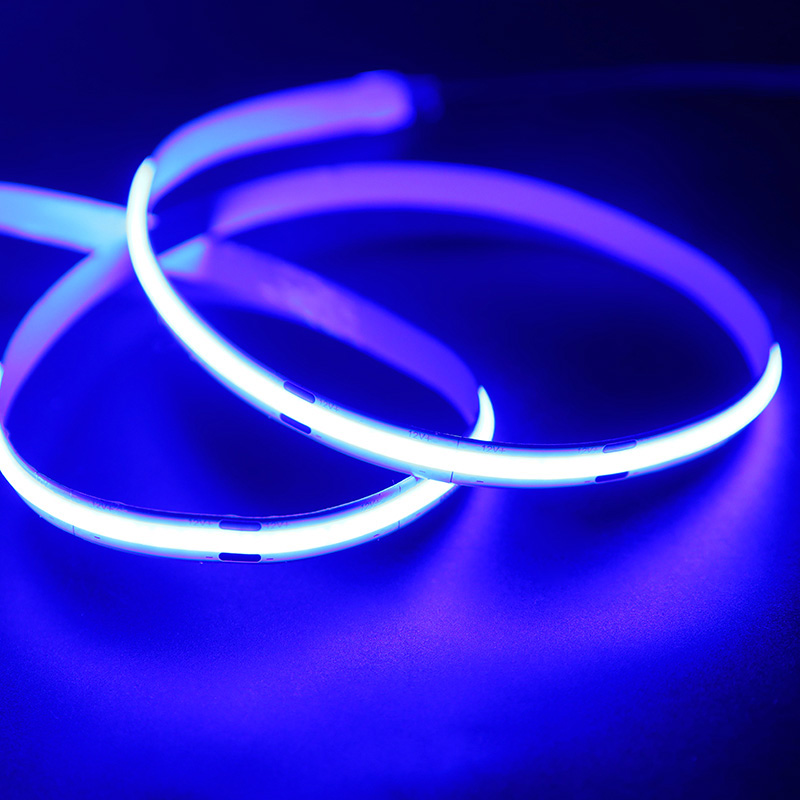

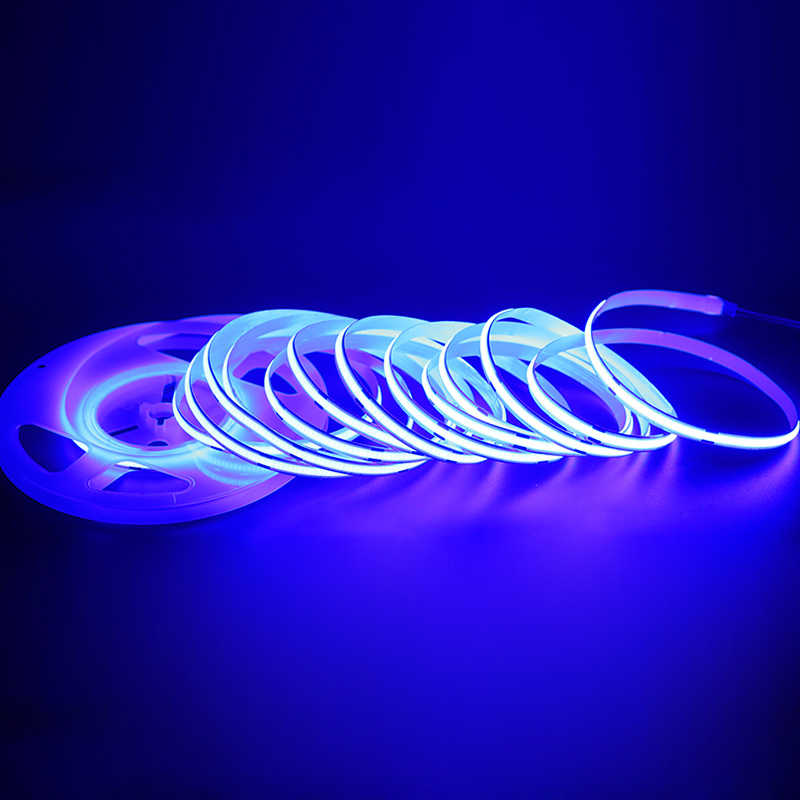

High CRI 90 FOB 384 Chips/M Blue Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m per Roll
Product Description: What is COB LED strip light?
Flexible FOB LED Strip Lights is the newest production in 2019. This versatile LED Strip Light is in 12W/M.

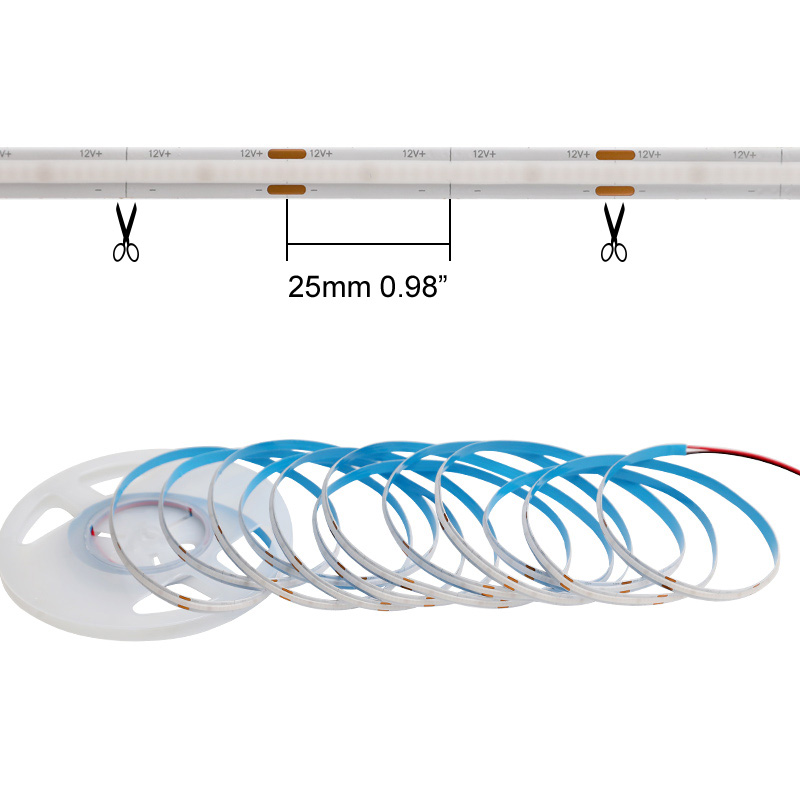

This LED Strip has very High-Density Lighting with 384/512 diodes per meter or (195/ft). It is cuttable every 0.98"(25mm) for 12/24VDC.

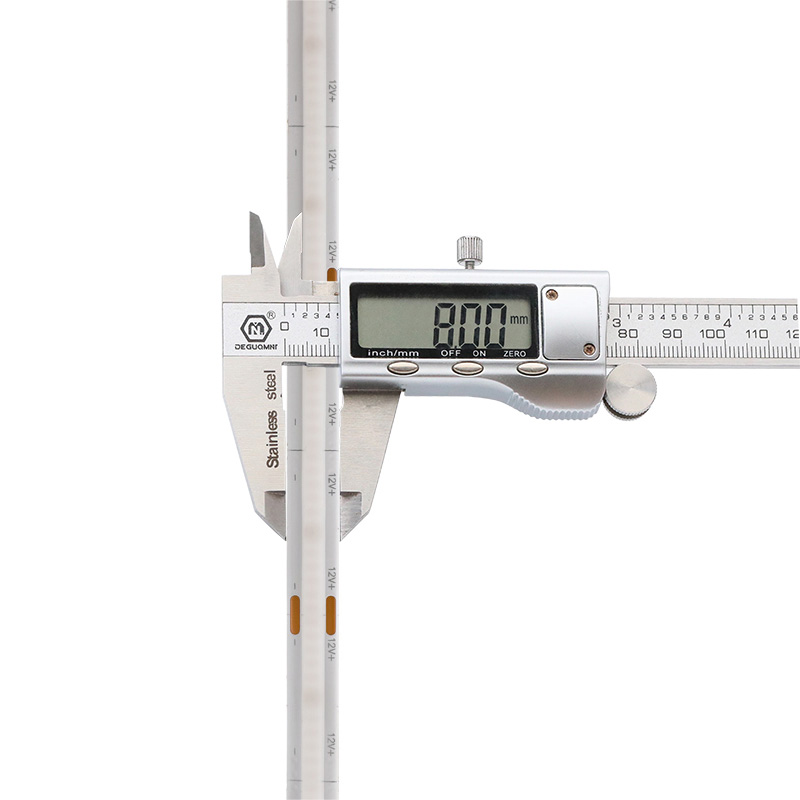

The FPCB width of this led strip light is 8/10mm. And the COB width is 6mm. It is very suitable for aluminum profiles in a smaller size.
Because of LED high density, the light through PC cover is fairly uniform without spot. If you seek a higher density, we can customize for you. We PCB factory will make a quick response.
Standards and Certifications
|LED Strip Type||COB LED (COB Flexible led strip light specification )|
|LED Chip||Epistar Chip|
|COB LED Size||2.1*1.0mm|
|LED Chip||COB LED chip|
|Light Color||Blue / Tiffany Blue|
|PCB Width||8mm/0.31in; 10mm/0.39in|
|LED Quantity||384/512 Chips per 1meter (3.28 ft)|
|Cut Length||0.98"(25mm) / 1.97''(50mm)|
|Wire Material||copper foil|
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
Working Power and Lamp Luminous Flux(lm):
Density and Width
How to choose LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
Power supply: 24V 72W power supply adapter
Related to: How to choose led strip light controllers?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Installation Instruction: How to Install LED Strip Lights?
You can cut the strip every few inches, allowing you to freely design your project, without worrying about space requirements to many different surfaces.
The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights
IP67/IP68 waterproof type which will needs LED mounting brackets
Channel letters lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
How to choose led strip lights
Step1: Get a clear vision! Because each project is unique, there is no all-in-one solution.
Different projects require different types of LED strips. When place order, please clear the following answers :
This tape light can replace normal T8 tube or blub.
Where will it be installed (Indoor or outdoor)?
Indoor or outdoor? This may be related to waterproof grade choose.
Do you want to dim your lights or control them with a remote or wall switch?
If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.
What overall look do you want to achieve?
What color do I need?
This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.
What materials am I looking?
The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of CE, RoHS, ETL, and TUV.
Are there other lights in the area and if so, what color are they?
