20CH Versatile LED Staircase Lighting Controller (Wireless Wall Panel Control + Motion Sensor)
Related Products
20CH Versatile LED...
$54.98
2-Pin Male Female Dupont...
$0.99
DC24V Ultra Long White...
$16.99 $14.9912% off
Mini Narrow LED Aluminum...
$8.98 $4.9845% off
2-Pin Dupont Male Female...
$0.59
Mean Well LRS-350-24 ...
$50.00 $45.988% off
DC12/24V COB 10m Long LED...
$12.98 $11.988% off-
Special Price: $54.98

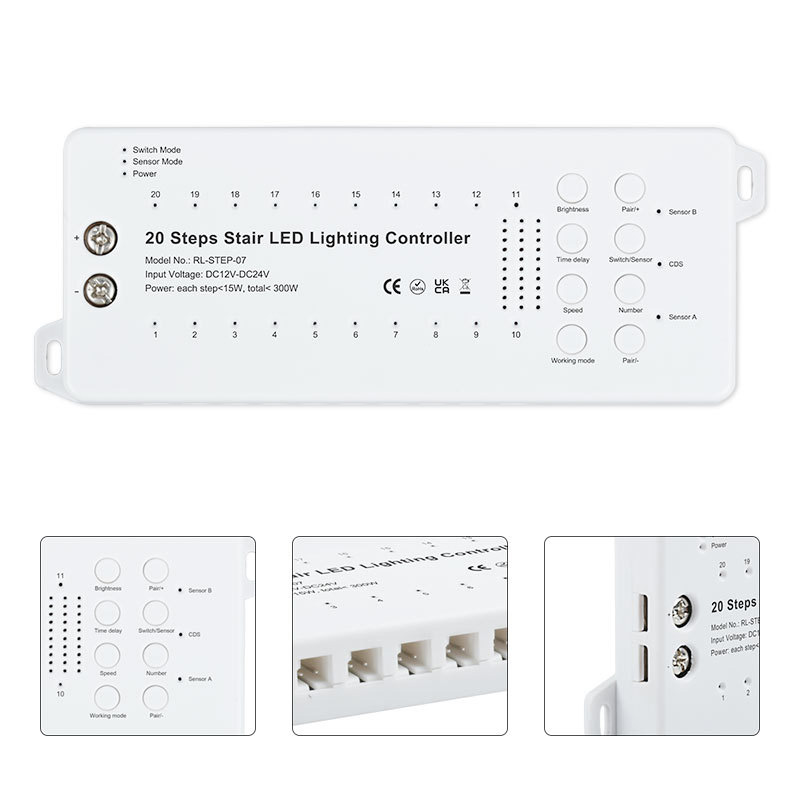

This versatile staircase lighting controller meets your needs for both light-always-on and motion sensing stair lights. You can switch between constant light mode and motion sensor mode at will. It can also be matched with two wireless wall panels for simple control.
In constant mode, you can switch on/off and adjust the brightness of the stairway lights through the two buttons on the wireless wall panel.
In motion-sensing mode, there are 12 staircase lights effects to choose from, and the speed/brightness/number of steps/time delay can be set by the buttons on the controller.
Features:

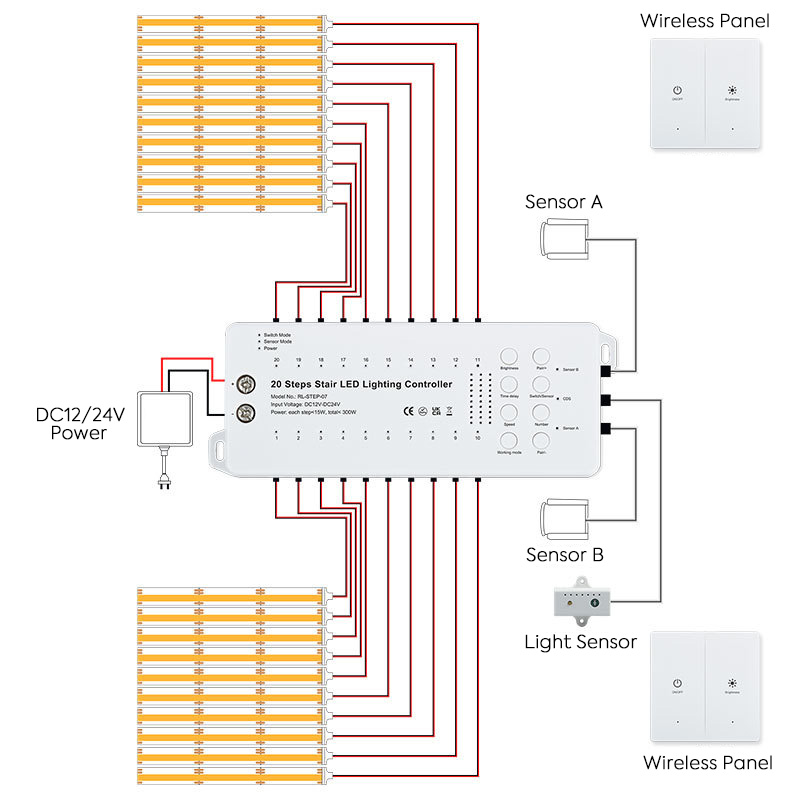

Controller to step light connection: 2-pin Dupont connector.
Each step light power is less than 15W, total less than 300W.
2 wireless panels match Pair/+ Pair/- keys on the controller by long press on/off on the panel
Indicator lights: brightness - green, time delay - blue, speed - red, each 10 levels adjustable

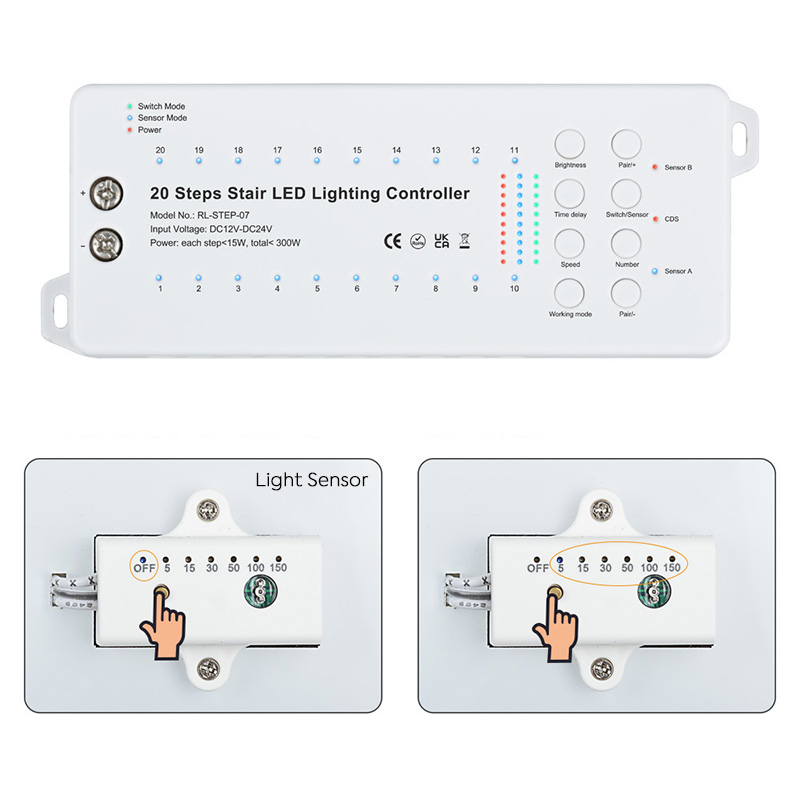

Comes with a light sensor, off - day and night motion sensing all work, on - 6 levels of light sensing settings
| Motion Sensing Stair Lighting Effects | Brightness | Time Delay | Speed |
| 1. Full lights on | 10% | 4s | 150ms |
| 2. Single step-by-step | 20% | 6s | 250ms |
| 3. 2-step step-by-step | 30% | 8s | 350ms |
| 4. 3-step step-by-step | 40% | 10s | 450ms |
| 5. Single-step follow | 50% | 15s | 550ms |
| 6. 2-step follow | 60% | 20s | 650ms |
| 7. 3-step follow | 70% | 30s | 750ms |
| 8. Single-step running water light | 80% | 50s | 850ms |
| 9. 2-step running water light | 90% | 80s | 1000ms |
| 10. 3-step running water light | 100% | 120s | 1200ms |
| 11. Staggered light | / | / | / |
| 12. Loop | / | / | / |
How to Set:
Short press "Working Mode": 12 kinds of staircase lighting modes are available.
Long press "Number" to enter step number setting, "Pair/+" is to increase, and "Pair/-" to decrease; long press "Number" to save the step setting.
Long press "Switch/Sensor" to switch between wireless wall panel control and motion sensor control.
Long press the panel two keys at the same time to switch to multi-mode, and set the stair light mode/brightness/speed/delay/steps on the controller.
And then long press the panel two keys at the same time for the strip lighting to always be on, the wall panel can only control the on/off and brightness.
Product Specification
| Input Voltage: | DC12-24V |
| Material: | ABS |
|
Output Power:
|
Each step <15W, total <300W
|
| Number of Steps: | 20 |

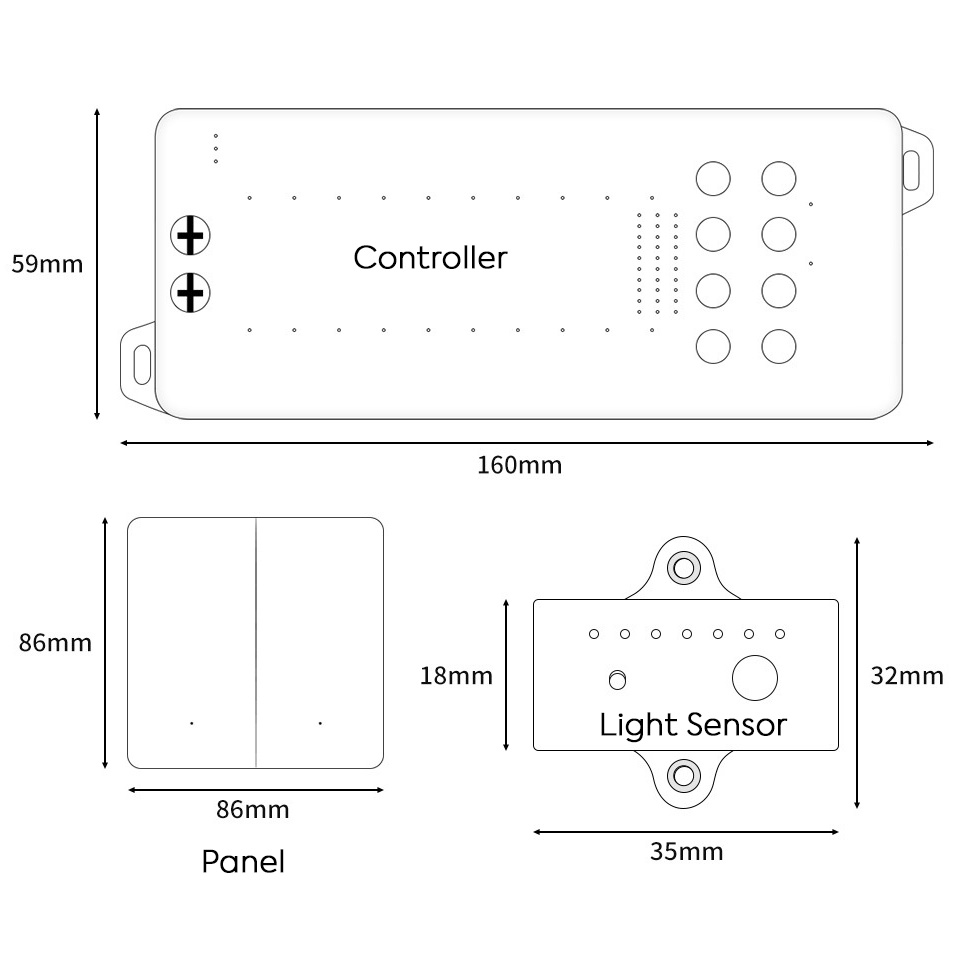

| Controller Dimension: | 160mm*59mm |
| Panel Dimension: | 86*86mm |
| Light Sensor Dimension: | 35*18mm |
| Brightness: | 10%-100% |
| Speed: | 150ms-1200ms |
| Delay Time: | 4s-120s |
| Lighting Mode: | 12 sensing + Always-On |
| IP Rating: | IP20 Indoor |
