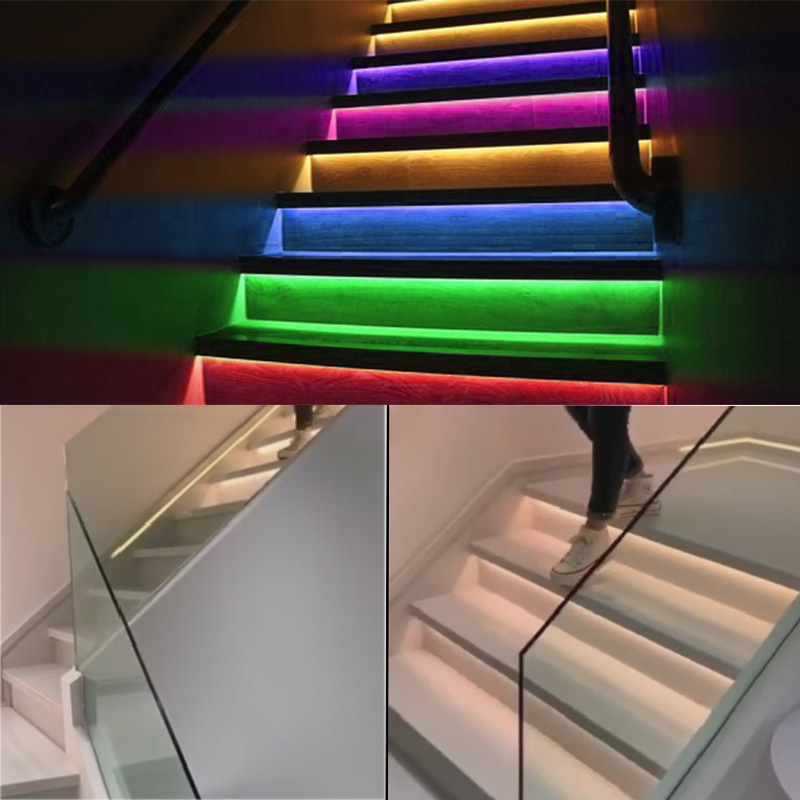

18 Channel Human Infrared Multi-function Sensor SPI Door Steps Stairs Horse Race Controller - Instagram Internet celebrity Tik Tok Popular Light Controller
1. The SPI controller with 18 channels induction interface input, can connect to the many universal sensors on the market, such as PIR human sensor, Capacitive sensing module, vibration sensing module, infrared tube sensing module, proximity sensing module, etc.

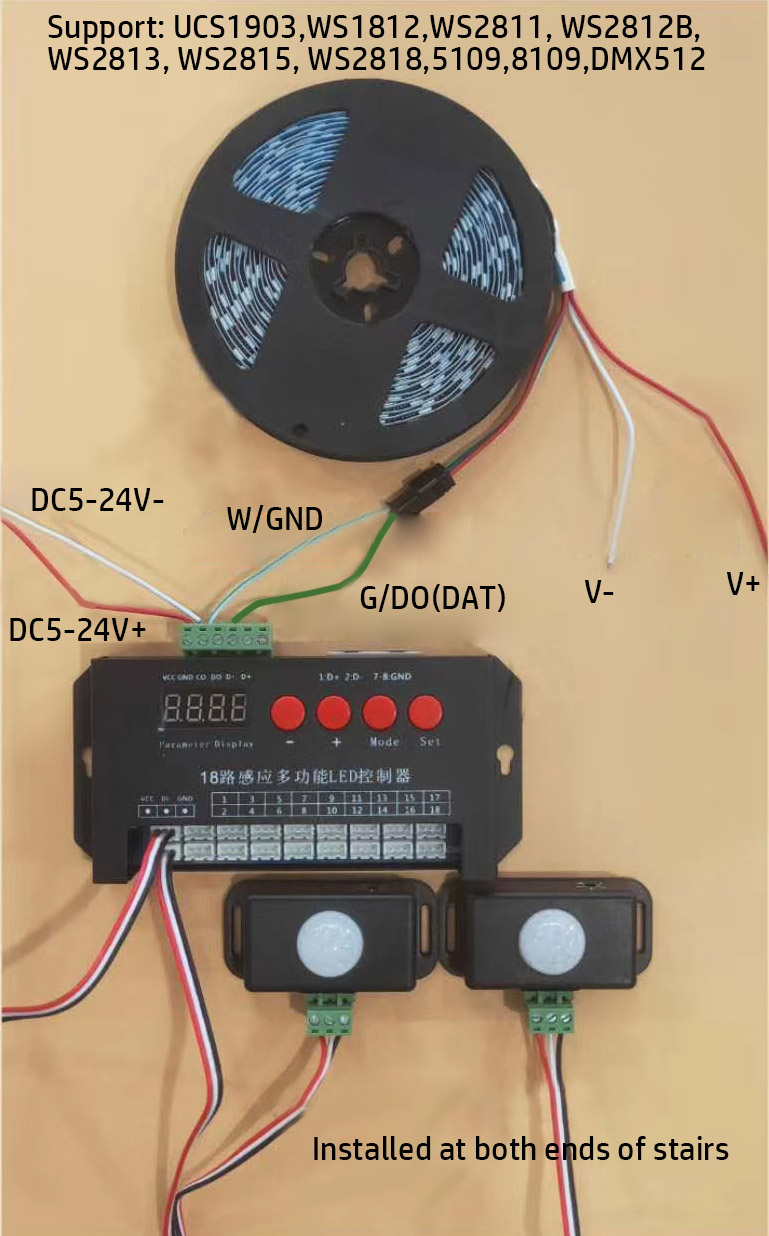

2. It supports UCS1903, TM1812, WS2811, WS2812B, WS2813, WS2815, DMX512 programmable IC, and so on, can connect about 1000 pixels max, able to work with common addressable LED strips, LED string module lights, LED tube lights, LED neon lights and LED wall washer.

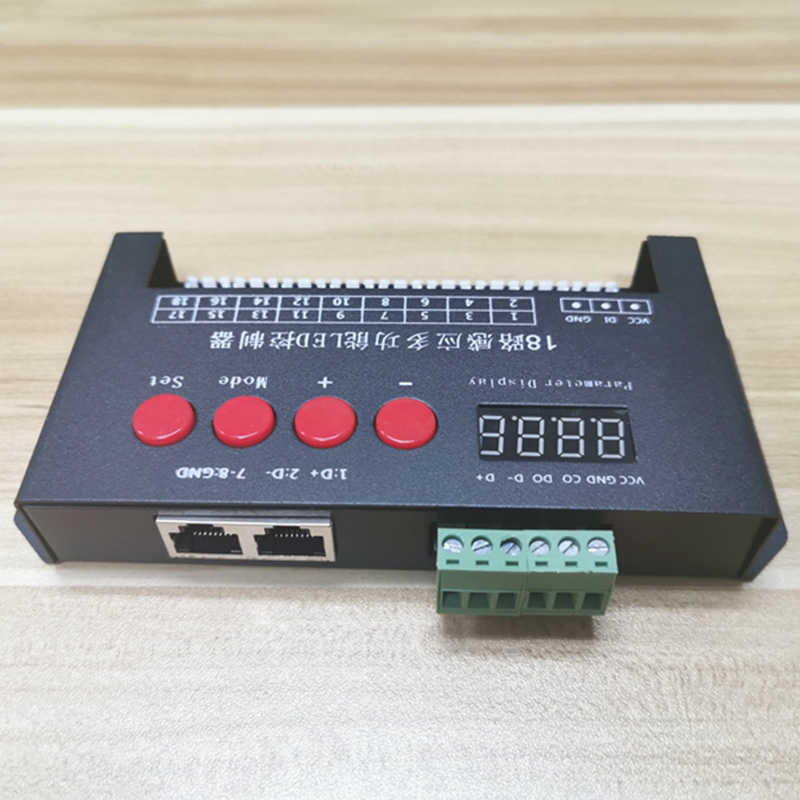

3. The user chooses the functions via press the key on the controller, and the patter number will show on the nixie tube display, easy to use.
4. The controller supports cascade, if one controller is not enough for your project, you can add more and connect them in cascade. They will show you the same effects.
Working temperature: -30℃-85℃;
Working Voltage: DC5V~24V;
Radar distance: 4-5 Meters;
IR distance: 2-3 Meters;
Touch distance: 2 CM;

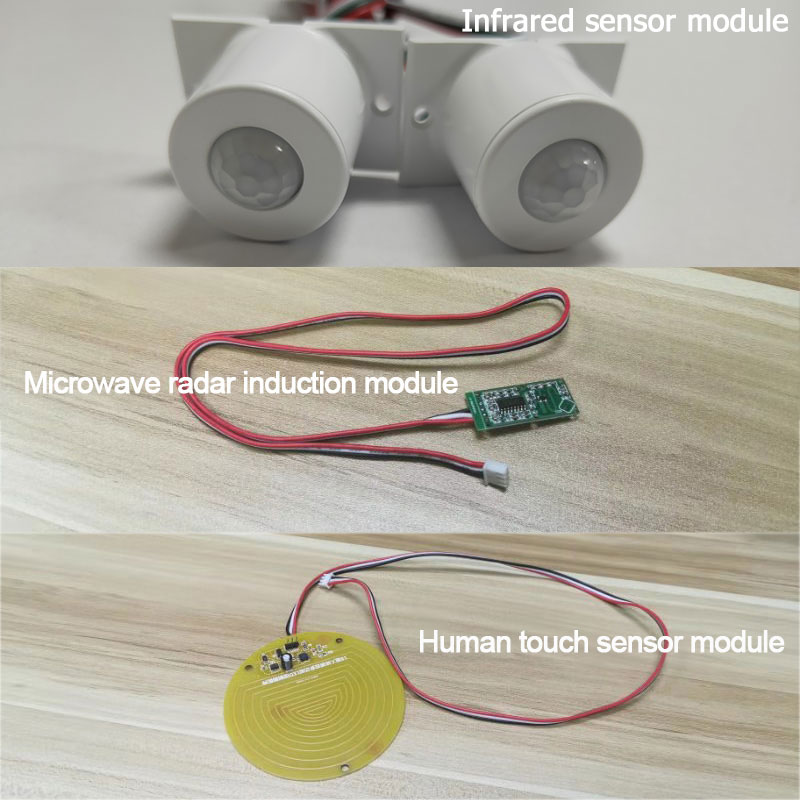

18 Channel Human Infrared Multi-function Sensor has two induction modules ( Infrared sensor module, Microwave radar induction module, Human touch sensor module optional).
1. The control distance of the Infrared sensor module is 2-3 meters, sensitivity adjustable.
2. The control distance of the Microwave radar induction module is 4-5meters.
3. The control distance of the Human touch sensor module is within 2CM.

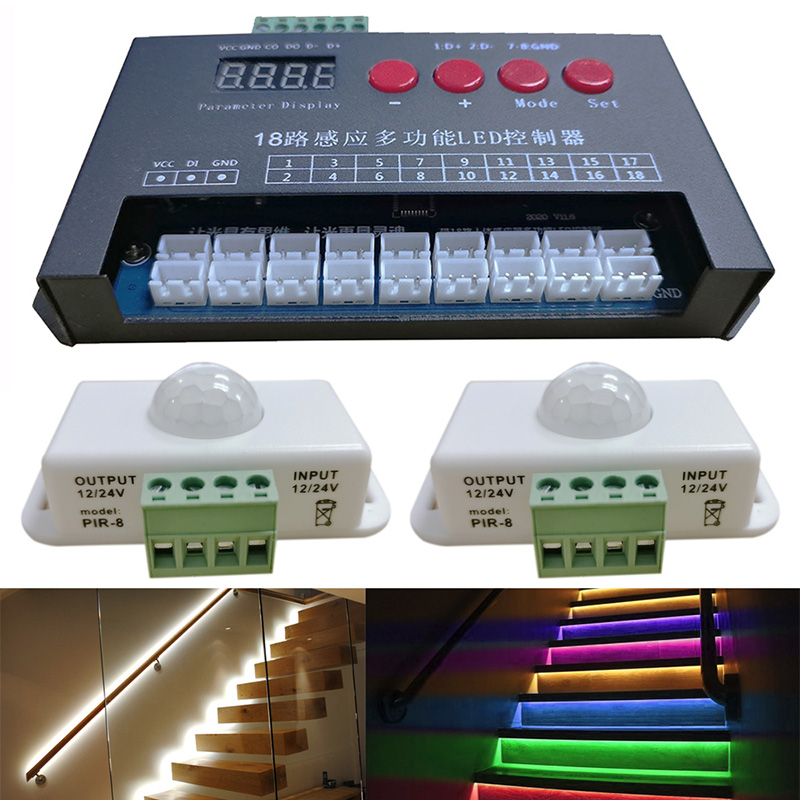

1 x 18 Channel LED controller
2 x induction modules
1 x User manual
